QUICK START GUIDE PN: 005-0801 REV: E08
1/ 20
FUNMAT PRO 410 Quick Start Guide
FUNMAT PRO 410 快速开机向导
Remove the Packaging
拆除包装
STEP 1：Unhook the latch on the wooden box and slowly open the ramp board
步骤 1:解开木箱上的锁扣，缓慢打开斜坡板
STEP 2: Take out the unboxing tool, unscrew the wooden box with an 8mm sleeve, remove all the
plates, the ties, the stretch film
步骤 2:取出开箱工具，并用装有 8mm 套筒扳手，拆除木箱上的螺丝。移除所有的木板，去掉机器上
的固定带，泡沫和包装膜等外包装物
STEP 3: Use a 17mm open-end wrench, separate the 4 fixed supports from the wooden blocks and
remove the 4 blocks below and the coaming under the machine
步骤 3:使用 17mm 的开口扳手，将 4 个固定脚撑与木块分离，取出下方的 4 块木块和机器下面的围
板
STEP 4: slowly move the machine from the base down the ramp board to the ground（At least
two people needed）
步骤 4：慢慢将机器从底座沿斜坡向下移动到平稳地面（至少 2 人）
STEP 5: After moving the printer to the mounting position, rotate the four fixed support so that
they land on the ground to ensure that the printer’s stability
步骤 5：将打印机移动到安装位置后，旋转 4 个固定脚撑，使其着地，确保打印机不会晃动
QUICK START GUIDE PN: 005-0801 REV: E08
2/ 20
QUICK START GUIDE PN: 005-0801 REV: E08
3/ 20
Layout of Printer
机器整体结构
01Smart touch panel/智能触摸屏
02Top cover/机器顶部盖门
03Build plate/打印平台
04Filament chamber/料箱
05Filament shaft/料轴
06Filament chamber door/料箱门
07Liquid cooling unit/液冷系统单元
01
03
04
07
05
06
02
QUICK START GUIDE PN: 005-0801 REV: E08
4/ 20
Prepare the Printer
机器开机前准备
1 Take out the accessory box
取出随机配件
STEP 1：Remove the back door screws with a special printed tool and remove the back door
步骤 1：使用专用工具，移除后门紧固螺丝并拆卸后门
STEP 2：Rotate the z-axis screw clockwise manually to lift the Z-platform about 5cm
步骤 2：手动顺时针旋转 Z 轴丝杆，将打印平台提升约 5cm
STEP 3: Take out the accessory box.
步骤 3：取出随机配件盒
QUICK START GUIDE PN: 005-0801 REV: E08
5/ 20
2 Release extruder and XY modules
解除喷头和 XY 轴固定
STEP 1：Open the top door of the unit.
步骤 1:打开机器前门

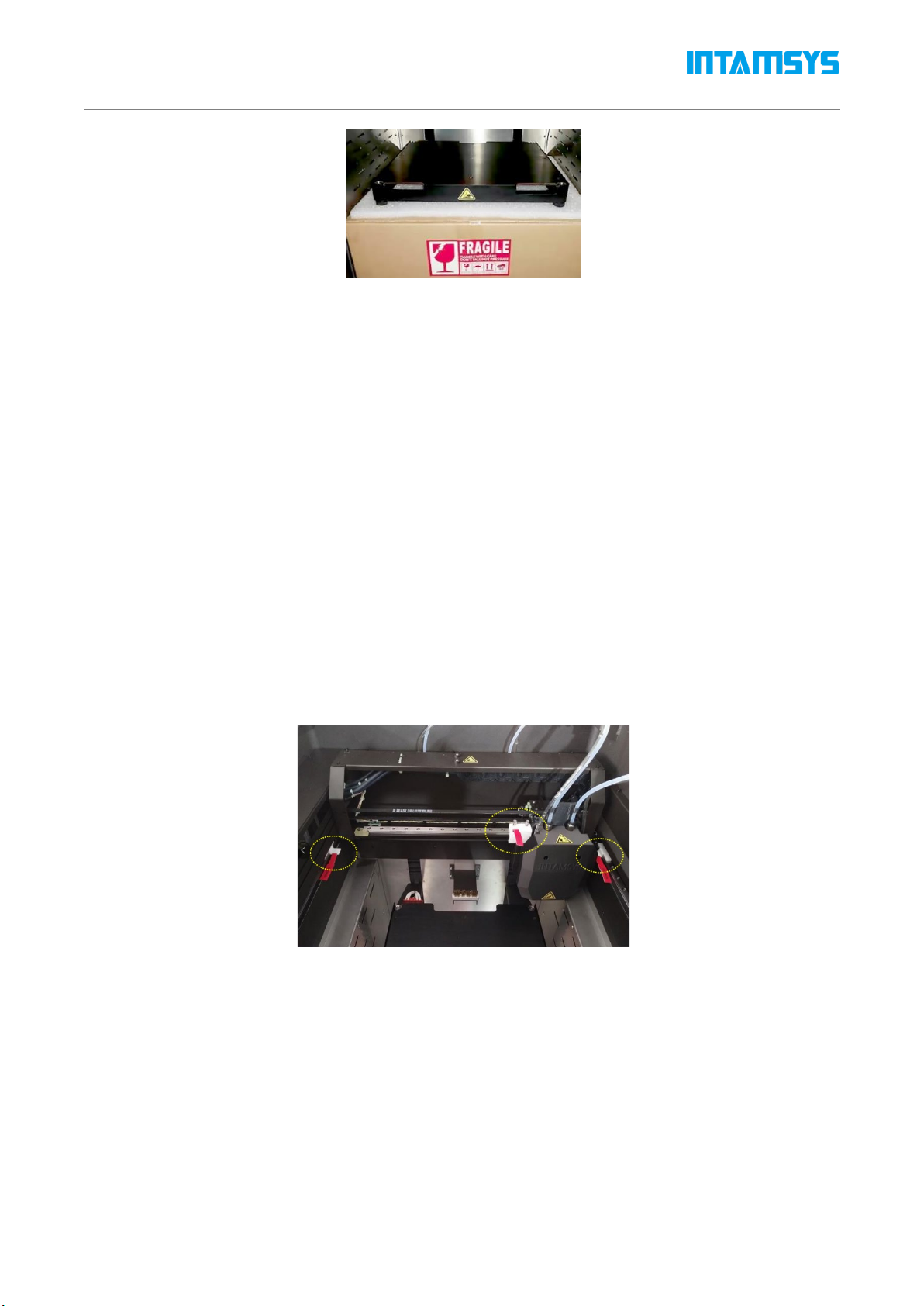

STEP 2：Unscrew and take away the stop block on the extruder linear guide.
步骤 2：旋开并移除喷头上方直线导轨上的限位装置块
STEP 3: Takeaway the stop block on the left linear guide.
步骤 3：移除左侧直线导轨上的限位装置块
STEP 4: Move the extruder to the left and take away the stop block on the right linear guide.
步骤 4：移动喷头至最左侧，移除右侧直线导轨上的限位装置块
STEP 5: Remove the front cover of extruder set using 2.5mmallenkey.
步骤 5：使用 2.5mm 内六角扳手拆卸喷头组前盖
QUICK START GUIDE PN: 005-0801 REV: E08
6/ 20
STEP 6:Cut the tie around the nozzle and remove it, then install the front cover back to the original
place.
步骤 6：剪断喷头上的固定扎带并取下，将喷嘴组前盖装回原处
3 Add coolant into the liquid cooling unit
添加冷却液
STEP 1：Unscrew the cover plate on the back of the printer.
步骤 1:拧开机器背面的盖板
QUICK START GUIDE PN: 005-0801 REV: E08
7/ 20
STEP 2: Take out the end of the tube.
步骤 2：将加注冷却液的管子取出
STEP 3: Take out the funnel from the accessory box and fix it on the end of the tube. Then
feed750~950 ml Automotive Engine Anhydrous Coolant (with color preferred) into the liquid
cooling unit.
步骤 3：从随机配件盒中取出漏斗，固定在加注冷却液的管子末端。然后将 750~950 毫升汽车发动机
无水冷却液(带有颜色)注入液冷系统单元
The cap of tube end must be re-tightened after adding liquid.
The volume of the liquid tank of the chiller is 1000ml, and the liquid level sensor will be triggered
when it is lower than 600ml.
2
3
1
QUICK START GUIDE PN: 005-0801 REV: E08
8/ 20
注：加入液体后，必须重新拧紧水管端盖。水冷系统单元液柜体积为 1000ml，低于 600ml 时会触发
液位传感器
4 Power on
启动机器
1. Check the power voltage of the socket: 220VAC
检查供电电源电压，确保满足220VAC要求
2. Insert one section of the power cord into the machine and one section into the socket prepared
将电源线一端接入机器，另一段插入准备好的电源插座
3. Turn on the switch, press the start button, and the machine enters the operation interface
打开电源开关，按下启动按钮，机器进入操作界面
5 Calibrate the feeding clamper force
调整送料夹紧力
Take the left extruder for example, the right extruder is the same.
以左侧喷头为例，右侧喷头以此类推
STEP 1: Open the top door, press down the button of the one-touch fitting, pull the left filament
tube out at the same time.
步骤 1：打开机器顶部盖门，按下接口端快换接头按钮，将左侧送料管拔出
QUICK START GUIDE PN: 005-0801 REV: E08
9/ 20
STEP 2: Click “System” icon, then press Arrow icon.
步骤 2：点击“系统”图标，然后按箭头图标
STEP 3: Click the icon. The printer will clear the former L-Clamper value and enter the setting
screen.
步骤 3：单击 图标。机器将清除之前预设的左侧喷头夹紧力值，并进入设置界面
STEP 4: Click the “←” icon to let the two gears closer and closer. Pull the calibration bar up
and down after every screen click until the calibration bar was just clamped by the gears and can
be hold the position without your hand. Then, click the "←" button one more time to clamp the bar
tighter. At this time, the drive gear just reach its suitable position. After that, click “Set” to save
the value. The higher the value, the greater the clamping force.
2
1
QUICK START GUIDE PN: 005-0801 REV: E08
10 / 20
步骤 4：单击“←”图标，让两个齿轮逐渐靠近。每次点击屏幕后，上下拉动校准棒，直到该校准棒
刚好被齿轮夹住，此时松开手校准棒也可保持该位置而不会下滑。然后，再一次点击“←”按钮，确
保夹得更紧。此时，传动齿轮刚好到达其合适的位置。然后点击“设置”保存值。值越高，夹紧力越
大。
Pay attention, the value cannot be too large, if it's too large it will be loose again.
注意，这个值不能太大，如果太大，又会变松
6 Install the build plate and junk box
安装打印平台和集料盒
6.1 Install the build plate
安装打印平台
STEP 1: Press the “Home” icon for X, Y, Z.
步骤 1：在“Axis”界面中点击 X、Y、Z 轴的“Home”键
STEP 2: Move the heating bed by pressing “Z↓” with 100mm step to a suitable height.(No more
than 3 times)
2
1
1
2
3
