Infinity Interlude Series Manuel utilisateur

Interlude Series

IL50 L/R

Powered Loudspeaker

Service Manual

Infinity Systems, Inc

250 Crossways Park Dr.

Woodbury, New York 797 REV1 10/2001

IL50

CONTENTS

SPECIFICATIONS …….……………………………………………….3

DETAILED SPECIFICATIONS …………………….…………………4

CONTROLS and CONNECTIONS …………………….….…………6

OPERATION……………………………………..………..…….……..10

BASS OPTIMIZATION SYSTEM……………………….….…………10

MECHANICAL PARTS LIST…………………….……………………12

EXPLODED VIEW ……………………………………….……………13

EXPLODED VIEW OF AMPLIFIER…………………….……………14

SERVICE TIPS……………………………..……………………….…15

TEST SET UP PROCEDURE…………………….…….……………16

IL50 ADJUST BIAS PROCEDURE……………….…………………17

PACKAGING …………………………….………………………….…18

PRINTED CIRCUIT BOARD DIAGRAMS………………..…………19

ELECTRICAL PARTS LIST (120v)…………………….….…………25

INTEGRATED CIRCUIT DIAGRAMS ………………………………31

HI-PASS CROSSOVER SCHEMATIC……………………..……...…….32

IL50 SCHEMATICS…………..………….……………………………33

IL50 L/R

3

Specifications

IL50 L/R Frequency Response: 32Hz - 22,000Hz (±3dB)

Recommended Amplifier Power Range 15-150 watts*

Subwoofer Amplifier Output: 250 watts (In to 8Ωfrom 20 Hz - 100Hz

with no more than 0.1% THD)

Sensitivity: 88dB (2.83V @ 1 meter)

Nominal Impedance: 8Ω

Crossover Frequencies: 150Hz; 2500Hz, 24dB/octave,

Low-Frequency Driver: 10" C.M.M.D., magnetically shielded

Mid-Bass Driver: 6-1/2” C.M.M.D., magnetically shielded

High-Frequency Driver: 1” C.M.M.D., magnetically shielded

Dimensions (H x W x D): 42" x 8-3/4" x 14-1/2"

(1067mm x 222mm x 368mm)

Weight: 60 lb (27kg)

* The maximum recommended amplifier power rating will ensure proper system headroom to allow

for occasional peaks. We do not recommend sustained operation at these maximum power levels.

Detailed Specifications

IL50 L/R

4

IL50 L/R

5

Detailed Specifications (Cont.)

IL50 L/R

6

Controls and Connections (Cont.)

IL50 L/R

7

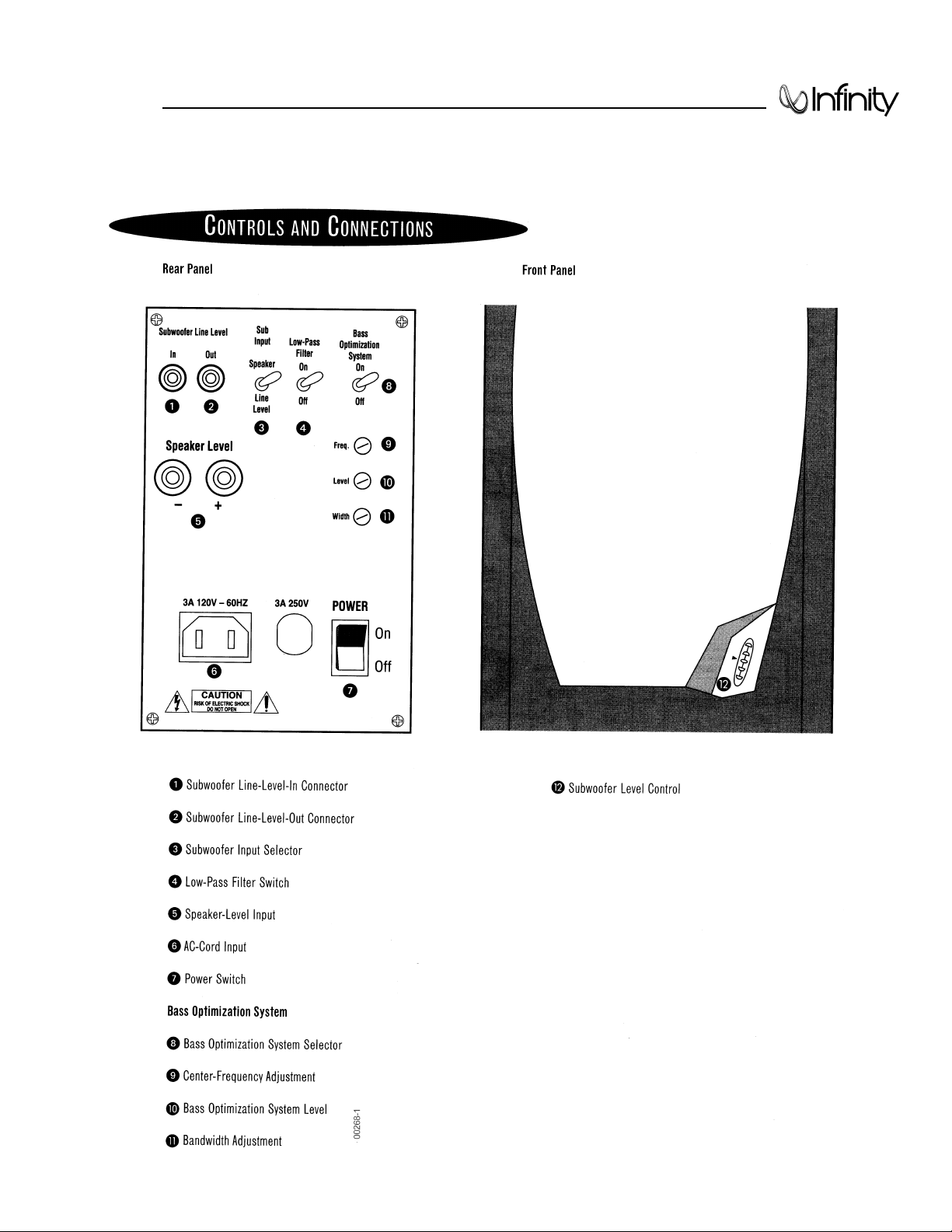

Controls and Connections

IL50 L/R

8

Controls and Connections (Cont.)

IL50 L/R

9

Controls and Connections (Cont.)

IL50 L/R

0

Operation/Bass Optimization S stemTM
