Impex SB 681 Manuel utilisateur

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

SB 681

Retain This

Manual for

Reference

03-22-05

OWNER'S

MANUAL

APEX MULTI PURPOSE

FID BENCH

SB 681

IMPEX INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICES..................................................................... 2

HARDWARE PACK……….....…....................................................................... 3

ASSEMBLY INSTRUCTIONS........................................................................... 4

EXPLODED DIAGRAM.........................................................................………. 8

PARTS LIST…………………………………………………………………………. 9

WARRANTY.................................................................................................… 10

ORDERING PARTS......................................................................................... 10

BEFORE YOU BEGIN

Thank you for selecting the APEX Multi Purpose Bench SB681 by IMPEX

INC. For your safety and benefit, read this manual carefully before using the

machine. As a manufacturer, we are committed to provide you complete

customer satisfaction. If you have any questions, or find there are missing

or damaged parts, we guarantee you complete satisfaction through direct

assistance from our factory. To avoid unnecessary delays, please call our

TOLL-FREE customer service number. Our Customer Service Agents will

provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE

AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ

ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

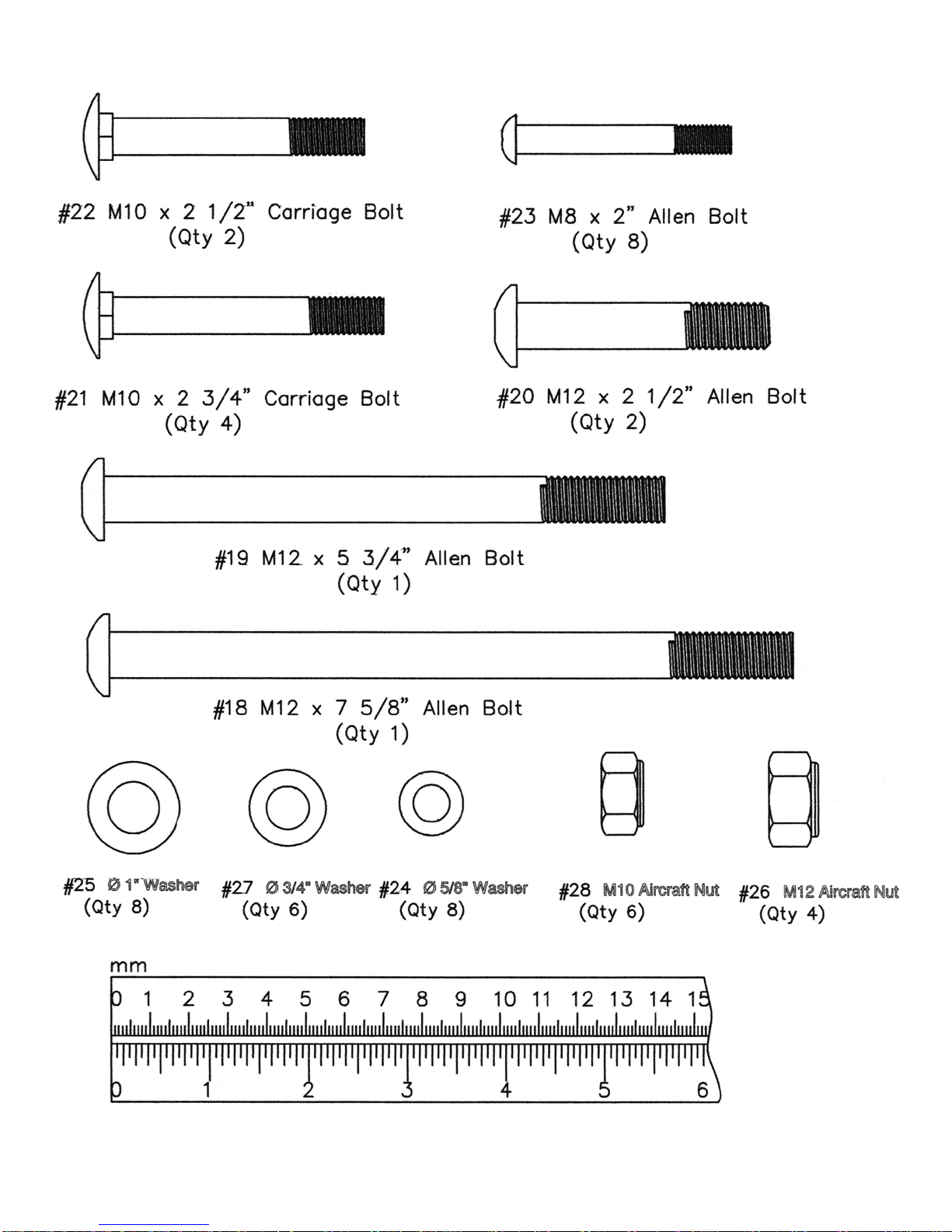

HARDWARE PACK

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen

Wrenches. NOTE: It is strongly recommended this machine be assembled by two or

more people to avoid possible injury.

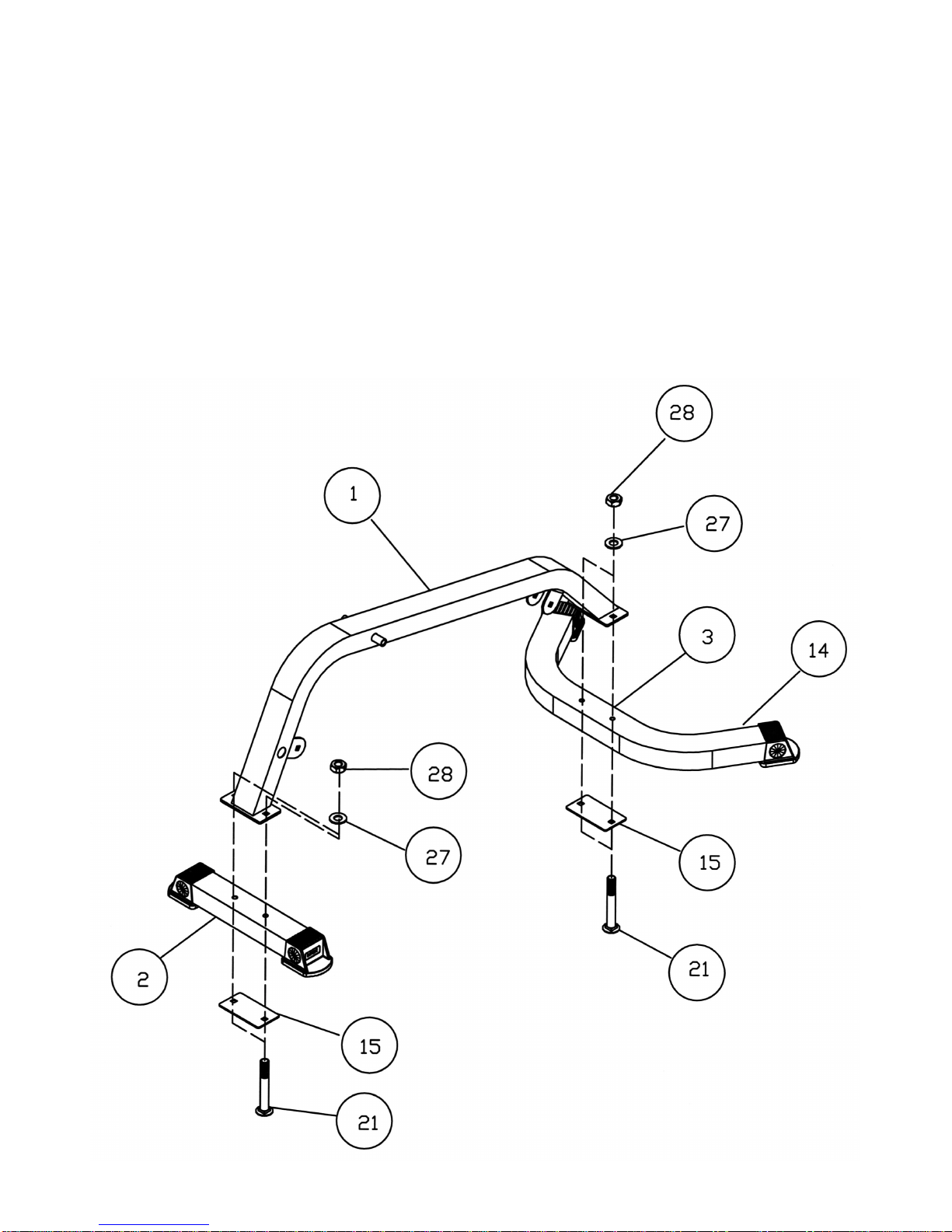

STEP 1 (See Diagram 1)

A.) Attach the Main Frame (#1) to the Front Stabilizer (#2). Secure it with two M10 x 2 ¾”

Carriage Bolts (#21), one Bracket (#15), two ∅¾” Washers (#27), and two M10 Aircraft

Nuts (#28).

B.) Attach the Main Frame (#1) to the Rear Stabilizer (#3). Secure it with two M10 x 2 ¾”

Carriage Bolts (#21), one Bracket (#15), two ∅¾” Washers (#27), and two M10 Aircraft

Nuts (#28).

DIAGRAM 1

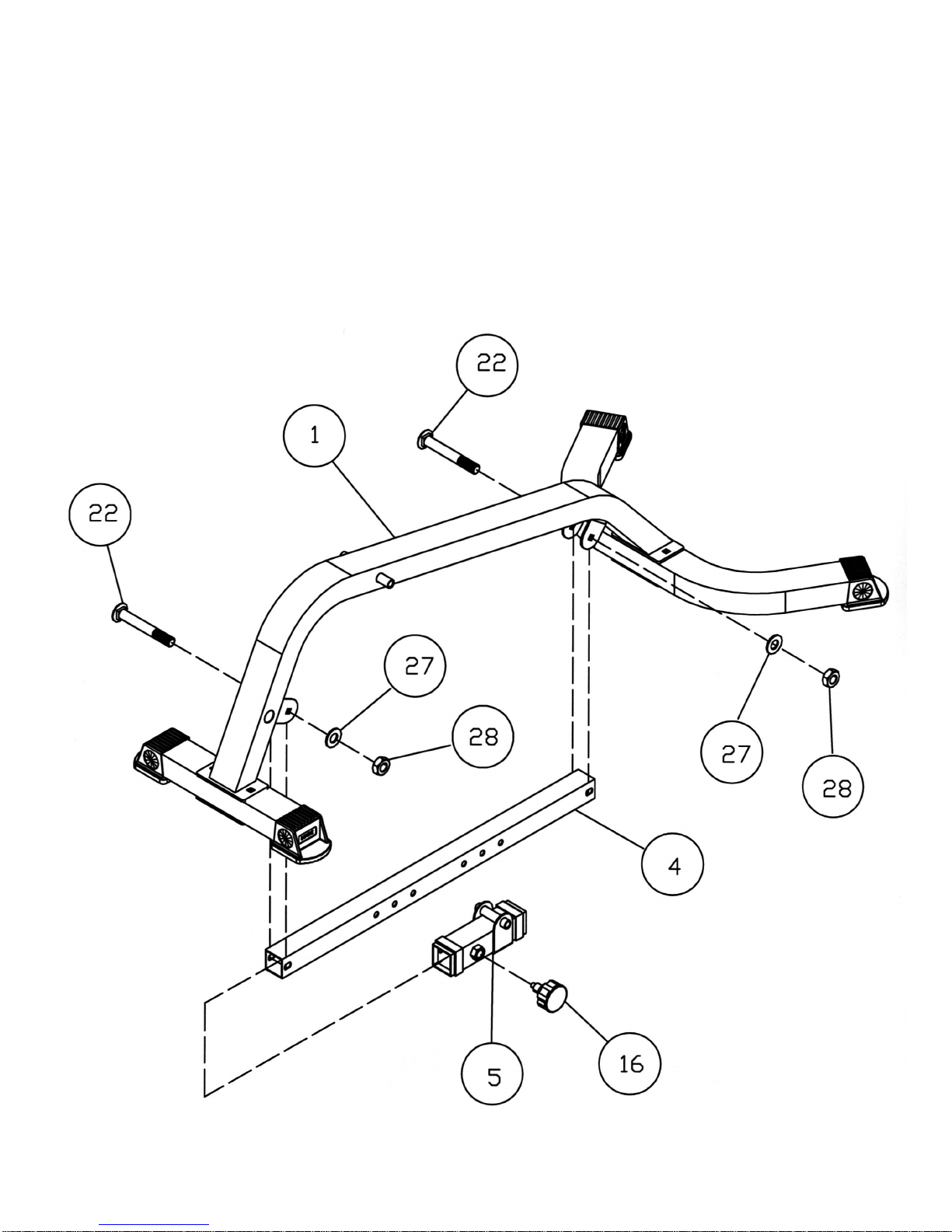

STEP 2 (See Diagram 2)

A.) Slide the Sliding Block (#5) onto the Incline Adjustment Bar (#4).

B.) Attach both ends of Incline Adjustment Bar to the open brackets on the Main Frame

(#1). Secure each end with one M10 x 2 ½” Carriage Bolt (#22), Ø ¾” Washer (#27),

and M10 Aircraft Nut (#28).

C.)Use a Lock Knob (#16) to lock the desired incline position.

DIAGRAM 2

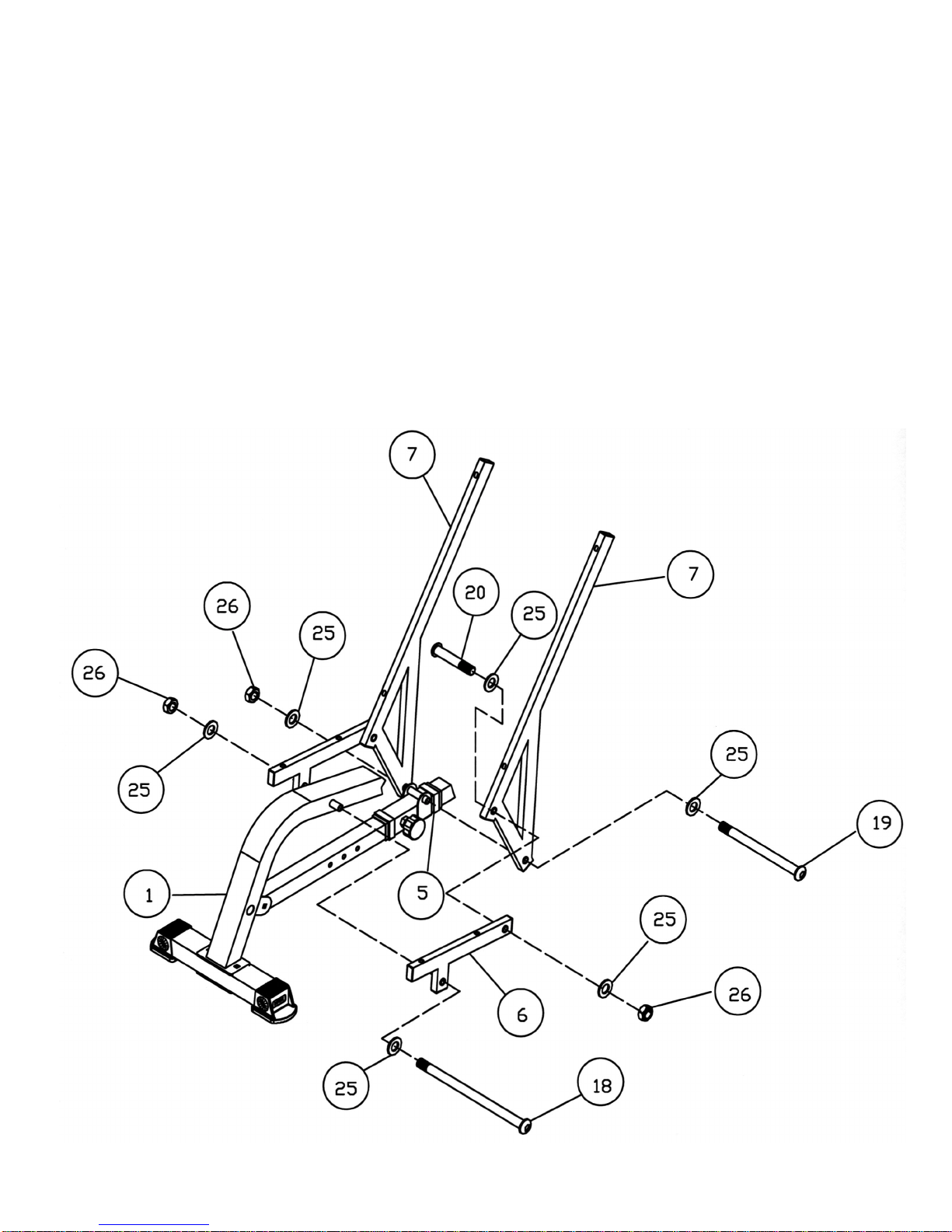

STEP 3 (See Diagram 3)

A.) Attach the lower holes on the Backrest Supports (#7) to the pivot on the Sliding Block

(#5). Secure them with one M12 x 5 ¾” Allen Bolt (#19), two ∅1” Washers (#25), and

one M12 Aircraft Nut (#26).

B.) Attach the Seat Support Frame (#6) to the hole on the Backrest Support (#7). Make

sure the Seat Support Frame is on the outside of the Backrest Support. Align the holes

and secure them with one M12 x 2 ½” Allen Bolt (#20), two Ø 1” Washers (#25), and

one M12 Aircraft Nut (#26). Repeat the same step to install the other side. Note: The

Bolt must be inserted from inside of Backrest Support to the outside of the Seat

Support Frame.

C.)Loosen up the Knob Bolt on the Sliding Track to adjust the position so the front end of

the two Seat Support Frames (#6) can be aligned to the pivot on the Main Base Frame

(#1). Secure them with one M12 x 7 5/8” Allen Bolt (#18), two Ø 1” Washers (#25), and

one M12 Aircraft Nut (#26). DIAGRAM 3

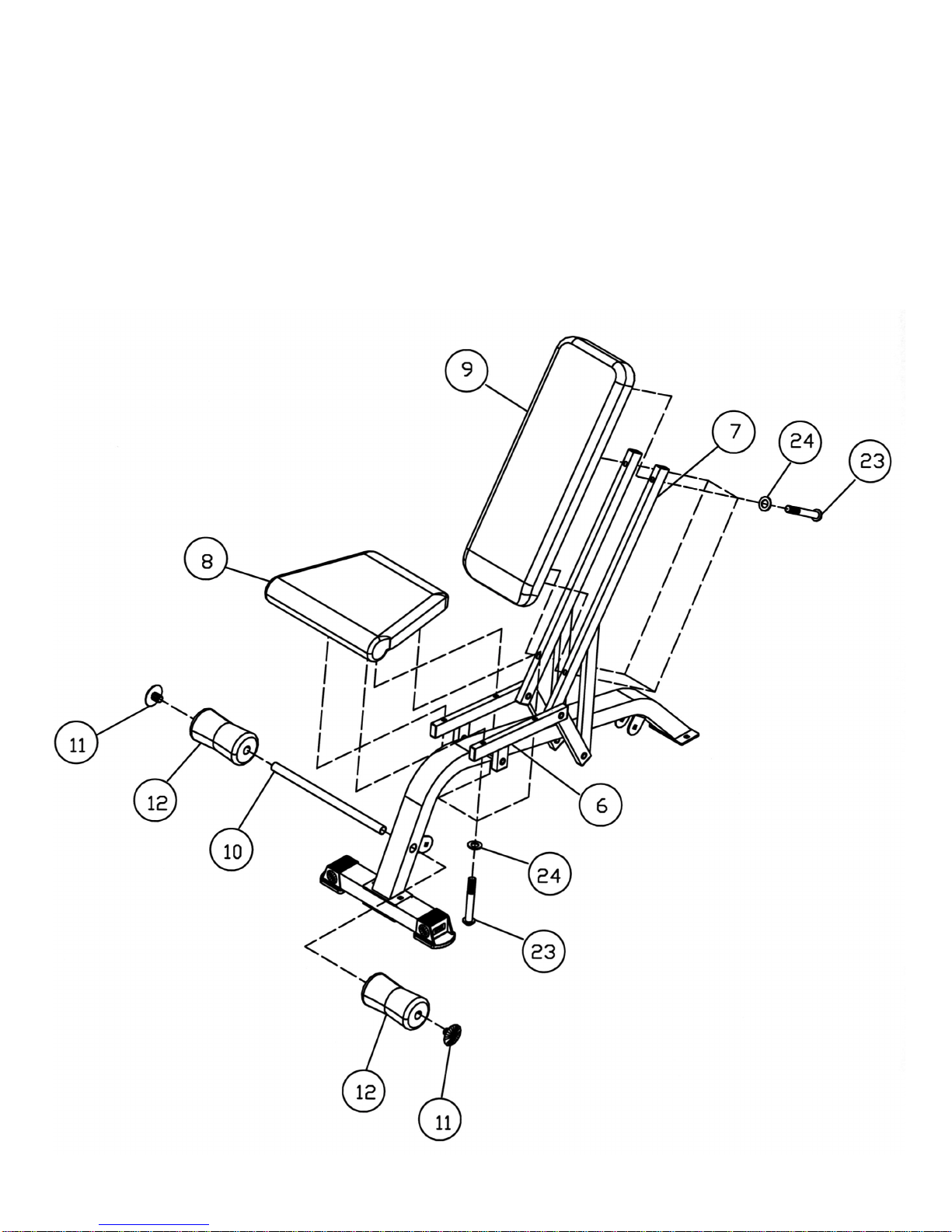

STEP 4 (See Diagram 4)

A.) Insert the Foam Tube (#10) halfway through the hole on the Main Frame (#1).

Push two Foam Rolls (#12) onto the Foam Tube from both ends. Plug the Foam

Roll End Caps (#11) into the ends.

B.) Place the Seat (#8) onto the Seat Support Frames (#6). Secure it with four M8 x 2”

Allen Bolts (#23) and ∅5/8” Washers (#24).

C.)Place the Backrest Board (#9) onto the Backrest Supports (#7). Secure it with four

M8 x 2” Allen Bolts (#23) and ∅5/8” Washers (#24). DIAGRAM 4

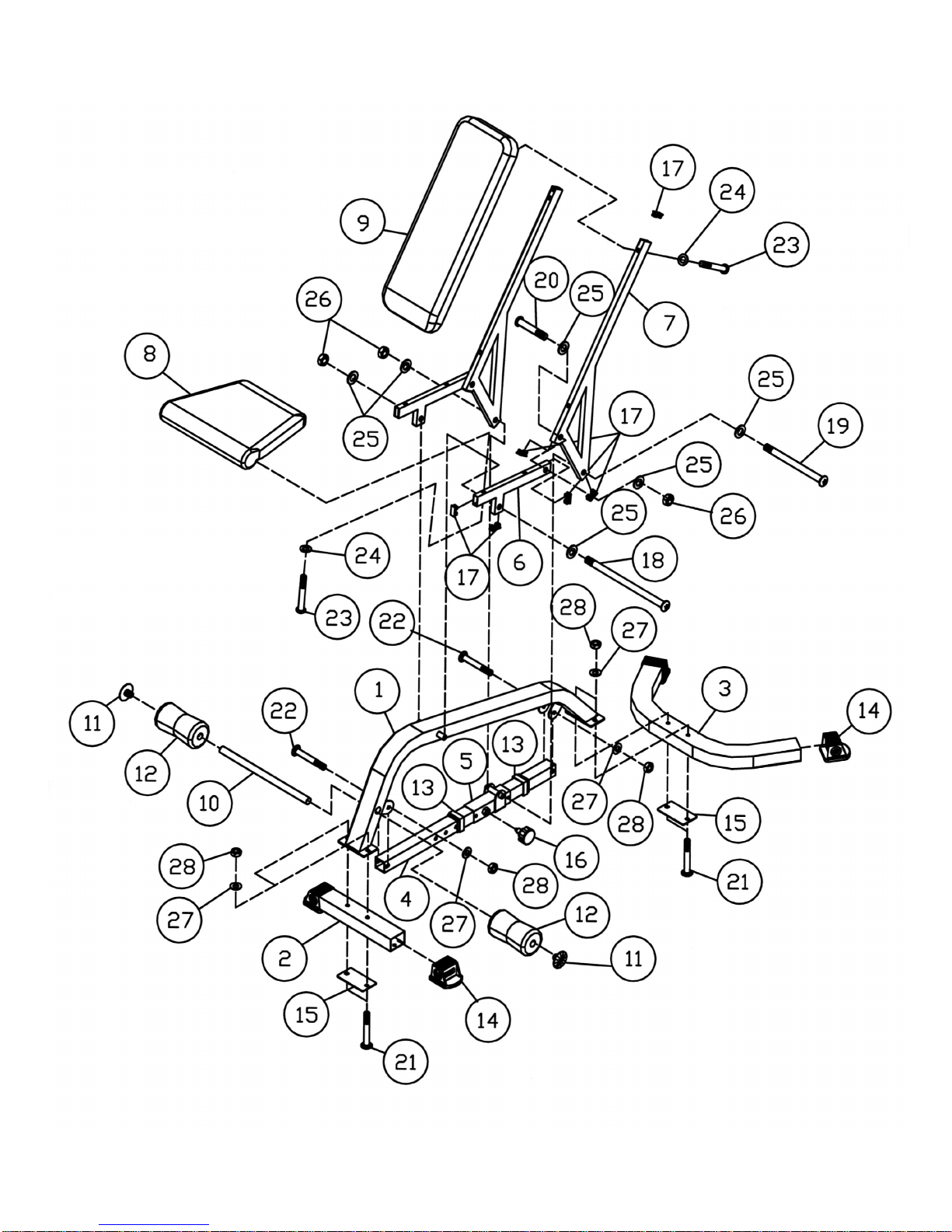

EXPLODED DIAGRAM

PARTS LIST

KEY NO. DESCRIPTION Q’ty

1 Main Frame 1

2 Front Stabilizer 1

3 Rear Stabilizer 1

4 Incline Adjustment Bar 1

5 Sliding Block 1

6 Seat Support Frame 2

7 Backrest Support 2

8 Seat 1

9 Backrest Board 1

10 Foam Tube 1

11 Foam Roll End Cap 2

12 Foam Roll 2

13 Sliding Block Sleeve 2

14 2 ¾” x 2” End Cap 4

15 Bracket 2

16 Lock Knob 1

17 1 5/8” x ¾” End Cap 12

18 M12 x 7 5/8” Allen Bolt 1

19 M12 x 5 ¾” Allen Bolt 1

20 M12 x 2 ½” Allen Bolt 2

21 M10 x 2 ¾” Carriage Bolt 4

22 M10 x 2 ½” Carriage Bolt 2

23 M8 x 2” Allen Bolt 8

24 ∅5/8” Washer 8

25 Ø 1” Washer 8

26 M12 Aircraft Nut 4

27 Ø ¾” Washer 6

28 M10 Aircraft Nut 6

#8 Allen Wrench (Tool) 1

#5 Allen Wrench (Tool) 1
