Impex Olympic Cage Manuel utilisateur

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Hardware Identifier

Assembly Instruction

Parts List

Warranty

Ordering Parts

Model

MP-12.0

Retain This

Manual for

Reference

07-19-06

OWNER'S

MANUAL

MARCY PLATINUM

Olympic Cage

MP-12.0

IMPEX®INC.

14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746

Tel: (800) 999-8899 Fax: (626) 961-9966

www.impex-fitness.com

[email protected]

TABLE OF CONTENTS

BEFORE YOU BEGIN...................................................................................... 1

IMPORTANT SAFETY NOTICES..................................................................... 2

HARDWARE PACK……….....…....................................................................... 4

ASSEMBLY INSTRUCTIONS........................................................................... 8

EXPLODED DIAGRAM.........................................................................………. 20

PARTS LIST…………………………………………………………………………..22

WARRANTY.................................................................................................… 23

ORDERING PARTS......................................................................................... 23

BEFORE YOU BEGIN

Thank you for selecting the MARCY PLATINUM Olympic Cage MP-12.0 by

IMPEX®INC. For your safety and benefit, read this manual carefully before

using the machine. As a manufacturer, we are committed to provide you

complete customer satisfaction. If you have any questions, or find there are

missing or damaged parts, we guarantee you complete satisfaction through

direct assistance from our factory. To avoid unnecessary delays, please call

our TOLL-FREE customer service number. Our Customer Service Agents

will provide immediate assistance to you.

Toll-Free Customer Service Number

1-800-999-8899

Mon. - Fri. 9 a.m. - 5 p.m. PST

www.impex-fitness.com

[email protected]m

IMPORTANT SAFETY NOTICE

PRECAUTIONS

This exercise machine is built for optimum safety. However, certain precautions apply

whenever you operate a piece of exercise equipment. Be sure to read the entire manual

before you assemble or operate your machine. In particular, note the following safety

precautions:

1. Keep children and pets away from the machine at all times. DO NOT

leave children unattended in the same room with the machine.

2. Only one person at a time should use the machine.

3. If the user experiences dizziness, nausea, chest pain, or any other abnormal

symptoms, STOP the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.

4. Position the machine on a clear, leveled surface. DO NOT use the machine

near water or outdoors.

5. Keep hands away from all moving parts.

6. Always wear appropriate workout clothing when exercising. DO NOT wear

robes or other clothing that could become caught in the machine. Running

or aerobic shoes are also required when using the machine.

7. Use the machine only for its intended use as described in this manual. DO

NOT use attachments not recommended by the manufacturer.

8. Do not place any sharp object around the machine.

9. Disabled person should not use the machine without a qualified person or

physician in attendance.

10. Before using the machine to exercise, always do stretching exercises to

properly warm up.

11. Never operate the machine if the machine is not functioning properly.

12. A spotter is recommended during exercise.

CARE AND MAINTENANCE

1. Lubricate moving parts with WD-40 or light oil periodically.

2. Inspect and tighten all parts before using the machine.

3. The machine can be cleaned using a damp cloth and mild non-abrasive detergent.

DO NOT use solvents.

4. Maximum user’s weight: 300 lbs.

5. Maximum weights on the rack: 600 lbs.

6. Maximum weights on the lat bar: 200 lbs.

WARNING: BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR

PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE

AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL

INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC.

ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY

DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.

SAVE THESE INSTRUCTIONS.

WARNING LABEL REPLACEMENT

The warning labels shown here have been placed on the Rear Floor Stabilizer, Rear Stabilizer, and Upper Frame.

If the labels are missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the

labels in the location shown. 3

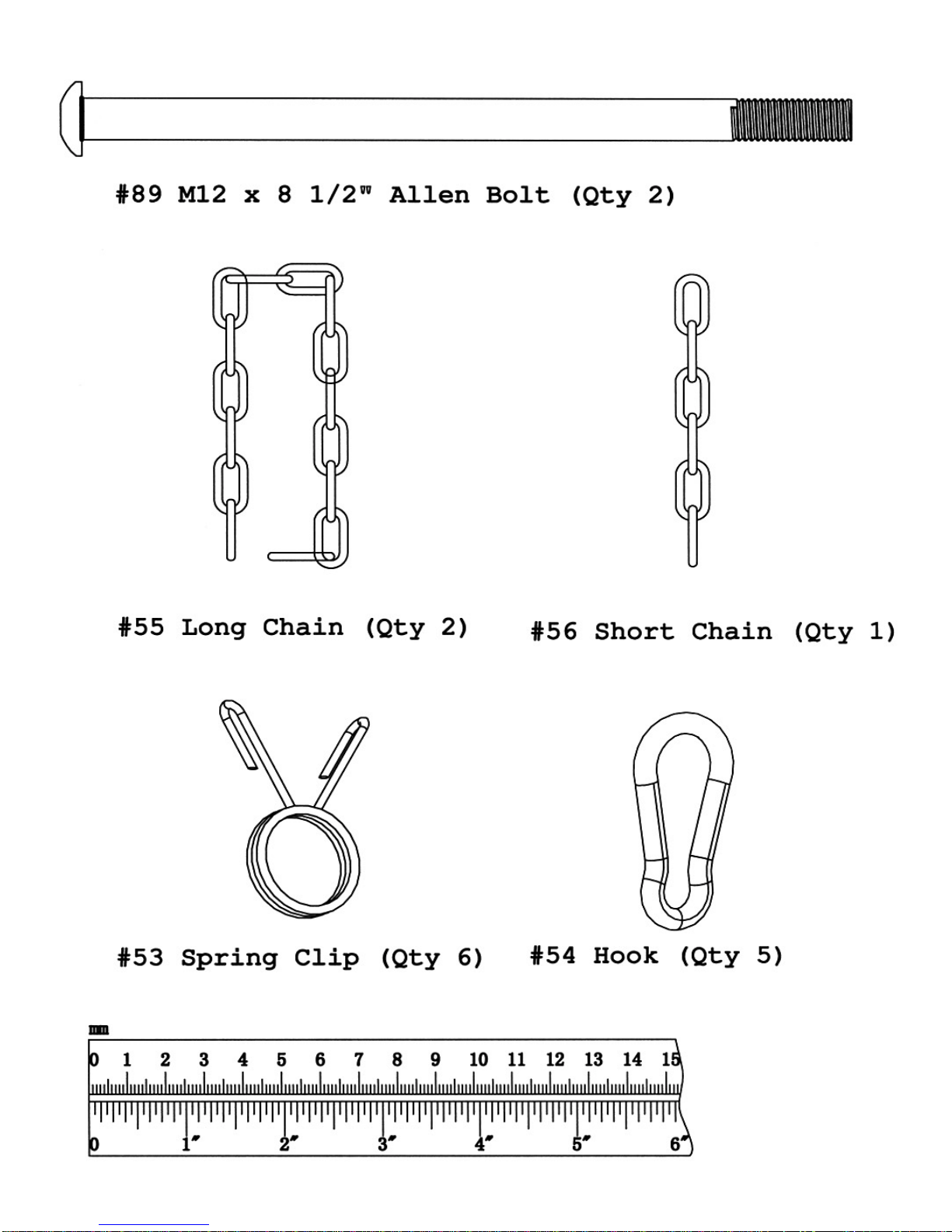

HARDWARE PACK

ASSEMBLY INSTRUCTION

Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen

Wrenches

NOTE: It is strongly recommended this machine be assembled by two or more people

to avoid possible injury.

STEP 1 (See Diagram 1)

A.) Attach the Main Frame (#32) to the Rear Floor Stabilizer (#33). Secure it with two M10 x 3

½” Allen Bolts (#90), one 2 ¾” x 2” Bracket (#39), and two ∅¾” Washers (#80).

B.) Thread a T-shaped Lock Pin (#42) into the bracket on the Main Frame.

C.) Attach the Front Support (#34) to the Main Frame. Secure it with two M10 x 2 ¾” Carriage

Bolts (#85), one 4 3/8” x 2 ¾” Bracket (#35), two ∅¾” Washers (#80), and two M10

Aircraft Nuts (#82).

D.) Thread a T-shaped Lock Pin (#42) into the nut on the Front Support. DIAGRAM 1

STEP 2 (See Diagram 2)

A.) Attach the Seat Bracket (#36) to the pivot on the Main Frame (#32). Attach the two

Backrest Supports (#38) to the Seat Bracket. Align the holes and secure them together

with one M12 x 8 ½” Allen Bolt (#89), two Ø 1” Washers (#81), and one M12 Aircraft Nut

(#83). Insert the Seat Bracket into the open slot on the Main Frame and use the T-shaped

Lock Pin to secure at desired height.

B.) Attach the Incline Support (#37) to the middle side-holes on the Backrest Supports (#38).

Secure it with one M12 x 8 ½” Allen Bolt (#89), two Ø 1” Washers (#81), and one M12

Aircraft Nut (#83). Place the other end of Incline Support to selected slot on the Main

Frame to obtain desired incline. Do not over tighten the Nut and Bolt. Make sure the

Backrest Board and Incline Support are able to swivel.

C.)Insert the Foam Tube Assembly (#40) into the top opening on the Front Support (#34).

Secure it with the T-shaped Lock Pin (#42) at desired height.

D.)Insert the Foam Tube (#41) halfway through the hole on the Foam Tube Assembly. Push

two Foam Rolls (#51) onto the Foam Tube from both ends. Plug two Foam Roll End Caps

(#66) into the ends.

DIAGRAM 2
