Digital Housing
Supplemental Instructions
6243.70 Canon Elph 170, IX S 170
Thank you for your purchase of Ikelite equipment. Please read the
“Instruction Manual” and “Supplemental Instructions” completely before
attempting to operate or dive with this product.
Housing Specifications
Controls ............................All camera functions except (Help) button
Width ................................5.9 in (150 mm) including controls
Height ..............................4.5 in (114 mm) including controls
Depth ................................4.2 in (107 mm) including controls
Weight ..............................1.3 lb (5.9 kg)
Buoyancy..........................Slightly positive in freshwater
Depth Rating ....................200 ft (60 m)
Built-in Flash ....................Yes
Strobe Connection............Slave or Fiber ptic
Main -Ring ....................0132.45
Port uter Diameter ........3.0 in (76 mm)
Use 46mm Lenses............No
Use 67mm Lenses............Yes (moderate vignetting present with W/A lenses)
Use Bayonet Lenses ........No
2
Supplied Accessories
- 0200 Vinyl Port Cover
- 0321.10 Safety Lanyard
- Flash Diffuser
- Flash Deflector
- 0184.1 Silicone Lubricant
- Extra Control Tips and Sleeves
ULTRA
compact
Made in USA
4
7
65
3
1
2
8

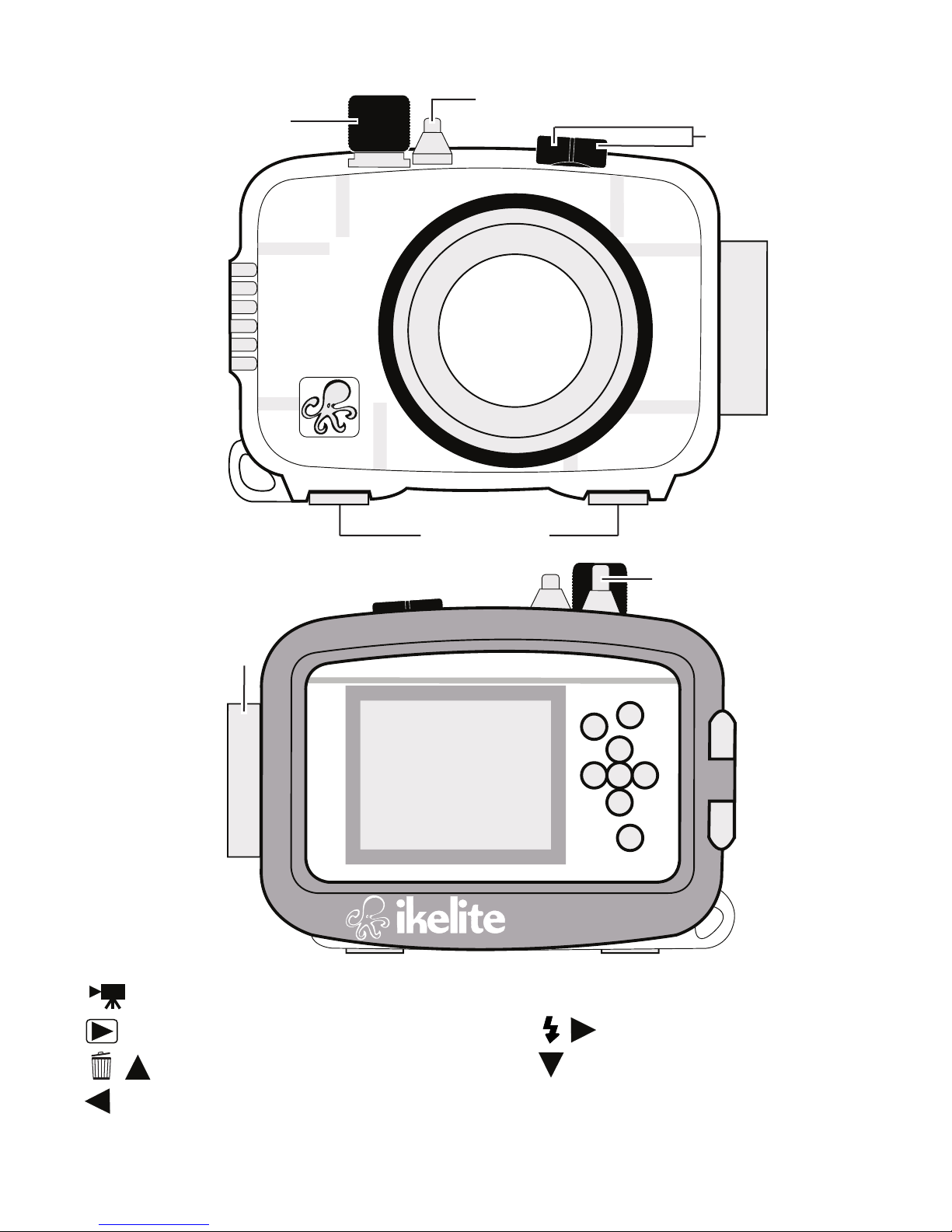

Parts of the Housing
Back View
Power Button
1. Movie Button
2. Playback Button
3. Auto/Single Erase/UP Button
4. ECO Button
Latch
5. FUNC./SET Button
6. Flash / Right Button
7. DISP. Display / Down Button
8. MEN Button
Zoom Lever
Front View Lens Port
Shutter Button
3
Tray Mounts
Fiber Optic Ports
4
Initial Camera Settings (before placing camera in housing)
- Insert a fully charged battery. Due to the power required to operate the
camera and LCD screen, start each dive with a fully charged camera
battery.
- Set Flash to “ n Flash always fires.”
- In F NC./SET:
Set Shooting Mode to “P” Program.
Set IS to “200.”
Set White Balance to Auto “AWB.” For best results, set to Custom “ ”
and reset for each working depth.
Set Light Metering to “ Center Weighted Avg.”
Set Movie Quality to “HD.”
Set Image Recording Size to “L” 20M.
Set Drive Mode to Single Shooting.
Set Focus Range to “Normal” or “ Macro” for close-up shots.
- In MEN Shooting Settings:
Set AF Frame to “Center”
Set Digital Zoom, AF-Point Zoom and Servo AF to “ ff.”
Set Continuous AF to “ n.” A strobe focusing light is recommended to
assist AF underwater.
Set Lamp Setting and Red-Eye Corr. to “ ff.”
Set Review Image after shooting to “8 Seconds.”
Set Blink Detection and Grid Lines to “ ff.” Set IS Mode to “Continuous.”
- In MEN Camera Settings:
Set Date/Time and Time Zone.
In Power Saving, set Auto Power Down to “ ff”; Display ff to “3 min.”
Insert and Format a memory card.
Notes: Enable Macro mode when shooting close-up subjects. If
overexposure occurs, back away from the subject and zoom in, and/or
use “-” exposure compensation.
Camera functions not mentioned should be set to user’s desired setting.
5
W-20 and W-30 Wide-Angle Conversion Lenses
The front of the lens port accepts the Ikelite 6420 W-20, 6430 W-30, and
other 67mm threaded wide angle or macro lenses without the need for
an adapter. An external wide angle conversion lens increases angle of
coverage so you can get closer to the subject while still fitting everything
in. Moderate vignetting will likely occur at widest angle camera lens
setting with these lenses. Zoom in to eliminate, or crop the image in
post processing.
Bayonet mount lenses cannot be used with this housing.

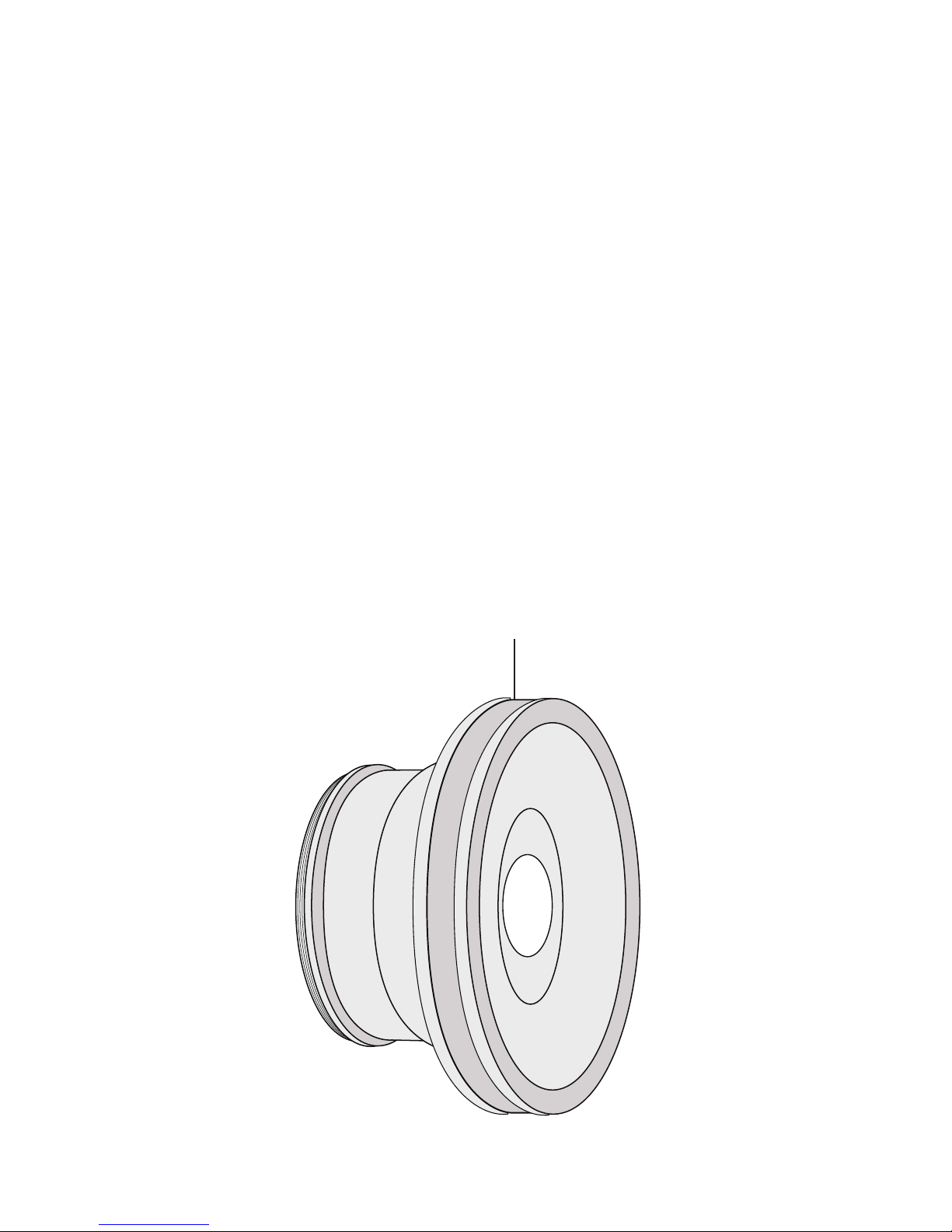

External Accessory Lenses
Ikelite 6430 W-30 Conversion Lens
Please visit ikelite.com for additional information.
6
AF35 Strobe Package 4035
The AutoFlash AF35 kit is a great compliment, and an effortless,
affordable way to add a flash to your new Ikelite point and shoot camera
system. Everything you need to get started is in the box. Just attach it to
the bottom of your housing and start taking pictures!
The AF35 Strobe Package is available to support your housing along
with a full range of accessories. Please visit ikelite.com to see the most
current information about recommended accessories for your housing.
ikelite
35
AF
ikelite
AUTOFLASH
Limited Warranty
This Ikelite product is warranted against any manufacturing defects for a
period of one (1) year from the original date of purchase. Defective
products should be returned to Ikelite postage paid. Ikelite will, at its sole
discretion, repair or replace such products, and will return to customer
postage paid. All other claims of any nature are not covered. Except as
mentioned above, no other warranty expressed or implied applies to this
Ikelite product.
7
Customer Support
Please read the troubleshooting section of the “Instruction Manual”
before contacting Ikelite.
6243.70_ Canon_Elph_170_1-0315
Ikelite nderwater Systems
50 West 33rd Street
Indianapolis, IN 46208 SA
ikelite.com
© 2015 Ikelite Underwater Systems
