Ikan!EC1!Beholder!Gimbal!Calibration!Guide!v1!

Although!all!gimbals!are!calibrated!before!being!shipped,!the!accelerometer!and!gyroscope!inside!the!gimbals!

are!temperature!sensitive!and!may!require!recalibration!to!local!operating!conditions.!!Should!you!find!that!

your!gimbal!is!tilting!or!drifting,!please!follow!the!steps!below!to!recalibrate!your!gimbal.!!!

The!following!items!are!required!to!properly!calibrate!your!Gimbal:!

a. Ikan!EC1!Gimbal!–!fully!powered!

b. Camera!–!4.5!pounds!max!including!lens!

c. Screwdriver!–!flat!head!

d. Computer!–!Windows!or!MacOS!

e. Cable!–!USB!to!mini-UBS!!

!*Warning:!gimbals!can!be!permanently!damaged!if!other!settings!not!covered!in!this!guide!are!changed.!*!

1.0!Camera!installation!and!Gimbal!Balancing!

Items!Needed:!

-Camera!–!4.5!pounds!max!including!lens!

-Gimbal!–!EC1!

-Screwdriver!–!flat!head!

The!gimbal!cannot!be!properly!calibrated!if!it!is!not!balanced!with!a!camera!installed.!!To!balance!your!gimbal,!follow!the!

steps!that!are!outlined!below.!!!

Gimbal!balancing!steps:!

Before!installing!the!camera!and!adjusting!the!balance,!remove!the!camera!lens!cover,!attach!the!lens!hood,!and!insert!

a!memory!card!and!camera!batteries,!as!well!as!any!other!accessories.!!The!camera!should!be!fully!ready!to!shoot.!!

STEP!1:!Mount!the!camera!quick!release!!

•!Remove!the!quick!release!plate!from!the!gimbal.!

•!Attach!the!quick!release!plate!to!the!camera!(Fig.!4);!be!careful!not!to!twist!it!too!tight!at!this!point.!

Phone:!(713)!272-8822!

Fax:!(713)!995-4994!

11500!S!Sam!Houston!Pkwy!W!

Houston,!TX!77031!

•!Make!sure!the!quick!release!plate!direction!is!facing!forward!toward!the!lens.!

! !

Phone:!(713)!272-8822!

Fax:!(713)!995-4994!

11500!S!Sam!Houston!Pkwy!W!

Houston,!TX!77031!

STEP!2:!Install!the!camera!on!gimbal!base!!

•!Install!the!camera!with!quick!release!mounted!into!the!Beholder!EC1!bottom!mount!base!(Fig.!5).!

•!Slightly!adjust!the!position!of!the!camera!into!the!base!until!you!find!a!horizontal!balance.!

•!Shift!the!camera!as!close!to!the!pitch!motor!as!possible.!Use!the!base!plate!positioning!if!needed.!

•!Tighten!the!thumb!screws.!

•!Use!a!screwdriver!to!tighten!the!1/4"-20!quick!release!screw.!

! !

Phone:!(713)!272-8822!

Fax:!(713)!995-4994!

11500!S!Sam!Houston!Pkwy!W!

Houston,!TX!77031!

STEP!3:!Adjust!the!gimbal!roll!–!left!and!right!balance!!

•!Release!the!roll!thumb!M4!screw!(Fig.!6).!

•!Slide!the!roll!arm!left!or!right!until!the!camera!finds!a!balance!position!and!doesn’t!lean!left!or!right.!

•!In!case!more!space!is!needed!on!either!side,!then!go!back!to!step!2.!!

! !

Phone:!(713)!272-8822!

Fax:!(713)!995-4994!

11500!S!Sam!Houston!Pkwy!W!

Houston,!TX!77031!

STEP!4:!!Adjust!the!gimbal!pitch!-!up!and!down!balance!!

•!Loosen!the!camera!plate!M4!thumb!screw!to!adjust!the!pitch!level!(M4!thumb!screw!–!in!Fig.!7)!

•!Move!the!camera!plate!arm!up!and!down,!until!the!camera!stays!in!place!at!any!lens!angle.!

•!Tighten!the!thumb!screws.!!

! !

Phone:!(713)!272-8822!

Fax:!(713)!995-4994!

11500!S!Sam!Houston!Pkwy!W!

Houston,!TX!77031!

STEP!5:!Adjust!the!gimbal!pan!–!forward!and!backward!balance!

•!Loosen!the!pan!motor!left!thumb!screw!(Fig.!8).!

•!Tilt!the!gimbal!handle!45!degrees!forward.!

•!Move!the!pan!arm!to!the!left!side!or!to!the!right!side!at!90!degrees!and!observe!the!direction!it!tends!to!move!when!

released.!

•!If!the!pan!arm!tends!to!go!up/backward,!then!the!gimbal!is!front!heavy:!move!the!pan!arm!back!slightly!and!repeat!the!

side!test.!

•!If!the!pan!arm!tends!to!move!down/forward,!it!means!the!gimbal!is!back!heavy:!move!the!pan!arm!slightly!forward!and!

repeat!the!side!test.!

•!When!in!balance,!the!pan!arm!should!stay!at!any!position!around!the!handle!when!the!handle!is!tilted!forward.!

•!Tighten!the!thumb!screws.!

Additional!Balance!Related!Information:!

In-depth!instructions!on!how!to!balance!your!gimbal!are!available!in!this!video:!

https://www.youtube.com/watch?v=WJkMEaLFf3A&t=1s!

! !

Phone:!(713)!272-8822!

Fax:!(713)!995-4994!

11500!S!Sam!Houston!Pkwy!W!

Houston,!TX!77031!

2.0!Ikan!EC1!Gimbal!Calibration!

Basic!on-board!Calibration:!

Before!attempting!advanced!recalibrating!with!the!PC!software,!balance!your!gimbal!using!the!on-board!

calibration!features.!

Basic!Calibration:!

Step!1:!!

• Power!on!gimbal!

• Place!on!flat!surface!

• Hold!the!“MODE”!button!for!6!seconds!

This!will!activate!the!gimbal’s!built-in!basic!calibration!that!will!fix!most!tilting!problems.!!

Step!2:!

• Attempt!to!operate!gimbal!normally!

!If!you!are!still!having!problems!after!the!basic!calibration!please!follow!the!advance!calibration!steps!

below.!

Advanced!Calibration:!!

Items!Needed:!

-Camera!–!4.5!pounds!max!including!lens!

-Gimbal!–!EC1!

-PC!(Mac!or!Windows)!

-Cable!–!USB!to!mini-USB!

Do!not!plug!your!gimbal!into!your!computer!until!you!download!and!install!the!drivers!in!step!two.!

Please!make!sure!the!gimbal!is!balanced!with!a!camera!before!performing!the!calibration!operation.!

1. Download!and!unzip!the!SimpleBGC!software:!!

https://www.basecame!!lectronics.com/files/SimpleBGC_GUI_2_60b4.zip!

Do!not!plug!your!gimbal!into!your!computer!until!you!download!and!install!the!drivers!in!step!two.!!!

Phone:!(713)!272-8822!

Fax:!(713)!995-4994!

11500!S!Sam!Houston!Pkwy!W!

Houston,!TX!77031!

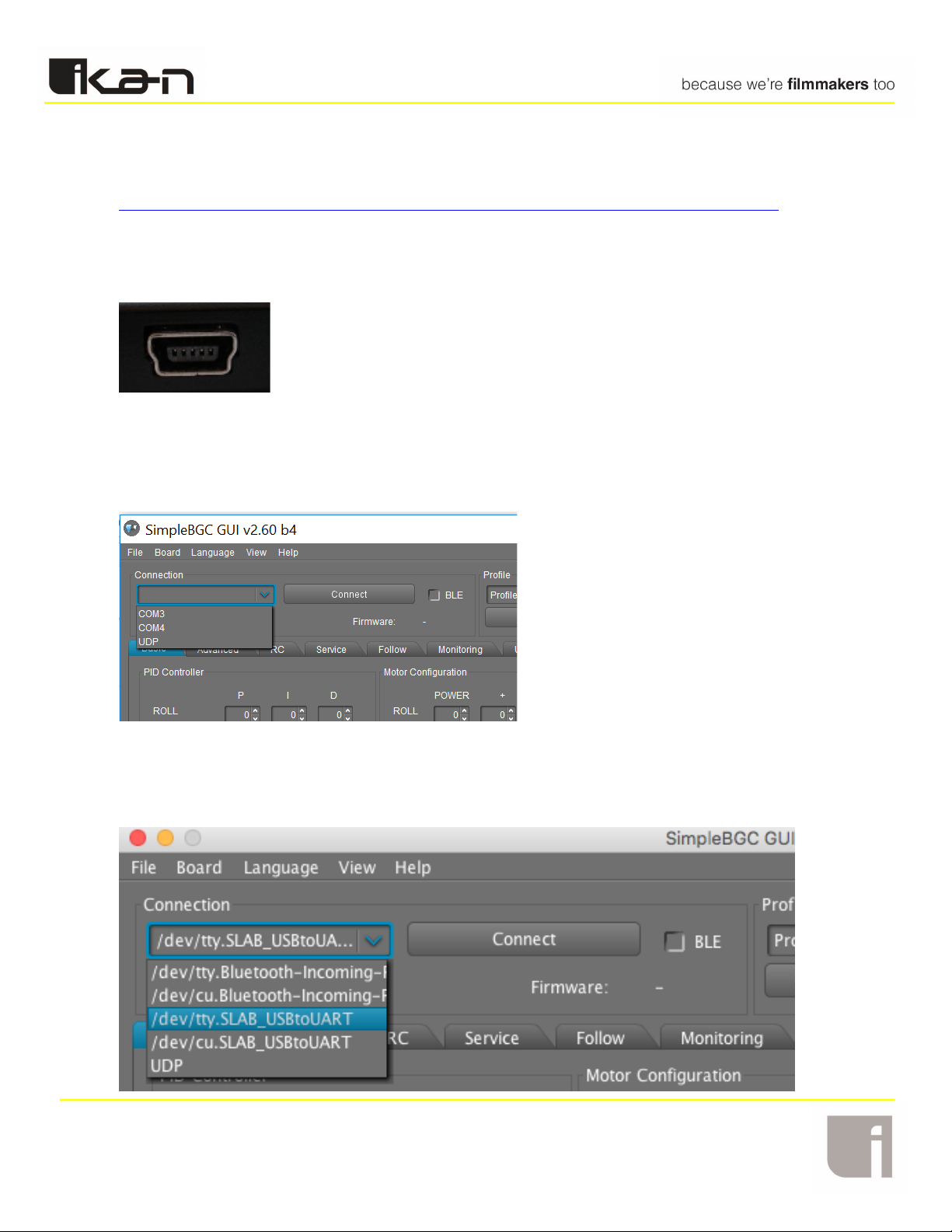

2. Install!the!driver!for!your!operating!system:!!

https://www.silabs.com/products/development-tools/software/usb-to-uart-bridge-vcp-drivers!

3. Locate!the!folder!where!you!unzipped!the!SimpleBGC!software.!!For!Windows!use!the!file!

SimpleBGC_GUI.exe.!!For!Mac!OS!use!SimpleBGC_GUI.jar.!!Run!the!software!and!plug!in!your!gimbal!

using!the!mini-USB!port!on!the!gimbal!to!connect!to!your!computer.!!!

!(Mini-USB!port)!

Windows!-!If!the!drivers!were!installed!successfully!in!the!drop-down!box!in!the!Connection!section,!

you!should!be!able!to!see!a!COM!option.!!An!easy!way!to!figure!out!which!COM!is!being!used!for!the!

gimbal!is!to!keep!the!drop-down!box!open!and!unplug!the!gimbal!to!see!which!COM!option!disappears.!!

Select!the!COM!number!for!your!gimbal!and!press!“Connect”.!

Mac!OS!–!If!the!drivers!were!installed!successfully!in!the!drop-down!box!in!the!Connection!section,!you!

should!be!able!see!an!option!that!ends!in!“tty.SLAB_USBtoUART”.!!Select!that!option!and!press!

“Connect”.!

Phone:!(713)!272-8822!

Fax:!(713)!995-4994!

11500!S!Sam!Houston!Pkwy!W!

Houston,!TX!77031!

4. Once!connected!on!the!default!Basic!tab,!locate!and!select!the!“IMU!Calibration!Helper”!button!in!the!

Sensor!section.!!!

5. This!will!bring!up!the!follow!screen:!

Phone:!(713)!272-8822!

Fax:!(713)!995-4994!

11500!S!Sam!Houston!Pkwy!W!

Houston,!TX!77031!

6. Under!the!Accelerometer!side!press!the!“Reset”!button.!!Here!you!will!set!the!camera!facing!six!

different!directions!and!press!“Calibrate”!once!the!camera!is!steady!in!the!position.!!The!pictures!below!

show!the!of!the!six!directions!that!will!need!to!be!calibrated.!!The!red!arrow!in!the!pictures!indicate!the!

direction!the!lens!should!be!facing.!!Calibration!for!that!particular!side!is!finished!when!the!gimbal!

stops!beeping!and!a!check!mark!appears!next!to!the!direction.!!The!power!button!of!the!gimbal!will!be!

considered!the!front.!!The!photos!below!are!of!the!Ikan!EC1!with!a!Sony!A6500!with!16-50mm!lens!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

a. +X!=!Left!

! !
