Ikan OFly Manuel utilisateur

www.ikancorp.com

3903 Stoney Brook Dr. Houston TX 77063

1.713.272.8822

[email protected]

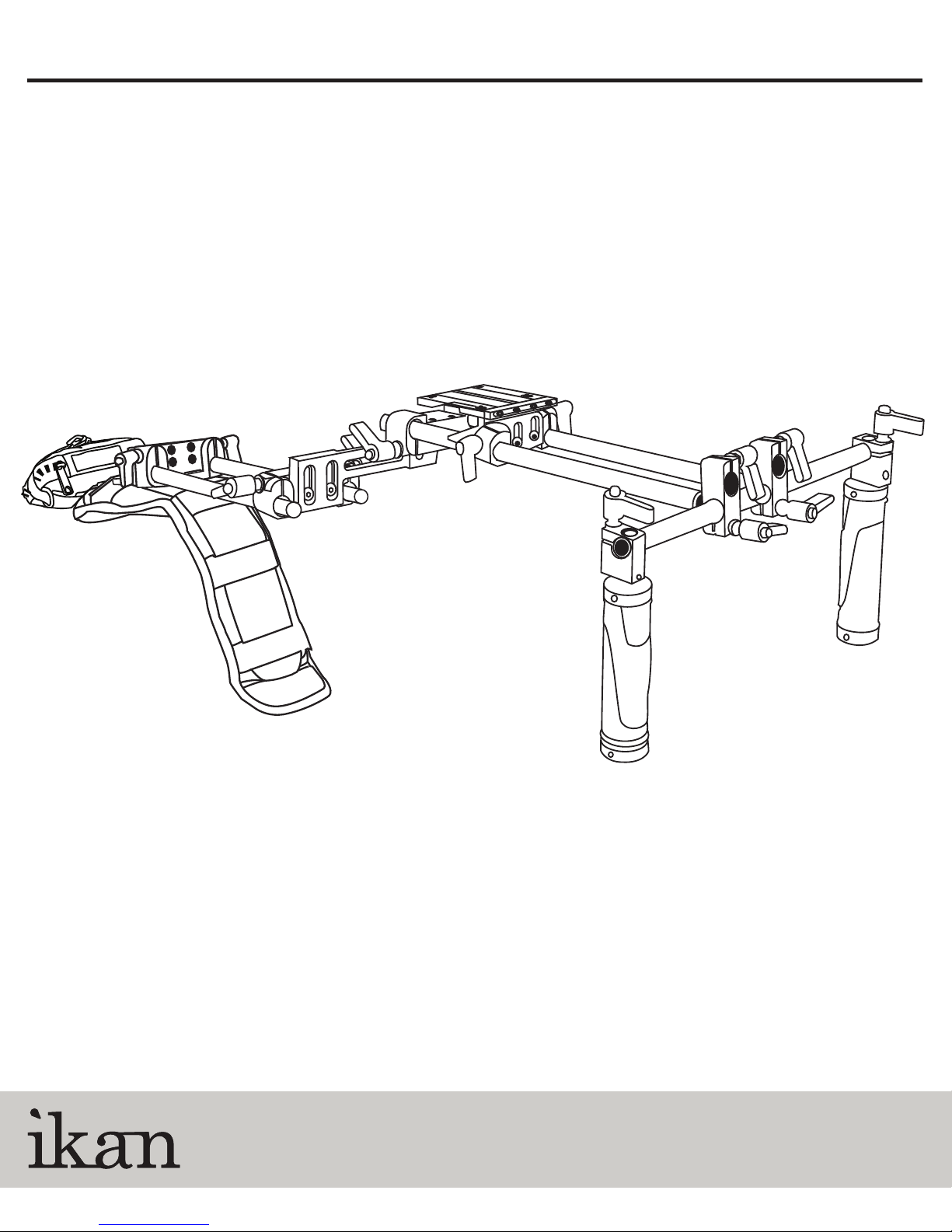

OFly

OFly QUICKSTART GUIDE

 1 x Baseplate

(ELE-SBP)

OFly

OFly QUICKSTART GUIDE

What’s included

Checked by

www.ikancorp.com 713-272-8822

 4 x (1/4 -20 x 3/4)

Socket Head Screw

 1 x DRS-01

 1 x Double Cheeseplate

(ELE-DBLPT)

 1 x T-Plate

 1 x Shoulder Mount

 1 x Weightbag

(ELE-WB)

 3 x 12’ Rods

(ELE-15R12)

 2 x 6’ Rod

(ELE-15R6)

 1 x Crossblocks

(ELE-CB-19)

 2 x Grip Handles

 2 x

Thumbscrews

 1 x Offset (ELE-ES)

www.ikancorp.com 713-272-8822

OFly

OFly QUICKSTART GUIDE

713-272-8822

ADJUSTMENT POINTS

1. Numerous Adjustment Points allow for precise positioning modiﬁcations.

Loosen Thumb Screws to move forward/backwards along 12” Rods.

Loosen Hex Screws to make vertical and horizontal adjustments.

www.ikancorp.com 713-272-8822

ADJUSTMENT POINTS

Numerous Adjustment Points allow for precise positioning modiﬁcations

to the Small Base Plate component of your Flyweight DSLR Kit.

Loosen Thumb Screws to move 18” Rods forward/backwards.

Loosen front Hex Screws to make vertical/horizontal adjustments.

OFly

OFly QUICKSTART GUIDE

ADJUSTMENT POINTS

1. Numerous Adjustment Points allow for precise positioning modiﬁcations.

Loosen Thumb Screws to move forward/backwards along 12” Rods.

Loosen Hex Screws to make vertical and horizontal adjustments.

OFly

OFly QUICKSTART GUIDE

ATTACHING DOUBLE CHEESEPLATE

To attach the Double Cheeseplate (ELE-DBLPT) onto the Shoulder Mount,

lift up the strap and screw two Socket Head Screws through the indicated

holes of the Double Cheeseplate and Shoulder Mount. Once in place,

return the strap back to its original position.

www.ikancorp.com 713-272-8822

OFly

OFly QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

ATTACHING BELTCLIP

To attach the T-Plate onto the Double Cheeseplate (ELE-DBLPT),

screw two Socket Head Screws through the T-Plate into the central holes

of the Double Cheeseplate.

OFly

OFly QUICKSTART GUIDE

SECURING WEIGHT BAG

To secure the weight bag (ELE-WB) onto the Flyweight DSLR, follow these simple

steps. (1) First, slide the strap through the slots around the weight bag. (2) After

the strap is secured, hook the strap onto the Double Cheeseplate (ELE-DBLPT)

with the attached T-Plate and tighten the strap.

WEIGHTS NOT INCLUDED

Please be aware that your weight bag does not come with its own weights.

www.ikancorp.com 713-272-8822

OFly

OFly QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

BASE PLATE ATTACHMENT POINTS

There are a total of four threaded attachment points for your base plate;

two 3/8-16 and two 1/4-20 threaded holes for you to chose from. Simply

tighten the screw from your base plate into the appropriate hole for easy

mounting and unmounting from your tripod’s quick release.

3/8-16

Screw thread sizes

*Bottom View

1/4-20

OFly

OFly QUICKSTART GUIDE

www.ikancorp.com 713-272-8822

MOUNTING YOUR CAMERA

Loosen the thumb screw and slide out one of the 12” rods, in order to gain

access to easily ﬁt your hand underneath the top portion of the small base

plate. Next, take the D-Ring and slide it through the opening. Allign the 1/4-20

threaded hole on the bottom of your camera with the D-Ring and tighten

until your camera is secure. Finally, slide the 12” rod back to it’s original position

and tighten the thumb screw.
