Ikan PT4500W-TRIPOD Manuel utilisateur
PT4500W-TRIPOD

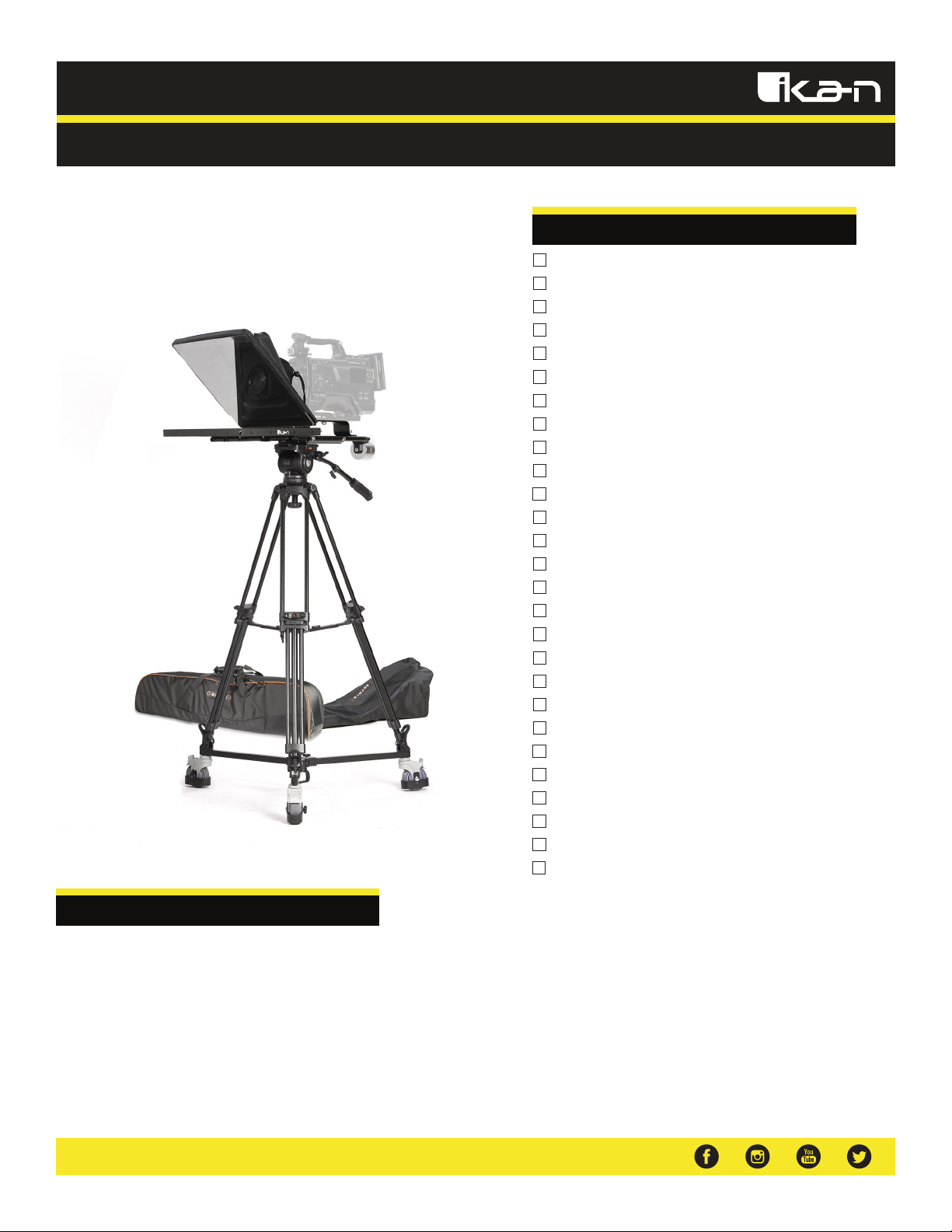

Quick Start Guide
15” Widescreen Teleprompter, Tripod & Dolly Turnkey
OVERVIEW
Ikan’s Turnkey Broadcast Solutions include everything you need for your professional camera setup. This solution includes a 15” widescreen
teleprompter, tripod, and dolly. All of our systems have been tested internally for payload compatibility.
The remaining payload capacity, after mounting the full 15” teleprompter system without the counterweight, can accommodate camera setups
up to 25.2 lbs. The tripod, without the teleprompter system, can accommodate cameras up to 44.1 lbs. This solution also includes a carrying
bag for the tripod.
What’s Included
1 x GA102 Tripod Legs
1 x T30 Carrying Bag
1 x EI-7004B Dolly w/ Wheels & Cable Guards
1 x GH20 Fluid Head
2 x Pan Handles
1 x Base Plate
1 x Bottom Plate
1 x Base
1 x Glass Frame Holder Bracket
1 x 15 in. 70/30 Teleprompter Glass
1 x Hood Attachment Frame
1 x Teleprompter Hood Boot
1 x Silicone Teleprompter Hood
1 x Glass Holder
2 x 15mm Rod Clamps
2 x 15mm Rods
1 x Large Riser Camera Mount
2 x 3/8-16 D-Ring Screws
1 x Counterweight
1 x Large Riser
1 x DSLR/Mirrorless Riser
1 x Medium Riser
1 x Short Riser Plate
1 x SDI 15 in. Widescreen Teleprompter Monitor
1 x AC Adapter with Cord
1 x Teleprompter Glass
1 x PrompterPro Software (FREE with this teleprompter)
Teleprompter Assmebly Setup

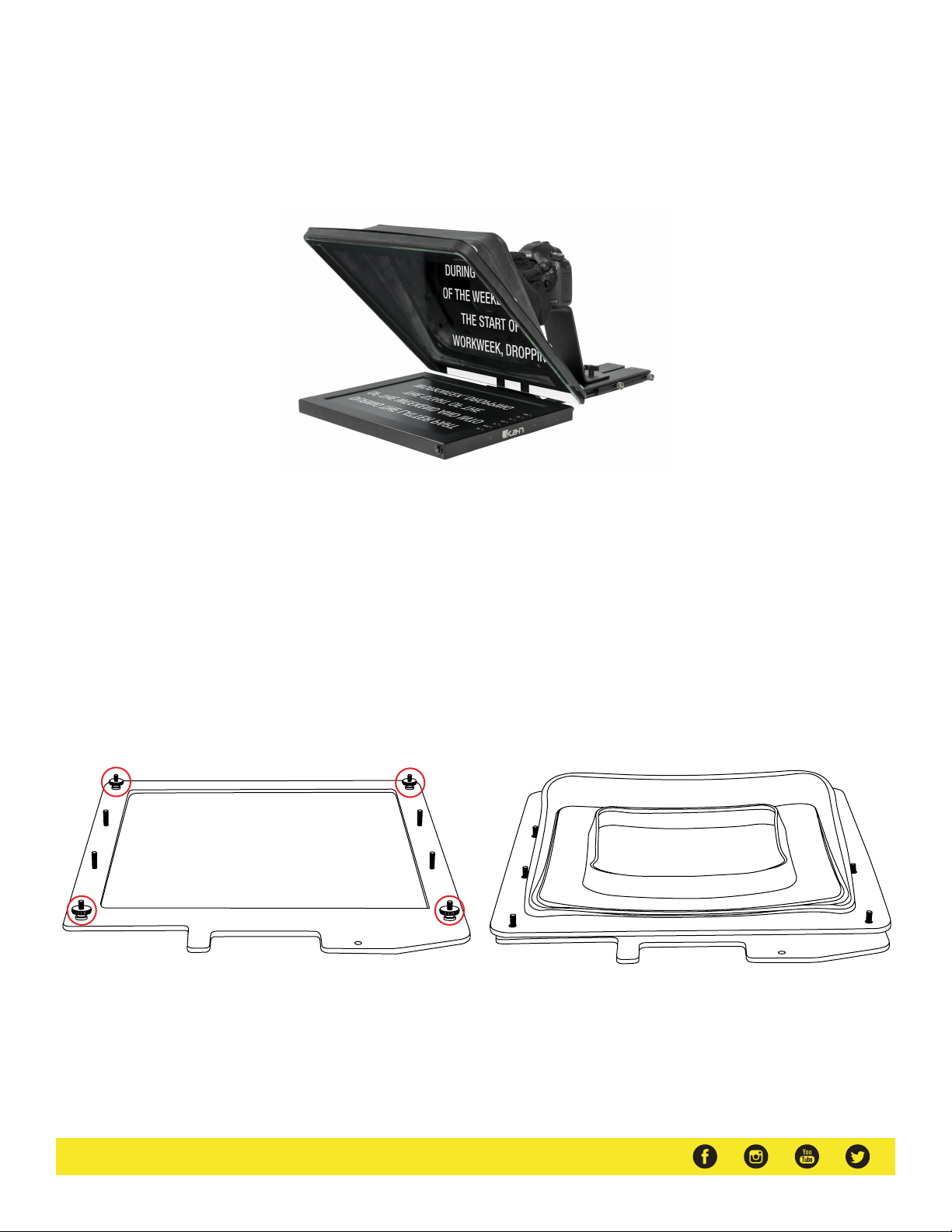

Step 1
Place the teleprompter glass frame on a flat surface and remove the four
screws as shown.
Step 2
Align and attach the teleprompter hood with the 8 screw pegs from the
teleprompter frame.
PT4500W-TRIPOD
15” High Bright Beam Splitter Teleprompter

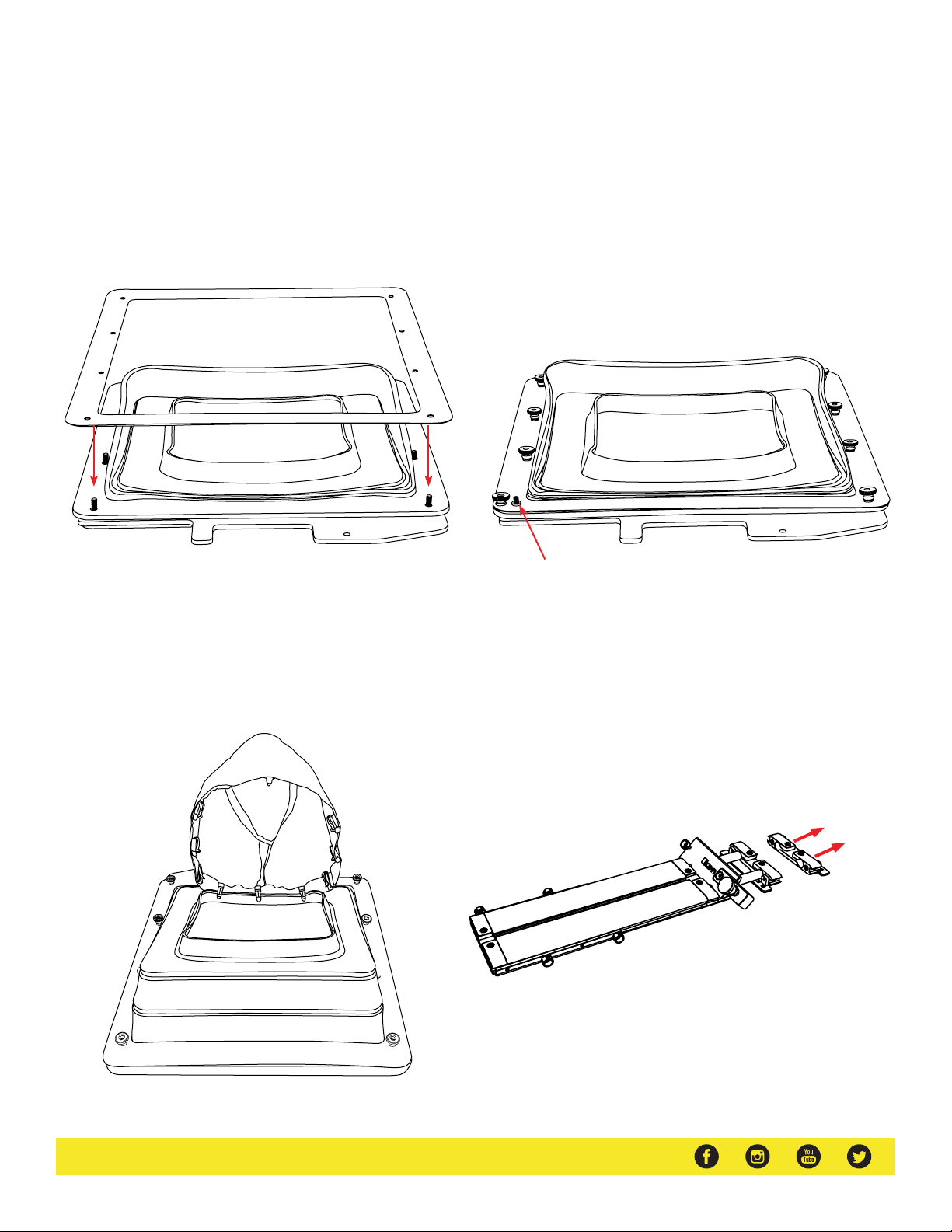

Step 3
The metal frame is directional. Make sure the thicker side is on top and
the slimmer side is on the bottom.
Step 4
Put the washers on before tightening the screws. The washers and 4
additional screws are inside a bag on the bottom foam.
Step 6
Remove the monitor mounts from the teleprompter base using the included
larger 4mm hex key to loosen from the 15mm rods.
Step 5
Extend the teleprompter hood open and attach teleprompter boot
using the clips. It is suggested to align the seam with the bottom of
the teleprompter hood.
Step 8
After the monitor mounts are attached, adjust the 15mm rods to accommodate the monitor. Leave about 1 inch of room for the teleprompter bracket.
Make sure the 15mm rods go through both set of monitor mounts. Please ensure that all screws are properly tightened after inserting the monitor.
*SAFETY NOTE* Make sure to leave at least 2 inches of the rods inside the teleprompter base.
Teleprompter Base
1
2
-
2
4
V
H
D
M
I
V
G
A
AV

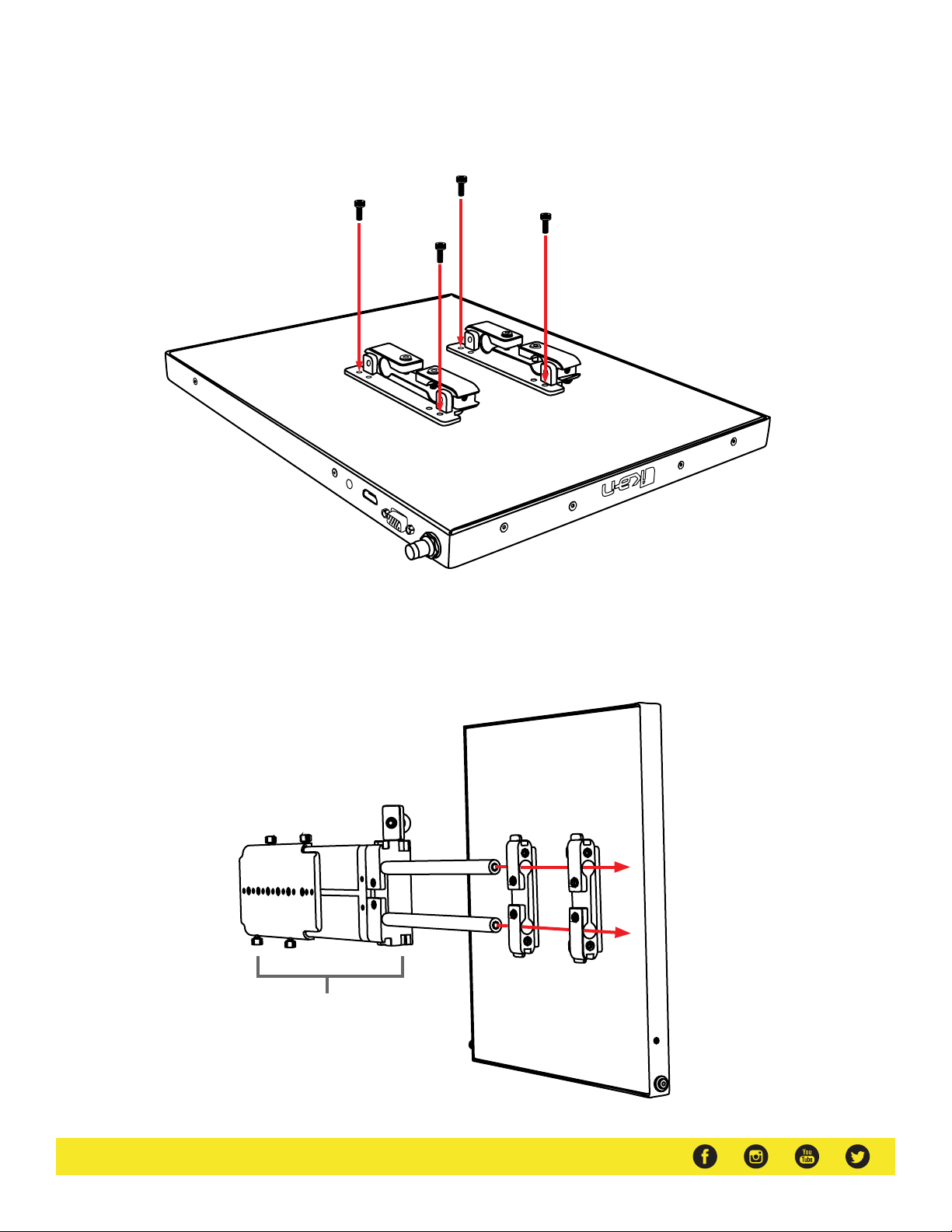

Step 7
Attach the monitor mounts on the back of the monitor’s VESA compatible threads using the 4 included screws and provided 2mm hex key.

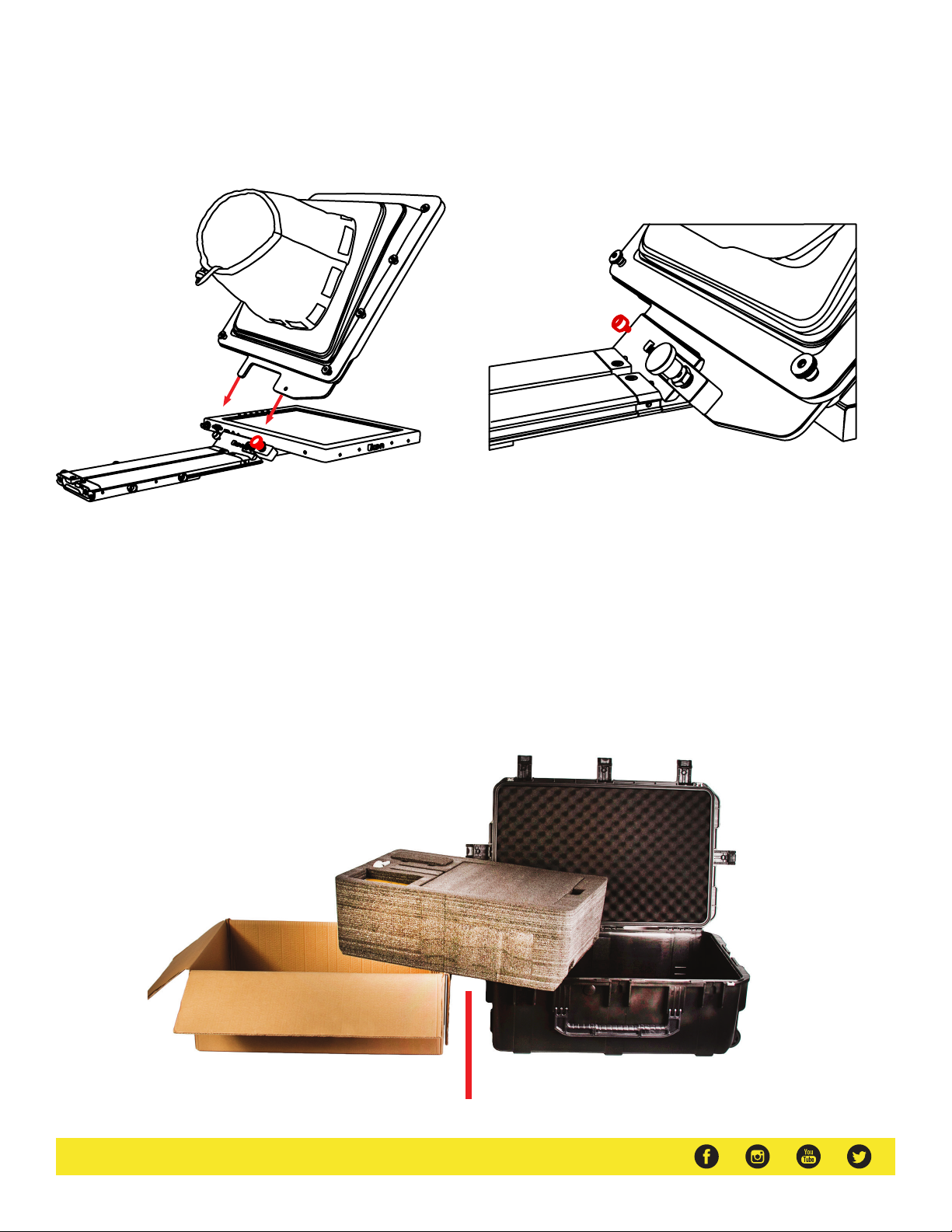

Step 9
While sliding the teleprompter bracket into the slot of the teleprompter
base pull on the red knob to allow the bracket to fully slide in.
Step 10
Once the bracket is in place, tighten the side screw to lock in place. Double
check and make sure all the screws are tightened with the included hex
keys.
Step 11 (optional)
Should the teleprompter be too front heavy, you can attach the included counter weight on the back of the teleprompter base.
** DO NOT THROW AWAY FOAM CASE **
Foam Case
To make your teleprompter more portable, we packed it in a reusable, high-quality foam.
The shape and size of the foam was designed to fit into Ikan’s PT-CASE-V2.

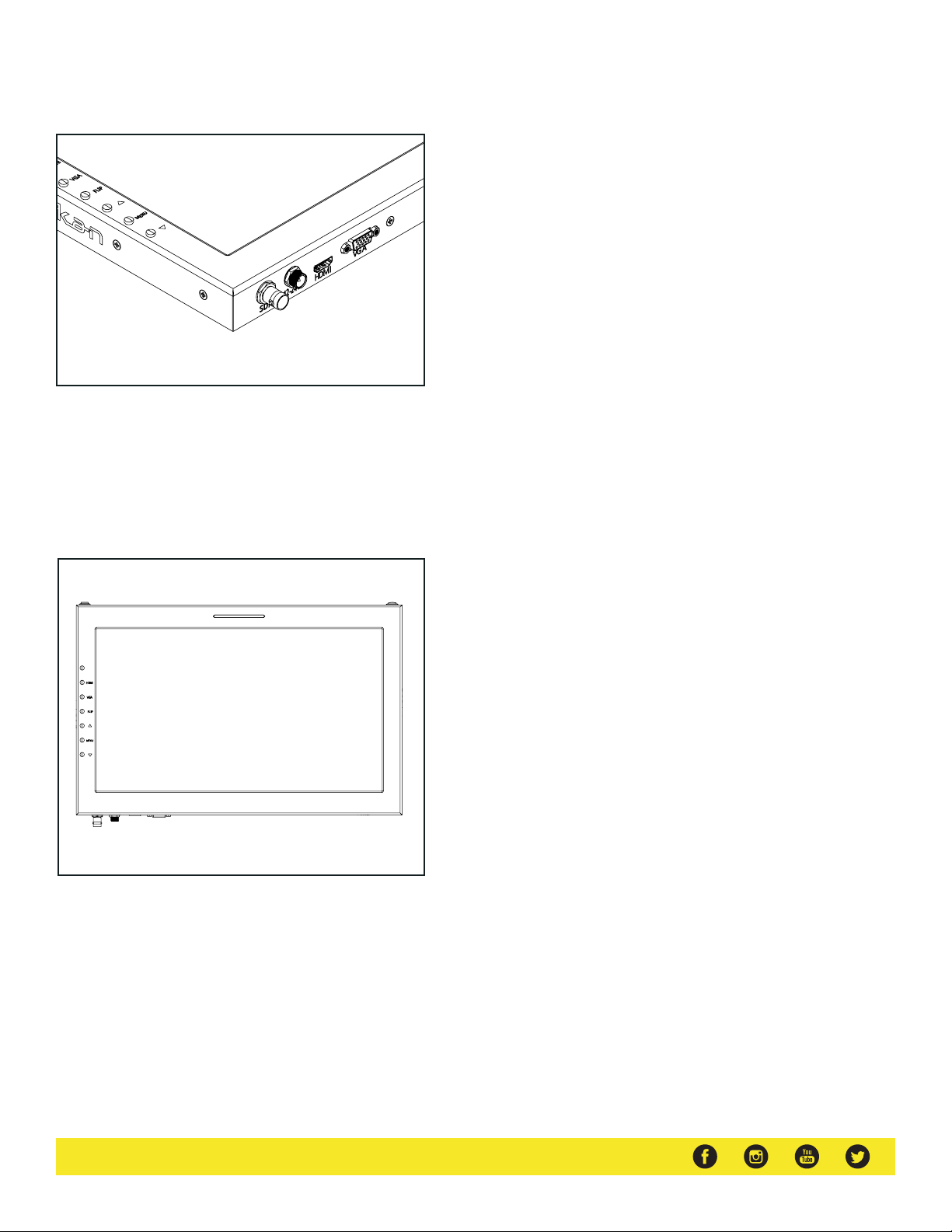

Monitor Ports
BNC – AV Composite Input
VGA – Video Graphics Array DE15 Connection
HDMI – High-Definition Multimedia Interface Input Connection
Power Port – 12-24v Input
HDMI – Switch HDMI input
VGA – Switch to VGA input
AV – Switch to composite BNC input
Flip – Toggle image flip
(Can be set to horizontal, vertical, or both via menu)
Up Arrow – Toggle up to adjust setting
Menu – Access to monitor settings
Down Arrow – Toggle down to adjust setting
Monitor Menu Settings
Video Config
Contrast (White Level)
Brightness (Black Level)
Tint (Chroma Hue)
Chroma (Chroma Saturation)
Sharpness (Detail)
RGB Setup – Manually configure RGB
Return
System Config
Menu Duration – Set duration of how long menu stays
on screen
Video Ratio – Set screen aspect ratio 16:9 or 4:3 (4:3 is
native resolution, 16:9 will create black bars)
Flip-H – Assign toggle button to flip image horizontally
Flip-V – Assign toggle button to flip image vertically
Reset – Factory reset
Return
PC Setup (Only available for VGA)
H-Position – Adjust horizontal position
V-Position – Adjust vertical position
Auto – Monitor automatically adjust position
Return
Exit
How to set-up FLIP button feature:
1. Press MENU button
2. Navigate to SYSTEM CONFIG.
3. Navigate to FLIP-V or FLIP-H
4. Change FLIP-V and/or FLIP-H to “ON”
5. Exit MENU
6. The FLIP button should now be activated and can be
pressed to mirror the image Horizontally or Vertically
7. When FLIP-H is ON, the image will flip Horizontally
8. When FLIP-V is ON, the image will flip Vertically
9. If both are ON, the FLIP button will toggle both
Horizontal and Vertical flip
Specifications
PT4500W
Optional Accessories
PT4500-G
PT15-HB-V2
PT17-HB-V2
PT-CASE-V2
Replacement Glass for both PT4500 / PT4700
15” High Bright Monitor (for PT4500)
17” High Bright Monitor (for PT4700)
Rolling Hard Case for PT4500/PT4700 Teleprompter
Watch our VIDEO TUTORIAL on how to
assemble Ikan Professional Telepromopters:
https://youtu.be/5TjIxzBc_Vc
Aspect Ratio 16:9
Maximum Brightness 1000 cd/m2
Screen Size (Diagonal) 15 in.
Mount VESA 100mm
Video Inputs SDI, HDMI, VGA
Input Voltage DC 12v
Power Consumption 26.5W
Product Weight 3.73 lbs.
Product Dimensions 15.7 x 10.6 x 1.1 in.
LCD Panel Dimensions 13.5 x 7.7 in.
Native Resolution 1920 x 1080
Viewing Angle 178° (H) / 178° (V)
Build Material Aluminum Chassis
Image Flip Horizontal: Yes
Vertical: Yes

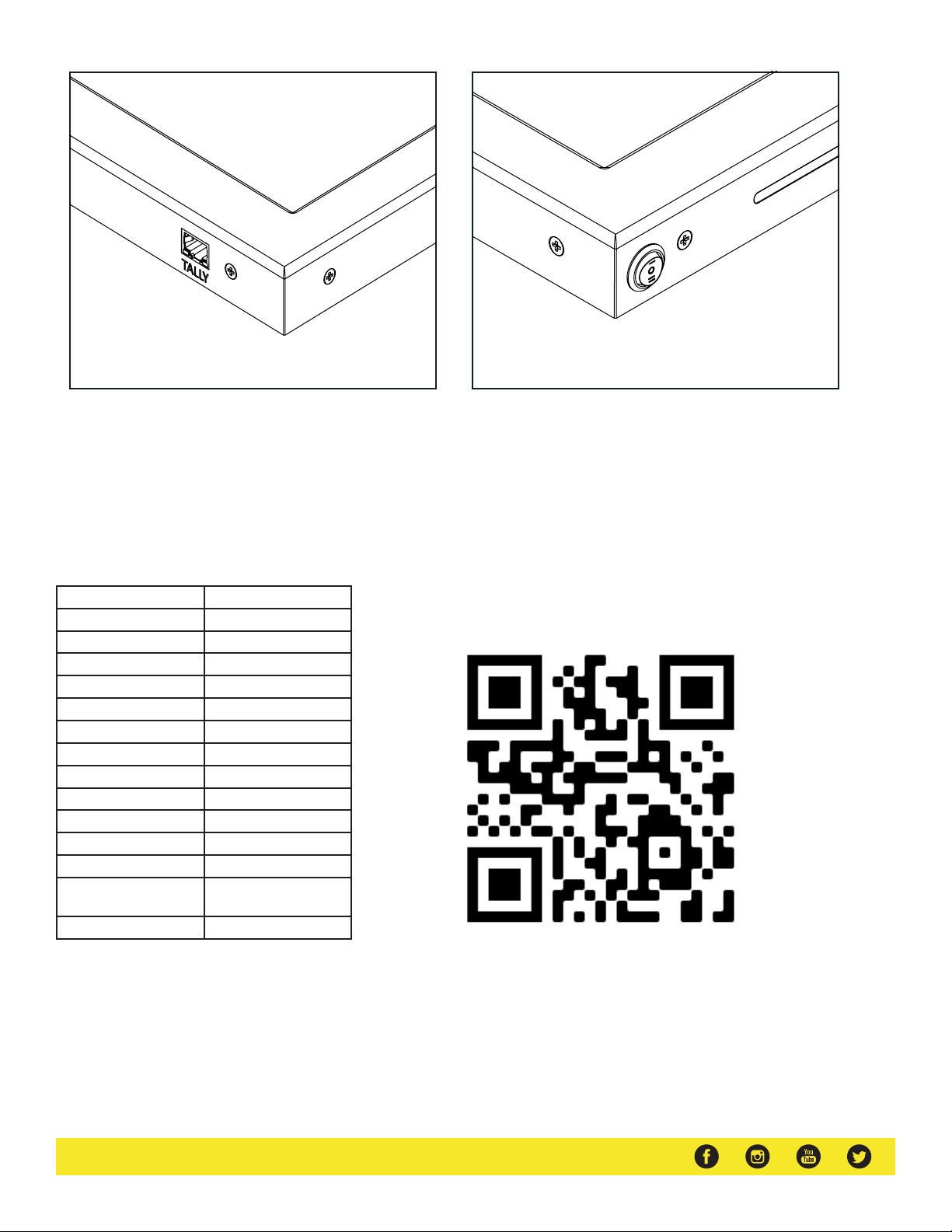

Tally Input Port RJ45 (3-Pin)
TALLY – RJ45 Ethernet Port TALLY SWITCH – Switch between two Tally locations
Learn More
More dynamic information at official website: www.ikancorp.com
Support
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period is expired.
Free Service will not be Provided in the Following Situations:(*Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors, etc.
©2022 Ikan International. All rights reserved.
