Operating instructions

Pressure sensor

PQ08xx

704940/01 03/2011

Contents

1 Preliminary note��3

1�1 Symbols used ��3

2 Safety instructions ��3

3 Functions and features ��4

4 Function��4

4�1 Processing of the measured signals��4

4�2 Switching function��4

4�3 Diagnostic function ��5

5 Mounting��6

5�1 Mounting accessories��6

5�2 DIN rail mounting��6

5�3 Rear panel mounting ��7

6 Electrical connection��7

7 Operating and display elements ��8

8 Menu��9

8�1 Menu structure��9

8�2 Explanation of the menu��10

9 Parameter setting �� 11

9�1 General parameter setting�� 11

9�2 Setting of the output signals ��13

9�2�1 Setting of the unit of measurement for system pressure ��13

9�2�2 Setting of the output function��13

9�2�3 Setting of the switching limits (hysteresis function) ��13

9�2�4 Setting of the switching limits (window function) ��13

9�3 User settings (optional) ��14

9�3�1 Setting of a time delay for the switching signals��14

9�3�2 Setting of the damping for the switching outputs��14

9�3�3 Configuration of the display ��14

9�3�4 Zero point calibration ��15

9�4 Service functions ��15

9�4�1 Reading of the min/max values for system pressure��15

9�4�2 Reset of all parameters to factory setting ��15

1 Preliminary note

1.1 Symbols used

►Instruction

> Reaction, result

[…] Designation of pushbuttons, buttons or indications

→Cross-reference

Important note:

Non-compliance can result in malfunctions or interference�

2 Safety instructions

• Please read this document prior to set-up of the unit� Ensure that the product is

suitable for your application without any restrictions�

• If the operating instructions or the technical data are not adhered to, personal

injury and/or damage to property can occur�

• Checkthecompatibilityoftheproductmaterials(→chapter12Technicaldata)

with the media to be measured in all applications�

For the scope of validity cULus:

Thedeviceshallbesuppliedfromanisolatingtransformerhavingasecondary

Listed fuse rated either

a) max 5 amps for voltages 0~20 Vrms (0~28�3 Vp) or

b) 100/Vp for voltages of 20~30 Vrms (28�3~42�4 Vp)�

TheSensorshallbeconnectedonlybyusinganyR/C(CYJV2)cord,havingsuit-

able ratings�

10 Operation��16

10�1 Reading of the set parameters ��16

10�2 Fault indication ��16

11 Scale drawing ��17

12 Technicaldata��18

12�1 Setting ranges ��19

13 Werkseinstellung ��19

3 Functions and features

Theunitmonitorsthesystempressureinpneumaticandcompressedairnetworks

of machines and plants�

Applications

Compressed air (other media on request)

Typeofpressure:relativepressure

Order no. Measuring range Permissible

overpressure Bursting pressure

bar PSI bar PSI bar PSI

PQ0809 -1��1 -14�5��14�5 20 290 30 435

PQ0834 -1��10 -14�5��145 20 290 30 435

MPa = bar ÷ 10 / kPa = bar × 100

Avoid static and dynamic overpressure exceeding the given overload pres-

sure by taking appropriate measures�

Theindicatedburstingpressuremustnotbeexceeded.

Even if the bursting pressure is exceeded only for a short time, the unit

maybedestroyed.NOTE:Riskofinjury!

4 Function

4.1 Processing of the measured signals

• Theunitdisplaysthecurrentsystempressure.

• It generates 2 output signals according to the parameter setting�

OUT1 •Switching signal for system pressure limit value�

OUT2

2 options

•Switching signal for system pressure limit value�

•Diagnostic signal (output 1 is inactive in case of a fault)�

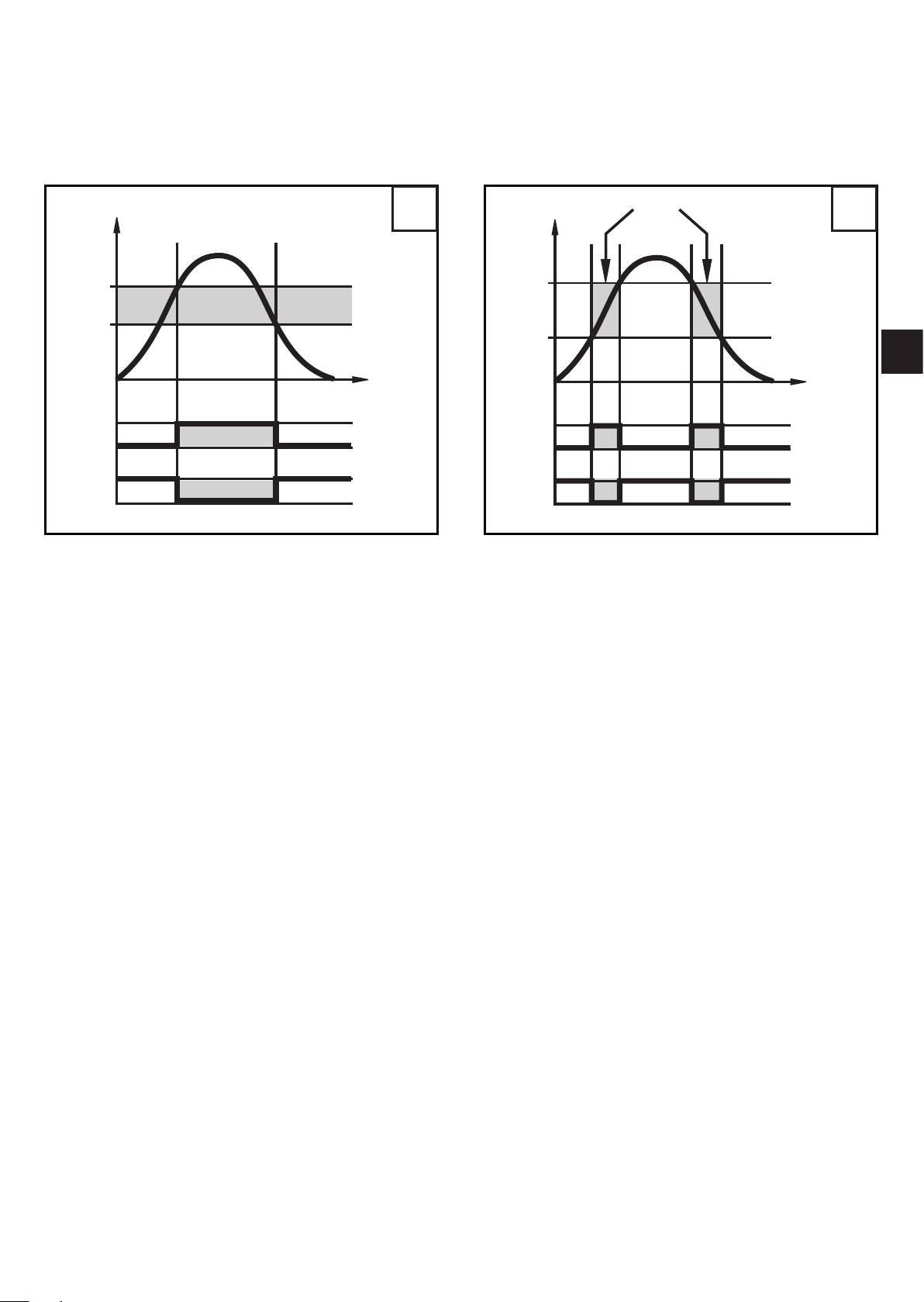

4.2 Switching function

OUTxchangesitsswitchingstateifitisaboveorbelowthesetswitchinglimits

(SPx,rPx).Thefollowingswitchingfunctionscanbeselected:

• Hysteresisfunction/normallyopen:[oux]=[Hno](→fig.1).

• Hysteresisfunction/normallyclosed:[oux]=[Hnc](→fig.1).

First the set point (SPx) is set, then the reset point (rPx) with the requested differ-

ence�

• Windowfunction/normallyopen:[oux]=[Fno](→fig.2).

• Windowfunction/normallyclosed:[oux]=[Fnc](→fig.2).

ThewidthofthewindowcanbesetbymeansofthedifferencebetweenFHxand

FLx� FHx = upper value, FLx = lower value�













































1 2

P=systempressure;HY=hysteresis;FE=window

4.3 Diagnostic function

Output 2 is used as diagnostic output based on the DESINA specification if

[ou2] = [diA]�

• If there is no fault, the output is switched and carries Ub- �

• In case of malfunctions in the following areas, the output is inactive:

- short circuit in output 1�

- EPROM function�

- RAM function�

- parameter setting�

- processor function�

5 Mounting

Before installing and removing the unit: make sure that no pressure is

applied to the system.

►Screw the pressure connection or

adapter G⅛to the main pressure

connection (1) and tighten.

Maximum tightening torque: 8 Nm.

Maximum thread length: 7.5 mm.

5.1 Mounting accessories

The following components are available as accessories: Order no.

Mounting set for DIN rail mounting (DIN rail TH 35-7.5 to EN 60715) E37340

Thread extension 1/8“ for flange mounting E30075

Push-in air fitting for tube Ø 6 mm E30076

Push-in air fitting for tube Ø 8 mm E30077

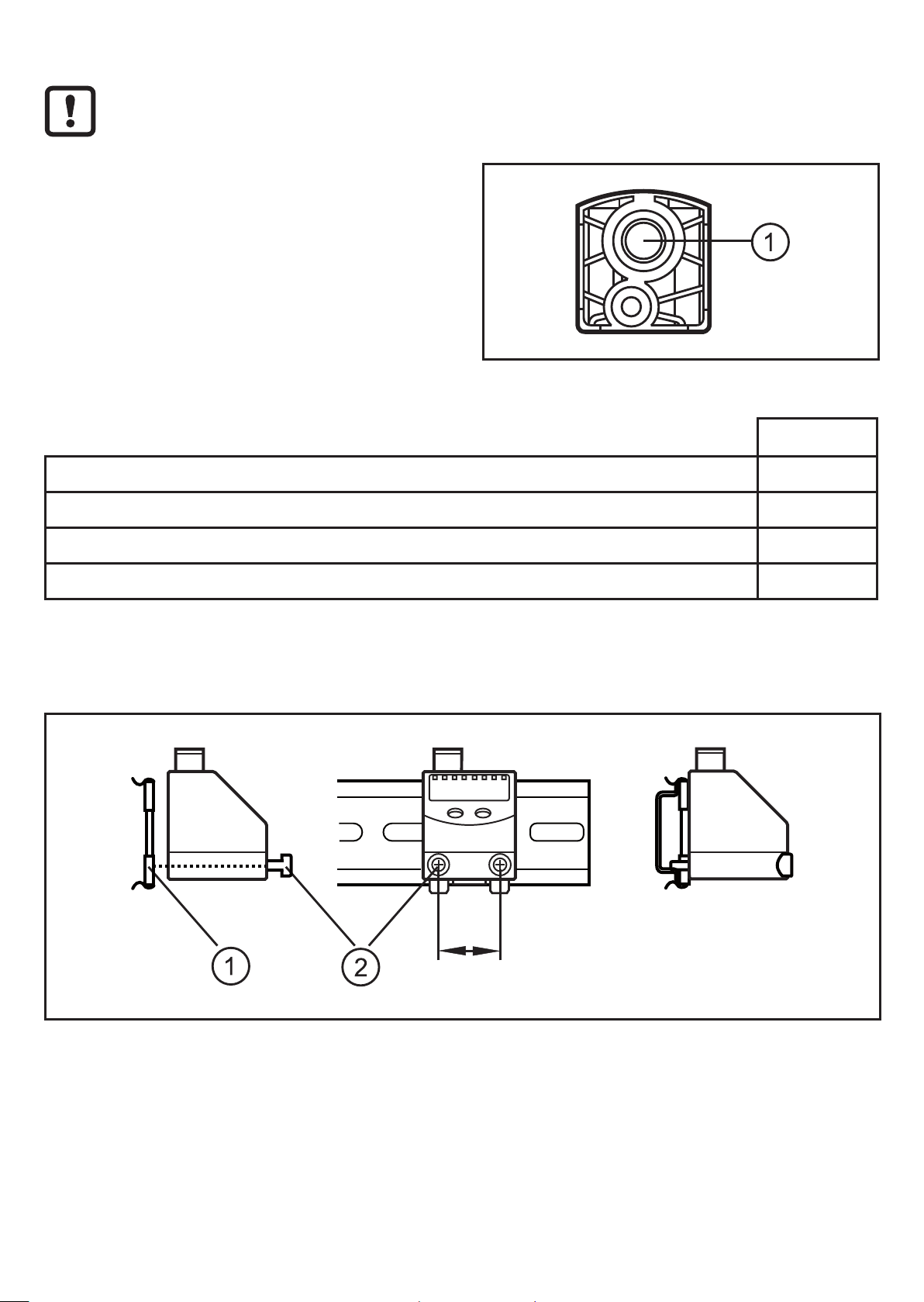

5.2 DIN rail mounting

DIN rail TH 35-7.5 to EN 60715

►Fix the mounting clip (1) with the screws M4 x 35 (2) to the flange. Maximum

tightening torque: 2.5 Nm.

►Hook the unit into the DIN rail and clip it into place.

Removal:

►Lever out the mounting clip with a screwdriver at the top or at the bottom and

remove the unit�

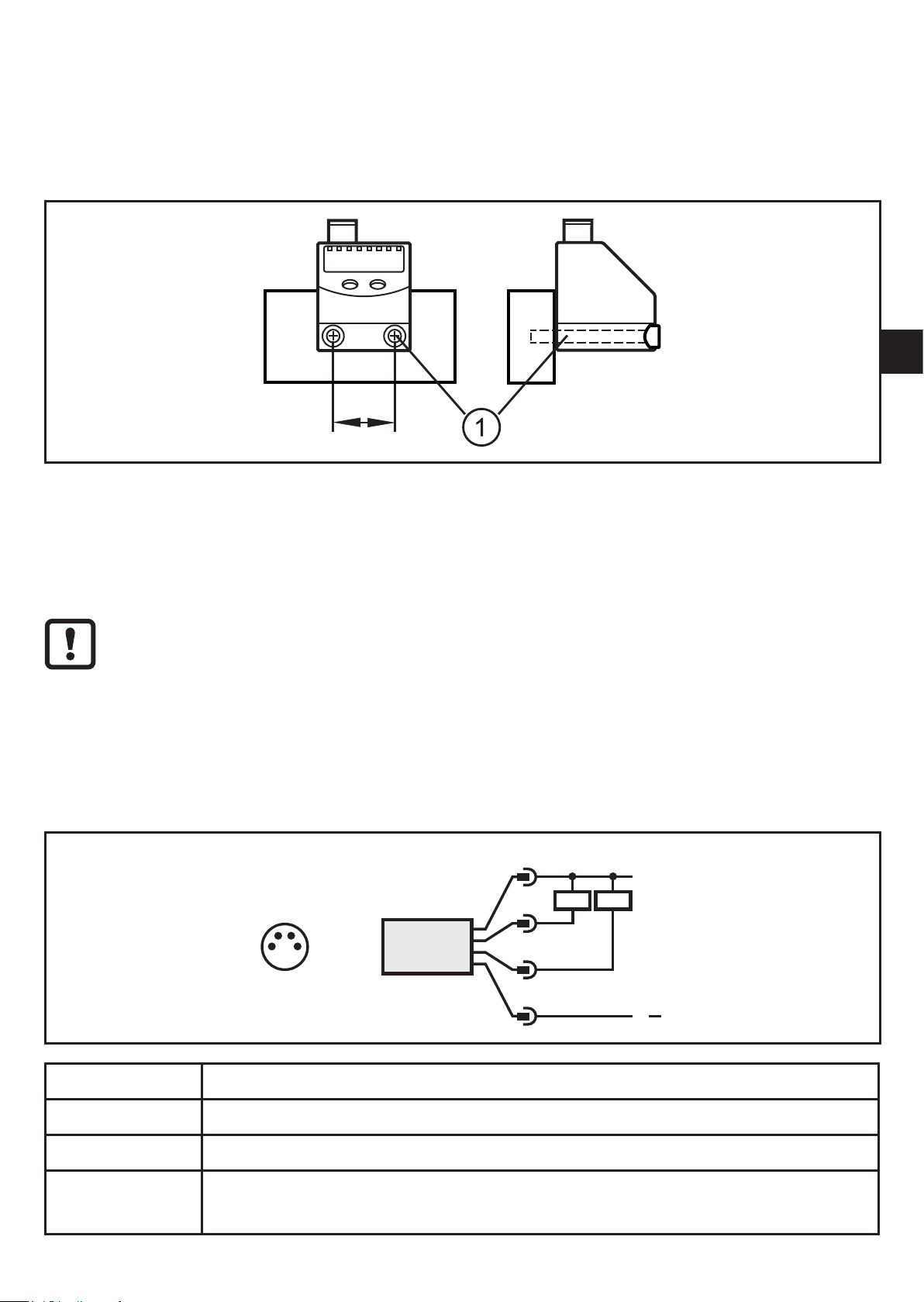

5.3 Rear panel mounting

►Fix the unit with 2 screws M4 x 35 (1) (not included) to the rear panel� Maxi-

mum tightening torque: 2�5 Nm�

6 Electrical connection

Theunitmustbeconnectedbyaqualifiedelectrician.

Thenationalandinternationalregulationsfortheinstallationofelectrical

equipment must be adhered to�

Voltage supply to EN 50178, SELV, PELV�

►Disconnect power�

►Connect the unit as follows:

L+

Out 1

Out 2

Pin 1 Ub+

Pin 3 Ub-

Pin 4 (OUT1) •binary switching output pressure monitoring

Pin 2 (OUT2) •binary switching output if [ou2] = [Hno], [Hnc], [Fno] or [Fnc]

•diagnostic output if [ou2] = [diA]

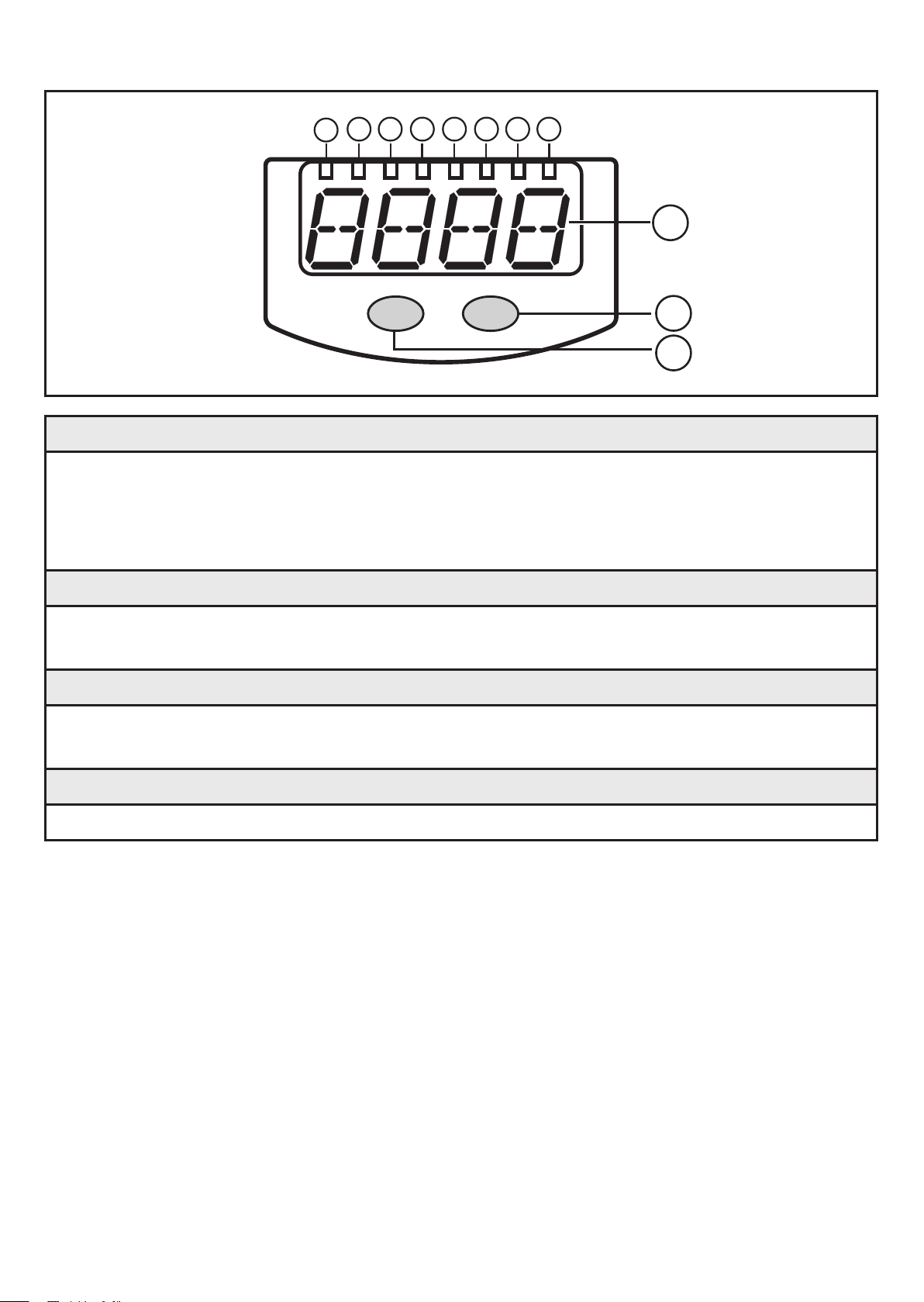

7 Operating and display elements

1 2 3 4 5 6 78

Mode/Enter Set

1 to 8: Indicator LEDs

- LED 1 to LED 4 = system pressure in the unit of measurement which is indicated on the

label�

- LEDs 5 to 6: not used,

- LED 7, LED 8 = switching state of the corresponding output�

9: Alphanumeric display, 4 digits

- Indication of the current system pressure�

- Indication of the parameters and parameter values�

10: Set button

- Setting of the parameter values (scrolling by holding pressed; incrementally by pressing

once)�

11: Mode/Enter button

- Selection of the parameters and acknowledgement of the parameter values

8 Menu

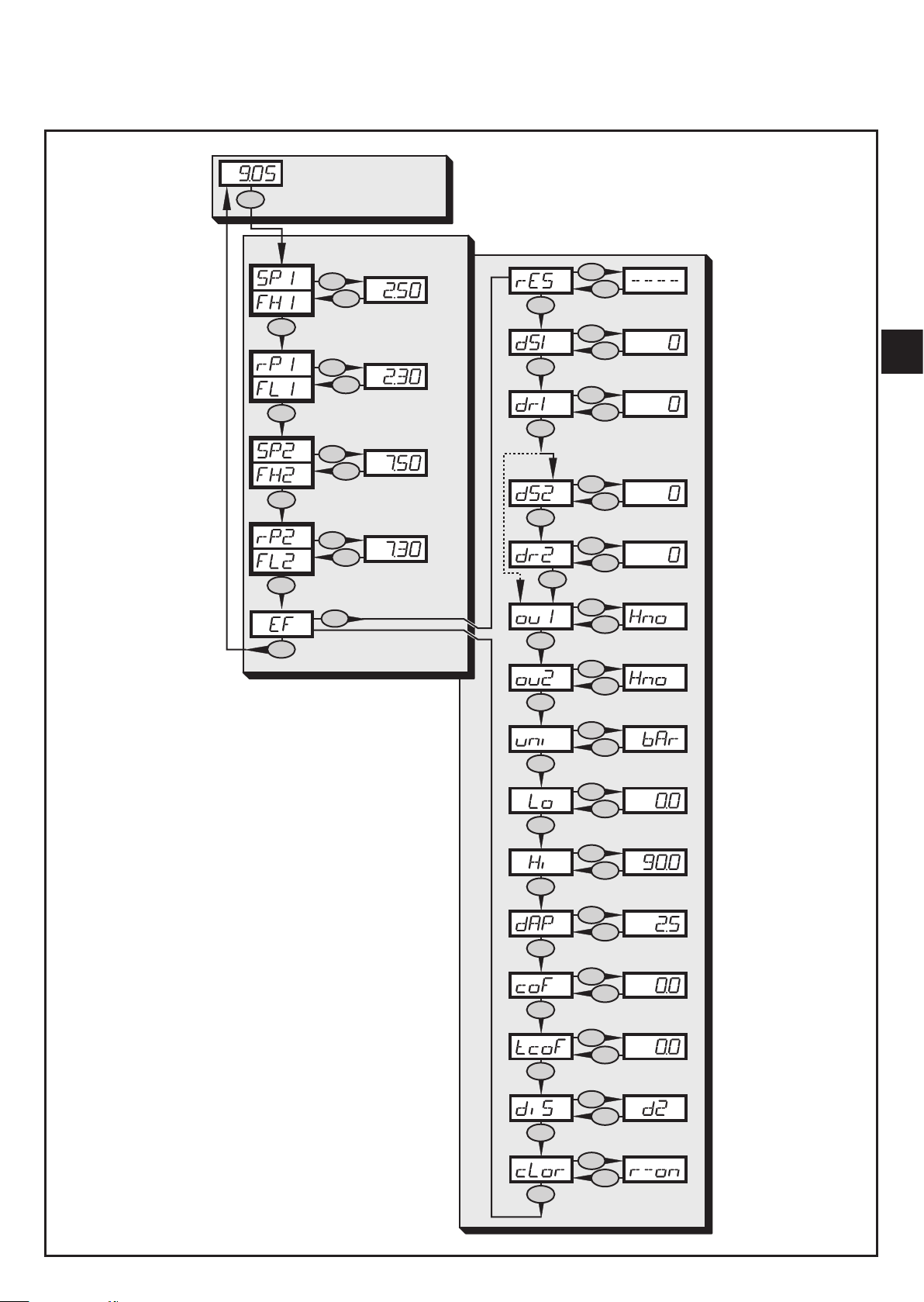

8.1 Menu structure

RUN

8.2 Explanation of the menu

SP1/rP1 Upper/lowerlimitvalueforsystempressureatwhichOUT1switches.

FH1/FL1 Upper/lowerlimitfortheacceptablerange(monitoredbyOUT1).

SP2/rP2 Upper/lowerlimitvalueforsystempressureatwhichOUT2switches.

FH2/FL2 Upper/lowerlimitfortheacceptablerange(monitoredbyOUT2).

EF Extended functions / opening of menu level 2�

rES Restore factory settings�

dS1 TimedelayforSP1/FH1.

dS2 TimedelayforSP2/FH2.

dr1 TimedelayforrP1/FL1.

dr2 TimedelayforrP2/FL2.

ou1 OutputfunctionforOUT1:

• Switching signal for the pressure limit values: hysteresis function [H ��] or

window function [F ��], either normally open [� no] or normally closed [� nc]�

ou2 OutputfunctionforOUT2:

• Switching signal for the pressure limit values: hysteresis function [H ��] or

window function [F ��], either normally open [� no] or normally closed [� nc]�

• Diagnostic signal [ou2] = diA�

uni Standard unit of measurement for system pressure�

Lo Maximum value memory for system pressure�

Hi Minimum value memory for system pressure�

dAP Damping for the switching outputs�

coF Manually enter the zero point calibration�

tcoF Teachzero-pointcalibration.

diS Update rate and orientation of the display�

cLor Colour of the digital display (permanent or alternating with switching status

OUT1).
