IFM Electronic VSA003 Manuel utilisateur

Installation instructions

Vibration sensor

VSA003

VSA004

VSA005

704577/02 09/2010

Contents

1 Preliminary note ��3

2 Safety instructions ��3

3 Functions and features ��3

4 Electrical connection ��3

4�1 Use of a screened cable for VSAx sensors ��4

4�2 Setting instructions ��4

5 Installation��4

6 Scale drawing ��5

7 Approval (Limited voltage / Current) ��5

8 Maintenance, repair and disposal ��5

9 Technical data ��5

1 Preliminary note

• An instruction is indicated by „►“:

Example: ► Mount the unit as shown�

Important note

Non-compliance can result in malfunction or interference�

Information

Supplementary note�

2 Safety instructions

• Please read the operating instructions prior to set-up of the device� Ensure that

the product is suitable for your application without any restrictions�

• The unit conforms to the relevant regulations and EC directives�

• Improper or non-intended use may lead to malfunctions of the unit or to

unwanted effects in your application�

• Installation, electrical connection, set-up, operation and maintenance of the

unit must only be carried out by qualified personnel authorised by the machine

operator�

3 Functions and features

• Vibration detection of machines and equipment

• For connection to diagnostic electronics VSExxx

4 Electrical connection

The unit must be connected by a qualified electrician�

The national and international regulations for the installation of electrical

equipment must be adhered to�

► Disconnect power�

► Connect the unit�

Wiring blue: GND / black: test / brown: L+ / white: out

shield wire: screen

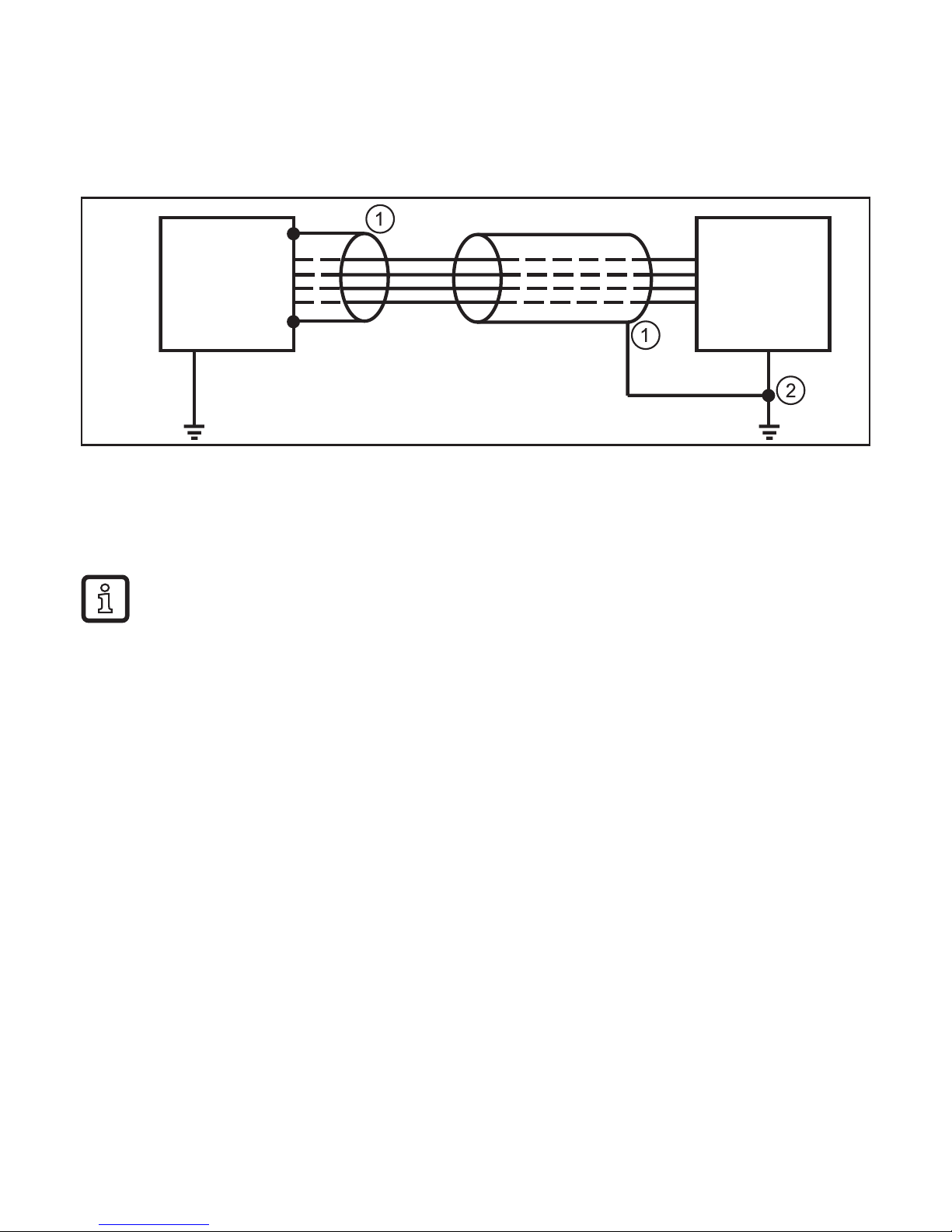

4.1 Use of a screened cable for VSAx sensors

► Use a screened cable to avoid conducted interference�

► Connect the screened cable to the DIN rail in the control cabinet�

For wired units, the screen is connected to the sensor housing�

VSA VSE

1: screen

2: DIN rail

4.2 Setting instructions

► Enter the scaling for the sensor in the configuration software VES003�

If the sensor is connected to channel 1:

VSA003: settings → Sensors → Sensor 1 → 17500 mg

VSA004 / VSA005 : settings → Sensors → Sensor 1 → 25000 mg

If the sensor is connected to channel 2:

VSA003: settings → Sensors → Sensor 2 → 17500 mg

VSA004 / VSA005: settings → Sensors → Sensor 2 → 25000 mg etc�

5 Installation

► Mount only in a thick housing wall and vertical to the machine surface close to

the bearing or at the end shield�

► Ensure that the signal direction is correct�

► Ensure a safe vibration transmission and allow no elastic intermediate layers�

► Fixing with glue or mounting screw (Torx cylinder screw no� 15, recommended

tightening torque 5 Nm, M5 x 20, Ø hexagon socket 3�4 mm)

► For fixing, use a screw retaining compound�

6 Scale drawing

11,5

5,5

Dimensions in mm

1: shield wire

H = 12 (VSA003)

H = 13�5 (VSA004, VSA005)

L = 1�5 m (VSA003)

L = 3 m(VSA004)

L = 10 m (VSA005)

7 Approval (Limited voltage / Current)

The device shall be supplied from an isolating transformer having a secondary

Listed fuse rated 1�0 A�

8 Maintenance, repair and disposal

If used correctly no maintenance and repair measures are necessary� After use

dispose of the unit in an environmentally friendly way in accordance with the

applicable national regulations�

9 Technical data

Technical data and further information at www�ifm�com
