IFM Electronic Efector230 UGA Manuel utilisateur

Operating instructions

Ultrasonic retro-reflective sensor

UGA

80237717 / 00 04 / 2016

1 Preliminary note

1.1 Symbols used

►Instructions

> Reaction, result

→Cross-reference

Important note

Non-compliance may result in malfunction or interference.

Information

Supplementary note.

2 Safety instructions

• Installation, electrical connection, set-up, operation and maintenance of the unit

must be carried out by qualified personnel authorised by the machine operator.

3 Functions and features

Ultrasonic retro-reflective sensor detect without any contact objects made of

various materials that interrupt the barrier. Detected objects are signalled via

switching output.

4 Installation

UGxxxx / UGAxxx

1: Status LED (yellow)

2: Echo LED (green)

3: Set button

4: Reflector

►Adjust the ultrasonic sensor to the reflector and secure it to a bracket.

> The reflector is detected when the echo LED (green) lights.

The functional specifications refer to a mild steel reflector defined by ifm, at

maximum range, with an edge length of 300 mm. The minimum size of the

reflector depends on the size of the object. For further information please

view "Basic information about installation and operation" → www.ifm.com.

When using ultrasonic reflective barriers, please observe the minimum

distances to the reflector → Technical data sheet!

5 Electrical connection

►Disconnect power.

►Connect the unit:

Core colours

2 1

EPS Source

Product Scale Drawing

Frame Size: 36 mm x 26 mm

AN_i_1474 Original Scale Drawing (MTD)

BN1

BK4

BU3

L+

OUT

BN1

BK4

BU3

L+

OUT

OUT: Switching output

BK black

BN brown

BU blue

Colours to DIN EN 60947-5-2

Technical data and more information at → www.ifm.com

6 Set-up

Note the LED behaviour for the set-up:

Echo LED green

On Echo is received.

Off No echo (reflector not recognised).

Off For the time of resetting to factory setting.

Status LED yellow

LED Function acknowledgement

Flashes 1 Hz Programming mode active.

Flashes 2.5 Hz Adjustment to the reflector finished.

Flashes >10 Hz Inverting the switching characteristics.

7 Settings

►Start programming mode of the device.

►Press button 2 s...6 s

> LED (yellow) flashes

(1 Hz).

If programming has not been completed successfully, the device returns to

the previous setting.

7.1 Adjust the unit to the reflector

►Press button for 1 s

> Yellow LED flashes

(2.5 Hz)

> The unit is ready for use.

7.2 Inverting the output response

►Press button > 6 s.

> LED (yellow) flashes (> 10 Hz).

> Output functions are inverted (NO becomes NC or vice versa).

7.3 restore factory setting

►Align the device so that no echo is received.

►Go into the programming mode of the unit.

►Press the button once for 1 s.

> LED (yellow) flashes briefly with 4 Hz.

> Function of the factory setting:

Sn = maximum range

OUT = output function normally open (NO)

8 Operation

►Check whether the unit operates correctly.

> Display by LEDs:

Green LED is lit The echo is received by the reflector.

Yellow LED on The object interrupts the ultrasonic reflective barrier, the output is

switched (output function NO).

Yellow LED on /

green LED off

Reflector is not detected (output function NO)

LED green flashes short circuit at the output.

The minimum distance between the "Proximity Switch Metal Enclosure"

and any "External uninsulated live part" shall be at least 12.7 mm.

Table des matières

Autres manuels IFM Electronic Accessoires

IFM Electronic

IFM Electronic Efector 200 Manuel utilisateur

IFM Electronic

IFM Electronic efector100 ID503A Manuel utilisateur

IFM Electronic

IFM Electronic efector200 OGP3 Series Manuel utilisateur

IFM Electronic

IFM Electronic efector200 OJ Manuel utilisateur

IFM Electronic

IFM Electronic efector 200 OIH5 Series Manuel utilisateur

IFM Electronic

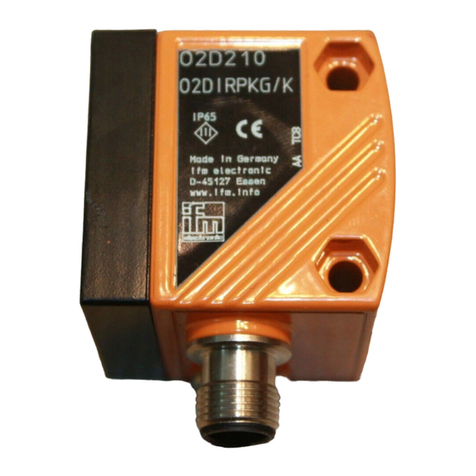

IFM Electronic efector 250 Manuel utilisateur
