Operating instructions

(safety-related part ATEX)

Inductive sensors

ID503A

80233523 / 00 11 / 2015

Remarks for safe use in hazardous areas

Functions and features

• Use in hazardous areas according to the classification

II 2D

(group II, category 2D, apparatus for dust atmosphere).

Complies with the requirements of the standards IEC 60079-0:2011 and

IEC 60079-31:2013.

• EC type examination certificate

BVS 12 ATEX E 125 X

• IECEx type examination certificate

IECEx BVS 12.0078 X

• Marking

II 2D Ex tb IIIC T90°C Db IP65

• Permissible operating temperature of the application (proper usage):

Ta: -20°C...+60°C

Installation / Set-up

The units must only be installed, connected and set up by qualified staff. The qualified staff

must have knowledge of types of protection, regulations and provisions for apparatus in

hazardous areas.

Check whether the classification (see "Marking" above and marking on the unit) is suitable

for the application.

Installation remarks / Installation

• Adhere to the relevant national regulations and provisions.

• The relevant installation regulations must be adhered to. In particular, take into account the

requirements relating to the temperature limitation as regards the expected dust deposits.

• Avoid electrostatic charging on housings and cables.

• To avoid electrostatic charging steps must be taken to ensure the equalisation of potential

of metal parts (plug housing, fixing elements, etc.).

• Protect the units and the cables efficiently against damage.

• To avoid soiling, do not remove the dust caps from the cable glands or the plugs until

introducing the cables or attaching the socket.

• It is the responsibility of the user to determine the appropriate tightening torques for the

type of cable used. The cable glands and the cap nut have to be firmly tightened. If the

connection thread or the cap nut is overtightened or undertightened, the type of protection,

the ingress resistance and the strain relief are impaired.

• The housing screws are to be fastened with 0.5 Nm, the fixing screws with max. 4 Nm.

• Maintenance intervals are application-specific and therefore need to be defined by the

operator depending on the operating conditions.

• During maintenance, especially those parts on which the type of protection depends need

to be examined (e.g. integrity of the components of the cable gland, of the seals).

Special conditions for safe operation

• For units with terminal chamber (cable gland) and cable units a sufficient strain relief must

be ensured or the cable must be firmly laid.

• Do not disconnect the cables from units with terminal chamber while live.

• The housing and housing parts made of plastic were tested in accordance with IEC 60079-

0 for group II and for a low mechanical risk with an impact energy of 4 joules.

• Avoid direct radiation with high UV components (sunlight). Mount the unit in a protected

place.

• Units of the type ID must be mounted on a flat surface and the entire bottom must lie

flat on the surface. When mounted with the ifm mounting sets E11121 or E11122, these

requirements are met.

• A fuse must be connected between the current source and the unit. Observe the following

conditions:

- The fuse must have a rated current of max. 40 mA / time-lag in accordance with EN

60127-2.

- The fuse must be located outside the hazardous areas.

- Make sure that for 3-wire circuits the current consumption of the sensor flows through

the fuse. The possible load current is thus reduced by the current consumption.

- Insert the fuse in the specified electric circuit (see the following wiring diagrams).

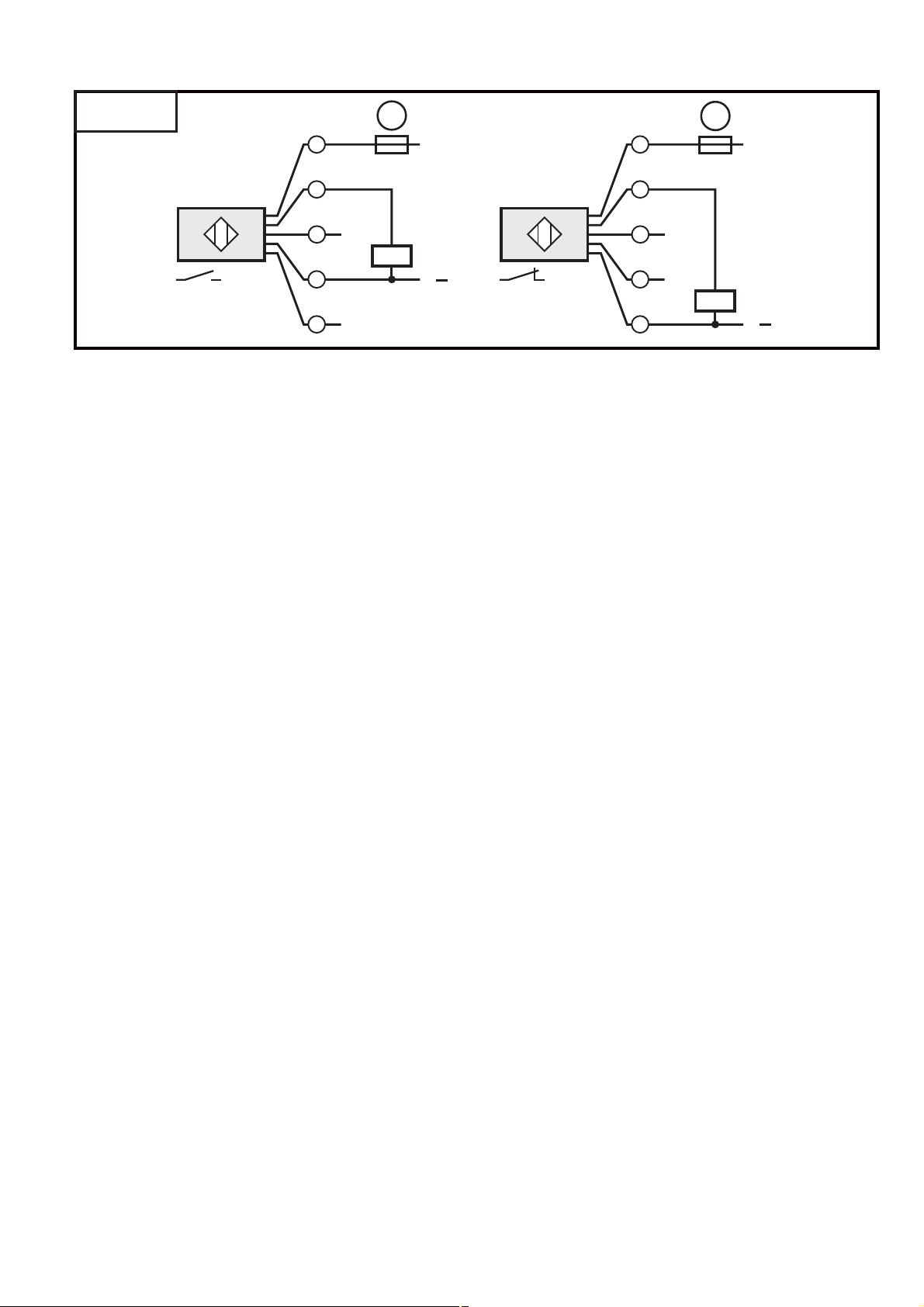

• Wiring diagrams for the installation of the fuse:

L+

ID503A

1: fuse

Maintenance / repair

The unit must not be modified nor can it be repaired. In case of a fault please contact the

manufacturer.

Data sheets, EC declaration of conformity and EC type examination certificates are available

from the manufacturer on request.
