Full-size PICMG 1.0 CPU card supports 32nm LGA1155

Intel® Core™ i7/i5/i3 CPU per Intel® H61, DDR3,

VGA/DVI-D, Dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s,

COM, HD Audio and RoHS

WSB-H610

Quick Installation Guide

Version 1.10

May 22, 2015.

Package Contents

WSB-H610 package includes the following items:

1 x WSB-H610 Single Board Computer

1 x Dual RS-232 Cable (P/N:19800-000051-RS)

1 x KB/MS Y cable( P/N: 32000-133200-RS)

2 x SATA Cable (P/N:32000-0628000-RS)

1 x USB Cable (P/N: CB-USB02-RS)

1 x DVI and USB Kit (P/N:IO-KIT-001-R20)( DVI SKU only)

1 x Mini Jumper Pack

1 x Utility CD

1 x QIG (Quick Installation Guide)

All manuals and user guides at all-guides.com

all-guides.com

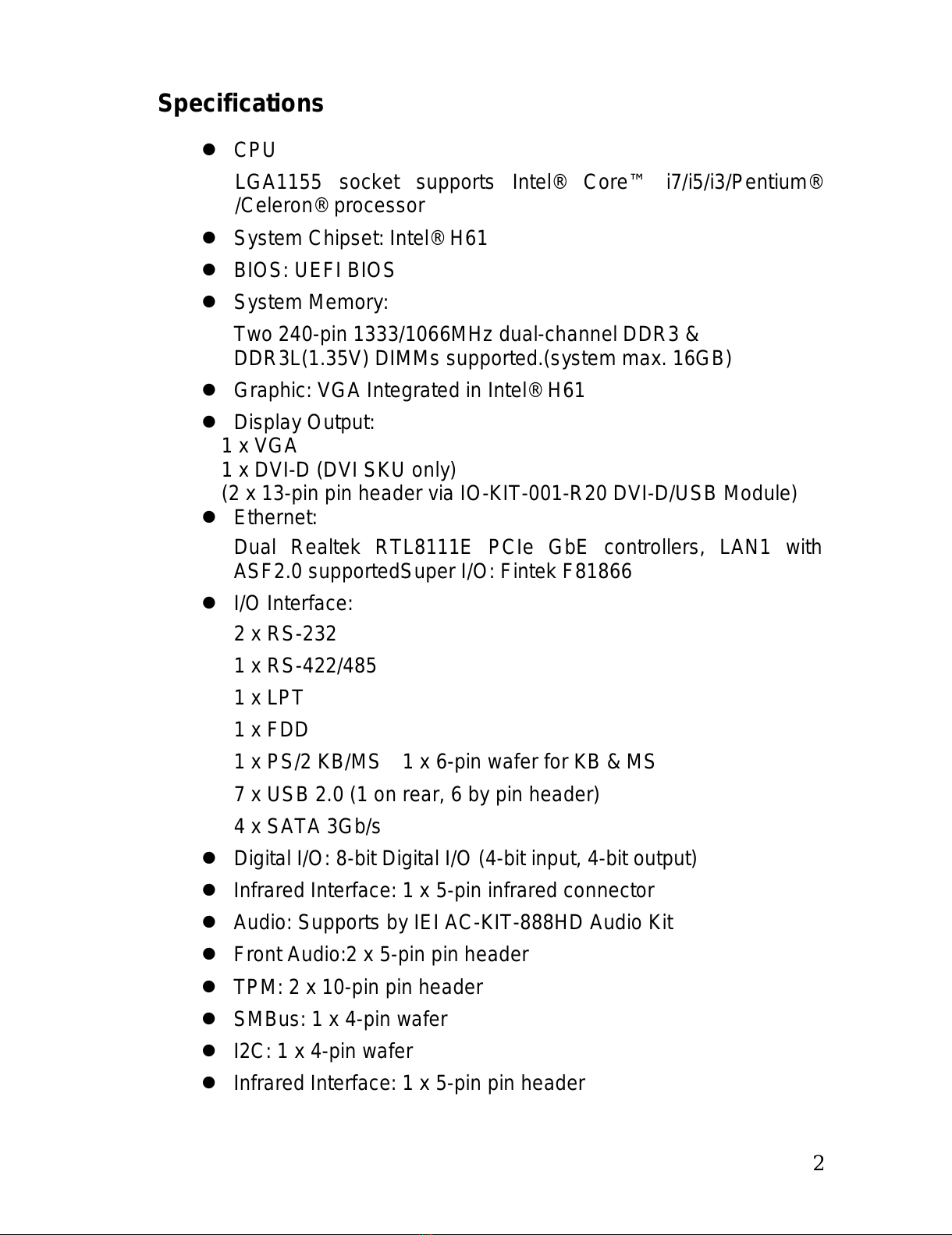

Specifications

CPU

LGA1155 socket supports Intel® Core™ i7/i5/i3/Pentium®

/Celeron® processor

System Chipset: Intel® H61

BIOS: UEFI BIOS

System Memory:

Two 240-pin 1333/1066MHz dual-channel DDR3 &

DDR3L(1.35V) DIMMs supported.(system max. 16GB)

Graphic: VGA Integrated in Intel® H61

Display Output:

1 x VGA

1 x DVI-D (DVI SKU only)

(2 x 13-pin pin header via IO-KIT-001-R20 DVI-D/USB Module)

Ethernet:

Dual Realtek RTL8111E PCIe GbE controllers, LAN1 with

ASF2.0 supportedSuper I/O: Fintek F81866

I/O Interface:

2 x RS-232

1 x RS-422/485

1 x LPT

1 x FDD

1 x PS/2 KB/MS 1 x 6-pin wafer for KB & MS

7 x USB 2.0 (1 on rear, 6 by pin header)

4 x SATA 3Gb/s

Digital I/O: 8-bit Digital I/O (4-bit input, 4-bit output)

Infrared Interface: 1 x 5-pin infrared connector

Audio: Supports by IEI AC-KIT-888HD Audio Kit

Front Audio:2 x 5-pin pin header

TPM: 2 x 10-pin pin header

SMBus: 1 x 4-pin wafer

I2C: 1 x 4-pin wafer

Infrared Interface: 1 x 5-pin pin header

All manuals and user guides at all-guides.com

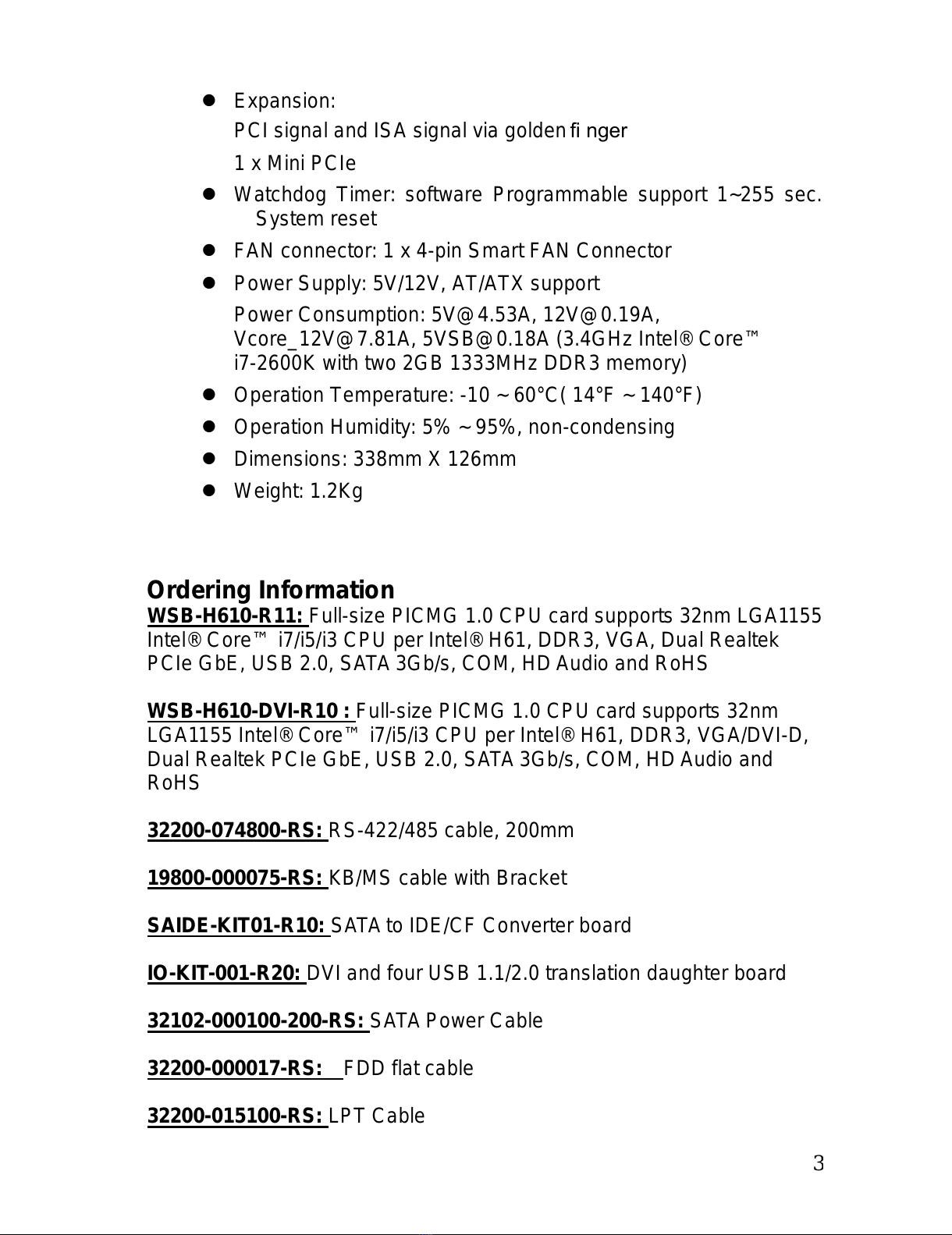

Expansion:

PCI signal and ISA signal via goldenﬁ nger

1 x Mini PCIe

Watchdog Timer: software Programmable support 1~255 sec.

System reset

FAN connector: 1 x 4-pin Smart FAN Connector

Power Supply: 5V/12V, AT/ATX support

Power Consumption: 5V@4.53A, 12V@0.19A,

Vcore_12V@7.81A, 5VSB@0.18A (3.4GHz Intel® Core™

i7-2600K with two 2GB 1333MHz DDR3 memory)

Operation Temperature: -10 ~ 60°C( 14°F ~ 140°F)

Operation Humidity: 5% ~ 95%, non-condensing

Dimensions: 338mm X 126mm

Weight: 1.2Kg

Ordering Information

WSB-H610-R11:

Full-size PICMG 1.0 CPU card supports 32nm LGA1155

Intel® Core™ i7/i5/i3 CPU per Intel® H61, DDR3, VGA, Dual Realtek

PCIe GbE, USB 2.0, SATA 3Gb/s, COM, HD Audio and RoHS

WSB-H610-DVI-R10 :

Full-size PICMG 1.0 CPU card supports 32nm

LGA1155 Intel® Core™ i7/i5/i3 CPU per Intel® H61, DDR3, VGA/DVI-D,

Dual Realtek PCIe GbE, USB 2.0, SATA 3Gb/s, COM, HD Audio and

RoHS

32200-074800-RS:

RS-422/485 cable, 200mm

19800-000075-RS:

KB/MS cable with Bracket

SAIDE-KIT01-R10:

SATA to IDE/CF Converter board

IO-KIT-001-R20:

DVI and four USB 1.1/2.0 translation daughter board

32102-000100-200-RS:

SATA Power Cable

32200-000017-RS:

FDD flat cable

32200-015100-RS: LPT Cable

All manuals and user guides at all-guides.com

AC-KIT-888HD-R10:

7.1 channel HD Audio kit with Realtek ALC888

support dual audio streams

AC-KIT08R-R10:

5.1 channel AC’97 audio kit with Realtek ALC655

CPU-DT-i5-2500T:

Intel® Core™ i5-2500T processor, LGA1155, Quad

core 2.3GHz, 6M Cache, 45W, compatible with CF-1156C-RS CPU cooler

CPU-DT-i5-2390T:

Intel® Core™ i5-2390T processor, LGA1155, Dual

core 2.7GHz, 3M Cache, 35W,AMT, compatible with CF-1156C-RS CPU

cooler

CPU-DT-i3-2100T:

Intel® Core™ i3-2100T processor, LGA1155, Dual

core 2.5GHz, 3M Cache, 35W, compatible with CF-1156C-RS CPU cooler

CPU-DT-P-G620T:

Intel® Pentium G620T processor, LGA1155, Dual core

2.2GHz, 3M Cache, 35W, compatible with CF-1156C-RS CPU cooler

CPU-DT-C-G440:

Intel® Celeron G440 processor, LGA1155, Single core

1.6GHz, 1M Cache, 35W, compatible with CF-1156C-RS CPU cooler

CF-1156A-RS-R10:

High-performance LGA1155/LGA1156 cooler kit,1U

chassis compatible, 73W

CF-1156B-RS-R10:

High-performance LGA1155/LGA1156 cooler kit, 95W

CF-1156C-RS:

LGA1155/LGA1156 cooler kit, 1U chassis compatible,

45W

CF-1156D-RS:

LGA1155/LGA1156 cooler kit, 1U chassis compatible,

65W

TPM-IN01-R11:

20-Pin Inﬁneon TPM module, software management tool,

ﬁrmware V3.17

All manuals and user guides at all-guides.com

Jumpers setting and Connectors

Table of Jumpers

LABEL

FUNCTION

J_CMOS1

CMOS state setting

JAUTO1

Power Mode Setting

JLAN_PWR1

WOL Setting

J_FLASH

Flash Descriptor Security Override/ME Debug Mode

Table of Connectors

LABEL

FUNCTION

VGA1

VGA 15-pin Female Connector

USB_C1

USB_C2

USB Port Connector

LAN1、LAN2

RJ45 LAN Connector

KB_MS1

Internal PS/2 KEYBOARD/MOUSE Connector

COM1

COM2 Internal Serial Port DB-9 Connectors

COM3

RS422/485 Serial Port

USB1

USB2

USB3 Internal USB Connectors

J_AUDIO1

Extend Audio Module Connector

SATA1

SATA2

SATA3

SATA4

Serial ATA Connectors

IR1

IrDA Infrared Interface Connector

FDD1

Internal FDD Connector

LPT1

Internal LPT Connector

DVI1

DVI-D connector

CPU_FAN1

Fan Connector

DIO1

Digital I/O Connector

F_PANEL1

PWR & RST Buttons

and Indicators

CPU12V1

ATX-12V CPU Power Source

MINI-PCIE1

PCI-E Mini Card

TPM1

TPM Connector(80 port CONN)

All manuals and user guides at all-guides.com

Jumper setting

J_CMOS1 : Clear CMOS setting Jumper

J_CMOS1

DESCRIPTION

1-2

(Default) Normal

2-3

Clear CMOS Data

J_ATXCTL1 : Set The Power mode

JATX_AT1

DESCRIPTION

1-2

(ON) ATX Power Mode (Default)

1-2

(OFF) AT Power Mode

JLAN_PWR1 : WOL enable jumper

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

+3.3V_DUAL

+V3.3LAN2

+V3.3LAN1

+3.3V

JLAN_PWR1

DESCRIPTION

1-3

LAN 2 WOL Enable(Default)

2-4

LAN 1 WOL Enable(Default)

3-5

LAN 2 WOL Disable

4-6

LAN 1 WOL Disable

J_FLASH : Flash Descriptor Security Override/ ME Debug Mode

J_FLASH

DESCRIPTION

1-2

Disabled (Default)

2-3

Enable

Connector

VGA1 : 15-pin Female Connector

DESCRIPTION

RED

GREEN

BLUE

GND

All manuals and user guides at all-guides.com

all-guides.com

VCC

GND

11 NC 12 DDCDAT

HSYNC

VSYNC

DDCCLK

USB_C1,USB_C2

PIN NO.

DESCRIPTION

VCC

DATA-

DATA+

GROUND

LAN1、LAN2: RJ45 LAN Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

MDIA3-

MDIA1+

MDIA3+

MDIA2+-

MDIA2-

MDIA0-

MDIA1-

MDIA0+

MS/KB1: Internal 6-pin Keyboard Connector

DESCRIPTION

VCC

Mouse Data

Mouse Clock

Keyboard Data

Keyboard Clock

Ground

COM3: External Serial Port Connector (RS422/485)

PIN NO.

DESCRIPTION

TXD485#

TXD485+

COM1,COM2: Internal Serial Port Connector

DESCRIPTION

DCD#

DSR#

RXD

RTS#

TXD

CTS#

DTR#

RI#

GND

All manuals and user guides at all-guides.com

RXD485+

RXD485#

●

■

RS485 Pin define

RS422 Pin define

D-SUB 9PIN MALED-SUB 9PIN MALE

TX+(TXD485+)

RS422/485

TX-(TXD485#)

RX-(RXD485#)

RX+(RXD485+)

TX+(TXD485+)

TX-(TXD485#)

USB1-USB3: Internal USB Connector

DESCRIPTION

VCC

GND

DATA-

DATA+

DATA-

GND

VCC

J_AUDIO1 : External Audio Module Connector

DESCRIPTION

ACZ_SYNC

ACZ_BITCLK

ACZ_SDOUT

ACZ_PCBEEP

ACZ_SDIN

ACZ_RST#

ACZ_VCC

ACZ_GND

ACZ_12V

ACZ_GND

SATA1-SATA4 : Serial ATA Connector

DESCRIPTION

GND

RX-

TX+

RX+

TX-

GND

N/C

All manuals and user guides at all-guides.com

IR1: IrDA connector

PIN NO.

DESCRIPTION

VCC

IR-RX

GND

IR-TX

FDD1: Floppy Disk Drive Connector

DESCRIPTION

GND

REDUCE WRITE

GND

N/C

GND

INDEX#

GND

MOTOR ENABLE A#

GND

DRIVE SELECT B#

GND

DRIVE SELECT A#

GND

MOTOR ENABLE B#

GND

DIRECTION#

GND

STEP#

GND

WRITE DATA#

GND

WRITE GATE#

GND

TRACK 0#

GND

WRITE PROTECT#

GND

READ DATA#

GND

SIDE 1 SELECT#

GND

DISK CHANGE#

All manuals and user guides at all-guides.com

DVI1 : DVI Connector

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

Data 2-

VCC

Data 2+

GND

Hot Plug Detect.

N/C

Data 0-

N/C

Data 0+

DDC Clock

GND

DDC Data

N/C

Data 1-

GND

Data 1+

Clock +

GND

Clock -

N/C

GND

N/C

CPU_FAN1 : CPU Fan Connector

PIN NO.

DESCRIPTION

Ground

+12V

Rotation Signal

Control

LPT1 : Parallel Port Connector

DESCRIPTION

STROBE#

AUTO FORM FEED #

DATA0

ERROR#

DATA1

INITIALIZE#

DATA2

PRINTER SELECT LN#

DATA3

GND

DATA4

GND

DATA5

GND

DATA6

GND

DATA7

GND

ACKNOWLEDGE#

GND

BUSY

GND

PAPER EMPTY

GND

PRINTER SELECT

All manuals and user guides at all-guides.com

Autres manuels pour WSB-H610

Table des matières

Autres manuels IEI Technology Matériel informatique

IEI Technology

IEI Technology SPCIE-C2060 Manuel utilisateur

IEI Technology

IEI Technology PICOe-EHL-J6412C Manuel utilisateur

IEI Technology

IEI Technology TANK-101B Manuel utilisateur

IEI Technology

IEI Technology ROCKY-4786EVG Manuel utilisateur

IEI Technology

IEI Technology IOWA-LX-600 Manuel utilisateur

IEI Technology

IEI Technology PCISA-PV-D5251 Manuel utilisateur

IEI Technology

IEI Technology IMBA-C604EP Manuel utilisateur

IEI Technology

IEI Technology PCIE-G41A2 Manuel utilisateur

IEI Technology

IEI Technology IDS-330-ADL-P Series Manuel utilisateur

IEI Technology

IEI Technology KINO-DQM170 Manuel utilisateur

IEI Technology

IEI Technology WSB-H610-R11 Manuel utilisateur

IEI Technology

IEI Technology PCISA-BT Manuel utilisateur

IEI Technology

IEI Technology WAFER-ULT4 Manuel utilisateur

IEI Technology

IEI Technology TANK-600 Series Manuel utilisateur

IEI Technology

IEI Technology PCIE-9452 Manuel utilisateur

IEI Technology

IEI Technology ROCKY-3786EV Manuel utilisateur

IEI Technology

IEI Technology WAFER-945GSE3 Manuel utilisateur

IEI Technology

IEI Technology SPCIE-C2260-i2 Manuel utilisateur

IEI Technology

IEI Technology IEM-LX Manuel utilisateur

IEI Technology

IEI Technology SPCIE-C246 Manuel utilisateur

IEI Technology

IEI Technology PCISA-9652 Manuel utilisateur

IEI Technology

IEI Technology WSB-9454 Manuel utilisateur

IEI Technology

IEI Technology HDC-304E Manuel utilisateur

IEI Technology

IEI Technology SPCIE-C2260 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
