ICP DAS USA DNP-211 Manuel utilisateur

User Manual

Version 1.0.1 Jun 2022

DNP-211

DNP3 Master to Modbus TCP Server Gateway

Version 1.0.1 DNP-211 User Manual 2022/06/01

Warranty

All products manufactured by ICP DAS are under warranty

regarding defective materials for a period of one year,

beginning from the date of delivery to the original

purchaser.

Warning

ICP DAS assumes no liability for any damage resulting from

the use of this product. ICP DAS reserves the right to

change this manual at any time without notice. The

information furnished by ICP DAS is believed to be accurate

and reliable. However, no responsibility is assumed by ICP

DAS for its use, nor for any infringements of patents or

other rights of third parties resulting from its use.

Trademarks

Names are used for identification purposes only and may

be registered trademarks of their respective companies.

Document Revision

Version Author Date Description

1.0.0 Ming 2021/10/06 First Released Revision

Version 1.0.1 DNP-211 User Manual 2022/06/01

Contents

1. Introduction............................................................................................4

1.1. DNP3 Introduction ................................................................................4

1.2. Modbus TCP Introduction ...................................................................4

1.3. About DNP-211 .....................................................................................5

1.4. Features....................................................................................................5

1.5. Specifications..........................................................................................5

2. Hardware.................................................................................................7

2.1. Dimensions .............................................................................................7

2.2. Appearance.............................................................................................8

2.3. LED Indicator...........................................................................................9

3. Getting Started With DNP-211 ...........................................................10

3.1. Preparations for Devices....................................................................10

3.2. Hardware Wiring..................................................................................10

3.3. DNP-211 Utility ....................................................................................10

3.3.1. Download DNP-211 Utility............................................................10

3.3.2. DNP-211 Utility Introduction........................................................11

3.4. DNP-211 Reader..................................................................................15

3.4.1. Download DNP-211 Reader..........................................................15

3.4.2. DNP-211 Reader Introduction......................................................15

Appendix A: Modbus Map ............................................................................20

Appendix B: Mapping Rule............................................................................21

Version 1.0.1 DNP-211 User Manual 2022/06/01

1. Introduction

1.1. DNP3 Introduction

DNP3 (Distributed Network Protocol 3) is a communication protocol used

between automation components. The protocol is formulated with

reference to IEC 870-5. The purpose is to unify the communication

method of SCADA so that SCADA can use the DNP3 protocol to

communicate with master stations, remote terminal units (RTUs),

intelligent electronic devices (IEDs), etc., and are mainly used in utilities

such as electric and water companies.

The DNP3 protocol has certain of reliability and allows reliable

communications in the adverse environments that electric utility

automation systems are subjected to being specifically designed to

overcome distortion induced by electromagnetic interference (EMI),

aging components, and poor transmission media. A large number of CRC

check codes are used in the protocol to ensure the accuracy of data. It is

suitable for high security, Data communication field of medium speed and

medium amount of data.

1.2. Modbus TCP Introduction

Modbus TCP is a variant of the Modbus family of simple, vendor-neutral

communication protocols intended for supervision and control of

automation equipment. Specifically, it covers the use of Modbus

messaging in an “Intranet” or “Internet” environment using the

TCP/IP protocols. The most common use of the protocols at this time is

for Ethernet attachment of PLC’s, I/O modules, and gateways to other

simple field buses or I/O networks.

Version 1.0.1 DNP-211 User Manual 2022/06/01

1.3. About DNP-211

DNP-211 is a gateway that supports DNP3 master and Modbus TCP

server protocol conversion. As long as the master device supports

Modbus TCP protocol, it can connect the existing DNP3 network with the

Ethernet-based master device. For DNP3 network, DNP-211 is a DNP3

master device. It supports several commonly used data groups and

variables and can communicate with slave devices. From the perspective

of Modbus TCP network, DNP-211 is a Modbus TCP server, which can

receive commands from Modbus TCP client, and process these

commands to reply or send related DNP3 data. All DNP3 I/O data and

Modbus mapping can be configured through DNP-211 utility software.

1.4. Features

Read / Write DNP3 outstations via Modbus TCP

Configurable DNP3 Master

Configurable Modbus TCP server

Support Data Group 1, 10, 12, 20, 30, 40, 41

Support Modbus function code 1, 2, 3, 4, 15, 16

Provides Modbus register of connection status of DNP3 outstations

Supports up to 32 DNP3 outstations

Supports up to 16 Modbus client connections

1.5. Specifications

System

CPU Cortex-A8, 1 GHz

SDRAM 512 MB

Flash 512 MB

FRAM 64 KB

LED Indicators PWR (Power), RUN (System run), L1 (Firmware run),

L2 (Modbus TCP connection), L3 (DNP3 connection)

Communication Ports

Version 1.0.1 DNP-211 User Manual 2022/06/01

VGA 1 (reserved)

Ethernet RJ-45 x 2, 10/100/1000 Based-TX (Auto-negotiating,

Auto MDI/MDI-X, LED indicators)

USB 2.0 2 (reserved)

Console Port RS-232 (RxD, TxD and GND); Non-isolated

ttyO2 RS-485 (Data+, Data-); Non-isolated

ttyO4 RS-232 (RxD, TxD and GND); Non-isolated

ttyO5 RS-485 (Data+, Data-); 2500 VDC isolated

Protocol

Modbus

Identity Modbus TCP server

Function 1, 2, 3, 4, 15, 16

Connection Max. 16 Modbus TCP clients

DNP3

Identity DNP3 master

Connection Max. 5 MMS clients

Group 1, 10, 12, 20, 30, 40, 41

Data Point

DI: 8192

DO: 8192

Count: 2048

AI: 2048

AO: 2048

Power

Supply Voltage +12 to +48 VDC

Consumption 4.8 W

Connector 3-pin Removable Terminal Block

Mechanism

Dimensions 35 mm x 167 mm x 119 mm

Casing Metal

Installation DIN-Rail

Environment

Operating Temp. -25°C ~ +75°C

Storage Temp -30°C ~ +85°C

Humidity 10 ~ 90% RH, non-condensing

Version 1.0.1 DNP-211 User Manual 2022/06/01

2.Hardware

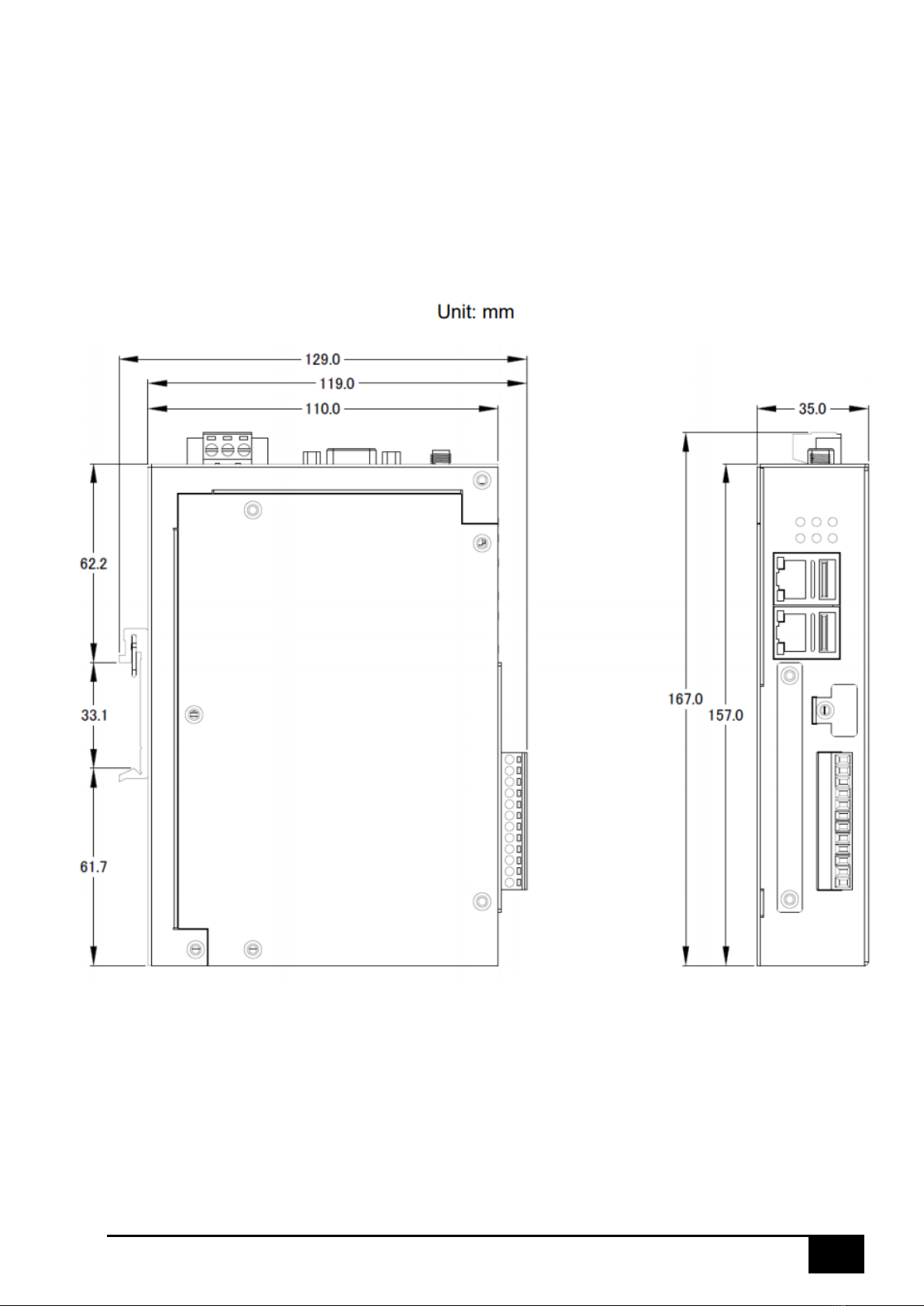

2.1. Dimensions

Version 1.0.1 DNP-211 User Manual 2022/06/01

2.2. Appearance

Version 1.0.1 DNP-211 User Manual 2022/06/01

2.3. LED Indicator

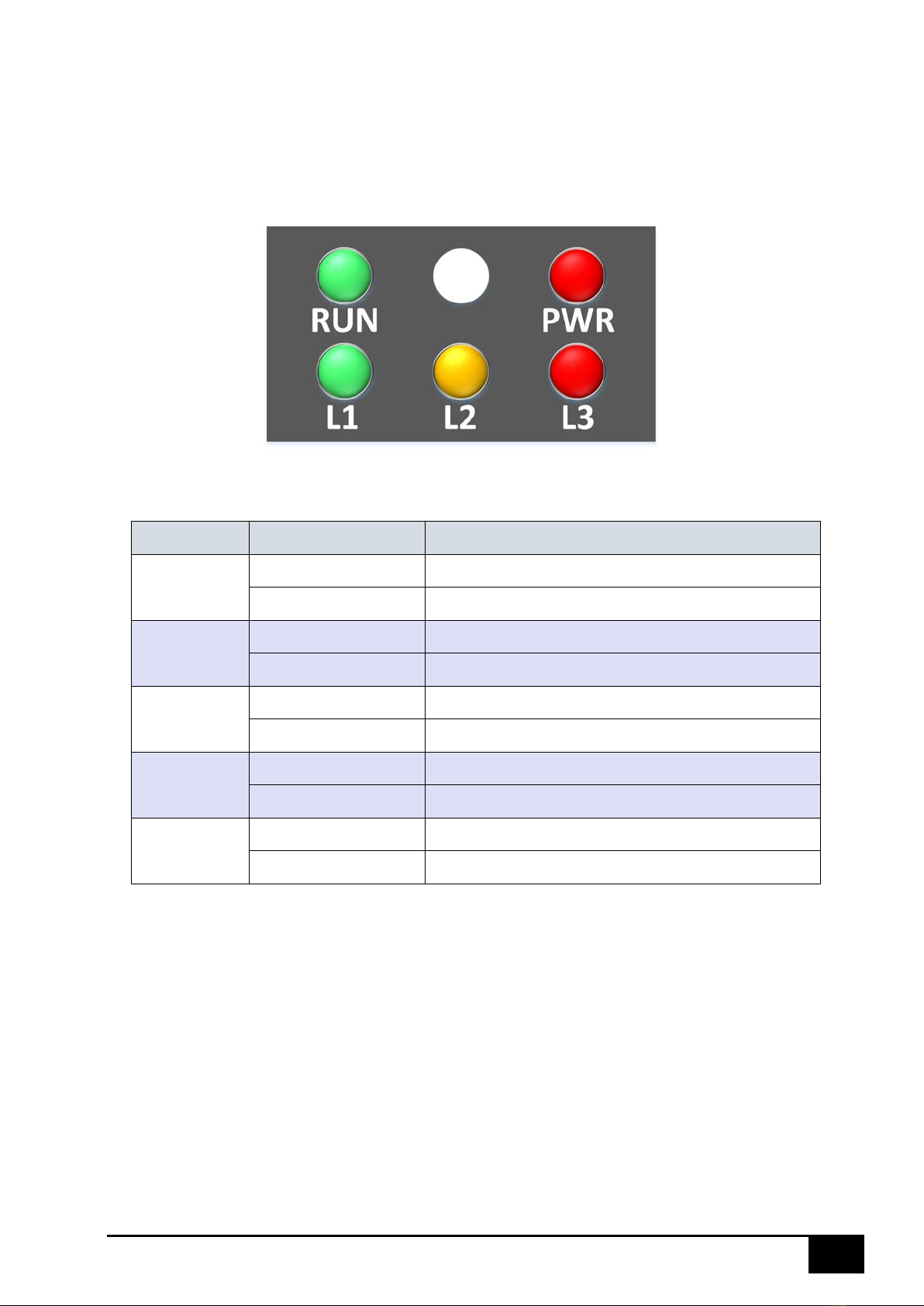

There are five LEDs to indicate the various states of the DNP-211. The

following is the illustration of these five LEDs.

LED Name LED Status Description

PWR ON Power on

OFF Power failure

RUN Blink OS is running

OFF OS stops running

L1 Flash every second Firmware is running

Other Firmware stops running

L2 Flash every 500 ms Modbus TCP disconnected

OFF No Warning

L3 Flash every 500 ms At least one DNP3 outstation disconnected

OFF No Error

Version 1.0.1 DNP-211 User Manual 2022/06/01

3. Getting Started With DNP-211

3.1. Preparations for Devices

In addition to the DNP-211, please prepare the following:

1. Power Supply: +12 ~ +48 VDC (Ex: DP-665)

2. Ethernet Hub or Switch (Ex: NS-205)

3. PC/NB: Can connect to the network and set the network

3.2. Hardware Wiring

Connect the DNP-211 with the RJ-45 Ethernet port LAN1 to an Ethernet

hub/switch and PC. You can also link directly the DNP-211 to PC with an

Ethernet cable.

After power is connected, please wait 1 minute for DNP-211 start-up

procedure. When the "RUN"indicator starts flashing and “PWR”

indicator is constantly lit, it represents the boot is complete. After the

module boots successfully, if the "L1" indicator flashes every second, it

means the firmware is running.

3.3. DNP-211 Utility

3.3.1. Download DNP-211 Utility

https://www.icpdas.com/en/download/show.php?num=8036&model=DNP-211

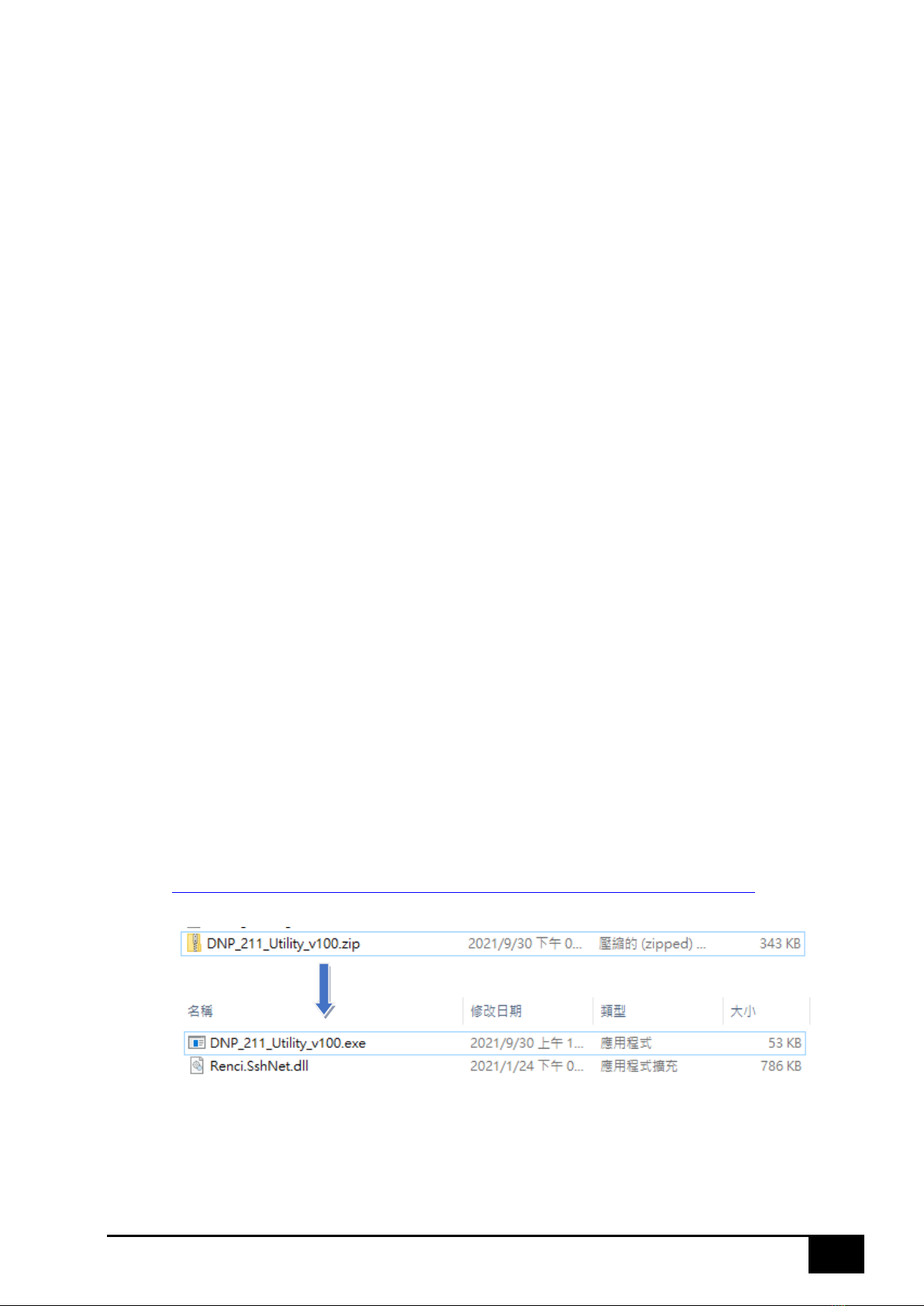

Download and install IEC850_211_S_Utility
