ICP DAS USA GRP-540M Manuel utilisateur

Technical support：servi[email protected] P1

GRP-540M/GRP-541M Quick Start

v1.3.1, 2020

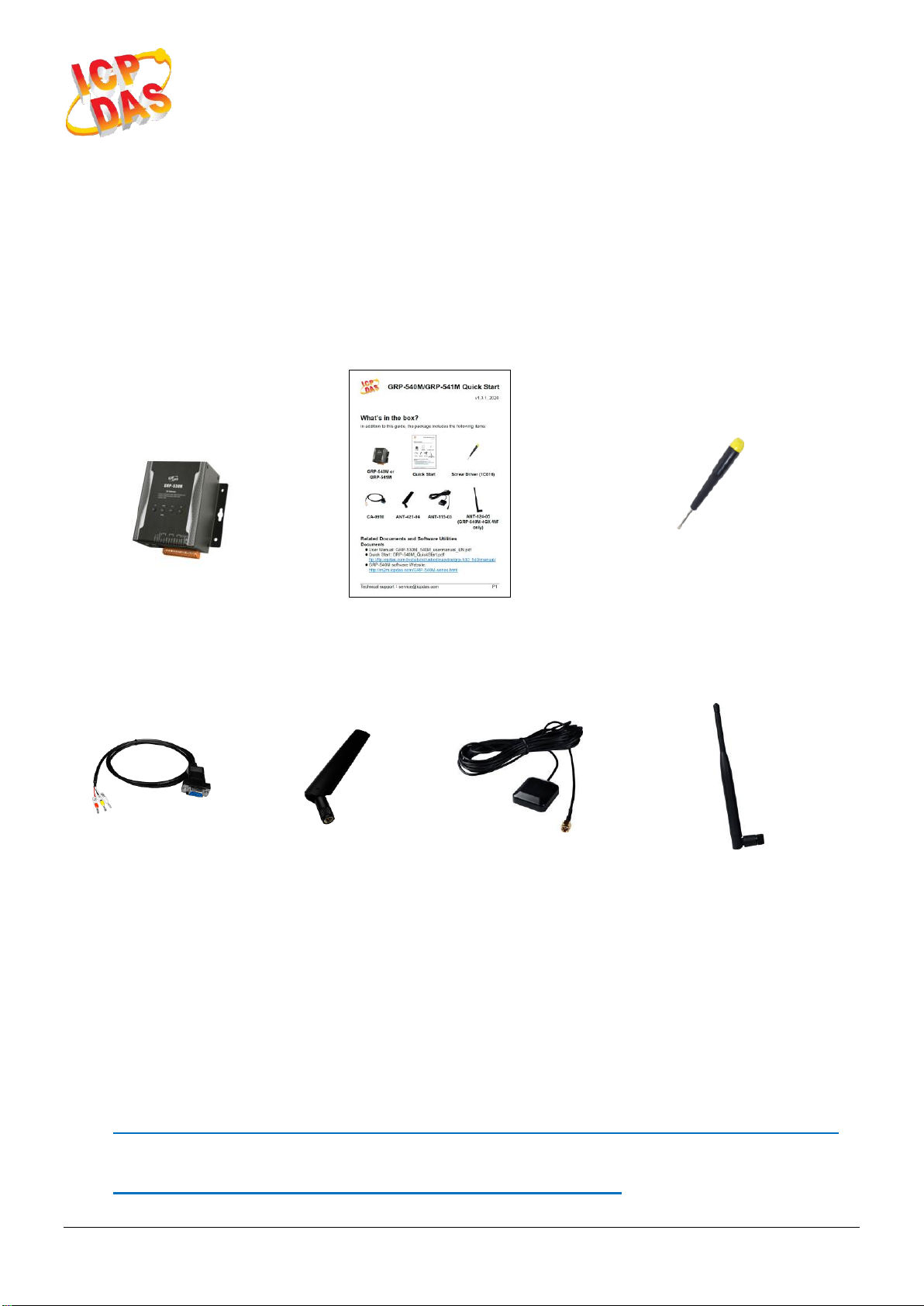

What’s in the box?

In addition to this guide, the package includes the following items:

GRP-540M or

GRP-541M

Quick Start

Screw Driver (1C016)

CA-0910

ANT-421-04

ANT-115-03

ANT-124-05

(GRP-540M-4GX-WF

only)

Related Documents and Software Utilities

Documents

User Manual: GRP-530M_540M_usermanual_EN.pdf

Quick Start: GRP-540M_QuickStart.pdf

ftp://ftp.icpdas.com.tw/pub/cd/usbcd/napdos/grp-530_540/manual/

GRP-540M software Website:

http://m2m.icpdas.com/GRP-540M-series.html

Technical support：servi[email protected] P2

1 Appearance and Pin Assignments

COM Port & Power Input

Terminal No.

Pin Assignment

Power

F.G.

P.GND

PWR

COM1

TxD1

RxD1

GND

COM2

TxD2

RxD2

GND

COM3

D+

D-

CAN

CAN.GND

CAN_H

CAN_L

Ethernet /

USB COM Port &

Power Input

AntennaSIM Card

SD Card

Rotary

Switch

I/O Expansion

LED: 4G, PWR, L1, L2

Technical support：servi[email protected] P3

2 LED indicators

A. PWR(Green)：Power LED to indicate whether the external power

is input or not. The description is as follows:

The external power is active

The external power is not active

off

B. RUN(Red)：RUN LED indicates if the OS is normal or fail.

Normal

Fail

Heart beat (1 sec.)

Always ON or OFF

C. L1(Green/Red)：this Led indicates the status of RTU Client.

Normal

Fail

500ms ON / 500ms OFF

Always ON or OFF

D. L2(Green/Red)：reserve.

E. 4G (Red)：The LED indicates the status of 4G module.

(the 4G module need about 60 seconds to register network

usually)

Registered

4G/GPRS data transmit

Not Register

800ms ON /

200ms OFF

200ms ON, 200ms OFF

200ms ON / 800ms

OFF

Technical support：servi[email protected] P4

3 Installation

If users want to start GRP-540M normally, it needs to follow these steps

to install the GRP-540M below:

A. Install the antenna

B. Plug in the normal SIM card (Before apply the SIM card, confirm it

is OK by mobile phone.)

C. Plug the Ethernet cable if you need it.

D. If you want to use the Micro SD card, please insert it into the slot.

E. Turn the rotary switch to 0 (normal mode). The COM1 will be the

console in position 1 (debug mode), and the default username is

“root”, default password is “root”.

F. Connect the DC.+VS and DC.GND to the power supply.

G. It is needed to wait about 20 ~ 30 seconds for OS booting. After

finishing the process, GRP-540M would be in normal operation

mode and the OS LED would blank as heart beat per 1 sec.

H. It is needed to wait about 30 ~ 60 seconds to search the 4G base

and register to the ISP. After finishing the process, the 4G LED

would blank per 1 sec.

Plug Ethernet cable

LED Indicators

Install The Antenna

Insert SIM Card

Insert SD Card

Connect to Power

Technical support：servi[email protected] P5

4 Web Utility

1. Login

Default username = “admin”, and default password = “admin”

Default IP = “192.168.255.1”

Default Mask = “255.255.0.0”

After login, the screenshot is showed as below:

2. Ethernet

This page provides the basic settings of Ethernet:

Technical support：servi[email protected] P6

(1) IP Address: IP of Ethernet.

(2) Mask: the Mask of the gateway.

(3) Gateway: IP of the gateway.

3. PIN / APN Configure

This page provides basic settings of 4G network. This page of

GRP-541M will show up two SIM cards’settings.

(1) PIN Code: PIN Code are 4 character number provided by

SIM Card provider

(2) Phone Number: usually fill it as “*99***1#” or “*99#”. It

depends on SIM Card provider

(3) APN: Access Point Name, please ask your SIM Card

provider.

(4) User Name: the username for dial-up. Please ask your SIM

Card provider.

(5) Password: the password for dial-up. Please ask your SIM

Card provider.

(6) Enable Dual SIM: Default is using SIM1. If enable this

function, the SIM card will be auto changed to another when

the network is reconnecting. (Only show up in GRP-541M).

Technical support：servi[email protected] P7

4. Routing

This page provides routing rule configuration.

(1) IP: IP address.

(2) Mask: the mask will effect how many IP this rule manages.

”24” = 255 IPs, “28” = 16 IPs, “32” = 1 IPs.

(3) Target: the target interface of the rule.

(4) For example:

The Rule 0: This rule will push the socket packages from the

address 192.168.27.1 ~ 192.168.27.255 forward to “ppp0”

(4G network).

5. Port Mapping (Port Forward)

This page provides Port Mapping rule configuration.

Technical support：servi[email protected] P8

(1) Type: the protocol type. There are “TCP” and “UDP”

(2) From: the interface that the socket comes from.

”ppp0” is 4G interface.

(3) Port: the port that the socket comes from.

(4) Target IP: the IP that the socket goes forward.

(5) Target Port: the Port of the “Target IP”.

(6) For example:

The Rule 0: This rule will bind the socket from the “ppp0” and

Port=”10080” with 192.168.0.10:80.

6. Password

The user can change the password of the web utility here.

(1) Password: new password.

(2) Confirm: confirm the password again.

7. The advance settings of web utility

Please refer the user manual of GRP-540M.
