INSTRUCTION MANUAL

This device complies with Part 15 of the FCC Rules. Opera-

tion is subject to the condition that this device does not cause

harmful interference.

iF3230D Series

VHF DIGITAL TRANSCEIVERS

iF4230D Series

UHF DIGITAL TRANSCEIVERS

The photo shows the VHF

transceiver (S type)

IMPORTANT

READ ALL INSTRUCTIONS carefully and com-

pletely before using the transceiver.

SAVE THIS INSTRUCTION MANUAL — This

instruction manual contains important operating instructions

for the IC-F3230DT, IC-F3230DS VHF DIGITAL TRANS-

CEIVERS and the IC-F4230DT, IC-F4230DS UHF DIGITAL

TRANSCEIVERS.

See the operating guide for details of IDAS (ICOM Digital

Advanced System) system operations. Ask your dealer for

details.

EXPLICIT DEFINITIONS

WORD DEFINITION

RDANGER! Personal death, serious injury or an ex-

plosion may occur.

RWARNING! Personal injury, ﬁre hazard or electric

shock may occur.

CAUTION Equipment damage may occur.

NOTE If disregarded, inconvenience only. No risk

of personal injury, ﬁre or electric shock.

VOICE CODING TECHNOLOGY

The AMBE+2™ voice coding Technology embodied in this

product is protected by intellectual property rights including

patent rights, copyrights and trade secrets of Digital Voice

Systems, Inc. This voice coding Technology is licensed solely

for use within this Communications Equipment. The user of

this Technology is explicitly prohibited from attempting to ex-

tract, remove, decompile, reverse engineer, or disassemble

the Object Code, or in any other way convert the Object Code

into a human-readable form. U.S. Patent Nos.

#5,870,405, #5,826,222, #5,754,974, #5,701,390, #5,715,365,

#5,649,050, #5,630,011, #5,581,656, #5,517,511, #5,491,772,

#5,247,579, #5,226,084 and #5,195,166.

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incor-

porated (Japan) in Japan, the United States, the United Kingdom, Germany,

France, Spain, Russia, Australia, New Zealand, and/or other countries.

RDANGER! NEVER short terminals of the battery

pack. Also, current may ﬂow into nearby metal objects such

as a key, so be careful when placing the battery packs (or the

transceiver) in handbags, etc. Simply carrying with or plac-

ing near metal objects such as a key, etc. may cause short-

ing. This may damage not only the battery pack, but also the

transceiver.

RDANGER! Use and charge only speciﬁed Icom bat-

tery packs with Icom transceivers or Icom chargers. Only

Icom battery packs are tested and approved for use with Icom

transceivers or charged with Icom chargers. Using third-party

or counterfeit battery packs or chargers may cause smoke,

ﬁre, or cause the battery to burst.

RWARNING! NEVER hold the transceiver so that

the antenna is very close to, or touching exposed parts of

the body, especially the face or eyes, while transmitting. The

transceiver will perform best if the microphone is 5 to 10 cm (2

to 4 inches) away from the lips and the transceiver is vertical.

RWARNING! NEVER operate the transceiver with

a headset or other audio accessories at high volume levels.

The continuous high volume operation may cause a ringing

in your ears. If you experience the ringing, reduce the volume

level or discontinue use.

RWARNING! NEVER operate the transceiver while

driving a vehicle. Safe driving requires your full attention—

anything less may result in an accident.

CAUTION: MAKE SURE the ﬂexible antenna, bat-

tery pack and jack cover are securely attached to the trans-

ceiver, and that the antenna and battery pack are dry before

attachment. Exposing the inside of the transceiver to dust or

water will result in serious damage to the transceiver.

DO NOT operate the transceiver near unshielded electri-

cal blasting caps or in an explosive atmosphere.

DO NOT push [PTT] when you do not actually intend to

transmit.

DO NOT operate or place the transceiver in direct sunlight

or in areas with temperatures below –30°C (–22°F) or above

+60°C (+140°F).

DO NOT modify the transceiver. The speciﬁcations may

change and then not comply with the requirements of a corre-

sponded regulation. The transceiver warranty does not cover

any problems caused by unauthorized modiﬁcation.

DO NOT use harsh solvents such as benzine or alcohol

when cleaning, as they will damage the transceiver surfaces.

PRECAUTIONS

iii

FCC INFORMATION

• FOR CLASS A UNINTENTIONAL RADIATORS:

This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment

is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instruc-

tion manual, may cause harmful interference to radio commu-

nications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will

be required to correct the interference at his own expense.

CAUTION: Changes or modiﬁcations to this transceiver, not

expressly approved by Icom Inc., could void your authority to

operate this transceiver under FCC regulations.

PRECAUTIONS (Continued)

BE CAREFUL! The transceiver will become hot when

operating it continuously for long periods of time.

BE CAREFUL! The transceiver meet IP67* require-

ments for dust-tight and waterproof protection. However,

once the transceiver has been dropped, dust-tight and water-

proof protection cannot be guaranteed because of possible

damage to the transceiver’s case or the waterproof seal.

* Only when the jack cover or the optional HM-168LWP is

attached.

Even when the transceiver power is OFF, a slight current still

ﬂows in the circuits. Remove the battery pack or batteries

from the transceiver when not using it for a long time. Other-

wise, the installed battery pack or batteries will become ex-

hausted, and will need to be recharged or replaced.

MAKE SURE

to turn OFF the transceiver power before

connecting the supplied/optional equipment.

TABLE OF CONTENTS

IMPORTANT..........................................................................i

EXPLICIT DEFINITIONS....................................................... i

VOICE CODING TECHNOLOGY .......................................... i

PRECAUTIONS.................................................................... ii

FCC INFORMATION ........................................................... iii

TABLE OF CONTENTS....................................................... iv

1 ACCESSORIES ...........................................................1–2

■Supplied accessories...................................................1

■Accessory attachments................................................1

2 PANEL DESCRIPTION................................................3–7

■Front panel ...................................................................3

■Function display ...........................................................4

■Programmable function keys........................................5

3 BASIC OPERATION..................................................8–10

■Turning power ON........................................................8

■Channel selection ........................................................9

■User set mode..............................................................9

■Priority A channel selection..........................................9

■Receiving and transmitting.........................................10

4 BATTERY CHARGING ............................................11–16

■Caution.......................................................................11

■Battery chargers.........................................................13

5 BATTERY CASE......................................................17–19

■BP-240 optional battery case.....................................17

■BP-261 optional battery case.....................................18

6 SPEAKER MICROPHONE............................................20

■Optional HM-168LWP description..............................20

■Attaching....................................................................20

7 OPTIONAL SWIVEL BELT CLIP ............................21–22

■MB-93 contents..........................................................21

■Attaching....................................................................21

■Detaching...................................................................22

8 OPTIONS.................................................................23–24

9 SAFETY TRAINING INFORMATION.......................25–26

1ACCESSORIES

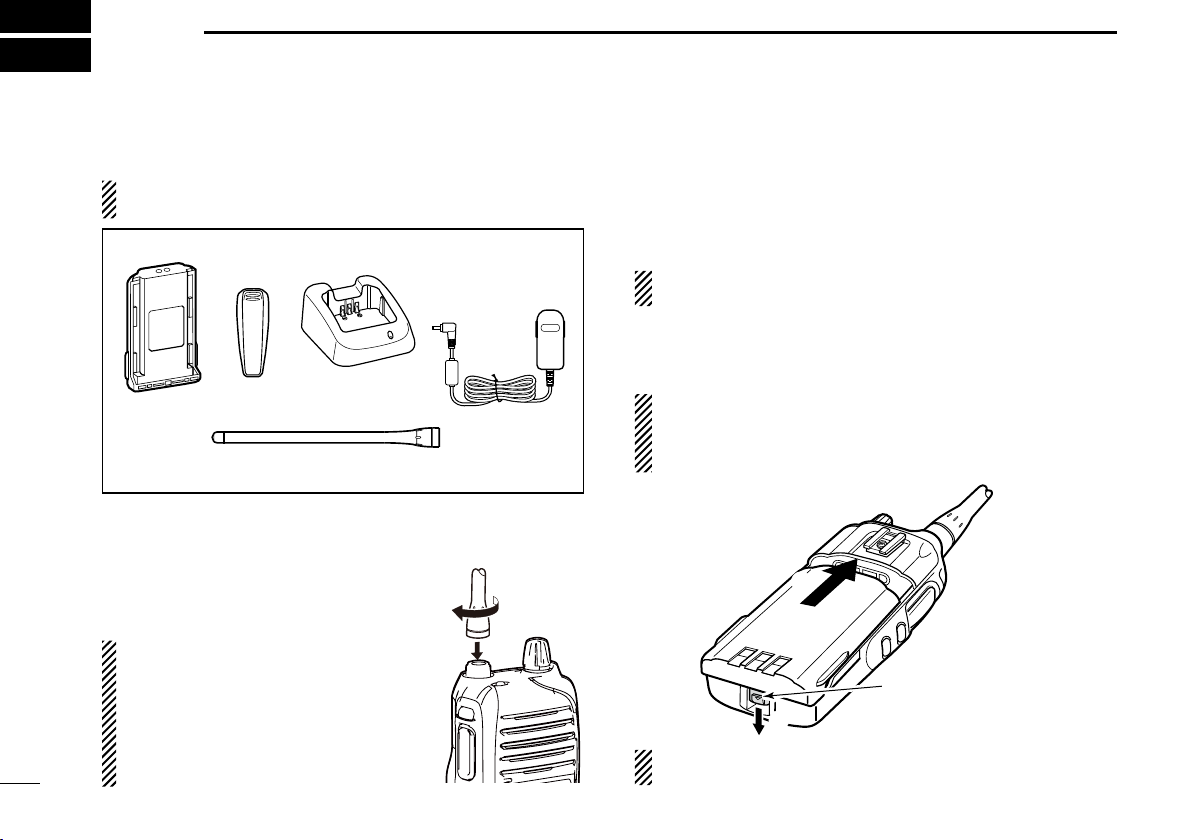

■Supplied accessories

NOTE: Some accessories are not supplied, depending on

the transceiver version.

Flexible antenna*

(This illustration is of the VHF type.)

Battery pack

Belt clip Power adapter*

(for the battery charger)

Battery charger*

*Not supplied, or the shape is different, depending on the trans-

ceiver version.

■Accessory attachments

DFlexible antenna

Connect the supplied ﬂexible antenna to

the antenna connector.

CAUTION:

• NEVER carry the transceiver by

holding only the antenna.

• DO NOT connect an antenna other

than those listed on page 24.

• Transmitting without an antenna may

damage the transceiver.

DBattery pack

To attach the battery pack:

Slide the battery pack in the direction of the arrow (q) until

the battery release button makes a ‘click’ sound.

NOTE: Push on the bottom of the pack to make sure the

release button is ﬁrmly locked.

To release the battery pack:

Slide the battery release button in the direction of the arrow

(w) as shown below. The battery pack is then released.

NEVER release or attach the battery pack when the trans-

ceiver is wet or soiled. This may result water or dust getting

into the transceiver/battery pack and may result in the

transceiver being damaged.

Battery release b

utton

NOTE: Keep battery terminals clean. It’s a good idea to

occasionally clean them.

ACCESSORIES

DBelt clip

To attach the belt clip:

qRemove the battery pack if it is attached.

w Slide the belt clip in the direction of the arrow until the belt

clip is locked and makes a ‘click’ sound.

To detach the belt clip:

qRemove the battery pack if it is attached.

wPinch the clip (q), and slide the belt clip in the direction of

the arrow (w).

DJack cover

To attach the jack cover:

qAttach the jack cover to the [MIC/SP] jack. (q)

wTighten the screws. (w)

[MIC/SP] jack

Jack cover

CAUTION:

• Attach the jack cover when the optional equipment is not

used.

• Use only the supplied screws.

To detach the jack cover:

qUnscrew the screws using a phillips

screwdriver. (q)

wDetach the jack cover to connect the

optional equipment. (w)q

2PANEL DESCRIPTION

■Front panel

Microphone

Speaker

qANTENNA CONNECTOR

Connects the supplied antenna.

wDEALER-PROGRAMMABLE KEY [Emer]

A desired function can be programmed by your dealer. (p. 5)

eDEALER-PROGRAMMABLE KEY [Side1]

A desired function can be programmed by your dealer. (p. 5)

rPTT SWITCH [PTT]

Hold down to transmit, release to receive.

tDEALER-PROGRAMMABLE KEYS [Side2]/[Side3]

Desired functions can be independently programmed by

your dealer.

(p. 5)

yDEALER-PROGRAMMABLE KEYS [P0] to [P3]

Desired functions can be independently programmed by

your dealer.

(p. 5)

uFUNCTION DISPLAY

(p. 4)

Displays a variety of information such as an operating

channel number, channel name, User Set mode contents,

and so on.

iEXTERNAL MICROPHONE/SPEAKER JACK

Connect an optional equipment.

NOTE: Connect or disconnect the optional equipment

after the transceiver is turned OFF.

Jack cover

NOTE: Attach the jack

cover when optional

equipment is not used.

See (p. 2) for details.

oVOLUME CONTROL [VOL]

Rotate to turn the power ON or OFF and to adjust the au-

dio level.

PANEL DESCRIPTION

■Function display

yq iutrew

qTRANSMIT ICON

Appears while transmitting.

wBUSY ICON

Appears while the channel is busy (receiving).

eSIGNAL STRENGTH ICON

Shows the relative receive signal strength level.

Weak

Receive Signal level

Strong

About “ ” icon for the Trunking mode

➥Disappears while in a no service area.

➥Blinks while registering to a repeater.

➥Appears when registration is completed.

rLOW POWER ICON

Appears when low output power is selected.

• When the battery power decreases to a speciﬁed level,

low power is automatically selected.

tAUDIBLE ICON

➥In the analog mode, appears when the CTCSS (DTCS)

squelch mute is released while holding down [Monitor].

➥In the digital mode, appears while holding down [Moni-

tor].

yENCRYPTION ICON

In the digital mode, appears when the encryption function

is activated.

uBELL ICON

In the digital mode, appears/blinks when an SDM (Short

Data Message), Status Call or Call Alert is received, de-

pending on the preprogramming.

iKEY LOCK ICON

Appears when the Key lock function is ON.

oBATTERY ICON

Appears or blinks when the battery power decreases to a

speciﬁed level.

!0 ALPHANUMERIC DISPLAY

Displays an operating channel number, channel name,

User Set mode contents, and so on.

2PANEL DESCRIPTION

■Programmable function keys

The following functions can be assigned to [Emer],[Side1],

[Side2], [Side3], [P0], [P1], [P2] and [P3] programmable

function keys.

Consult your Icom dealer or system operator for details con-

cerning your transceiver’s programming.

CH UP AND DOWN

As described in the following topics, after pushing a pro-

grammed key, push [CH Up] or [CH Down] to select an op-

tion, setting, and so on.

ZONE

Push this key, then select the desired zone using [CH Up]/

[CH Down].

What is a “zone”?— Certain channels are grouped to-

gether and assigned to a zone, according to their intended

use. For example, ‘Staff A’ and ‘Staff B’ are assigned to a

“Business” zone, and ‘John’ and ‘Cindy’ are assigned to a

“Private” zone.

SCAN START/STOP

➥Push to start and cancel a scan.

• When a scan is started with the Power ON Scan or Automatic

scan function, push this key to cancel it. The cancelled scan re-

sumes after a preprogrammed time period.

➥ Hold down this key for 1 second to display the scan group,

then push [CH Up] or [CH Down] to select the desired

group.

SCAN ADD/DEL (TAG)

➥Push to add the channel to, or delete it from, the current

scan group.

1. Push to display the scan group, then push [CH Up] or [CH Down]

to select the desired one.

2. Push to add the channel to, or delete it from, the selected scan

group.

3. Hold down for 1 second to exit the scan list selection mode.

➥While a scan is paused on a non-priority channel, push this

key to delete the selected channel from the scan group.

Depending on the setting, the cleared channel may be

automatically added to the scan group again after the

scan is cancelled.

Autres manuels pour IC-F3230D

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Icom Émetteur-récepteur

Icom

Icom IC-4088SR Manuel utilisateur

Icom

Icom iM87 Manuel utilisateur

Icom

Icom IC-F61-L Manuel utilisateur

Icom

Icom IC-M2A Manuel utilisateur

Icom

Icom IC-M4A Manuel utilisateur

Icom

Icom IC-M87 Manuel utilisateur

Icom

Icom IC-V8 Manuel utilisateur

Icom

Icom IC-E90 Manuel utilisateur

Icom

Icom IC-2820H Manuel utilisateur

Icom

Icom IC-F30LT Manuel utilisateur

Icom

Icom IC-706MKII Manuel utilisateur

Icom

Icom IC-F4062S Manuel utilisateur

Icom

Icom DC-197 Instructions d'installation et d'utilisation

Icom

Icom IC-T22A Manuel utilisateur

Icom

Icom IC-H8 Manuel utilisateur

Icom

Icom IC-F29DR Manuel utilisateur

Icom

Icom F3020 Series Manuel utilisateur

Icom

Icom IC-T70A Manuel utilisateur

Icom

Icom IC-M800 Manuel utilisateur

Icom

Icom iF22SR Manuel utilisateur

Icom

Icom IC-756PROIII Mode d’emploi

Icom

Icom IC-F4210D Series Manuel utilisateur

Icom

Icom IC-M21 Manuel utilisateur

Icom

Icom IC-M601 Manuel utilisateur

Manuels Émetteur-récepteur populaires d'autres marques

Yaesu

Yaesu FT-7B Manuel utilisateur

Kenwood

Kenwood ProTalk TK-3201 Manuel utilisateur

Texas Instruments

Texas Instruments TLK10232 Manuel utilisateur

Mizuho

Mizuho MX-2 Guide produit

Kenwood

Kenwood TK-3180 Manuel d'utilisation et d'entretien

Blitz

Blitz MJ-398U Manuel utilisateur

Utilicom

Utilicom LongRanger 2050 Manuel utilisateur

Standart

Standart HX290UKA Manuel utilisateur

Altronix

Altronix Pace1PTM Manuel utilisateur

Kirisun

Kirisun PT2208 Manuel utilisateur

ELECRAFT

ELECRAFT KX2 Manuel utilisateur

Zodiac

Zodiac K3 Manuel utilisateur

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manuel utilisateur

Kenwood

Kenwood TK-2217 Manuel utilisateur

Siemens

Siemens PSO 4000 Manuel utilisateur

Kenwood

Kenwood TS-590SG Manuel utilisateur

Midland

Midland G8E-BT Manuel

ComNav

ComNav Mariner X2 Manuel utilisateur
