IBM Travelstar 40GNX Manuel utilisateur

Handling precautions

Wear a grounded wrist strap while handling the

drive to prevent damage from Electrostatic

Discharge (ESD).

Set the drive down gently to prevent damage from

impact or vibration.

Do not open the ESD bag containing the drive until

needed.

Handle the drive carefully by the edges. Do not

touch the exposed printed circuit board or any

electronic components.

Do not press on the top or bottom of the drive.

Do not cover the drive’s breather hole.

Quick installation

Installation of this Travelstar drive in some notebooks

may require use of unique hardware (such as mounting

trays, connecting cable, insulating material). If you are

uncertain if hardware is needed, consult your notebook

manufacturer as this operation may require a qualified

technician.

Back up all data before proceeding with installation.

1. Set the jumpers

Master drive. No jumper is required if the drive is

the only drive in a system or the Master drive in a

two-drive system.

Slave drive. If this is the Slave drive in a system,

place a jumper in setting A2. (See the A2 setting in

the illustration.)

Cable Select. Setting A3 in the illustration. Consult

the system manual to see if your computer supports

Cable Select.

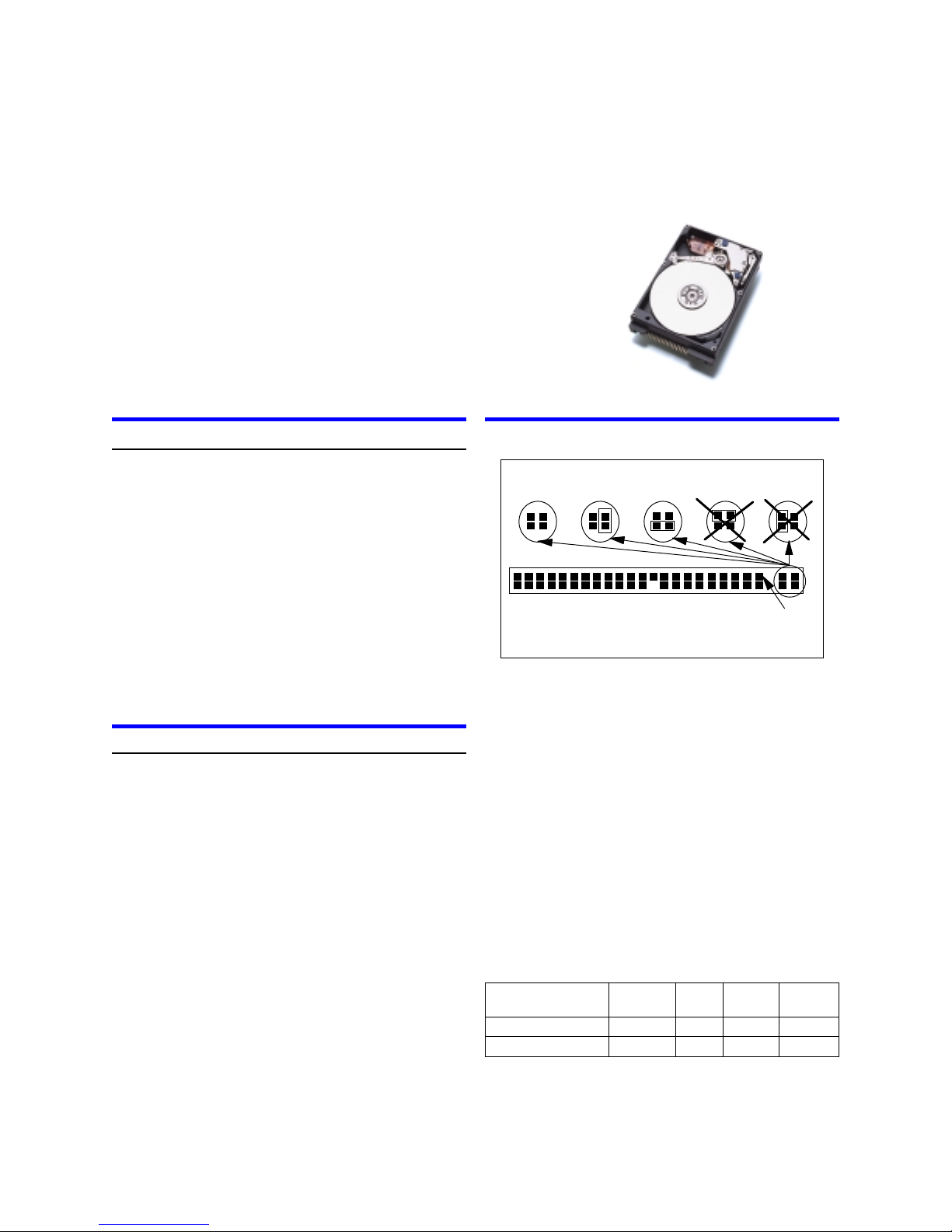

Jumper settings

A1. A2. A3. A4. A5.

Pin 1

A1. Master A2. Slave A3. Cable Select

A4 & A5. Never attach a jumper in these positions!

2. Attach the drive

For assistance on the physical installation of the drive,

consult your system manual.

3. Configure the computer

1. Turn on the computer.

2. Enter Setup.

3. Go to Hard Disk Drive Configuration.

4. Select Autodetect if it is available.

5. If Autodetect is not available, set to User and set to

appropriate parameters from the table below.

6. Save the settings.

7. Exit.

8. Reboot the system from a floppy disk.

2063216,383IC25N020ATCS05 4063416,383IC25N040ATCS05

Capacity

(GB)

Sectors/

Track

HeadsCylindersModel Number

ibm

Quick installation guide

Travelstar 40GNX

2.5 inch ATA/IDE hard disk drive

IC25N020ATCS05

IC25N040ATCS05Models:

IBM storage products

Page 1

IBM Technology Group Support Center version 1.0

4. Partition and format

Partition and format the drive using either of these two

methods:

Disk Manager 2000

i. Boot the Disk Manager 2000 installation utility

ii. If the Disk Manager 2000 configuration

matches your new system configuration, con-

tinue to the next step. If the system configura-

tion is not a match or if you want to proceed

manually, select no. Then verify the BIOS set-

tings, cabling, and jumpers. Run

Disk Manager 2000 again.

iii. Disk Manager 2000 determines available parti-

tion sizes based on the operating system to be

installed. Select the partition sizes for your

installation.

iv. Click “Finish” to complete the partitioning and

formatting of your drive.

FDISK.EXE and FORMAT.EXE (or similar partitioning

software from the operating system)

Follow the instructions provided with your operating

system to partition the drive. If FDISK.EXE recog-

nizes only 8.4 GB of a drive larger than 8.4 GB, the

BIOS may not support Interrupt 13 Extensions.

Format the drive by following the instructions pro-

vided with FORMAT.EXE. Formatting will verify the

hard disk media and create file allocation tables for

the partition.

5. Boot up the computer

If the system does not boot up after the installation of the

drive, check all the settings. If the system still fails to

boot up, contact the IBM Technology Group Support

Center.

www.ibm.com/harddrive

IBM Technology Group Support Center

Telephone: 888.426.5214 or 507.286.5825

E-mail: [email protected]

Singapore Technology Group Support Center

Telephone: (65)6418.9595 or 1800.418.9595

E-mail: [email protected]

UK Technology Group Support Center

Telephone: 44.1475.898.125

E-mail: [email protected]

Germany Technology Group Support Center

Telephone: 49.7032.153050

E-mail: [email protected]

IBM Systems Technology Division

5600 Cottle Road

San Jose CA 95193

www.ibm.com/storage

Printed in the United States of America

04-2002

IBM is the registered trademark of International Business Machines

Corporation. Other company, product, and service names may be

trademarks or service marks of others.

Produced by the IBM Technology Group Support Center.

Hard Disk Drive Specifications for Travelstar 60GH & 40GN,

revision 1.0

Product Description data represents IBM’s design objectives and is

provided for comparative purposes; actual results may vary based on a

variety of factors. This product data does not constitute a warranty.

Questions regarding IBM’s warranty terms or methodology used to

derive this data should be referred to the IBM Technology Group

Support Center. Data subject to change without notice.

Date: 26 April 2002
