HyperX Cloud Headset

Find the language and latest documentation for your HyperX Cloud Headset here.

HyperX Cloud Headset Installation Guide

Simplied Chinese . . . . .

Traditional Chinese . . . .

. . . . . . . . . . . . For instructions in English

. . . . . . . . . . . . . . . . . . Para instrucciones en español

. . . . . . . . . Für Anleitungen in Deutsch

. . . . . . . . . . . . . . . . . . Pour des instructions en français

. . . . . . . . . . . . . . . . . . Per le istruzioni in italiano

. . . . . . . . . . . . Por as instruções em português

. . . . . . . . . . . . . . . . . . Instrukcje w jezyku polskim

. . . . . . . . . . . . . . . . . . Для инструкции на русском

. . . . . . . . . . . . . . . . . . Turkce talimatlar icin

. . . . . . . . . . . . . . . . . . Japanese

. . . . . . . . . . . . . . . . . . Thai

. . . . . . . . . . . . . . . . . . Українська

. . . . . . . . . . . . . . . . . . Vietnamese

Document No. 480KHX-H3CL/WR.A04

HyperX Cloud Headset

Page 1 of 12

HyperX Cloud Headset

Part Numbers:

KHX-H3CL/WR (Black)

KHX-H3CLW (White)

Document No. 480KHX-H3CL/WR.A04

HyperX Cloud Headset

Page 2 of 12

Introduction

Optimized for pro-gaming, HyperX Cloud Headset is a high-quality communicating device that delivers superior

sound, style and comfort. It uses an adjustable, soft-padded leatherette headband and features a closed-cup

design for enhanced bass reproduction and minimal sound leakage. The HyperX Cloud Headset is HiFi capable

and delivers a durable design for the most rugged gaming environments and is compatible with tablets and

smartphones for mobile use.

What’s Included:

•1 HyperX Cloud Headset

•1 Detachable Microphone

(attached to headset in figure 1.1)

•1 Microphone plug

•1 spare set of velour ear cushions

•1 control box with 100cm cable

(cable has 3.5mm audio jacks)

•1 extension cable (200cm)

•1 headset splitter cable (10cm)

•1 Airplane headphone adapter

•1 Mesh bag

(Top)

(Bottom)

Figure 1.1 – Package Contents

Features:

•Hi-fi capable 53mm drivers for supreme audio quality

•15-25 KHz frequency response (earphones)

•Detachable microphone (quick and easy to plug/unplug for music-only purposes)

•Solid aluminum construction for durability and stability

•Super-soft padded leatherette headband and leatherette padding on cups

•Closed cup design for enhanced bass-reproduction and sound leakage

Document No. 480KHX-H3CL/WR.A04

HyperX Cloud Headset

Page 3 of 12

Technical Specifications:

•Transducer type: Dynamic 53mm

•Operating principle: Closed

•Frequency response: 15Hz-25KHz (earphones)

•Nominal impedance: 60 ohm per system

•Nominal SPL: 98+/-3dB

•T.H.D: < 2%

•Power handling capacity: 150mW

•Sound coupling to the ear: Circumaural

•Ambient noise attenuation: approx.20 dBA

•Headband pressure: 5 N

•Weight with microphone and cable: 350g

•Cable length and type: 1m + 2m extension + 10cm iPhone

•Connection: Mini stereo jack plug (3.5MM)

•Microphone Transducer type: Condenser (back electret)

•Operating principle: Pressure gradient

•Polar Pattern: Cardioid

•Power supply: AB powering

•Supply voltage: 2V

•Current consumption: Max 0.5 mA

•Nominal impedance: ≤2.2 k ohm +/- 30%

•Open circuit voltage at f = 1 kHz 20 mV / Pa

•Frequency response: 100 - 12,000 Hz (microphone)

•T.H.D: 2% at f = 1 kHz

•Max. SPL: 105dB SPL (THD ≤1.0% at 1KHz)

•Microphone output: -39+/-3dB

•Dimensions: 6*5mm

•Length mic boom: 150MM(include gooseneck)

•Capsule diameter: 6mm

Document No. 480KHX-H3CL/WR.A04

HyperX Cloud Headset

Page 4 of 12

Overview

F G

J K L

A. Leatherette headband w/ HyperX logo

B. Aluminum arm to adjust headband

C. Attached cable (1 meter in length) w/

3.5mm input jacks (letter E)

D. Detachable microphone with

adjustable arm and condenser

E. 3.5mm audio input jacks attached to

the 1 meter headset cable

F. Extra set of ear cushions

G. 2-meter extension cable

H. Control box cable w/ 3.5mm audio

jacks and control box (letter I)

I. Control box w/ multi-function button

and volume control. The multi-

function button can be used for:

a. Answering or hanging up a phone

call from a mobile device

b. Pausing a song when listening to

music on a mobile device

J. Headset splitter cable w/ 3.5mm audio

jack

K. Microphone plug (attached to headset

by default) where microphone (letter

D) connects to HyperX headset

L. Airplane adapter w/ 3.5mm audio

jacks and input converter jack

Document No. 480KHX-H3CL/WR.A04

HyperX Cloud Headset

Page 5 of 12

Usage (Correct vs Incorrect)

When connecting your HyperX Cloud headset to a device that has a single 3.5mm audio jack,

you MUST use the splitter cable (or “Y” cable) to ensure that each jack is connected properly

and securely plugged in.Do NOT ignore or leave any audio jacks unplugged as depicted

below in the “INCORRECT” configuration.

CORRECT

Splitter Cable

INCORRECT

Document No. 480KHX-H3CL/WR.A04

HyperX Cloud Headset

Page 6 of 12

Usage (Direct Connect)

Connect your headset directly to your computer (or other device) that has both a headset jack

and a microphone jack. The headset jack, which has green stripes, plugs into the port

signified by a green input or earphones symbol , and the microphone jack, which has pink

stripes, plugs into the port signified by a pink input or a microphone symbol . (Optional: The

included extension cable (letter Gon Page 4) may also be used to add length to the existing

headset cable, as seen in Figure 1.3.)

Document No. 480KHX-H3CL/WR.A04

HyperX Cloud Headset

Page 7 of 12

Usage (with Control Box)

Connect your headset to the control box that has both a headset jack and a microphone jack

on it. The headset jack (green stripes) plugs into the green input port on the control box and

the microphone jack (pink stripes) plugs into the pink input port on the control box. The control

box cable then connects to your computer (or other output device w/ dual microphone and

headset jacks) using the 3.5mm audio jacks on the end of the cable.

(Optional: The included extension cable (letter Gon Page 4) may also be used to add length to

the existing headset cable and control box.)

Figure 1.4 – Extension Cable (Optional)

Figure 1.5 – Using Control Box

Document No. 480KHX-H3CL/WR.A04

HyperX Cloud Headset

Page 8 of 12

Usage (with Control Box and Headset Splitter Cable)

If you are connecting the headset to a laptop or mobile device (phone or tablet) that has a

single audio jack, generally marked with an earphones or headset symbol :

Connect the control box to the headset splitter cable (letter Jon page 4.) This will convert the

separate microphone and earphones jacks into a single 3.5mm audio jack as seen in Figure

1.8.

Figure 1.6 – Headset Splitter Cable

(Optional: The included extension cable (letter Gon Page 4) may also be used to add length to

the existing headset cable and control box.)

Figure 1.7 – Extension Cable (Optional)

Figure 1.8 – Using Headset Splitter Cable

Document No. 480KHX-H3CL/WR.A04

HyperX Cloud Headset

Page 9 of 12

Usage (with Airplane Adapter)

If you are connecting the headset to an airplane jack (generally found on the armrest of a seat)

as seen in Figure 1.9, connect the headset splitter cable to the airplane adapter (letter Lon

page 4) that came with your headset and plug the airplane adapter into the audio jack found on

the armrest of your seat.

Figure 1.9 – Input Jacks on an Airplane Seat (Armrest)

(Optional: The included extension cable (letter Gon Page 4) may also be used to add length to

the existing headset cable and control box.)

Figure 1.10 – Extension Cable (Optional)

Figure 1.11 – Using Airplane Jack

Autres manuels pour KHX-H3CL/WR

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels HyperX casque

HyperX

HyperX Cloud Revolver S HX-HSCRS-GM/AS Manuel utilisateur

HyperX

HyperX Cloud Core CL004 Manuel utilisateur

HyperX

HyperX HyperX Cloud Flight Manuel utilisateur

HyperX

HyperX Cloud Silver Manuel utilisateur

HyperX

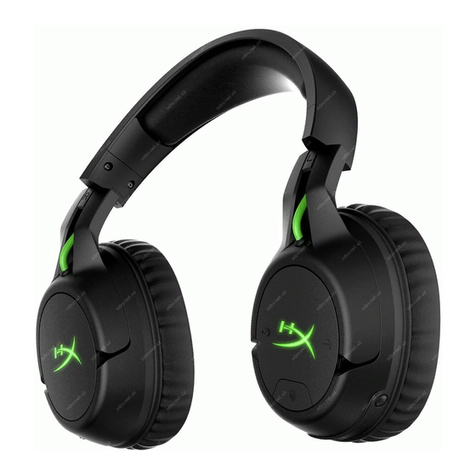

HyperX CloudX Flight HX-HSCFX-BK/WW Manuel utilisateur
