HyperX CloudX Flight HX-HSCFX-BK/WW Manuel utilisateur
Document No. 480HX-HSCFX.A01
HyperX CloudX Flight®
Page 1 of 11
HyperX CloudX Flight™
Part Numbers
HX-HSCFX-BK/WW
Document No. 480HX-HSCFX.A01
HyperX CloudX Flight®
Page 2 of 11
TABLE OF CONTENTS
Overview .................................................................................................................................... 3!
Specifications ........................................................................................................................... 4!
Usage ......................................................................................................................................... 5!
Using with Xbox One® ............................................................................................................................................ 5!
Headset Controls .................................................................................................................................................... 6!
Headset Status Beep Tone Indicators .................................................................................................................. 8!
Headset Charging ................................................................................................................................................... 9!
Manually Pairing Headset and Wireless Adapter ................................................................ 10!
Questions or Setup Issues? .................................................................................................. 11!
Document No. 480HX-HSCFX.A01
HyperX CloudX Flight®
Page 3 of 11

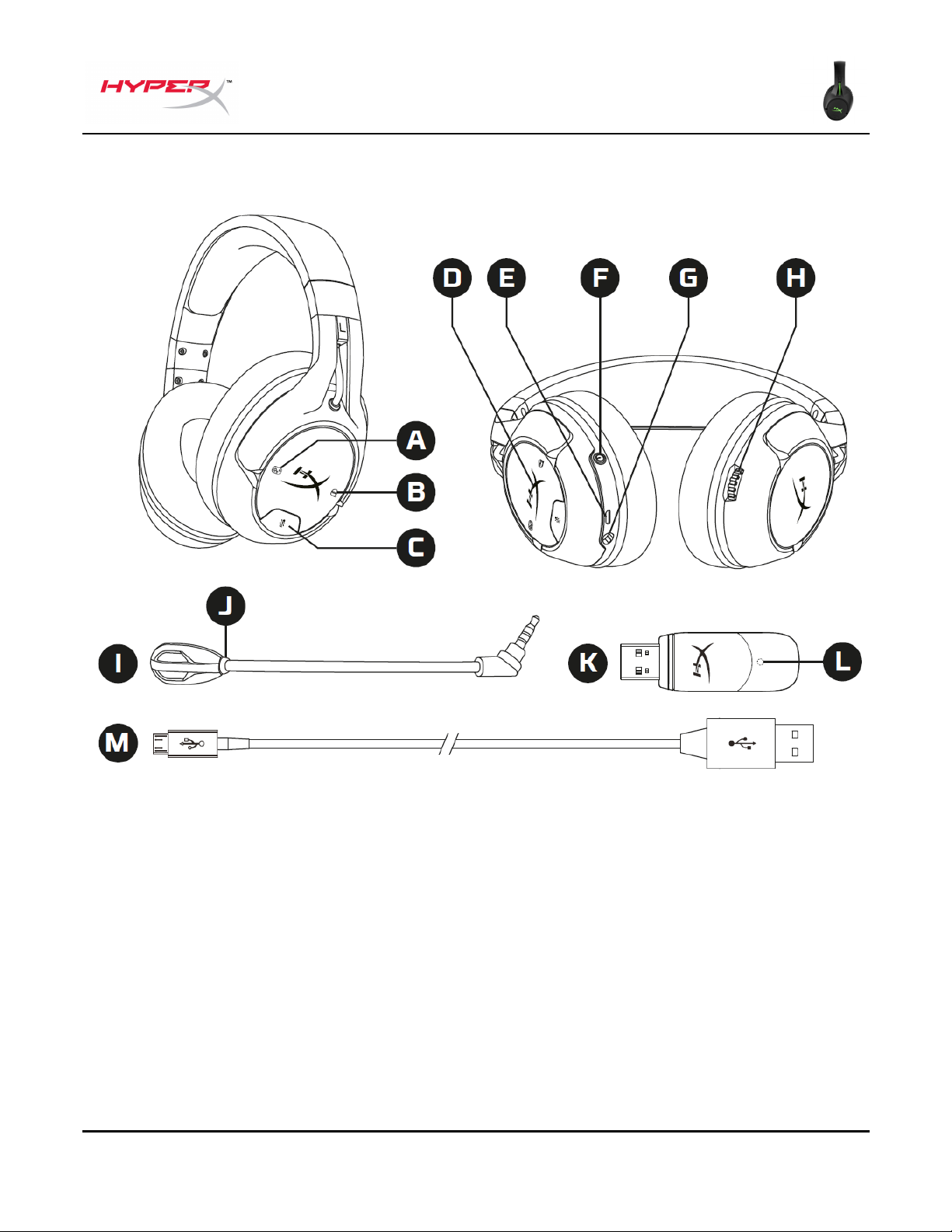

Overview
A. Game balance button
B. Chat balance button
C. Microphone mute button
D. Ear cup LED
E. USB charge port
F. Power button
G. Microphone port
H. Volume wheel
I. Detachable microphone
J. Microphone mute LED
K. Wireless adapter
L. Wireless status light
M. USB charge cable
Document No. 480HX-HSCFX.A01
HyperX CloudX Flight®
Page 4 of 11
Specifications
Headphone
Driver: Dynamic, 50mm with neodymium magnets
Type: Circumaural, Closed back
Frequency response: 20Hz–20,000Hz
Impedance: 32 Ω
Sound pressure level: 113dBSPL/mW at 1kHz
T.H.D.: < 2%
Weight: 288g
Weight with mic: 298g
Cable length and type: USB charge cable (1m)
Microphone
Element: Electret condenser microphone
Polar pattern: Bi-directional, Noise-cancelling
Frequency response: 100Hz-10,000 Hz
Sensitivity: -51dBV (0dB=1V/Pa,1kHz)
Battery life*
30 hours - LED off
18 hours - Breathing LED
13 hours - Solid LED
Wireless Range**
2.4 GHz
Up to 20 meters
*Tested at 50% headphone volume
**Wireless range may vary due to environmental conditions
Document No. 480HX-HSCFX.A01
HyperX CloudX Flight®
Page 5 of 11
Usage
Using with Xbox One®
1. Connect the wireless adapter to a USB port on the Xbox One® system.
2. Power on the headset.
3. When the wireless adapter status light is solid, the headset is now connected to the adapter.
4. If logged in with an account, the Xbox One® will assign the headset to that account and notify the
user.
Note: Connecting the headset to the Xbox One® system does not automatically mute or adjust the
sound from the TV.
Document No. 480HX-HSCFX.A01
HyperX CloudX Flight®
Page 6 of 11
Headset Controls
Power button
Hold the power button for 3 seconds to power on/off the headset.
With the headset powered on, short press the power button to cycle through the ear cup LED modes.
The supported LED modes are solid (default), breathing, and off.
Volume wheel
Rotate the volume wheel up or down to adjust the volume level.
Power button
Volume wheel
Document No. 480HX-HSCFX.A01
HyperX CloudX Flight®
Page 7 of 11
Game/Chat balance buttons
Press the game/chat balance buttons to adjust mix between game audio and chat audio.
The game/chat balance functionality operates independently from the overall headset audio volume.
Microphone mute button
Press the microphone mute button to toggle the microphone mute. The microphone mute LED will
indicate the current mute status.
Microphone Mute LED
Mic Status
On
Muted
Off
Active
Hold the microphone mute button for 3 seconds to turn mic monitoring on/off.
Microphone mute button
Microphone mute LED
Game balance button
Chat balance button
Document No. 480HX-HSCFX.A01
HyperX CloudX Flight®
Page 8 of 11
Headset Status Beep Tone Indicators
The headset will emit beep tones to indicate status for power, volume, game/chat balance, microphone
mute, mic monitoring, and battery charge.
Power Status
Beep Tone Indicator
Power on
One tone (high)
Power off
Two tones (high, low)
Volume Status
Beep Tone Indicator
Setting to 100% maximum volume
Three tones (high)
Setting to 0% minimum volume
Three tones (low)
Game/Chat Balance Status
Beep Tone Indicator
Setting to 50% Game / 50% Chat
One tone (mid)
Setting to 100% Game / 0% Chat
Two tones (low)
Setting to 0% Game / 100% Chat
Two tones (low)
Microphone Mute Status
Beep Tone Indicator
Microphone muted
Two tones (high)
Microphone active
One tone (high)
Mic Monitoring Status
Beep Tone Indicator
Mic Monitoring enabled
One tone (low)
Mic Monitoring disabled
One tone (low)
Battery Status
Beep Tone Indicator
25% battery remaining
Two tones (low)
10% battery remaining
Three tones (low)
5% battery remaining
Five tones (mid, low, mid, low, mid)
Document No. 480HX-HSCFX.A01
HyperX CloudX Flight®
Page 9 of 11
Headset Charging
When the headset is connected to a charger with the USB charge cable, the ear cup LEDs will indicate
the charge status.
Ear Cup LEDs
Charging Status
Breathing
Charging
Off
Charging complete
Document No. 480HX-HSCFX.A01
HyperX CloudX Flight®
Page 10 of 11
Manually Pairing Headset and Wireless Adapter
The headset and wireless adapter are already paired together for first time use. If manual pairing is
necessary, follow the steps below to pair the headset and wireless adapter together.
1. Make sure the headset is powered off.
2. Plug the USB wireless adapter into the Xbox One® system.
3. Use a small pin to press the small button on the back side of the USB wireless adapter for 3
seconds. The USB wireless adapter LED will be fast blinking.
4. With the headset turned off, press and hold the headset power button for 10 seconds to enter
pairing mode. The headset earcup LEDs will blink rapidly.
5. When the USB wireless adapter LED turns solid and the headset ear cup LEDs have returned
to their last used mode, the pairing process has been completed.
