Hussmann SMG Manuel utilisateur

T'Stat Bulb

Location

(Optional

Lights)

P/N 0420061B

SMG

Data Sheet Set

P/N 0420061B

NSF®Certified

May, 2003

Merchandisers

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Note: Changed items have been underlined.

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 0392457 Fan Motor, Evaporator (120V) (1)

0425336 Fan Blade (120V)

embossing toward motor

0436517 Fan Motor, Evaporator (220V)

0440141 Fan Blade (220V)

embossing toward motor

B. 0404551 Fan Motor, Ambient (120V) (2)

0404552 Fan Motor, Ambient (220V)

C. 0137880 Optional Adjustable (3)

Refrigeration Thermostat

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. 0355716 Ballast, Electronic, 2 lamps

(120V) (4)

D. 0355398 Ballast, Electronic, 3 lamps

(120V) (5)

D. 0440215 Ballast, Electronic, 2 lamps

(230V 50-60 Hz) (4)

D. 0428652 Ballast, Electronic, 3 lamps

(230V 50-60 Hz) (5)

0385104 Ballast Transformer

(230V 50-60 Hz, per ballast)

E. Fluorescent Lamp (6)

Replace with like fixtures

SMG Data Sheet2 of 6

Engineering

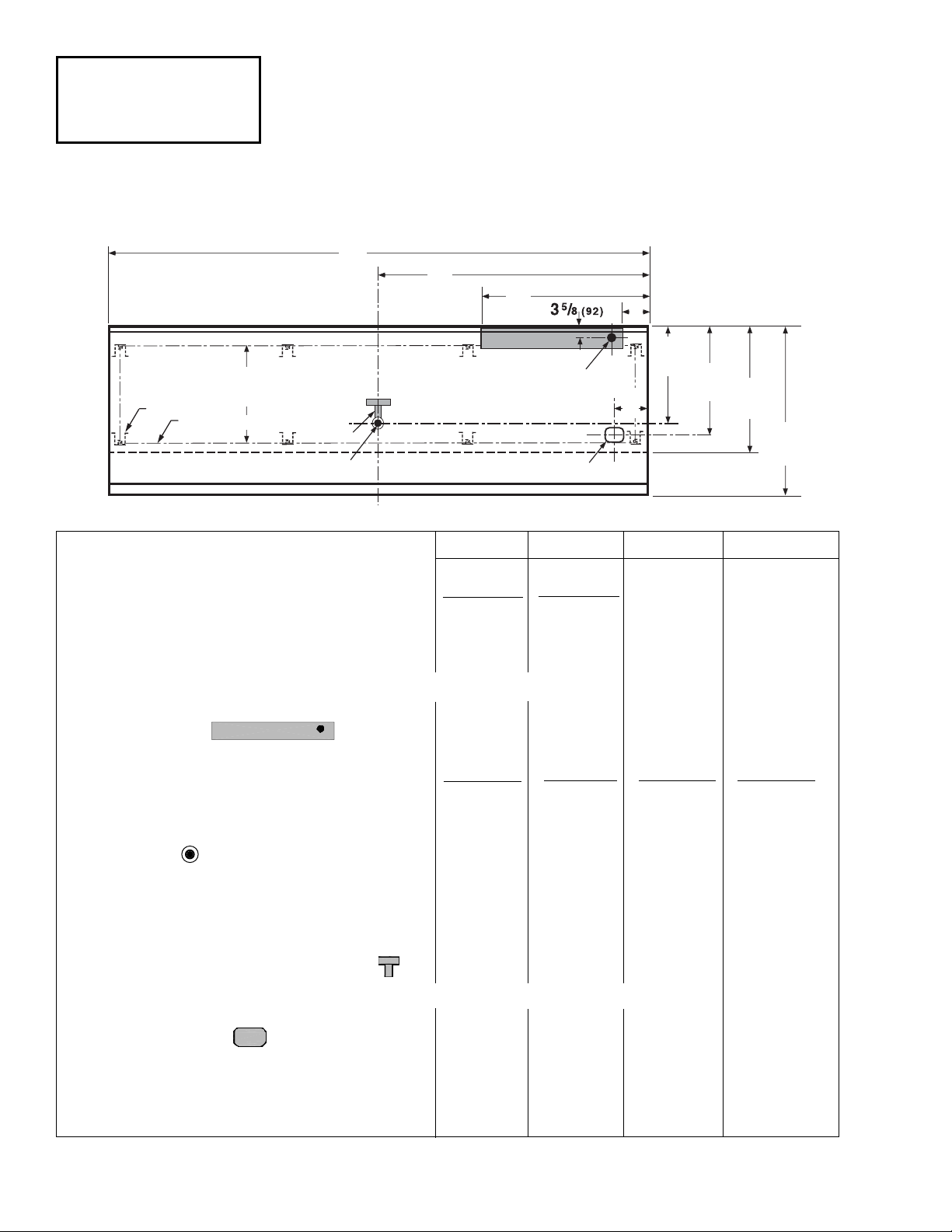

Plan Views

(See Note*)

255

(651)

5/8

(651)

Legs

283

(730)

Front

Refrigeration

Outlet

Water Seal

Waste Outlet

Leg Center Lines

Electrical

5/8

(1133)

333

(849)

(See Note**)

SMB

SMG

SSG

Dimensions shown as in. and (mm).

Meat & Delicatessen

Double Curved

Hinged Glass Models

4 ft 6 ft 8 ft 12 ft

General

(A) Case Length* 48 1/4 (1226) 72 1/4 (1835) 96 3/8(2448) 144 1/2(3670)

Maximum O/S dimension of case back to front 44 5/8(1134) 44 5/8(1134) 44 5/8(1134) 44 5/8(1134)

(Note: Includes bumper)

Back of case to front of splashguard 33 3/8(848) 33 3/8(848) 33 3/8(848) 33 3/8(848)

Center of rear legs to center of front legs 25 5/8(651) 25 5/8(651) 25 5/8(651) 25 5/8(651)

Each End and Partition adds 1 1/2in. (38 mm) to the length of the lineup.

Electrical Service

(B) RH end of case to Electrical raceway right edge 7 (178) 7 (178) 7 (178) 7 (178)

Back of case to center of knockout 3 5/8(92) 3 5/8(92) 3 5/8(92) 3 5/8(92)

* Electrical Field Wiring Connection Point

Waste Outlet

(D) RH end of case to the center of waste outlet 24 (610) 24 (610) 24 (610) 24 (610)

Back of case to center of waste outlet 25 5/8(652) 25 5/8(652) 25 5/8(652) 25 5/8(652)

Water Seal

Center of tee to center of waste outlet 11 3/8(289) 11 3/8(289) 11 3/8(289) 11 3/8(289)

Outside diameter of drip piping 1 1/2(38) 1 1/2(38) 1 1/2(38) 1 1/2(38)

** Field installed water seal outlets, tees, and connectors are shipped with the merchandiser.

Refrigeration Outlet

Back of case to center of refrigeration outlet 28 3/4(731) 28 3/4(731) 28 3/4(731) 28 3/4(731)

(E) RH end of case to center of refrigeration outlet 9 3/8(238) 9 3/8(238) 9 3/8(238) 9 3/8(238)

Outside diameter of the liquid line 3/8(9.5) 3/8(9.5) 3/8(9.5) 3/8(9.5)

Outside diameter of the suction line 5/8(16) 5/8(16) 5/8(16) 5/8(16)

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H. Schedule defrost at night while

lights are off. SMG

Discharge Air (°F) 24

Evaporator (°F) 18

Unit Sizing (°F) 16

Btu/hr/ft* SMG

Parallel 420

Conventional 450

*For all refrigeration equipment other than

Hussmann, use conventional Btu values.

DEFROST DATASMG

Frequency (hr) 24

Defrost Water (lb/ft/day) 0.17

(± 15% based on case configuration and

product loading).

SMG

OFFTIME (minutes) 70

Failsafe (minutes) 90

ELECTRIC OR GAS Not Recommended

CONVENTIONALCONTROLS

Low Pressure Backup ControlSMG

CI/CO (Temp °F)** 11°F / 1°F

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)**

Not Recommended

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICALDATA

Merchandiser Drip Pipe (in.) 1 1/2

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 5/8

Estimated Charge (lb)***

4 ft 0.75

6 ft 1.0

8 ft 1.5

12 ft 2.0

***This is an average for all refrigerant

types. Actual refrigerant charge may vary by

approximately half a pound.

Length Added to Lineup by:

Each Plastic End w/ Bumper (in.) 3 1/2

Each End/Partition (in.) 1 1/2

3 of 6P/N 0420061B

(178)

(254)

24O

FAN

SMG

(1321)

5/8

(854)

22 1/2

(572)

5/8(651)

28 3/4 (730)

(864)

(508)

24 1/4

(616)

13 3/4

(349)

33 3/8 (849)

44 5/8 (1133)

3 5/8

(92)

(289)

(267)

Refrig.

Outlet

Elec.

FAN

COIL

Dimensions shown as in. and (mm).

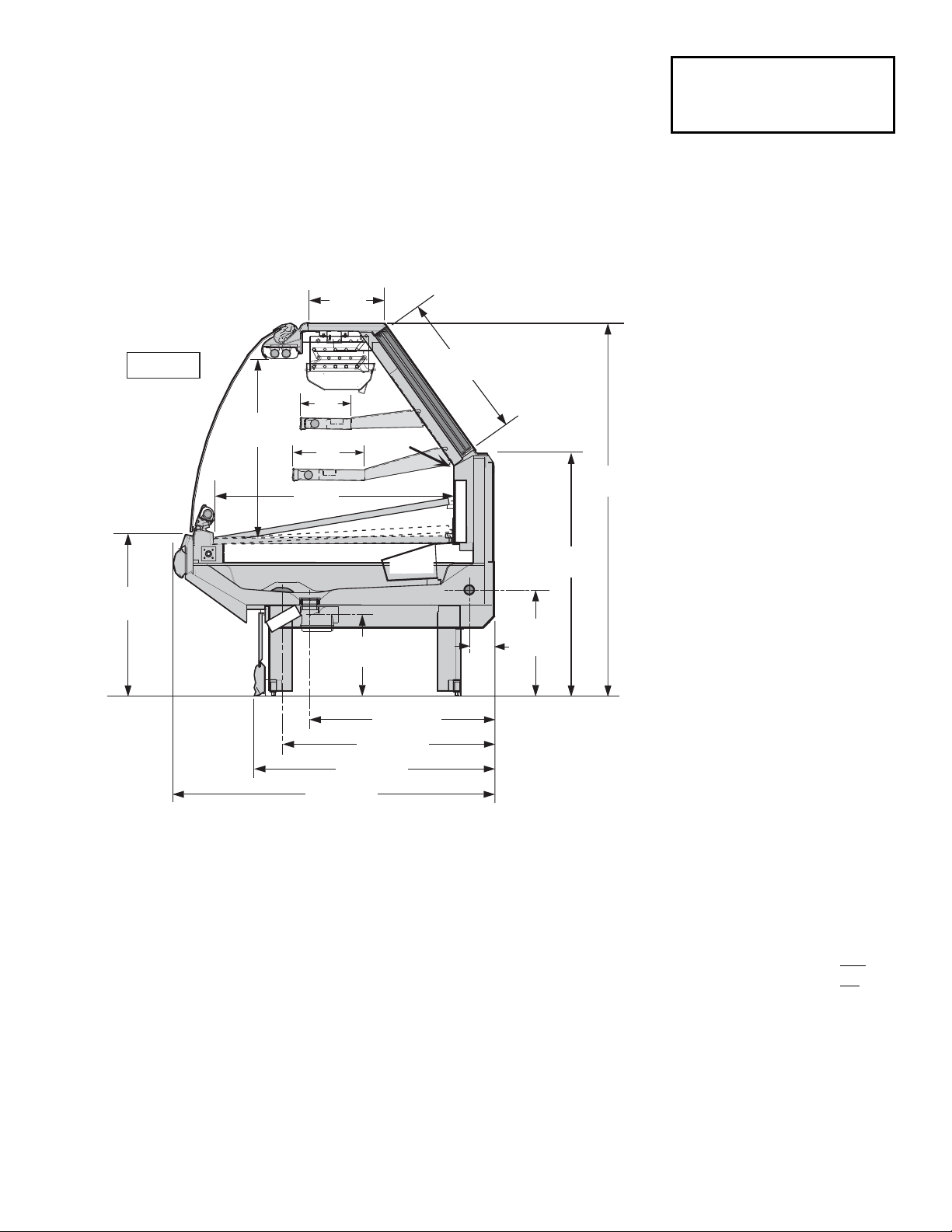

Impact SMG

Meat / Delicatessen

Curved Hinged Glass, Gravity with Blower assist, 3 Display Level

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

NSF Certification

These merchandisers are manufactured to meet ANSI /National Sanitation

Foundation (NSF®) Standard #7 requirements.

NOTE: The bumper is 4 in. (102 mm) wide. Center of the bumper is

181/2in. (470 mm) from the floor.

SMG Data Sheet4 of 6

Impact SMG

Meat / Delicatessen

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Electrical Data

Number of Fans 4 ft 6 ft 8 ft 12 ft

Refrigeration (120V 60hz) – 4W 1 2 2 3

Ambient Air Wipe – 15W 2 4 4 6

Export Refrigeration (230V 50 hz ) – 4W 1 2 2 3

Export Ambient Air Wipe – 15W 2 4 4 6

Amperes Watts

Merchandiser 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

Refrigeration Fans

Standard (120V 60hz) 0.31 0.62 0.62 0.93 24 48 48 72

Energy Efficient(120V 60hz) NA NA NA NA NA NA NA NA

Export: 230V 50 hz 0.18 0.36 0.36 0.54 27 54 54 81

Ambient Air Wipe Fans

Standard (120V 60hz) 0.26 0.52 0.52 0.78 15 30 30 45

Energy Efficient(120V 60hz) NA NA NA NA NA NA NA NA

Export: 230V 50 hz 0.13 0.26 0.26 0.39 15 30 30 45

Constant On Anti-sweat Heaters NA NA NA NA NA NA NA NA

Cycling Anti-sweat Heaters NA NA NA NA NA NA NA NA

Minimum Circuit Ampacity

With Standard Fans (120V 60hz) 0.77 1.34 1.34 1.91

With Energy Efficient Fans (120V 60hz) NA NA NA NA

With Export Fans (230V 50 hz ) 0.51 0.82 0.82 1.13

Maximum Over Circuit Protection 120V 20 20 20 20

Electric Defrost Heaters (208V) NA NA NA NA NA NA NA NA

Gas Defrost Heaters (208V) NA NA NA NA NA NA NA NA

Standard Lighting* (120V 60hz) 4 ft 6 ft 8 ft 12 ft 4 ft 6 ft 8 ft 12 ft

2 Row Canopy 0.49 0.80 0.98 1.42 58 92 116 170

1 Row Rail 0.49 0.40 0.49 0.71 58 46 58 85

Optional Lighting

1 Row Ledge 0.49 0.40 0.49 0.71 58 46 58 85

2 Row Shelves 0.49 0.80 0.98 1.42 58 92 116 170

*230V lighting values are under review.

P/N 0420061B 5 of 6

R = Red G = Green BL = Blue LB = Light Blue DB = Dark Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

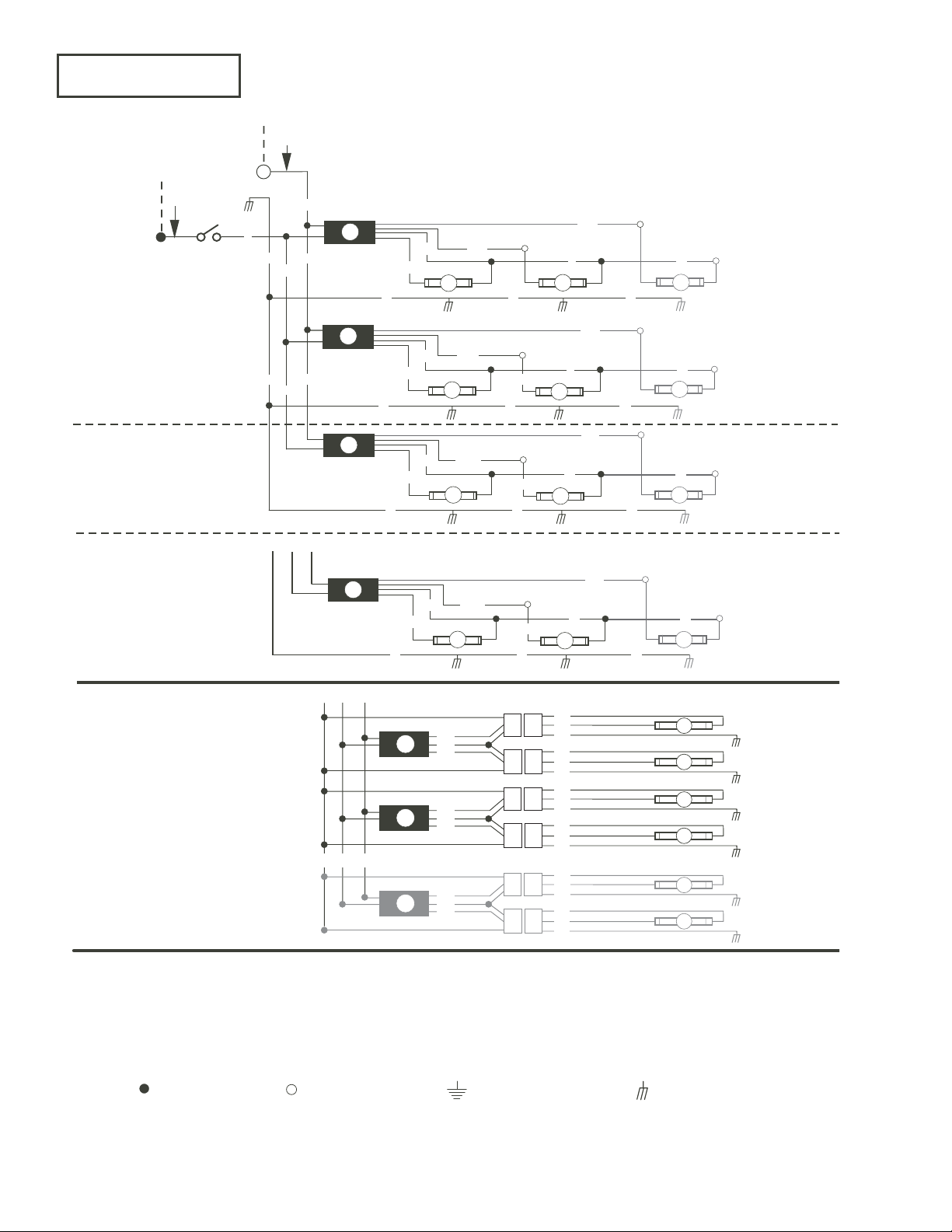

Fan Wiring

Offtime Defrost

Fans

Electric Service Receptacle Receptacles

120V NEUTRAL

MAROON

BAND

120V POWER

N.E.C.

TAGS MAROON

BAND

Refrigeration

Thermostat

Condensing Unit

}

(Field Installed)

BROWN BAND

Fans

BROWN BAND

120V POWER

120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

8 ft case has 2 Fans

12 ft case has 3 Fans

BROWN BAND

Fans

BROWN BAND

120V POWER

120V NEUTRAL

Ambient Fan

Wiring

Glass Air Wipe

Fans

8 ft case has 2 Fans

12 ft case has 3 Fans

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

SMG Data Sheet6 of 6

connectors

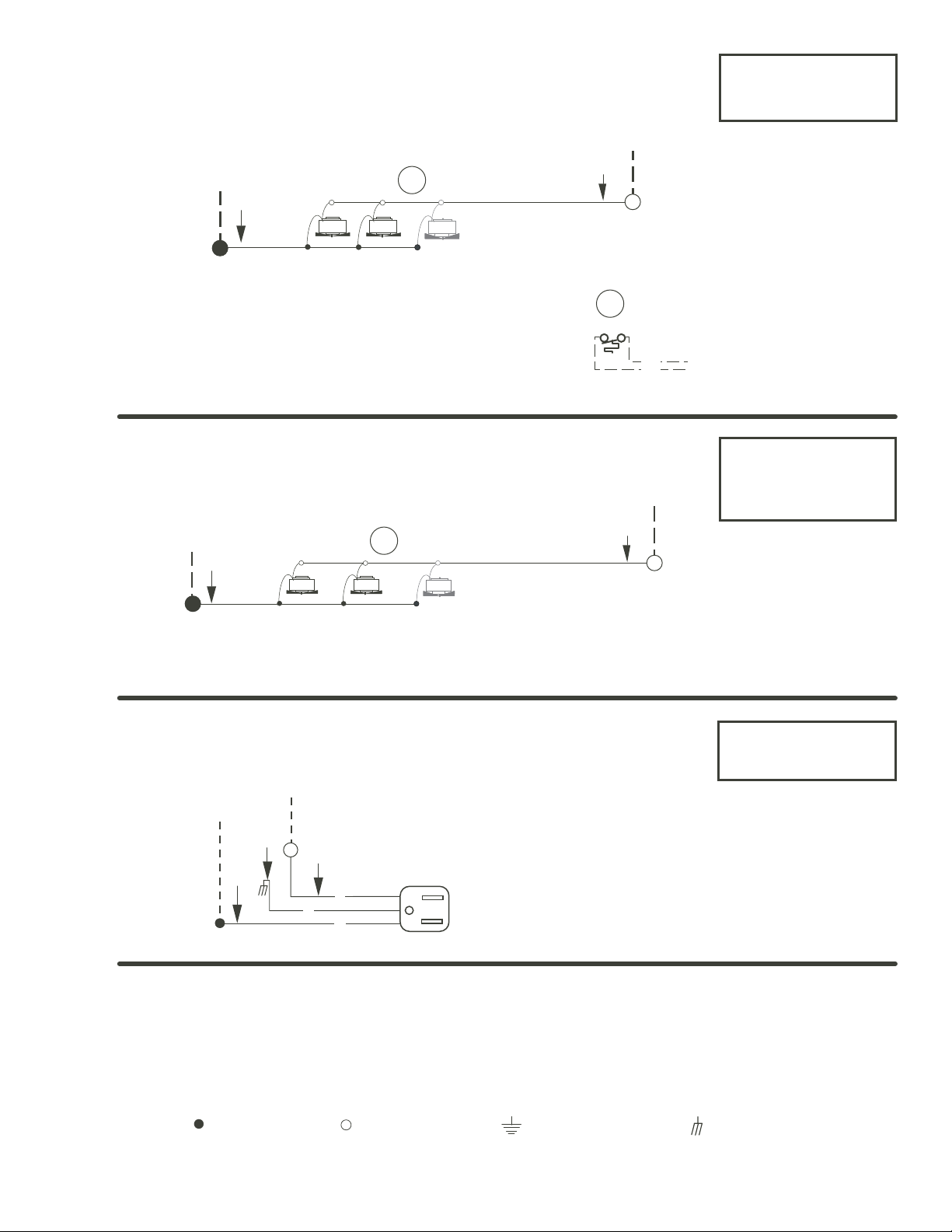

Optional Shelf Harness

and Light Circuits

Standard Lighting 2 Row Canopy,

1 Row Interior Rail

Light Circuits

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

120V NEUTRAL

ORANGE OR TAN BAND

BL BL

Light

Switch

120V POWER

ORANGE OR TAN

BAND

66 6

GGG

66 6

Optional Ledge

Light Circuit

Rail Light Circuit

connectors

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
