NOTES: Acrylic partitions are most

often used in a line-up to separate

cases with different refrigeration

defrost cycles, and are installed as

cases are joined. Joining instructions

are provided separately.

Be sure merchandisers have been

leveled according to the installation

instructions. Carefully unpack and

inspect the acrylic partition and

components to ensure there is no

breakage or damage.

1Remove items from case as

shown in Figure 1.

A. Remove bumpers, rails, packing

materials, and splashguards from the

case.

B. Remove shelves (if installed).

C. Remove display racks and pans

from end to be joined.

D. Remove back panels by lifting

up and out near the bottom. No tools

are necessary.

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

P/N 0332429A

October, 2002

Acrylic Partition

for

Reach-In Merchandisers

Field Installation Instruction

Merchandisers

PARTS LIST

Item Quantity Description

1. 1 Retainer, Top Left

2. 6 Screw, #8 x

1/2

3. 1 Acrylic Partition

4. 1 Retainer, Top Right

5. 10 Machine Screw, 1/4-20 x 1/2

6. 20 Flat Washer 1/4

7. 10 Hex Nut, Locking 1/4-20

8. 1 Retainer, Bottom Left

9. 1 Retainer, Bottom Right

10. 1 Retainer, Top Front Left

11. 1 Retainer, Top Front Right

12. 1 Retainer, Closeoff

Figure 1. Remove Parts

2Position the

Top Left Retainer — 1

against the edge of the interior

top panel of left case as shown

in Figure 2. Fasten with

Screws — 2.

Note: A factory-installed acrylic

partition may have a retainer

attached to the back end frame

and partition. It is not used in

field installations.

P/N 0332429A

Merchandisers

2HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

Interior

Top

Panel

of Left

Case

Figure 2. Install Top Retainer

3Loosely fasten the

Acrylic Partition —3 and

Top Right Retainer —4

to the Left Top Retainer using

Screws —5,

Washers —6, and

Locking Nut —7

as shown in Figure 3, Detail A.

4Fasten the

Top Right Retainer —4

to the interior top panel of right

case using Screws —2.

Acrylic Partition for Reach-In

Installation Instruction P/N 0332429A

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

DETAIL A

Interior

Top

Panel

of Left

Case

Interior

Top

Panel

of Right

Case

SEE

DETAIL

Figure 3. Install Partition

5Position the

Bottom Left Retainer —8

and

Bottom Right Retainer —9

at the bottom of the partition

and around both end frames as

shown in Figure 5. Fasten with

Screws —5,

Washers —6, and

Locking Nut —7 as shown in

Figure 5.

P/N 0332429A

Merchandisers

4HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

SEE

DETAIL

DETAIL A

Partition

965

Left

Case

Right

Case

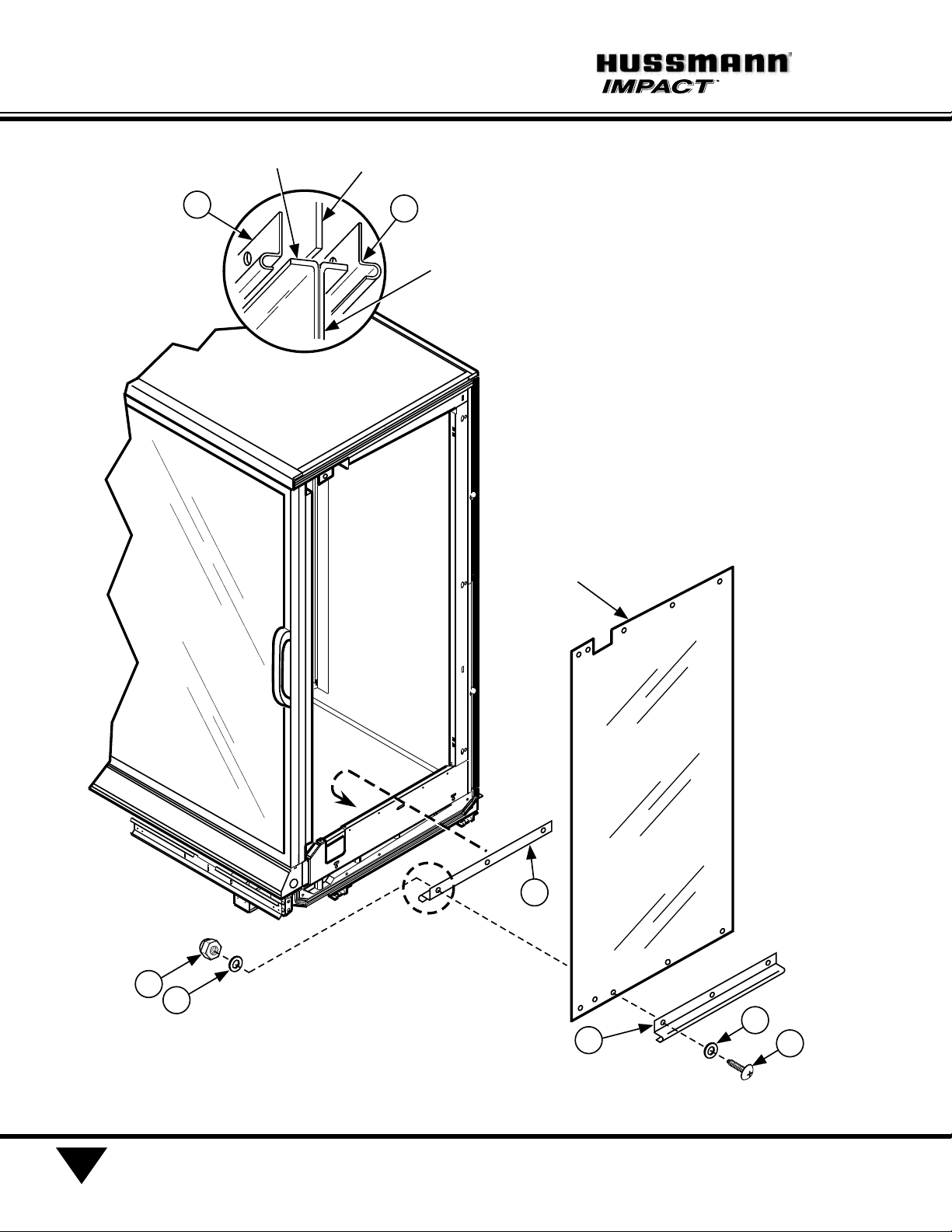

Figure 4. Install Bottom Brackets

6Position the Top Front

Left Retainer —10

and Top Front

Right Retainer —11

at the top of the partition as

shown in Figure 5. Fasten with

Screws —5,

Washers —6, and

Locking Nut —7.

Fasten the top of the retainer

with the cap screw used to join

the cases.

Acrylic Partition for Reach-In

Installation Instruction P/N 0332429A

HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

Partition

Cap Screw

from

Joining Kit

Figure 5. Install Top Front Retainers

7Position the

Closeoff Retainer —12

at the bottom of the partition as

shown in Figure 6. Fasten with

Screws —5,

Washers —6, and

Locking Nut —7.

Return to the joining instruction for

fastener tightening sequence, joint

molding installation and other steps

necessary to complete lineup.

P/N 0332429A

Merchandisers

6HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.

Partition

Installed

Figure 6. Install Closeoff Retainer
