Hussmann D5X-RE Mode d’emploi

P/N 0488743_A

Item Part # Description Wiring Item #

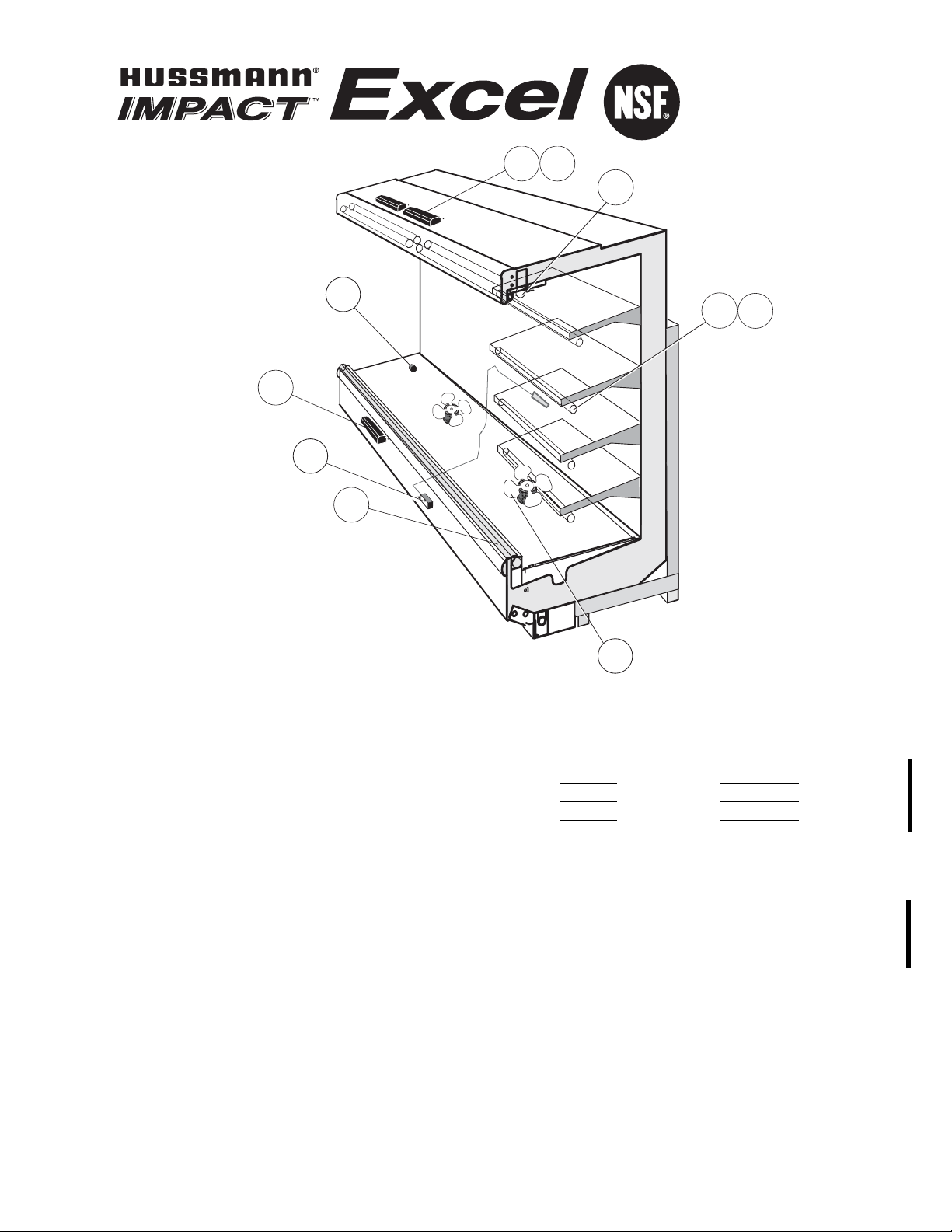

FAN ASSEMBLIES

8 Ft & 12 Ft

A. 12W Standard Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0463643 Fan Blade (FB.4780648)

12W Energy Efficient Fan Assembly (1)

0477655 Fan Motor, Evaporator

(MO.4410546)

0463643 Fan Blade (FB.4780648)

THERMOSTATS

B. 0411744 Standard Non-adjustable (2)

Defrost Thermostat

(CT.0411744)

C. Optional Adjustable Refrigeration Thermostat (3)

Item Part # Description Wiring Item #

LAMPS. BALLASTS, LED FIXTURES AND POWER SUPPLY

D. Ballast, Electronic (4)

0480130 2 lamps (BA.4481676)

0480131 3 lamps (BA.4481654)

0480132 4 lamps (BA.4481677)

E. Fluorescent Lamp (5)

Replace with like fixtures

F. 0501213 Power Supply (EP.4481861) (6)

G. LED Fixture (7)

Replace with like fixtures

D5X-RE

Technical Data Sheet

P/N 0488743_A

NSF®Certified

March 2008

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Note: Revision A changes ballast (Page 1); adds optional LED lighting (Pages 1, 3, 4, 8); adds capacity and weight (Page 5).

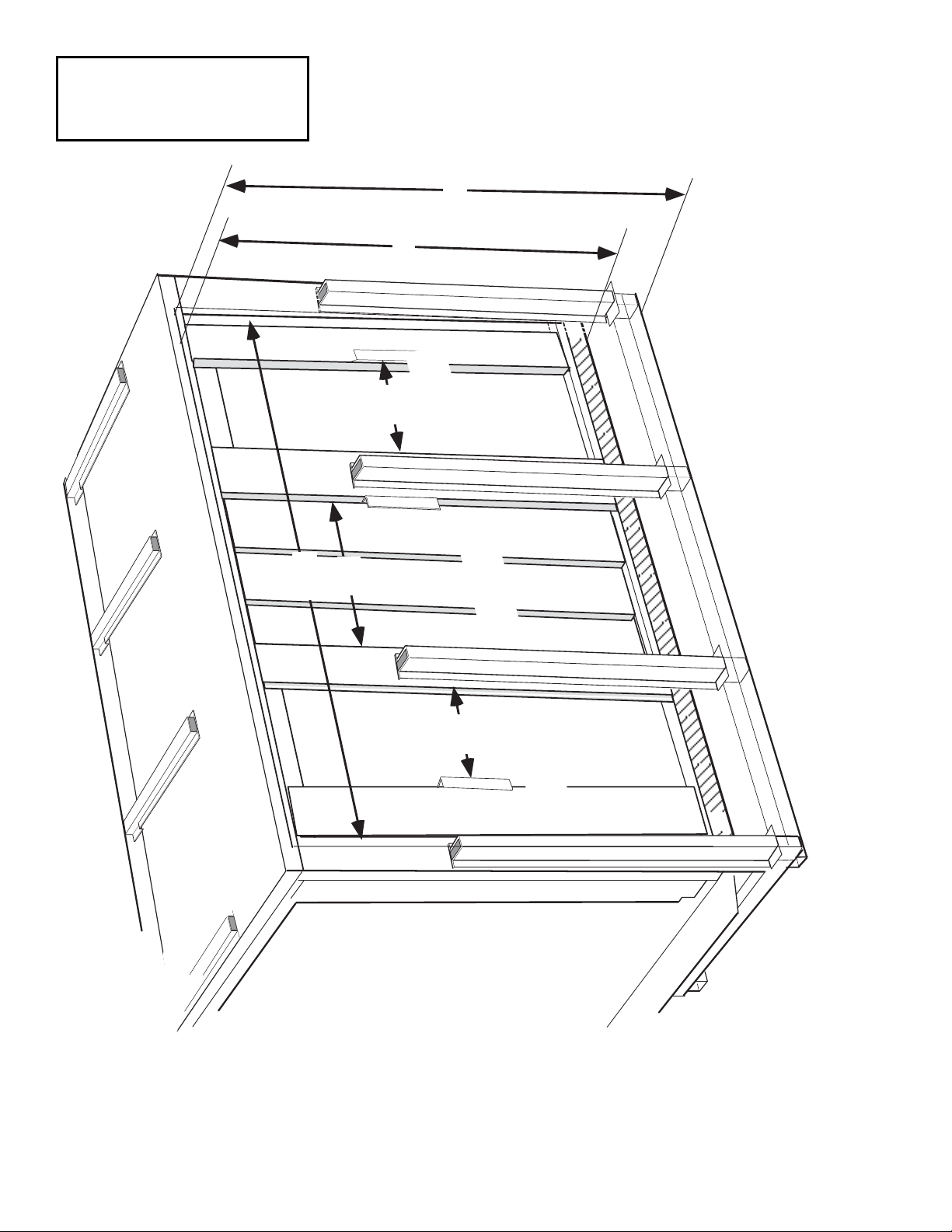

NOTE: Case-to-Case Electrical Connections

are made IN FRONT OF SPLASHGUARD.

Splashguard

40 5/8

(1032)

Refrigeration

Outlet

Electrical

Stub Up Area

6 x 6

(152x152) Waste Outlet

Waste Outlet

FRONT

3 3/8

(85)

12 1/8 (307)

(1118)

Wireway

26 1/2

(673)

(612)

Electrical

Field

Connection

34 7/8

(885)

36 7/8

(937)

29 3/8

(745)

45 1/2

(1155)

5 1/2 (140)

13/8(35)

40 5/8

(1032)

4 1/4 (108)

8(203)

2 of 10 D5X-RE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

8 ft 12 ft

General

(A) Case Length (without ends or partitions) 96 3/8(2448) 144 1/2(3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case back to front (includes bumper) 45 1/2 (1155) 45 1/2 (1155)

Back of case to front of splashguard 36 7/8 (937) 36 7/8 (937)

Back of case to O/S edge of front skid rail 29 1/2 (749) 29 1/2 (749)

Width of skid rail 2 3/8 (61) 2 3/8 (61)

RH end of case to outside edge of external support 5 1/2(140) 5 1/2(140)

Distance between edges of external support and center support 40 5/8 (1032) 40 5/8 (1032)

Distance between edges of center supports NA 44 (1118)

Distance between front skid rail and splashguard 6 (152) 6 (152)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of stub up area 84 1/4 (2140) 132 3/8 (3363)

Back of case to center of stub up area 24 (612) 24 (612)

Length of electrical wireway 26 1/2 (673) 26 1/2 (673)

Waste Outlets (One each end)

(D) End of case to the center of farthest waste outlet 84 1/4 (2140) 132 3/8 (3363)

End of case to the center of nearest waste outlet 12 1/8 (307) 12 1/8 (307)

Back O/S of case to center of waste outlets 34 7/8 (885) 34 7/8 (885)

Outside diameter of the drip pipe 1 1/4 (32) 1 1/4 (32)

Refrigeration Outlet

Back of case to center of refrigeration outlet 29 3/8 (745) 29 3/8 (745)

RH end of case to center of refrigeration outlet 8 (203) 8 (203)

Engineering

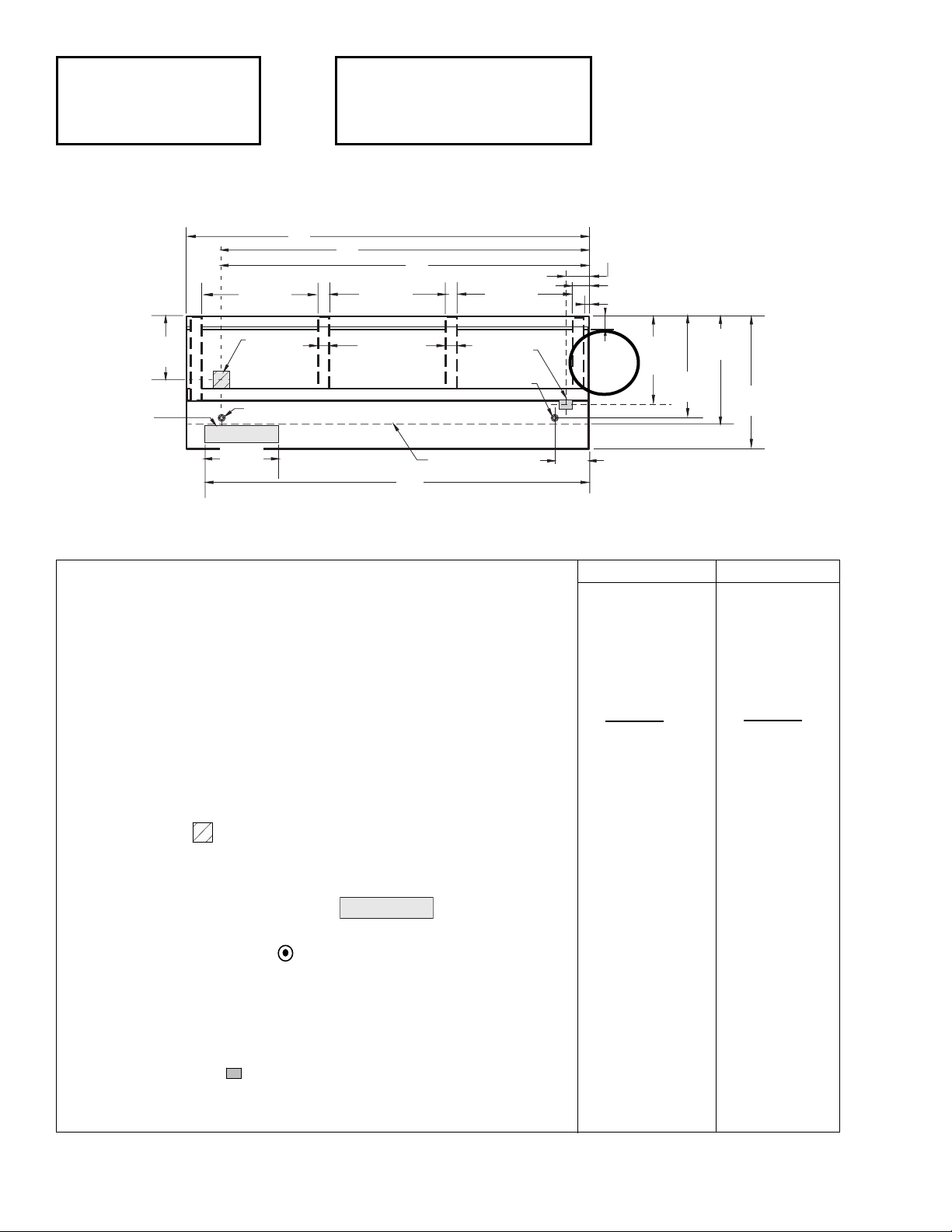

Plan Views

Dimensions shown as in. and (mm).

Rear Load Dairy

& Delicatessen

05-2005

D5X-R

The

EXCEL

Rear Load Dairy & Delicatessen model is not offered in 4-ft or 6-ft length.

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Wireway

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75°F and 55% R.H.

D5X-RE

Discharge Air °F 32

Evaporator °F 24

Unit Sizing °F 22

Btu/hr/ft — Unlit Shelves

D5X-RE‡‡ Parallel Conventional

UNLIT 1500 1595

PEG*1620 1715

* Hussmann Peg Shelves (Deli only).

‡‡ Add 10 Btu/hr/ft per shelf row for LED fixtures.

Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

Frequency Hrs 6

Defrost Water (lb/ft/day) 10.50

(± 15% based on case configuration and product

loading).

OFFTIME D5X-RE

Temp Term °F 48

Failsafe Minutes 35

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 48°F — open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO** D5X-RE

17°F / 7°F

Indoor Unit Only, Pressure Defrost

Termination** 48°F

**Use a Temperature Pressure Chart to determine

PSIG conversions.

Estimated Charge (lb)***

D5X-RE

8 ft 2.7

12 ft 3.9

***This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

3 of 10

P/N 0488743_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

3 (76)

34 7/8 (885)

3 3/8 (85)

36 7/8 (937)

29 3/8 (745)

22 1/2

(572)

30 1/8

(766)

(1549)

FAN

D5X-RE

81 7/8

(2078)

7 1/4 (183)

3 3/4

(95) COIL

Electrical

Case to Case

Connections

45 1/2

(1155)

51 1/4

(1301)

(152)

Refrigeration Outlet

3 1/2 (88)

45 1/2 (1155)

(533)

23 1/4

(590)

Impact

Excel

D5X-RE

Dairy & Delicatessen

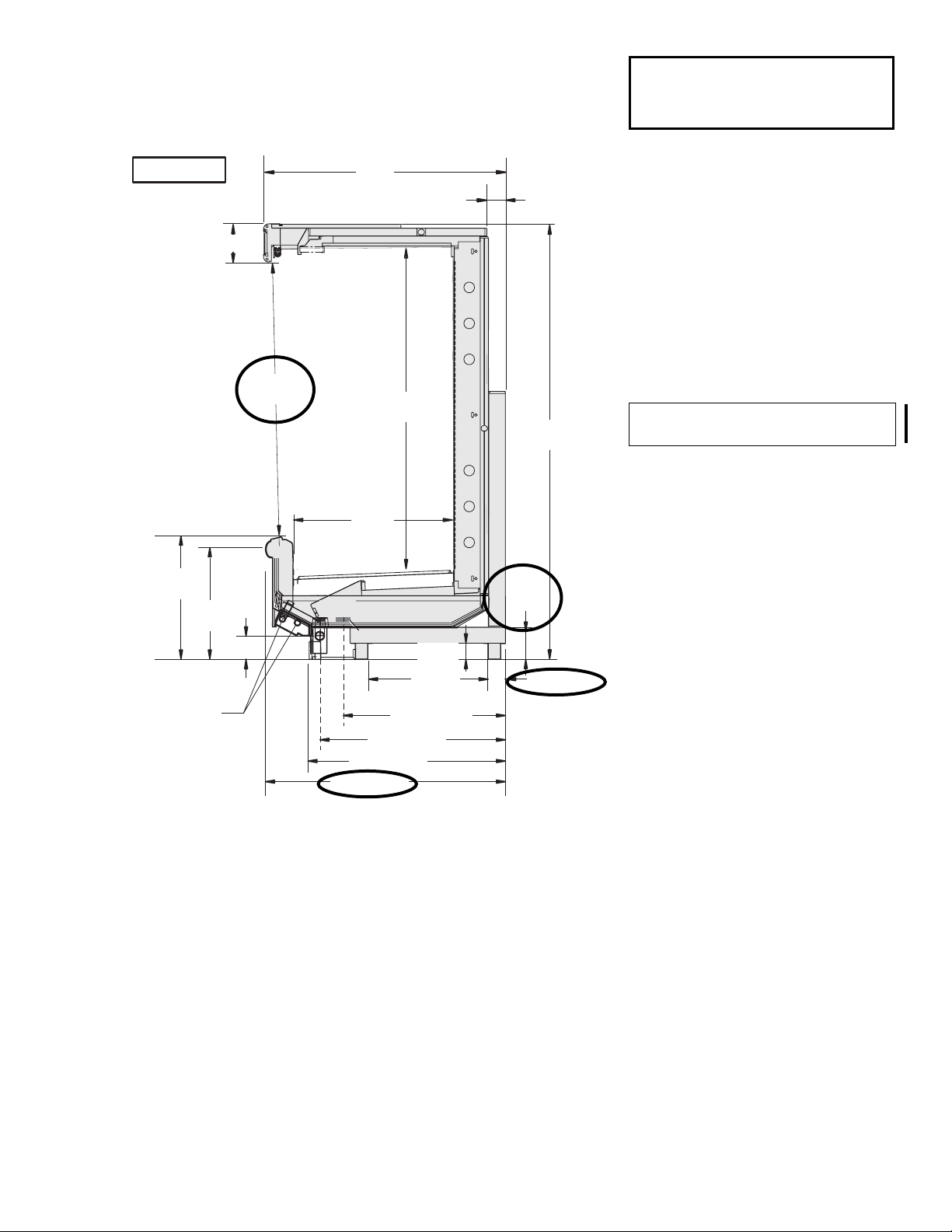

Dimensions shown as in. and (mm).

Multi-deck, 5 Display Levels with Sliding Rear Door

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

Electrical Data

8 ft 12 ft

Number of Fans—12W 4 6

Amperes Watts

8 ft 12 ft 8 ft 12 ft

Evaporator Fan

120V 60Hz Standard 2.60 3.90 200 300

120V 50Hz Standard 3.00 4.50 228 342

230V 60Hz Export 1.32 1.98 200 300

230V 50Hz Export 1.52 2.28 228 342

120V 60Hz Energy Efficient 1.20 1.80 72 108

230V 60Hz Energy Efficient 0.60 0.90 72 108

Minimum Circuit Ampacity

120V 60Hz Standard 2.80 4.10

120V 50Hz Standard 3.20 4.70

230V 60Hz Export 1.52 2.18

230V 50Hz Export 1.72 2.48

120V 60Hz Energy Efficient 1.40 2.00

230V 60Hz Energy Efficient 0.80 1.10

Maximum Over Current Protection 120V 20 20

Maximum Over Current Protection 230V 15 15

Standard Lighting

1 Row Canopy 0.51 0.77 59 85

Optional Lighting

Additional 1 Row Canopy 0.51 0.77 59 85

Additional 2 Row Canopy 1.02 1.54 118 170

Additional 3 Row Canopy 1.53 2.31 177 255

1 Row Rail Light 0.51 0.77 59 85

Optional Shelf Lighting

4 Rows of Shelves 2.04 3.08 236 340

Optional Always*Bright LED Lighting

4 Rows of Shelves 0.68 0.93 82 112

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52

4 of 10 D5X-RE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact

Excel

D5X-RE

Dairy & Delicatessen

The

EXCEL

Rear Load Dairy & Delicatessen model is not offered in 4-ft or 6-ft length.

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 12 ft (each)

lb (kg) NA (NA) NA (NA) 1200 (544) 1400 (635) 100 (45)

5Actual weights will vary according to optional kits included.

5 of 10P/N 0488743_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Impact

Excel

D5X-RE

Dairy & Delicatessen

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 11.75 ft3/ft (1.09 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 7.48 ft3 /ft (0.70 m3 /m)

ARI Total Display Area 3 (Sq Ft/Ft) 4.58 ft2/ft (1.40 m2 /m)

Shelf Area 4(Sq Ft/Ft) 7.87 ft2/ft (2.40 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann Product

Reference Guide. The standard shelf complement for this model is (4) rows of 16-inch shelves.eparately from fans.

D5X-RE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

6 of 10

Optional

Two Row

Canopy

Optional

Three Row

Canopy

Connector

BL BL

Orange or Tan Band

Standard Lighting 1 Row Canopy

Optional Lighting 2 Row Canopy

3 Row Canopy

455

Connector

Optional Lighting 1 Row Rail

4 ft 6 ft or 8 ft 12 ft

Defrost

Termination

Thermostat Refrigeration

Thermostat

Dark Blue

Condensing

Unit

}

Light Blue

4 & 6 Fans 120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

12 ft

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

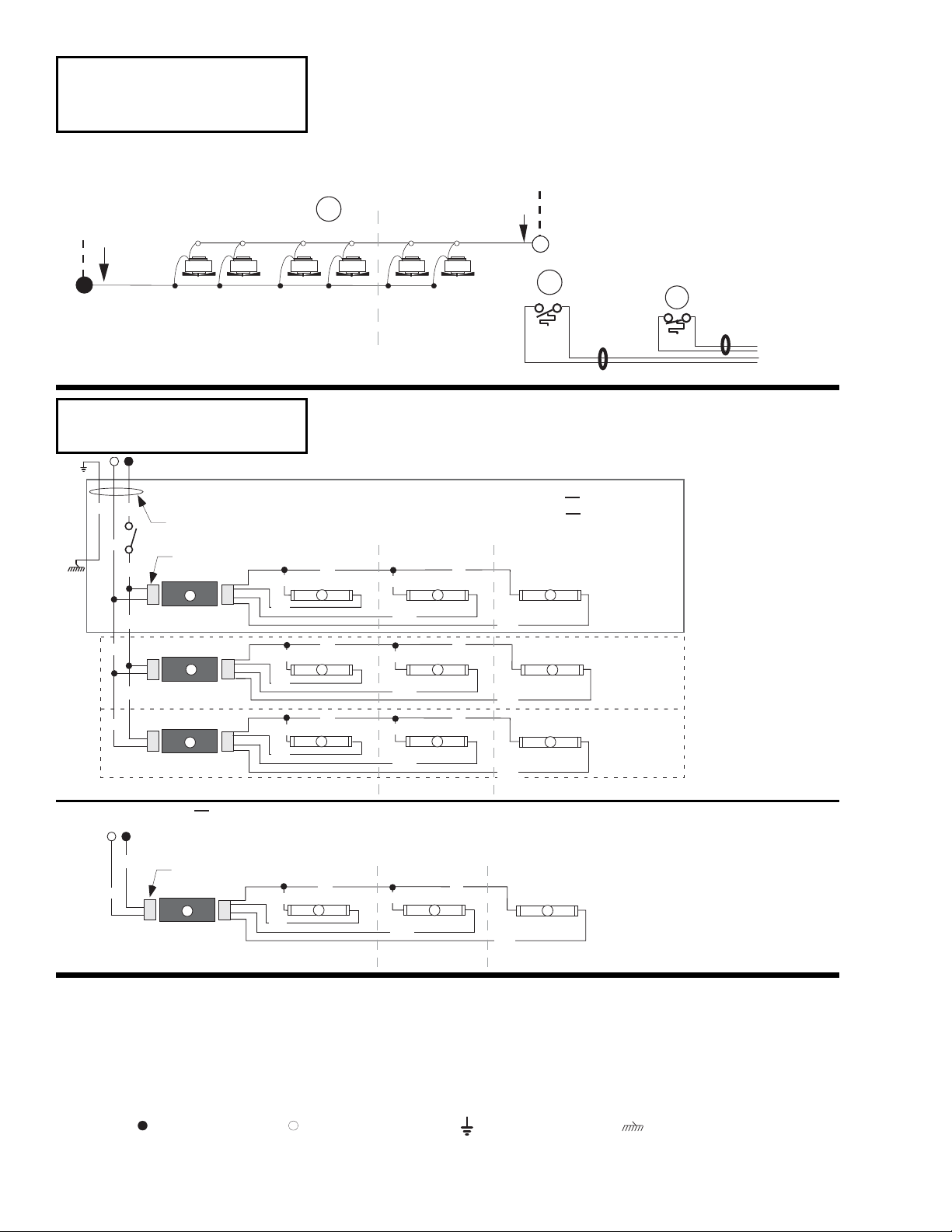

Fan Wiring

Offtime Defrost

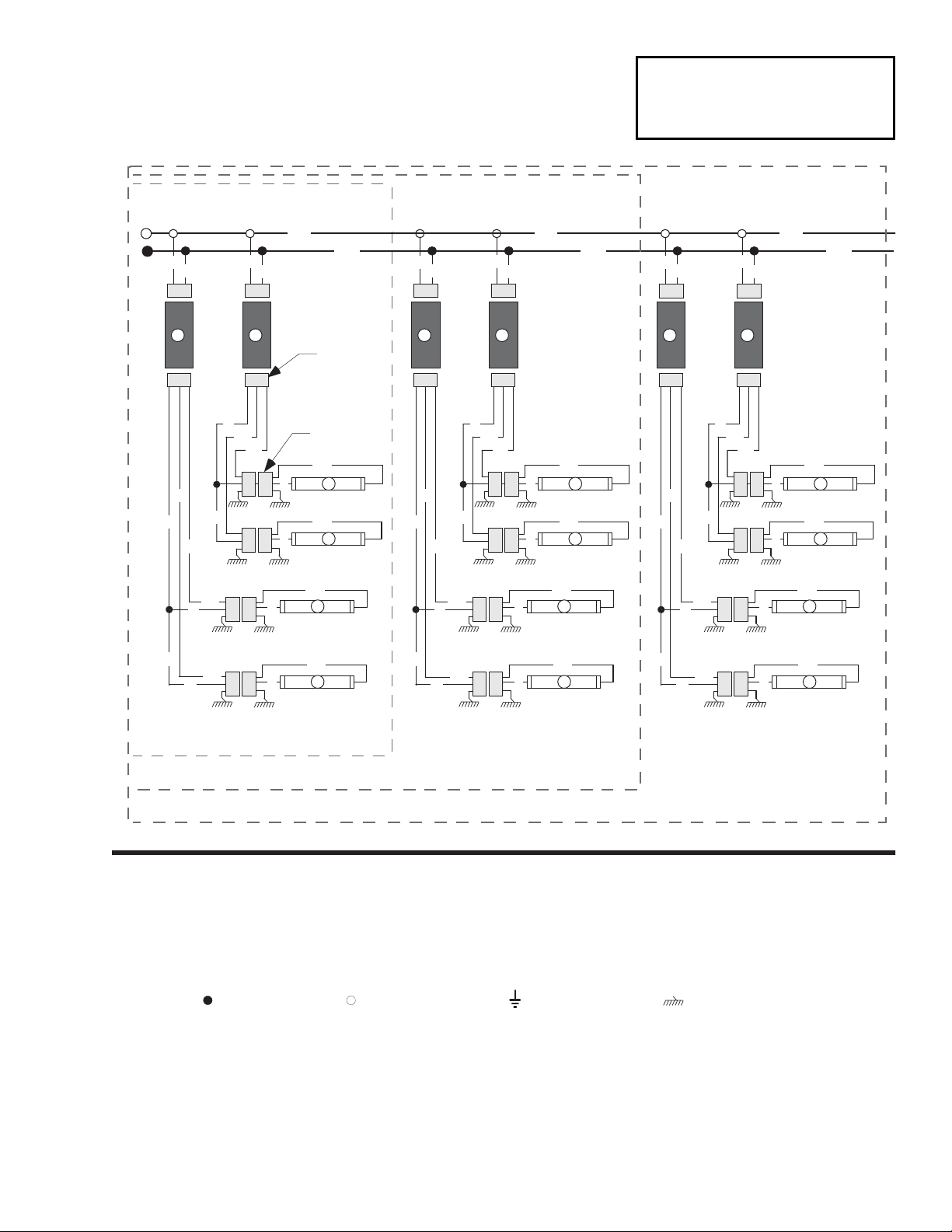

Light Circuits

7 of 10P/N 0488743_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Optional Shelf Harness and Light Circuits for

Four Rows of Shelves

4 ft case

Connector

6 ft or 8 ft case

12 ft case

Optional Shelf Lighting

Fluorescent Fixtures

D5X-RE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

8 of 10

BL 7

RBL

4 ft case

6 ft or 8 ft case

12 ft case

(TYP)

Shelf Light

Plug & Receptacle

Connector

BL 7

RBL

BL 7

RBL

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Connector

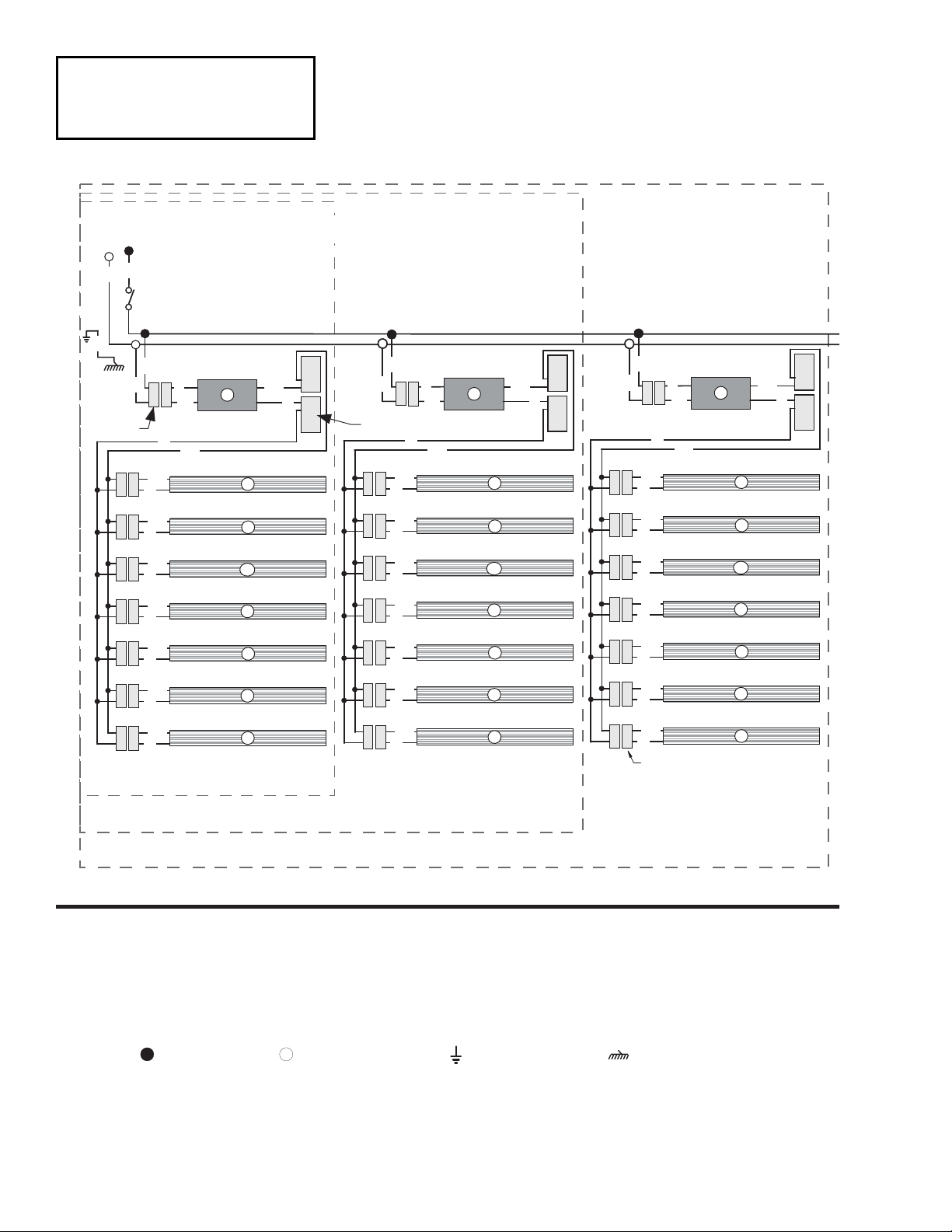

Optional Shelf Harness and LED Light Circuits for

3, 4, 5, 6 & 7 Rows of Shelves

Optional Shelf Lighting

LED Fixtures

9 of 10P/N 0488743_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

Doors

Fully Opened

Doors

Fully Closed

Double-walled telescoping doors slide both left and right.

NOTE: Consult Cooler Close-off

Kit for instructions on

connecting the

merchandiser

to the cooler.

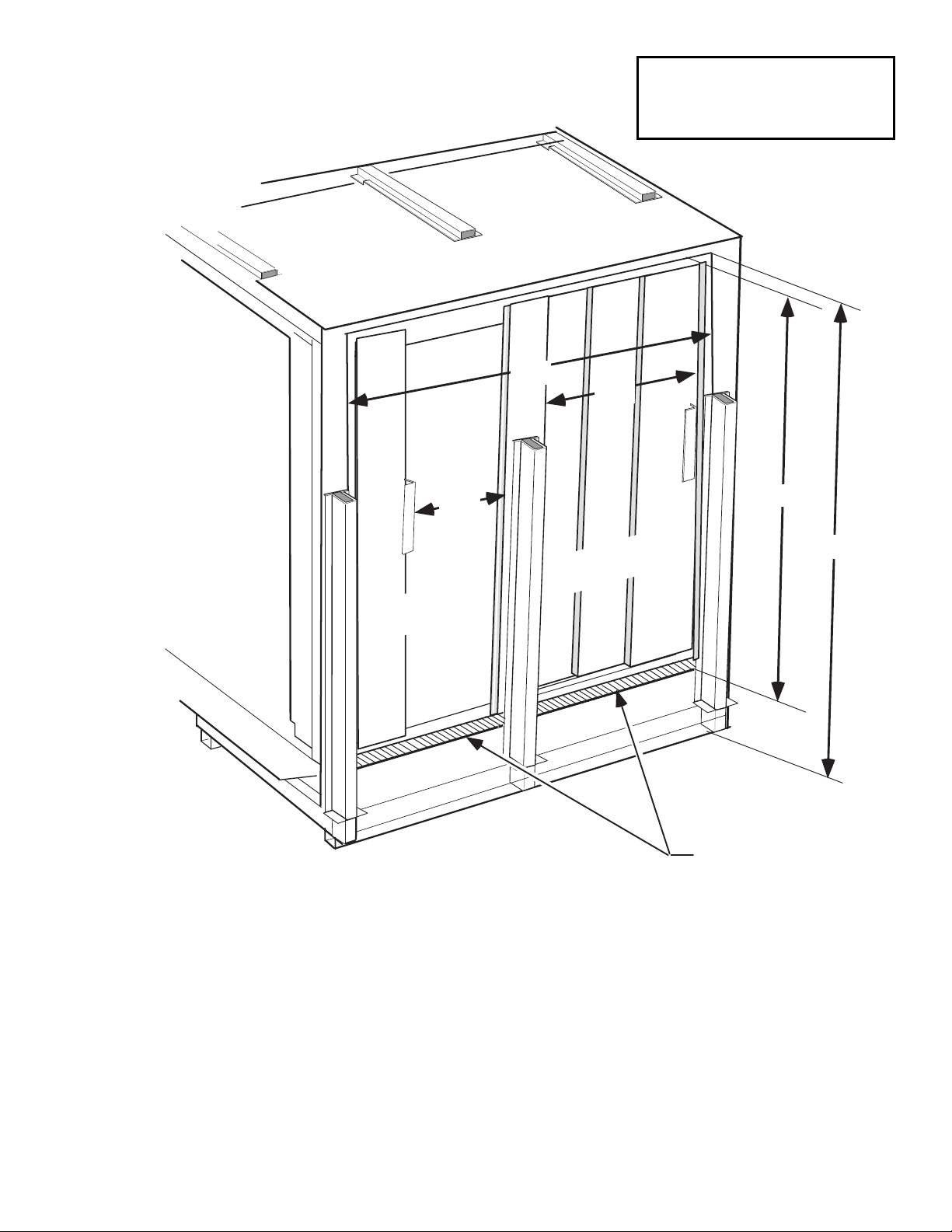

Rear View of 8 Foot Dairy Merchandiser

23 3/4

37 3/4

67 1/2

79 1/2

84 1/4

Rear Coil Grills

Impact

Excel

D5X-RE

Dairy & Delicatessen

D5X-RE Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

10 of 10

NOTE: Consult Cooler Close-off Kit for Instructions on

connecting the merchandiser to the cooler.

Rear View of 12 Foot Dairy Merchandiser

23 3/4

130 1/4

37 3/4

67 1/2

79 1/2

23 3/4

Doors

Fully Opened

Doors

Fully Closed

Double-walled telescoping doors slide both left and right.

Doors

Fully Opened

Rear Coil Grill

Rear Coil Grill Rear Coil Grill

Impact

Excel

D5X-RE

Dairy & Delicatessen

Table des matières

Autres manuels Hussmann marchandiseur

Hussmann

Hussmann IMPACT Elite E5 Manuel utilisateur

Hussmann

Hussmann Specialty Products CR3HV-F Mode d’emploi

Hussmann

Hussmann LG Mode d’emploi

Hussmann

Hussmann VR1-D Manuel utilisateur

Hussmann

Hussmann IMPACT M1CIMP-4B Manuel utilisateur

Hussmann

Hussmann IMPACT RL Manuel utilisateur

Hussmann

Hussmann Impact F2XLG Manuel utilisateur

Hussmann

Hussmann IMPACT LWGH Mode d’emploi

Hussmann

Hussmann Impact C2-E Manuel utilisateur

Hussmann

Hussmann RI2 Mode d’emploi

Hussmann

Hussmann ESGM Manuel utilisateur

Hussmann

Hussmann IMPACT M2GE Manuel utilisateur

Hussmann

Hussmann GWIC Manuel utilisateur

Hussmann

Hussmann IMPACT D5ELE Guide de démarrage rapide

Hussmann

Hussmann RI2-E Mode d’emploi

Hussmann

Hussmann Impact Excel P2X-E Mode d’emploi

Hussmann

Hussmann ESGS Manuel utilisateur

Hussmann

Hussmann Specialty Products CR3HTO-HTB Mode d’emploi

Hussmann

Hussmann Impact C6LE Manuel utilisateur

Hussmann

Hussmann RI4-E Mode d’emploi

Hussmann

Hussmann Impact C2-XLE Mode d’emploi

Hussmann

Hussmann D5X-LE Mode d’emploi

Hussmann

Hussmann IMPACT RL Manuel utilisateur

Hussmann

Hussmann RGSSFP Instructions d'utilisation d'origine

Manuels marchandiseur populaires d'autres marques

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuel utilisateur

EPTA

EPTA COSTAN RHINO MULTI Manuel utilisateur

CASCO

CASCO Nano Cube Manuel utilisateur

True

True GDIM-26 Manuel utilisateur

Structural Concepts

Structural Concepts Oasis Mobile Series Instructions d'installation

Haussmann

Haussmann RL Manuel utilisateur

Howard McCray

Howard McCray R-CDS32E-4 Manuel utilisateur

EPTA

EPTA iarp Cool Emotions Delight Lite Manuel utilisateur

VALERA

VALERA BC 85 Manuel utilisateur

HL Display

HL Display 3eBin Manuel utilisateur

Dixie Narco

Dixie Narco DNCB 501E Manuel utilisateur

APW Wyott

APW Wyott Racer DMXD-30H Manuel utilisateur

Hoshizaki

Hoshizaki KD-90C Manuel utilisateur

Summit

Summit SCR1006 Manuel utilisateur

Delfield

Delfield Shelleyspeed SPM-28E Manuel utilisateur

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuel utilisateur

Kysor/Warren

Kysor/Warren GranBering KW Mode d’emploi

Crane

Crane BevMAX Refresh 6 Media Manuel utilisateur
