Hussmann IMPACT EDS1 Mode d’emploi

P/N 0431326_A

Merchandisers

T'Stat Bulb

Location

(Optional

Lights)

(Optional

Lights)

EDS1

Technical Data Sheet

P/N 0431326_A

NSF®Certified

July 2007

Note: Changed items have been underlined.

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. 4W Fan Assemblies (1)

0392457 Fan Motor, Evaporator

(MO.4410101)

0409511 Fan Blade (FB.0409511)

embossing toward motor

0404551 Fan Motor, Ambient (2)

(MO.0404551)

B. 0382028 Standard Non-adjustable (3)

disc type Defrost Thermostat

(CT.0382028)

C. 0137880 Optional Adjustable (4)

Refrigeration Thermostat

(CT.4481084)

Item Part # Description Wiring Item #

LAMPS AND BALLASTS

D. 0355716 Ballast, Electronic

2 lamps (BA.0355716) (5)

0355398 Ballast, Electronic

3 lamps (BA.4480118) (6)

E. Fluorescent Lamp (7)

Replace with like fixtures

HEATERS

F. 0496496 Nosing Anti-sweat (8)

Heater, 4 ft (HE.4850738)

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

EDS1 Technical Data Sheet

2 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

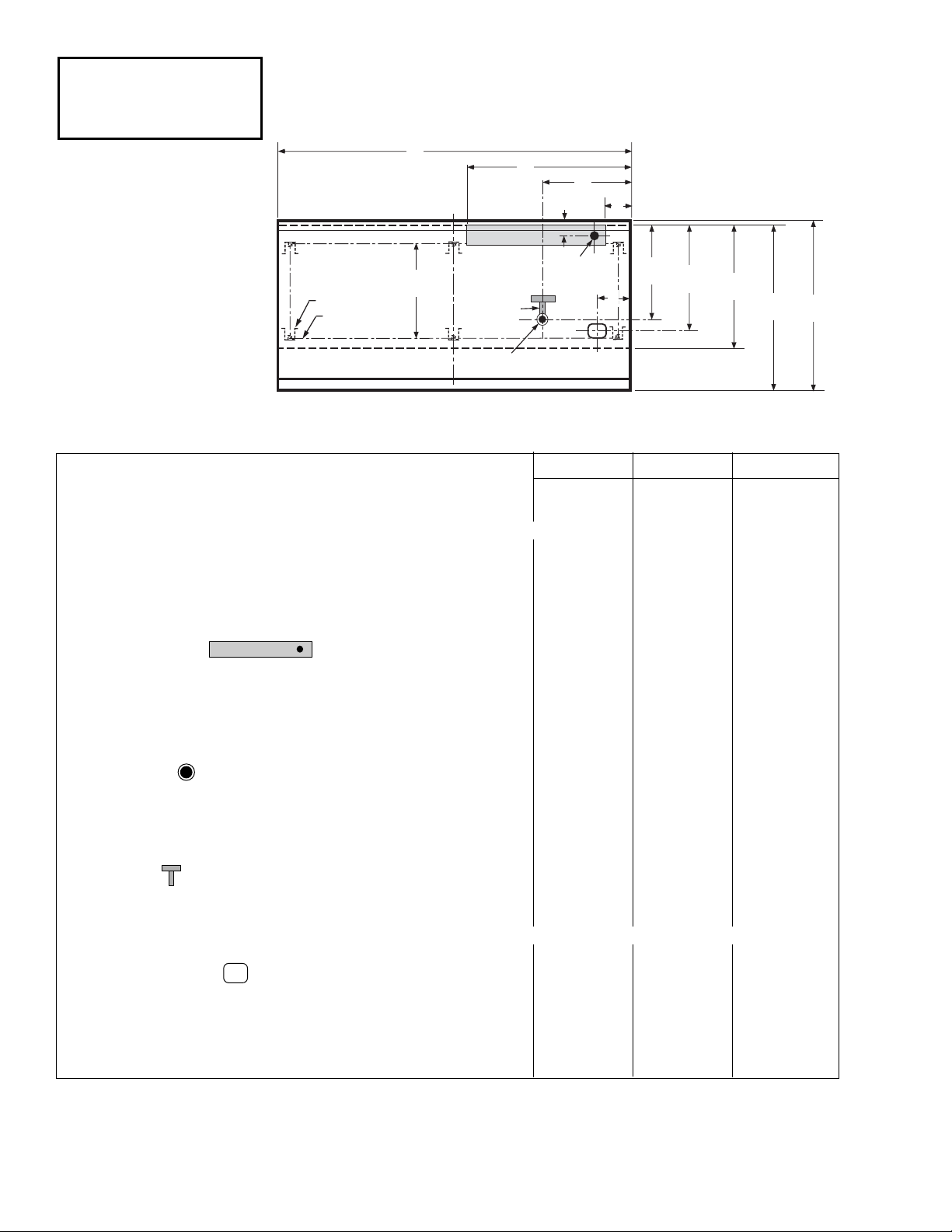

Engineering

Plan Views

Self-Service

Glass Front

Delicatessen

Models

06-2003

Front

Refrigeration

Outlet

Water Seal

Waste Outlet

Electrical

EDS1

25 5/8

(651)

Legs

(See Note**)

(See Note***)

Leg Center Lines

3 5/8(92)

25 5/8

(651) 28 3/4

(730) 33 3/8

(848) 44 5/8

(1133) 46

(1168)

Dimensions shown as inches and (mm).

4 ft 8 ft 12 ft

General

(A) Length of Case* 72 1/4(1835) 96 1/4(2444) 144 1/2(3670)

*Each End and Partition adds 1 1/2inches (38 mm.) to the length of the lineup.

Maximum outside dimensions of case back to front 46 (1168) 46 (1168) 46 (1168)

(includes bumper and Rear Sill)

Back of case to front of splashguard 33 3/8(848) 33 3/8(848) 33 3/8(848)

Center of rear legs to center of front legs 25 5/8(651) 25 5/8(651) 25 5/8(651)

Electrical Service

(B) Righthand end of case to right edge of electrical raceway 7 (178) 7 (178) 7 (178)

Back outside of case to center of knockout 3 5/8(92) 3 5/8(92) 3 5/8(92)

**Note: Electrical Field Wiring Connection Point

Waste Outlet

(D) Right end of case to center of waste outlet 24 (611) 24 (611) 72 1/4(1835)

Left end of case to center of waste outlet 48 1/4(1835) 72 1/4(1835) 72 1/4(1835)

Back outside of case to center of waste outlet 25 5/8(652) 25 5/8(652) 25 5/8(652)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102) 4 (102)

Outside diameter of drip pipe lines 1 1/2(38) 1 1/2(38) 1 1/2(38)

***Note: Field installed water seal outlets, tees, and connectors are shipped with the merchandiser.

Refrigeration Outlet

(E) Right end of case to center of refrigeration outlet 9 3/8(238) 9 3/8(238) 9 3/8(238)

Back of case to center of refrigeration outlet 28 3/4(730) 28 3/4(730) 28 3/4(730)

Outside diameter of the liquid line 3/8(9.5) 3/8(9.5) 3/8(9.5)

Outside diameter of the suction line 5/8(16) 5/8(16) 5/8(16)

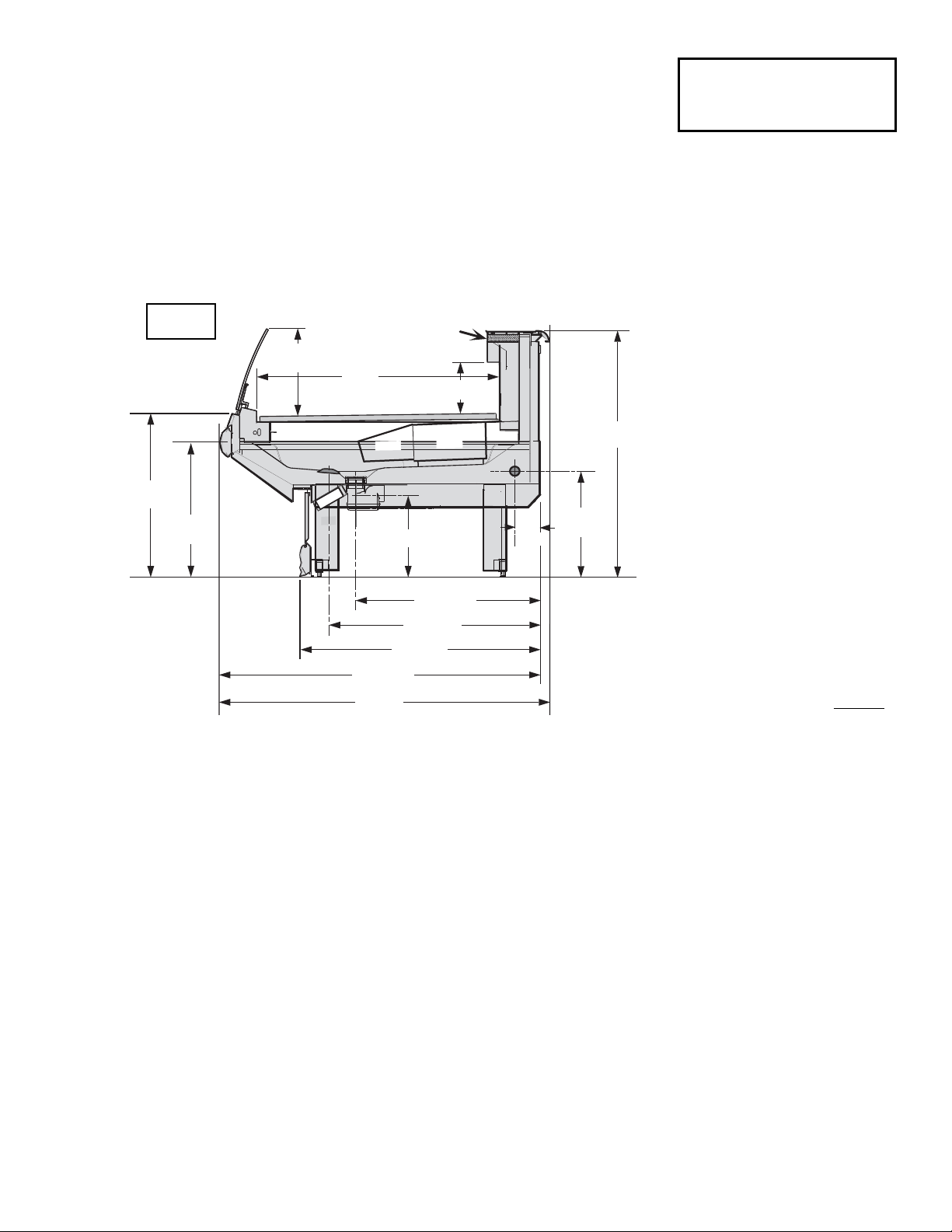

12 1/8

(308)

FAN

Refrigeration

Outlet

Electrical

FAN

DAO

COIL

33 5/8

(854) 7 3/8 (308)

22 1/2

(572)

11 3/8 (289)

3 5/8

(92)

13 3/4

(349)

(864)

25 5/8 (651)

28 3/4 (730)

33 3/8 (849)

44 5/8 (1133)

46 (1168)

18 1/2

(470)

Impact EDS1

Delicatessen

Dimensions shown in inches & (mm).

REFRIGERATION DATA

Note: This data is based on store

temperature and humidity that does not

exceed 75°F and 55% R.H.

EDS1

Discharge Air (°F) 24

Evaporator(°F) 14

Unit Sizing (°F) 12

Btu/hr/ft* EDS1

Parallel 390

Conventional 420

DEFROST DATA

EDS1

Frequency (hr) 12

Defrost Water (lb/ft/day) 0.20

(± 15% based on case configuration and

product loading).

OFFTIME EDS1

Temp Term (°F) 43°F

Failsafe minutes 90

ELECTRIC OR GAS Not Recommended

Standard Defrost Thermostat

Close on rise: close 43°F – open 33°F

CONVENTIONAL CONTROLS

Low Pressure Backup Control

EDS1

CI/CO* 7°F / -3°F

Indoor Unit Only, Pressure Defrost

Termination* 43°F

*Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

EDS1

Merchandiser Drip Pipe (in.) 1 1/2

Liquid Line (in.) 3/8

Suction Line (in.) 5/8

Estimated Charge (lb)**

4 ft 1.0

8 ft 1.5

12 ft 2.0

**This is an average for all refrigerant

types. Actual refrigerant charge may vary

by approximately half a pound.

Length Added to Lineup by:

Each Plastic End w/ Bumper (in.) 3 1/2

Each End/Partition (in.) 1 1/2

Self Service Glass, 1 Display Level

3 of 6

P/N 0431326_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF ®) Standard #7 requirements.

EDS1

EDS1 Technical Data Sheet

4 of 6

Impact EDS1

Delicatessen

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Electrical Data

Number of Fans 4 ft 8 ft 12 ft

Refrigeration – 4W 2 2 3

Ambient Air Wipe — 15W 4 4 6

Export — 9W 4 2 3

Amperes Watts

Merchandiser 6 ft 8 ft 12 ft 6 ft 8 ft 12 ft

Fans (Refrigeration)

120V 60Hz Standard 0.62 0.52 0.78 48 36 54

120V 60Hz Energy Efficient NA NA NA NA NA NA

230V 50Hz Export NA 0.60 0.90 NA 96 144

Fans (Ambient Air Wipe)

Two-pole Muffin Fan 1.04 0.76 1.14 60 60 180

120V 60Hz Energy Efficient NA NA NA NA NA NA

230V 50Hz Export NA 0.36 0.54 NA 60 180

Constant on Anti-sweat Heaters 0.22 0.26 0.40 26 31 48

Cycling Anti-sweat Heaters 0.22 NA NA 26 NA NA

Minimum Circuit Ampacity

120V 60Hz Standard Fans 2.08 1.61 2.39

120V 60Hz Energy Efficient Fans NA NA NA

230V 50Hz Export Fans NA 1.17 1.72

Maximum Over Current Protection 120V 20 20 20

230V 50Hz Export 15 15 15

Optional Lighting*

Optional Interior Front Rail 0.40 0.51 0.77 46 59 85

Optional Ledge Lighting 0.4 0.51 0.77 46 59 85

5 of 6

P/N 0431326_A HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

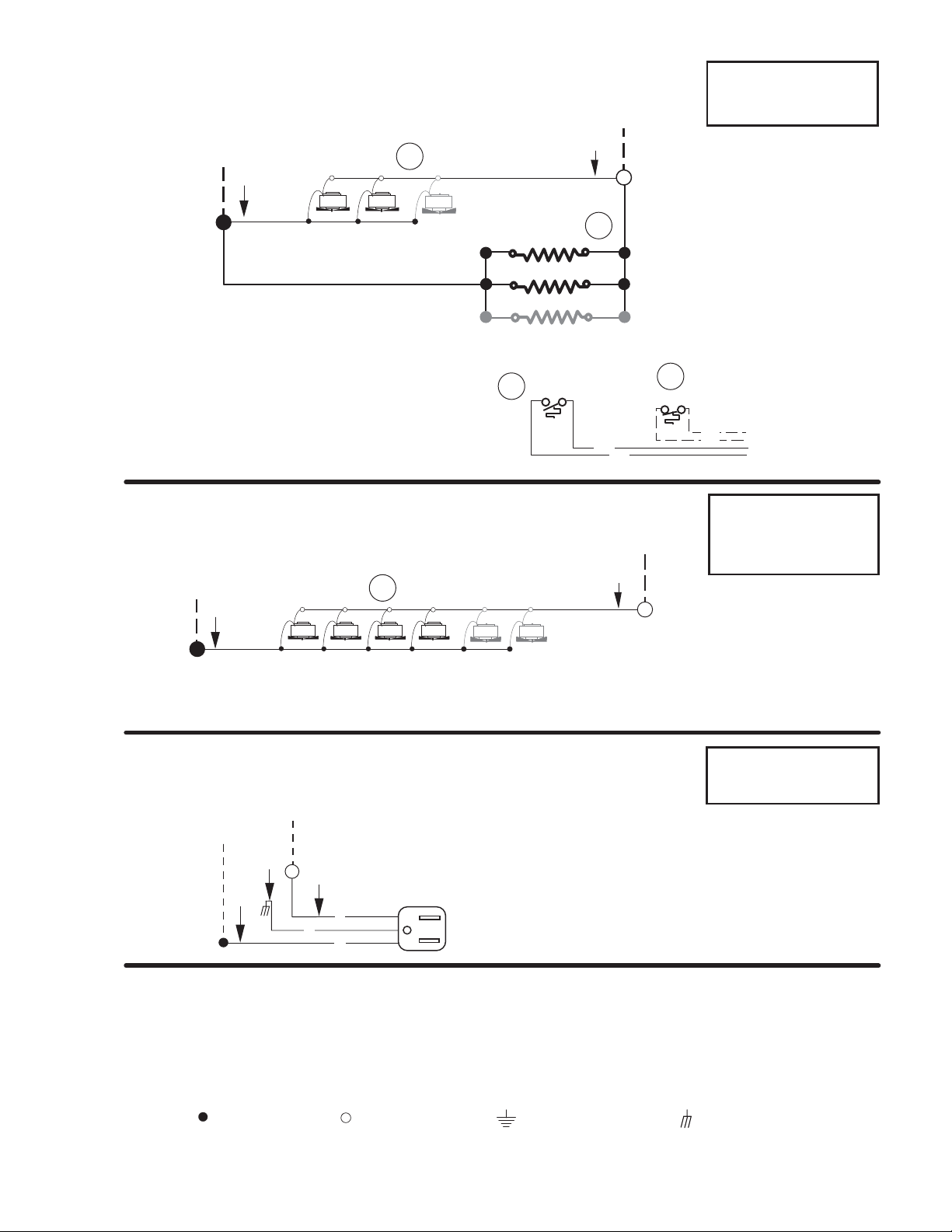

R = Red G = Green BL = Blue LB = Light Blue DB = Dark Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

Fan Wiring

Offtime Defrost

Fans

Electric Service Receptacle Receptacles

120V NEUTRAL

MAROON

BAND

120V POWER

N.E.C.

TAGS

MAROON

BAND

Defrost

Termination

Thermostat

Refrigeration

Thermostat

Condensing Unit

}

(Field Installed)

BROWN BAND

Fans

BROWN BAND

120V POWER

120V NEUTRAL

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

8 ft case has 2 Fans

12 ft case has 3 Fans

BROWN BAND

Fans

BROWN BAND

120V POWER

120V NEUTRAL

Ambient Fan

Wiring

Glass Air Wipe

Fans

8 ft case has 4 Fans

12 ft case has 6 Fans

Anti-sweat Heaters 8

EDS1 Technical Data Sheet

6 of 6 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Light Circuits

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = Field GROUND = Case GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

120V NEUTRAL

ORANGE OR TAN BAND

Light

Switch

120V POWER

ORANGE OR TAN

BAND

GGG

77 7

GGG

77 7

Optional Ledge

Light Circuit

Optional

Rail Light Circuit
