C
B
D
A
C
D
D
P/N 0474829_C
Item Part # Description Wiring Item #
FAN ASSEMBLIES
4 Ft, 8 Ft, 10 Ft & 12 Ft
A. 12W Standard Fan Assembly (1)
0047000 Fan Motor, Evaporator
(MO.4410103)
0463643 Fan Blade (FB.4780648)
12W Energy Efficient Fan Assembly (1)
0477655 Fan Motor, Evaporator
(MO.4410546)
0463643 Fan Blade (FB.4780648)
6 Ft Only
A. 7W Standard Fan Assembly (1)
0058698 Fan Motor, Evaporator
(MO.4410102)
0124150 Fan Blade (FB.0124150)
7W Energy Efficient Fan Assembly (1)
0477654 Fan Motor, Evaporator
(MO.4410545)
0124150 Fan Blade (FB.0124150)
Item Part # Description Wiring Item #
THERMOSTATS
B. Optional Adjustable Refrigeration Thermostat (2)
LAMPS AND BALLASTS
C. Ballast, Electronic (3)
0480130 2 lamps (BA.4481676)
0480131 3 lamps (BA.4481654)
0480132 4 lamps (BA.4481677)
D. Fluorescent Lamp (4)
Replace with like fixtures
FL5NX-LEP
Technical Data Sheet
P/N 0474829_C
March 2008
We reserve the right to change or revise specifications
and product design in connection with any feature of
our products. Such changes do not entitle the buyer to
corresponding changes, improvements, additions or
replacements for equipment previously sold or shipped.
©2008 HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A.
U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM
Note: Revision C changes ballast (Page 1) and adds capacity and weight (Page 5).
Wireway
26 3/4
(680)
25 1/4
(641)
37
(940)
A
41 1/2
(1054)
28 1/2
(724)
3 In.
(77 mm)
Required
Air Gap
Refrigeration
Outlet
Waste Outlet
Waste Outlet
FRONT
4 3/4 (120)
21 1/4
(540)
D
C
8(203)
12 1/8 (307)
4 1/4 (108)
41 1/2
(1054)
43 7/8
(1114)
B
Splashguard
19
(483)
NOTE: Case-to-Case Electrical Connections
are made IN FRONT OF SPLASHGUARD.
Electrical
Stub Up Area
6 x 6
(152x152)
Electrical
Field
Connection
26 1/2
(673)
4 3/4 (120)
4 1/2 (115)
4 ft 6 ft 8 ft 10 ft 12 ft
General
(A) Case Length (without ends or partitions) 48 3/8(1229) 72 3/8(1838) 96 3/8(2448) 120 3/8(3058) 144 1/2(3670)
(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)
Maximum O/S dimension of case back to front
(includes bumper) 37 (940) 37 (940) 37 (940) 37 (940) 37 (940)
Back of case to front of splashguard 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724)
Back of case to O/S edge of front leg 25 1/4 (641) 25 1/4 (641) 25 1/4 (641) 25 1/4 (641) 25 1/4 (641)
Distance between edges of external legs and center legs NA 29 1/2 (750) 41 1/2 (1054) 29 1/2 (750) 41 1/2 (1054)
Distance between edges of center legs NA NA NA 43 7/8 (1114) 43 7/8 (1114)
Distance between front legs and splashguard 2 3/4(70) 2 3/4(70) 2 3/4(70) 2 3/4(70) 2 3/4(70)
Electrical Service (Electrical Field Wiring connection point)
(B) RH End of case to center of stub up area 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 108 1/4 (2750) 132 3/8 (3363)
Back of case to center of stub up area 19 (483) 19 (483) 19 (483) 19 (483) 19 (483)
Length of electrical wireway 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673)
(C) RH End of case to LH end of wireway 42 1/8 (1070) 66 1/8 (1680) 90 1/8 (2289) 114 1/4 (2092) 138 1/4 (3511)
Waste Outlets (One each end)
(D) RH End of case to the center of LH waste outlet 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 108 1/4 (2750) 132 3/8 (3363)
RH End of case to the center of RH waste outlet 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307)
Back O/S of case to center of waste outlets 26 3/4 (680) 26 3/4 (680) 26 3/4 (680) 26 3/4 (680) 26 3/4 (680)
Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)
Refrigeration Outlet
Back of case to center of refrigeration outlet 21 1/4 (540) 21 1/4 (540) 21 1/4 (540) 21 1/4 (540) 21 1/4 (540)
RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203) 8 (203) 8 (203)
2 of 6 FL5NX-LEP Technical Data Sheet
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

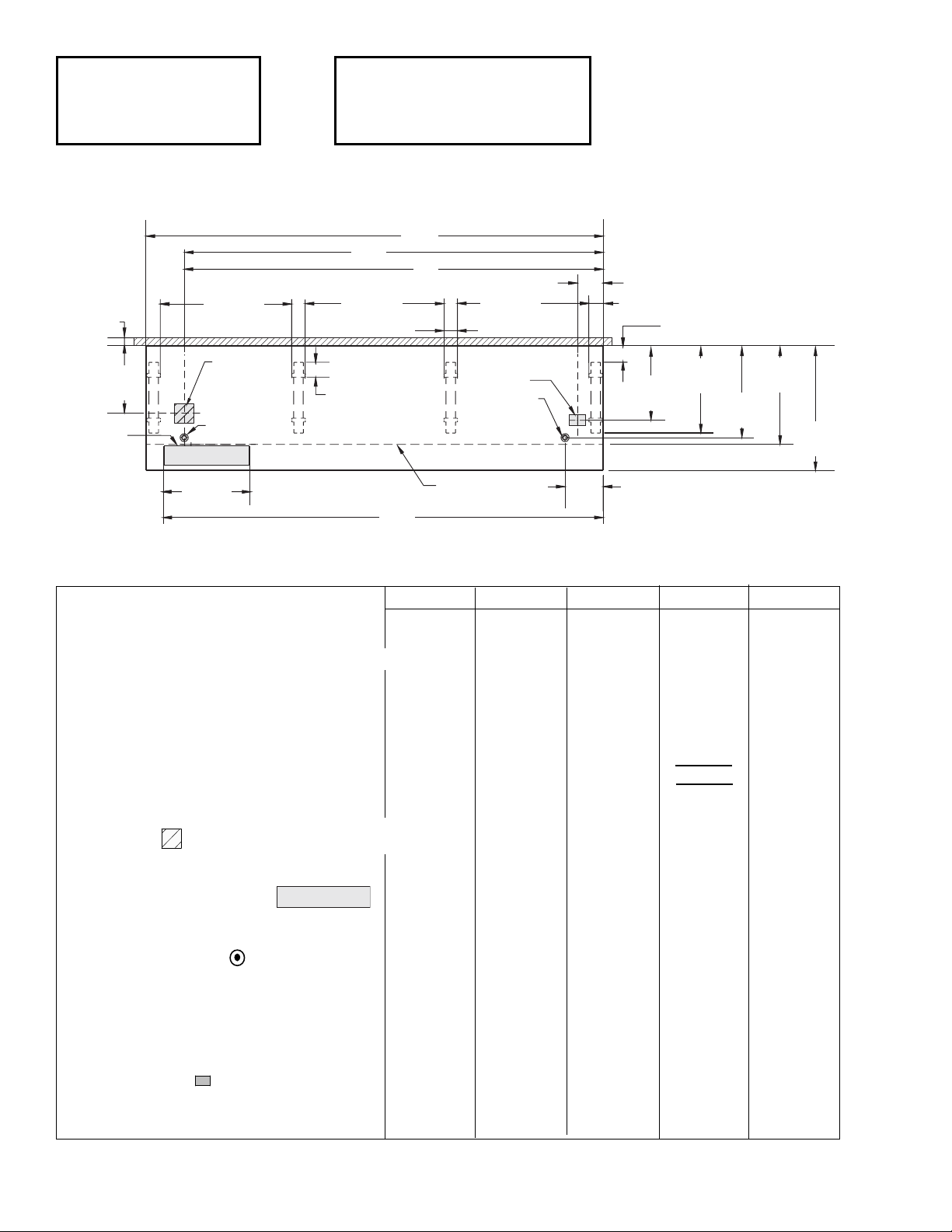

Engineering
Plan Views
Dimensions shown as in. and (mm).
Floral
08-2006
PHYSICAL DATA
Merchandiser Drip Pipe (in.) 1 1/4
Merchandiser Liquid Line (in.) 3/8
Merchandiser Suction Line (in.) 7/8
Wireway
REFRIGERATION DATA
Note: This data is based on store temperature and
humidity that does not exceed 75°F and 55% R.H.
FL5NX-LEP Unlit
Discharge Air (°F) 35
Evaporator (°F) 28
Unit Sizing (°F) 26
Btu/hr/ft
FL5NX-LEP‡‡Parallel Conventional
UNLIT 1350 1410
‡‡ Add 10 Btu/hr/ft per shelf row for LED fixtures.
Add 20 Btu/hr/ft per shelf row for fluorescent lamps.
DEFROST DATA
FL5NX-LEP
Frequency Hrs 8
Defrost Water (lb/ft/day) 7.0
(± 15% based on case configuration and product
loading).
OFFTIME FL5NX-LEP
Defrost 20
ELECTRIC OR GAS Not Recommended
CONVENTIONAL CONTROLS
Low Pressure Backup Control
CI/CO*FL5NX-LEP
21°F / 11°F
Indoor Unit Only, Pressure Defrost
Termination* 48°F
*Use a Temperature Pressure Chart to determine
PSIG conversions.
Estimated Charge (lb)** FL5NX-LEP
4 ft 1.9
6 ft 2.6
8 ft 3.7
10 ft 4.4
12 ft 5.1
**This is an average for all refrigerant types.
Actual refrigerant charge may vary by
approximately half a pound.
3 of 6
P/N 0474829_C HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

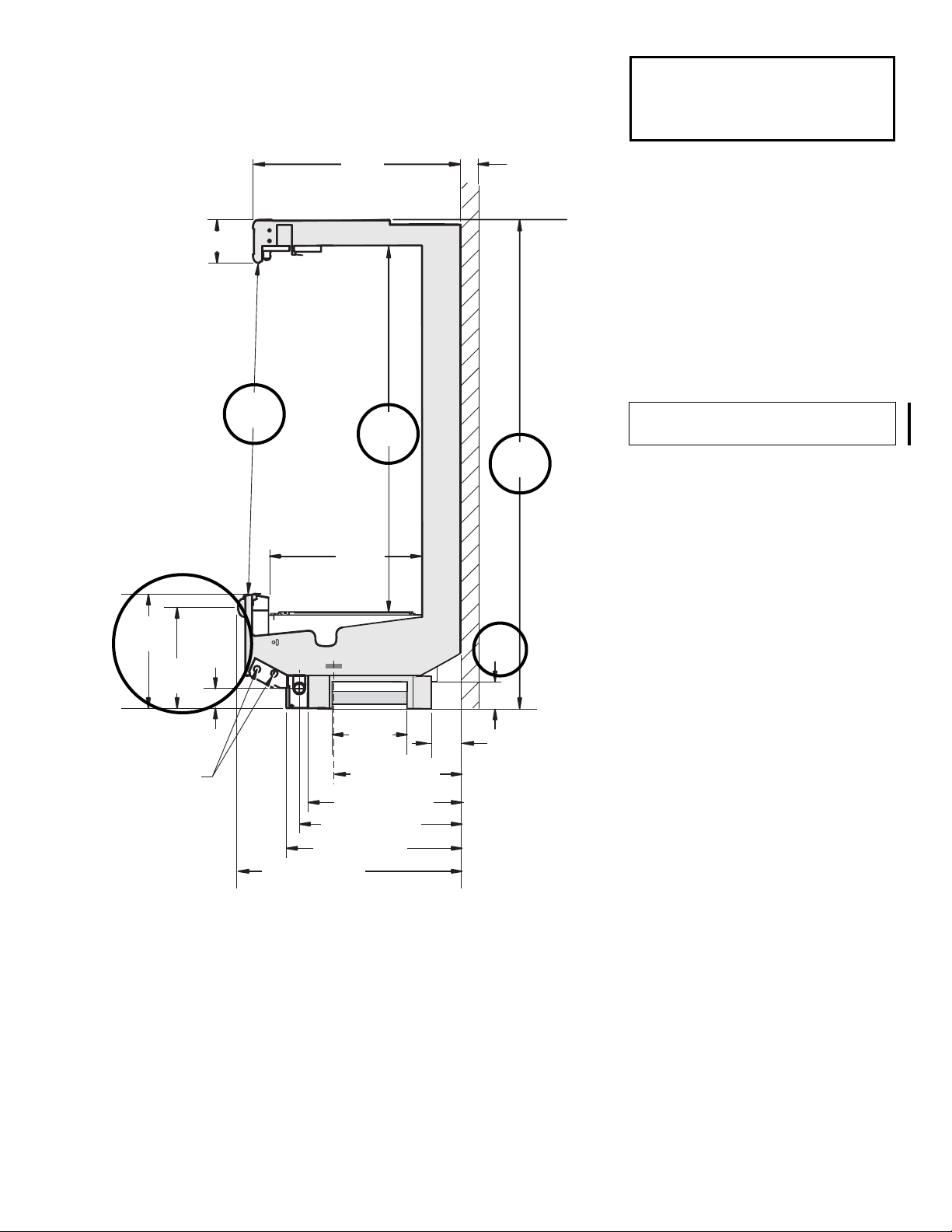

26 3/4 (680)
25 1/4 (641)
37 (940)
28 1/2 (724)
25 3/8
(644)
61
(1549)
34 5/8
(878)
FAN
C
O
I
L
17 1/4
(438)
3 In. (77 mm)
Required
Air Gap
7 1/4 (183)
19 5/8
(499) 3 5/8
(92)
21 1/4 (540)
Refrigeration
Outlet
4 7/8
(123)
54 7/8
(1393)
4 3/4 (120)
Electrical
Case to Case
Connections
12 1/4
(311)
81 3/4
(2077)
Impact
Excel
FL5NX-LEP
Floral
Dimensions shown as in. and (mm).
Multi-deck, 5 Display Levels, Low Front, Narrow Footprint
FL5NX-LEP
4 of 6 FL5NX-LEP Technical Data Sheet
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
Impact
Excel
FL5NX-LEP
Floral
Electrical Data
4 ft 6 ft 8 ft 10 ft 12 ft
Number of Fans – 12W 1 — 2 3 3
Number of Fans – 7W — 2 — — —
Amperes Watts
4 ft 6 ft 8 ft 10 ft 12 ft 4 ft 6 ft 8 ft 10 ft 12 ft
Evaporator Fans
120V 60Hz Standard 0.65 1.00 1.30 1.95 1.95 50 78 100 150 150
120V 50Hz Standard 0.75 1.10 1.50 2.25 2.25 57 84 114 171 171
230V 60Hz Export 0.33 0.50 0.66 0.99 0.99 50 78 100 150 150
230V 50Hz Export 0.38 0.56 0.76 1.14 1.14 57 84 114 171 171
120V 60Hz Energy Efficient 0.30 0.38 0.60 0.90 0.90 18 28 36 54 54
230V 60Hz Energy Efficient 0.15 0.20 0.30 0.45 0.45 18 28 36 54 54
Minimum Circuit Ampacity
120V 60Hz Standard 0.85 1.20 1.50 2.15 2.15
120V 50Hz Standard 0.95 1.30 1.70 2.45 2.45
230V 60Hz Export 0.53 0.70 0.86 1.19 1.19
230V 50Hz Export 0.58 0.76 0.96 1.34 1.34
120V 60Hz Energy Efficient 0.50 0.58 0.80 1.10 1.10
230V 60Hz Energy Efficient 0.35 0.40 0.50 0.65 0.65
Maximum Over Current Protection 120V 20 20 20 20 20
Maximum Over Current Protection 230V 15 15 15 15 15
Standard Lighting (T-8 fluorescent)
1 Row Canopy 0.26 0.51 0.51 0.77 0.77 30 59 59 85 85
Optional Lighting (T-8 fluorescent)
Additional 1 Row Canopy 0.26 0.51 0.51 0.77 0.77 30 59 59 85 85
Additional 2 Row Canopy 0.51 1.02 1.02 1.54 1.54 59 118 118 170 170
Additional 3 Row Canopy 0.77 1.53 1.53 2.31 2.31 89 177 177 255 255
1 Row Rail Light 0.26 0.51 0.51 0.77 0.77 30 59 59 85 85
HUSSMANN RECOMMENDS AGAINST SHELF LIGHTING IN FLORAL APPLICATIONS.
120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting
230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52
ESTIMATED SHIPPING WEIGHT 5
Case Solid End
4 ft 6 ft 8 ft 10 ft 12 ft (each)
lb (kg) 700 (318) 900 (408) 1200 (544) 1400 (635) 1500 (680) 100 (45)
5Actual weights will vary according to optional kits included.
5 of 6P/N 0474829_C HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
Impact
Excel
FL5NX-LEP
Floral
Product Data
ARI Refrigerated Volume 1 (Cu Ft/Ft) 9.13 ft3/ft (0.85 m3/m)
Recommended Usable Cube 2 (Cu Ft/Ft) 9.23 ft3 /ft (0.86 m3 /m)
ARI Total Display Area 3 (Sq Ft/Ft) 4.77 ft2/ft (1.45 m2 /m)
Shelf Area 4(Sq Ft/Ft) 7.64 ft2/ft (2.33 m2 /m)
1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]
2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]
3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]
4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann Product
Reference Guide. The standard shelf complement for this model is (3) rows of 16-inch shelves.eparately from fans.
FL5NX-LEP Technical Data Sheet
HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.
6 of 6
Refrigeration
Thermostat
2
To
Condensing
Unit
}
Light Blue
1, 2 & 3 Fans
120V NEUTRAL
BROWN BAND
120V POWER
Fans 1
BROWN BAND
4 ft
6 ft
8 ft
10 ft
12 ft
12 ft
4
4
3
3
3
4
4
4
4
4
4
Optional
Two Row
Canopy
Optional
Three Row
Canopy
Connector
4
BL
W
BL
W
G
R
BL
W
B
R
RR
BL BL
R
BL
R
RR
BL
BL
R
BL
R
RR
B
B
Orange or Tan Band
Standard Lighting 1 Row Canopy
Optional Lighting 2 Row Canopy
3 Row Canopy
4
344
Connector
W
B
BL
BL
R
BL
R
RR
Optional Lighting 1 Row Rail
B
4 ft 6 ft or 8 ft 10 ft or 12 ft
4 ft 6 ft or 8 ft 10 ft or 12 ft
R = Red Y = Yellow G = Green BL = Blue B = Black W = White
= 120V POWER = 120V NEUTRAL = FIELD GROUND = CASE GROUND
WARNING
All components must have mechanical ground, and the merchandiser must be grounded.
CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS
Fan Wiring
Offtime Defrost
Light Circuits
