Hussmann BEXD Manuel utilisateur

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Merchandisers

Item Part # Description Wiring Item #

FAN ASSEMBLIES AND THERMOSTATS

A. Fan Motor, Evaporator (1)

0392457 Standard

Energy Efficient

0409511 Fan Blade

B. 0261933 Standard Adjustable (2)

Refrigeration Thermostat

Item Part # Description Wiring Item #

HEATERS

C. 0401605 Nosing Anti-sweat Heater, 8 ft (3)

0401606 Nosing Anti-sweat Heater, 12 ft

Note: Changed items have been underlined.

P/N 0459615

BEXD Data Sheet Set

P/N 0459615

NSF®Certified

March 2004

Waste Outlet

Refrigeration

Outlet

Water Seal

Electrical

Access Area (Gray)

Front

Base Rail 31 1/8

(1137) 44 3/4

(1137)

46 1/2

(1181)

38 3/4

(984)

44 3/8

(1127) 53 1/2

(1335)

53 1/2

(1350)

5 1/2

(142)

2 7/8

(98)

BEXD Data Sheet2 of 5 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

Plan Views Dimensions shown as in. and (mm).

BEXD

Medium Temperature

8 ft 12 ft

General

(A) Case Length (without ends or partitions) 96 1/4(2445) 144 1/2(3670)

Maximum O/S dimension back to front (with bumper) 53 1/2(1350) 53 1/2(1350)

Back of case to front of splashguard 45 3/4 (1161) 45 3/4 (1161)

Back of case to O/S edge of front skid rail 38 3/4 (984) 38 3/4 (984)

Width of skid rail 2 1/8 (54) 2 1/8 (54)

RH end of case to outside edge of external support 1 1/4(32) 1 1/4(32)

Distance between edges of external support and center support 44 5/8 (1135) 44 5/8 (1135)

Distance between edges of center supports NA 48 1/8(1222)

Stub-up area between front skid rail and splashguard 7 5/8(193) 7 5/8(193)

Electrical Service (Electrical Field Wiring connection point)

Length of electrical raceway 32 3/4 (831) 32 3/4 (831)

(B) RH End of case to center of farthest knockout 90 1/4 (2292) 140 1/2 (3569)

Back of case to center of knockout 46 1/2 (1181) 46 1/2 (1181)

RH End of case to RH end of raceway 57 1/2 (1460) 107 5/8 (2734)

Waste Outlet

LH End of case to the center of waste outlet 38 (965) 76 1/2 (1943)

Back O/S of case to center of waste outlet 44 3/8 (1127) 44 3/8 (1127)

Water Seal

Edge of water seal to center of waste outlet 4 (102) 4 (102)

Outside diameter of the drip pipe 1 1/2 (38) 1 1/2 (38)

Refrigeration Outlet

Back of case to center of refrigeration outlet 44 3/4 (1136) 44 3/4 (1136)

RH end of case to center of refrigeration outlet 5 1/2 (142) 5 1/2 (142)

3 of 5P/N 0459615 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

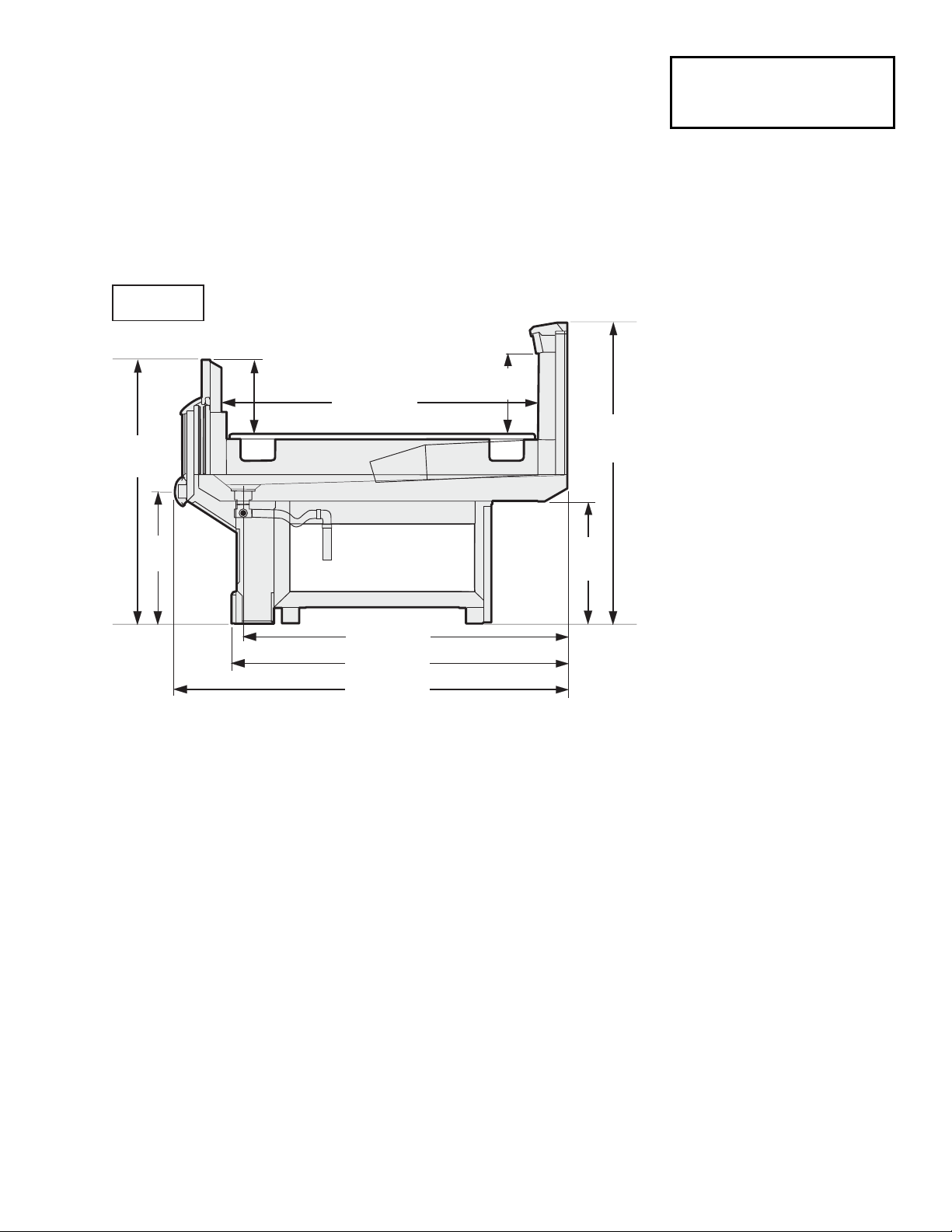

43 3/4 (1114)

9 1/4

(235)

45 3/4 (1161)

44 3/8 (1127)

COIL

FAN

16 3/4

(424)

(456)

10 7/8

(277)

53 1/2 (1350)

(1040)

(890)

BEXD

Impact BEXD

Medium Temperature

Dimensions shown as in. and (mm).

REFRIGERATION DATA

Note: This data is based on store temperature

and humidity that does not exceed 75°F and

55% R.H. Schedule defrost at night while

lights are off.

BEXD

Discharge Air (°F) 31

Evaporator (°F) 21

Unit Sizing (°F) 19

Btu/hr/ft

Parallel 460

Conventional 490

DEFROST DATA

BEXD

Frequency (hr) 12

Defrost Water (lb/ft/day) 2

(± 15% based on case configuration and

product loading).

OFFTIME

Failsafe (minutes) 70

ELECTRIC OR GAS

Not Available

Standard Defrost Thermostat NA

CONVENTIONAL CONTROLS

Low Pressure Backup Control

BEXD

CI/CO (Temp °F)** 30°/20°

Indoor Unit Only, Pressure Defrost

Termination (Temp °F)** 48°

**Use a Temperature Pressure Chart to

determine PSIG conversions.

PHYSICAL DATA

Merchandiser BEXD

Drip Pipe (in.) 5/8

Liquid Line (in.) 3/8

Suction Line (in.) 7/8

Estimated Charge (lb)*** BEXD

8 ft 2.7

12 ft 3.9

***This is an average for all refrigerant types

actual refrigerant charge may vary by approx-

imately half a pound.

Length Added to Lineup by:

Each Plastic End w/ Bumper (in.) 3 1/2

Each End 1 1/2

Wall or Island, 1 Display Level

NSF Certification

These merchandisers are manufactured to meet ANSI /National

Sanitation Foundation (NSF ®) Standard #7 requirements.

BEXD Data Sheet4 of 5 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact BEXD

Medium Temperature

Electrical Data

Number of Fans 8 ft 12 ft

Refrigeration – 4W 2 3

120V/60hz System

Export – 9W 230V 50 hz NA NA

Amperes Watts

Merchandiser 8 ft 12 ft 8ft 12 ft

Fans

Standard 0.58 0.87 48 72

Export: 230V 50 hz NA NA NA NA

Nosing Anti-sweat Heaters (120V) 0.67 1.0 80 120

Minimum Circuit Ampacity

With Standard Fans 0.6 0.9

With Export: 230V 50 hz Fans NA NA

Maximum Over Circuit Protection 120V 20 20

Lighting

Standard

None

Optional

None

5 of 5P/N 0459615 HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Refrigeration

Thermostat

Condensing Unit

}

Light Blue

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

Circled Numbers = Parts List Item Numbers

Grayed components in 12 foot models only.

BROWN BAND

Fans

BROWN BAND

120V POWER

120V NEUTRAL

120V

POWER

Anti-Sweat Heaters, Rear Rail 3

PURPLE BAND PURPLE BAND

120V

NEUTRAL

Fan Wiring

Offtime Defrost

2 & 3 Fans
