Hussmann D5NX-LEP Mode d’emploi

P/N 0480684_G

D5NX-LEP

Technical Data Sheet

P/N 0480684_G

NSF®Certified

March 2008

We reserve the right to change or revise specifications

and product design in connection with any feature of

our products. Such changes do not entitle the buyer to

corresponding changes, improvements, additions or

replacements for equipment previously sold or shipped.

Item Part # Description Wiring Item #

FAN ASSEMBLIES

4 Ft, 8 Ft, 10 Ft & 12 Ft

A. 12W Standard Fan Assembly (1)

0047000 Fan Motor, Evaporator

(MO.4410103)

0461805 Fan Blade (FB.4780446)

12W Energy Efficient Fan Assembly (1)

0477655 Fan Motor, Evaporator

(MO.4410546)

0461805 Fan Blade (FB.4780446)

6 Ft Only

A. 7W Standard Fan Assembly (1)

0058698 Fan Motor, Evaporator

(MO.4410102)

0142780 Fan Blade (FB.0142780)

7W Energy Efficient Fan Assembly (1)

0477654 Fan Motor, Evaporator

(MO.4410545)

0142780 Fan Blade (FB.0142780)

Item Part # Description Wiring Item #

THERMOSTATS

B. Optional Adjustable Refrigeration Thermostat (2)

LAMPS. BALLASTS, LED FIXTURES AND POWER SUPPLY

C. Ballast, Electronic (3)

0480130 2 lamps (BA.4481676)

0480131 3 lamps (BA.4481654)

0480132 4 lamps (BA.4481677)

D. Fluorescent Lamp (4)

Replace with like fixtures

E. 0501213 Power Supply (EP.4481861) (5)

F. LED Fixture (6)

Replace with like fixtures

U.S. & CANADA 1-800-922-1919 • MEXICO 1-800-522-1900 • WWW.HUSSMANN.COM

Note: Revision G changes ballast (Page 1); adds optional LED lighting (Pages 1, 3, 4, 8); adds capacity and weight (Page 5).

2 of 8 D5NX-LEP Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Engineering

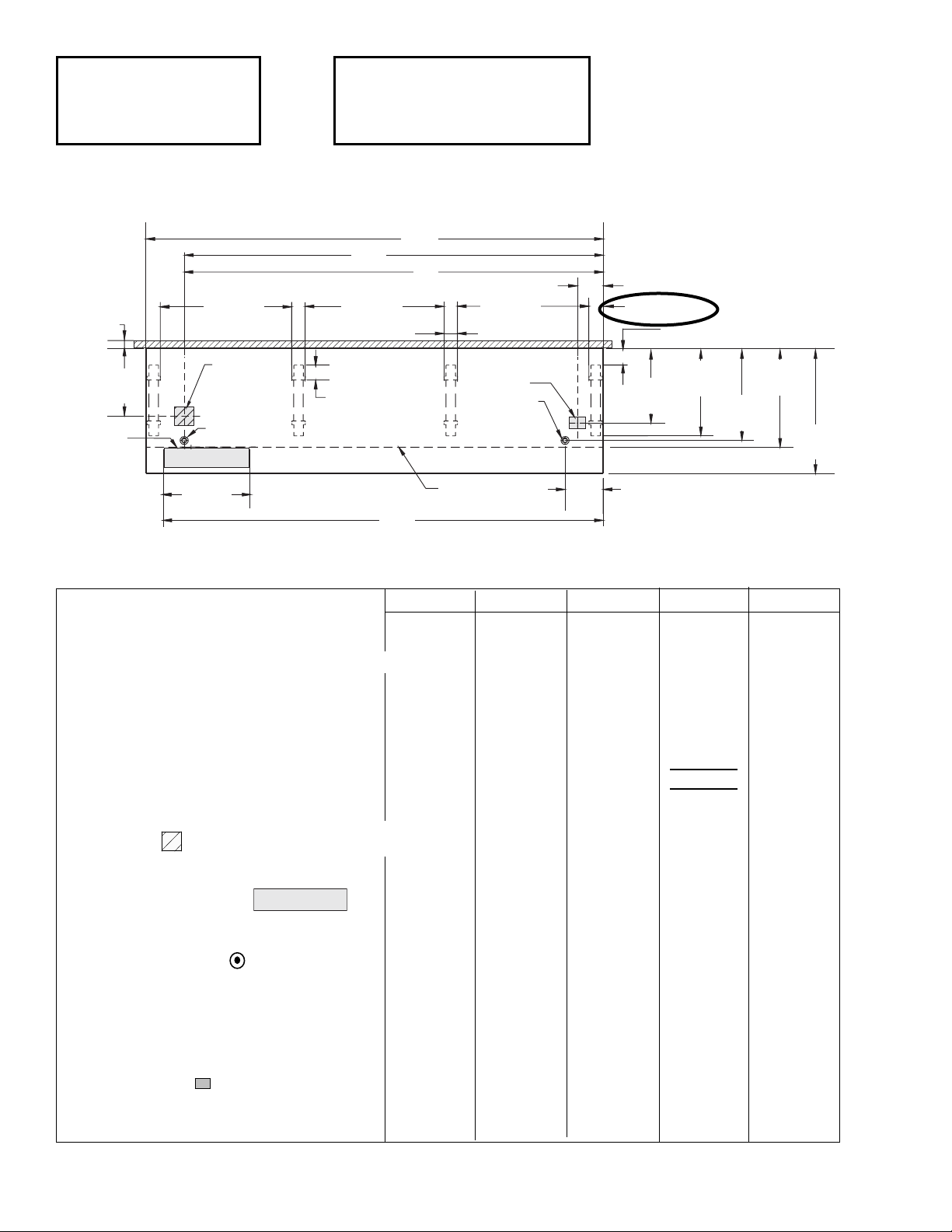

Plan Views

Dimensions shown as in. and (mm).

Narrow Dairy &

Delicatessen

05-2006

Wireway

26 3/4

(680)

25 1/4

(641)

(940)

41 1/2

(1054)

28 1/2

(724)

3 In.

(77 mm)

Required

Air Gap

Refrigeration

Outlet

Waste Outlet

FRONT

4 3/4 (120)

21 1/4

(540)

8(203)

12 1/8 (307)

4 1/4 (108)

41 1/2

(1054)

43 7/8

(1114)

Splashguard

(483)

NOTE: Case-to-Case Electrical Connections

are made IN FRONT OF SPLASHGUARD.

Electrical

Stub Up Area

6 x 6

(152x152)

Electrical

Field

Connection

26 1/2

(673)

4 3/4 (120)

4 1/2 (115)

D5NX

4 ft 6 ft 8 ft 10 ft 12 ft

General

(A) Case Length (without ends or partitions) 48 3/8(1229) 72 3/8(1838) 96 3/8(2448) 120 3/8(3058) 144 1/2(3670)

(Each end and insulated partition adds 1 1/2 in. (38 mm) to case line up.)

Maximum O/S dimension of case back to front

(includes bumper) 37 (940) 37 (940) 37 (940) 37 (940) 37 (940)

Back of case to front of splashguard 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724) 28 1/2 (724)

Back of case to O/S edge of front leg 25 1/4 (641) 25 1/4 (641) 25 1/4 (641) 25 1/4 (641) 25 1/4 (641)

Distance between edges of external legs and center legs NA 29 1/2 (750) 41 1/2 (1054) 29 1/2 (750) 41 1/2 (1054)

Distance between edges of center legs NA NA NA 43 7/8 (1114) 43 7/8 (1114)

Distance between front legs and splashguard 2 3/4(70) 2 3/4(70) 2 3/4(70) 2 3/4(70) 2 3/4(70)

Electrical Service (Electrical Field Wiring connection point)

(B) RH End of case to center of stub up area 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 108 1/4 (2750) 132 3/8 (3363)

Back of case to center of stub up area 19 (483) 19 (483) 19 (483) 19 (483) 19 (483)

Length of electrical wireway 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673) 26 1/2 (673)

Waste Outlets (One each end)

(D) RH End of case to the center of LH waste outlet 36 1/4 (921) 60 1/4 (1530) 84 1/4 (2140) 108 1/4 (2750) 132 3/8 (3363)

RH End of case to the center of RH waste outlet 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307) 12 1/8 (307)

Back O/S of case to center of waste outlets 26 3/4 (680) 26 3/4 (680) 26 3/4 (680) 26 3/4 (680) 26 3/4 (680)

Schedule 40 PVC drip pipe 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32) 1 1/4 (32)

Refrigeration Outlet

Back of case to center of refrigeration outlet 21 1/4 (540) 21 1/4 (540) 21 1/4 (540) 21 1/4 (540) 21 1/4 (540)

RH end of case to center of refrigeration outlet 8 (203) 8 (203) 8 (203) 8 (203) 8 (203)

PHYSICAL DATA

Merchandiser Drip Pipe (in.) 1 1/4

Merchandiser Liquid Line (in.) 3/8

Merchandiser Suction Line (in.) 7/8

Wireway

REFRIGERATION DATA

Note: This data is based on store temperature and

humidity that does not exceed 75°F and 55% R.H.

D5NX-LEP Unlit Lit

Discharge Air (°F) 32 30

Evaporator (°F) 28 26

Unit Sizing (°F) 26 24

Btu/hr/ft — Unlit Shelves

D5NX-LEP‡‡ Parallel Conventional

UNLIT 1390 1470

‡‡ Add 10 Btu/hr/ft per shelf row for LED fixtures.

Add 20 Btu/hr/ft per shelf row for fluorescent lamps.

DEFROST DATA

D5NX-LEP

Frequency Hrs 8

Defrost Water (lb/ft/day) 10.50

(± 15% based on case configuration and product

loading).

OFFTIME D5NX-LEP

Time (Minutes) 30

ELECTRIC OR GAS Not Recommended

CONVENTIONAL CONTROLS

Low Pressure Backup Control

CI/CO*D5NX-LEP

19°F / 9°F

Indoor Unit Only, Pressure Defrost

Termination* 48°F

*Use a Temperature Pressure Chart to determine

PSIG conversions.

Estimated Charge (lb)** D5NX-LEP

4 ft 1.6

6 ft 2.3

8 ft 3.2

10 ft 3.9

12 ft 4.5

**This is an average for all refrigerant types.

Actual refrigerant charge may vary by

approximately half a pound.

3 of 8

P/N 0480684_G HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

26 3/4 (680)

25 1/4 (641)

37 (940)

28 1/2 (724)

25 3/8

(644)

(1549)

34 5/8

(878)

FAN

17 1/4

(438)

3 In. (77 mm)

Required

Air Gap

7 1/4 (183)

19 5/8

(499) 3 5/8

(92)

21 1/4 (540)

Refrigeration

Outlet

4 7/8

(123)

54 7/8

(1393)

4 3/4 (120)

Electrical

Case to Case

Connections

12 1/4

(311)

81 3/4

(2077)

Impact

Excel

D5NX-LEP

Dairy & Delicatessen

Dimensions shown as in. and (mm).

Multi-deck, 5 Display Levels, Low Front, Narrow Footprint

D5NX-LEP

NSF Certification

This merchandiser model is manufactured to meet ANSI/NSF

(National Sanitation Foundation) Standard #7 requirements for

construction, materials & cleanability.

4 of 8 D5NX-LEP Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

Impact

Excel

D5NX-LEP

Dairy & Delicatessen

Electrical Data

4 ft 6 ft 8 ft 10 ft 12 ft

Number of Fans – 12W 1 — 2 3 3

Number of Fans – 7W — 2 — — —

Amperes Watts

4 ft 6 ft 8 ft 10 ft 12 ft 4 ft 6 ft 8 ft 10 ft 12 ft

Evaporator Fans

120V 60Hz Standard 0.65 1.00 1.30 1.95 1.95 50 78 100 150 150

120V 50Hz Standard 0.75 1.10 1.50 2.25 2.25 57 84 114 171 171

230V 60Hz Export 0.33 0.50 0.66 0.99 0.99 50 78 100 150 150

230V 50Hz Export 0.38 0.56 0.76 1.14 1.14 57 84 114 171 171

120V 60Hz Energy Efficient 0.30 0.38 0.60 0.90 0.90 18 28 36 54 54

230V 60Hz Energy Efficient 0.15 0.20 0.30 0.45 0.45 18 28 36 54 54

Minimum Circuit Ampacity

120V 60Hz Standard 0.85 1.20 1.50 2.15 2.15

120V 50Hz Standard 0.95 1.30 1.70 2.45 2.45

230V 60Hz Export 0.53 0.70 0.86 1.19 1.19

230V 50Hz Export 0.58 0.76 0.96 1.34 1.34

120V 60Hz Energy Efficient 0.50 0.58 0.80 1.10 1.10

230V 60Hz Energy Efficient 0.35 0.40 0.50 0.65 0.65

Maximum Over Current Protection 120V 20 20 20 20 20

Maximum Over Current Protection 230V 15 15 15 15 15

Standard Lighting (T-8 fluorescent)

1 Row Canopy 0.26 0.51 0.51 0.77 0.77 30 59 59 85 85

Optional Lighting (T-8 fluorescent)

Additional 1 Row Canopy 0.26 0.51 0.51 0.77 0.77 30 59 59 85 85

Additional 2 Row Canopy 0.51 1.02 1.02 1.54 1.54 59 118 118 170 170

Additional 3 Row Canopy 0.77 1.53 1.53 2.31 2.31 89 177 177 255 255

1 Row Rail Light 0.26 0.51 0.51 0.77 0.77 30 59 59 85 85

Optional Shelf Lighting (T-8 fluorescent)

1 Row of Shelves 0.26 0.51 0.51 0.77 0.77 30 59 59 85 85

4 Rows of Shelves 1.02 2.04 2.04 3.08 3.08 118 236 236 340 340

5 Rows of Shelves 1.28 2.55 2.55 3.85 3.85 148 295 295 425 425

6 Rows of Shelves 1.53 3.06 3.06 4.62 4.62 177 354 354 510 510

Optional Always*Bright LED Lighting

1 Row of Shelves 0.15 0.19 0.26 0.30 0.38 18 23 31 36 45

4 Rows of Shelves 0.47 0.68 0.93 1.15 1.40 56 82 112 138 168

5 Rows of Shelves 0.57 0.83 1.13 1.38 1.69 68 99 136 166 203

6 Rows of Shelves 0.67 0.96 1.33 1.62 2.00 80 115 160 194 240

120V Lighting Circuit Total = Standard Lighting + Total Optional Lighting + Optional Shelf Lighting

230V Lighting Circuit Total = Multiply 120V Lighting Circuit Total by 0.52

5 of 8P/N 0480684_G HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

ESTIMATED SHIPPING WEIGHT 5

Case Solid End

4 ft 6 ft 8 ft 10 ft 12 ft (each)

lb (kg) 800 (363) 1000 (454) 1200 (544) 1300 (590) 1400 (635) 100 (45)

5Actual weights will vary according to optional kits included.

Impact

Excel

D5NX-LEP

Dairy & Delicatessen

Product Data

ARI Refrigerated Volume 1 (Cu Ft/Ft) 9.14 ft3/ft (0.85 m3/m)

Recommended Usable Cube 2 (Cu Ft/Ft) 7.10 ft3 /ft (0.66 m3 /m)

ARI Total Display Area 3 (Sq Ft/Ft) 4.89 ft2/ft (1.49 m2 /m)

Shelf Area 4(Sq Ft/Ft) 7.47 ft2/ft (2.28 m2 /m)

1Computed using ARI 1200 standard methodology: Refrigerated Volume, ft3[m3]/Unit of Length, ft [m]

2ARI Refrigerated Volume less shelving and other unusable space: Refrigerated Volume/Unit of Length, ft3/ft [m3/m]

3Computed using ARI 1200 standard methodology: Total Display Area, ft2[m2]/Unit of Length, ft [m]

4Shelf surface area is composed of bottom deck plus standard shelf complement, as shown in the Hussmann Product

Reference Guide. The standard shelf complement for this model is (4) rows of 16-inch shelves.eparately from fans.

D5NX-LEP Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

6 of 8

Refrigeration

Thermostat

Condensing

Unit

}

Light Blue

1, 2 & 3 Fans

120V NEUTRAL

BROWN BAND

120V POWER

Fans 1

BROWN BAND

4 ft

6 ft

8 ft

10 ft

12 ft

10 ft or 12 ft

Optional

Two Row

Canopy

Optional

Three Row

Canopy

Connector

BL BL

Orange or Tan Band

Standard Lighting 1 Row Canopy

Optional Lighting 2 Row Canopy

3 Row Canopy

344

Connector

Optional Lighting 1 Row Rail

4 ft 6 ft or 8 ft 10 ft or 12 ft

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND = CASE GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

Fan Wiring

Offtime Defrost

Light Circuits

7 of 8P/N 0480684_G HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM

R = Red Y = Yellow G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Optional Shelf Harness and Light Circuits for

Five Rows of Shelves

4 ft case

Connector

6 ft or 8 ft case

10 ft or 12 ft case

Optional Shelf Lighting

Fluorescent Fixtures

D5NX-LEP Technical Data Sheet

HUSSMANN CORPORATION, Bridgeton, MO 63044-2483 U.S.A.

8 of 8

BL 6

RBL

4 ft case

6 ft or 8 ft case

12 ft case

(TYP)

Shelf Light

Plug & Receptacle

Connector

BL 6

RBL

BL 6

RBL

R = Red G = Green BL = Blue B = Black W = White

= 120V POWER = 120V NEUTRAL = FIELD GROUND

WARNING

All components must have mechanical ground, and the merchandiser must be grounded.

CIRCLED NUMBERS = PARTS LIST ITEM NUMBERS

= CASE GROUND

Connector

Optional Shelf Harness and LED Light Circuits for

3, 4, 5, 6 & 7 Rows of Shelves

Optional Shelf Lighting

LED Fixtures

Table des matières

Autres manuels Hussmann marchandiseur

Hussmann

Hussmann IMPACT Excel B4X-E Mode d’emploi

Hussmann

Hussmann PHRO Manuel utilisateur

Hussmann

Hussmann FMA Manuel utilisateur

Hussmann

Hussmann Impact Excel D5X-ULEP Manuel

Hussmann

Hussmann Impact Excel M4X-GEP Mode d’emploi

Hussmann

Hussmann GC Manuel utilisateur

Hussmann

Hussmann M1X-XGEC Mode d’emploi

Hussmann

Hussmann IMPACT Elite E1 Manuel utilisateur

Hussmann

Hussmann HGL-1BS Guide rapide

Hussmann

Hussmann SN-110 Guide de démarrage rapide

Hussmann

Hussmann Scroll Plus Fibertronic 401789 Manuel

Hussmann

Hussmann FW Mode d’emploi

Hussmann

Hussmann Impact PW 12 Manuel utilisateur

Hussmann

Hussmann IMPACT D6L Manuel utilisateur

Hussmann

Hussmann M4G-EP Manuel utilisateur

Hussmann

Hussmann IMPACT IEDG1 Mode d’emploi

Hussmann

Hussmann FIG Mode d’emploi

Hussmann

Hussmann REACH-IN Manuel utilisateur

Hussmann

Hussmann IMPACT D5RRI Mode d’emploi

Hussmann

Hussmann CGDM Manuel utilisateur

Hussmann

Hussmann microSC GSVM A Series Manuel utilisateur

Hussmann

Hussmann micro SC SIM-4AA Manuel utilisateur

Hussmann

Hussmann DSIO3-Y Mode d'emploi

Hussmann

Hussmann ISFGG Guide rapide

Manuels marchandiseur populaires d'autres marques

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuel utilisateur

EPTA

EPTA COSTAN RHINO MULTI Manuel utilisateur

CASCO

CASCO Nano Cube Manuel utilisateur

True

True GDIM-26 Manuel utilisateur

Structural Concepts

Structural Concepts Oasis Mobile Series Instructions d'installation

Haussmann

Haussmann RL Manuel utilisateur

Howard McCray

Howard McCray R-CDS32E-4 Manuel utilisateur

EPTA

EPTA iarp Cool Emotions Delight Lite Manuel utilisateur

VALERA

VALERA BC 85 Manuel utilisateur

HL Display

HL Display 3eBin Manuel utilisateur

Dixie Narco

Dixie Narco DNCB 501E Manuel utilisateur

APW Wyott

APW Wyott Racer DMXD-30H Manuel utilisateur

Hoshizaki

Hoshizaki KD-90C Manuel utilisateur

Summit

Summit SCR1006 Manuel utilisateur

Delfield

Delfield Shelleyspeed SPM-28E Manuel utilisateur

EPTA

EPTA iarp Cool Emotions GLEE 40 Manuel utilisateur

Kysor/Warren

Kysor/Warren GranBering KW Mode d’emploi

Crane

Crane BevMAX Refresh 6 Media Manuel utilisateur
