USE AND CARE GUIDE

61 IN 10 DRAWER TOOL CHEST AND CABINET SET

Questions, problems, missing parts?

Before returning to the store, call

Husky Customer Service

8 a.m – 7 p.m., EST, Monday-Friday

9 a.m – 6 p.m., EST, Saturday

Item #

Model # H61CH4TR6P

THANK YOU

We appreciate the trust and con dence you have placed in Husky through the purchase of this chest/cabinet. We strive to continually

create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Husky!

1-888-HD-HUSKY

HUSKYTOOLS.COM

Table of Contents

Table of Contents..................................................2

Safety Information ...............................................2

Warranty ................................................................4

Specifications ........................................................4

Package Contents..................................................4

Hardware Included........................................................... 4

Assembly ...............................................................6

9............................... ................................ecnanetniaM

8..............................................................

Operation

Safety Information

1. Do not pull this unit, push it when moving.

2. Use the brakes when this product is not being

moved. This prevents the product from rolling.

3. Secure this product properly before moving it with a

forklift.

4. Do not tow the product with power equipment.

5. Do not alter this product in any manner. For

example, do not weld external lock bars or attach

electrical equipment.

Do not attach or mount this

product to a vehicle. This may cause personal

injury or product damage. Mounting this

product to any vehicle in any manner will void

warranty.

Do not stand on this product. You

may fall which may cause personal injury or

Be careful when opening more than

one drawer. The product may become unstable

and tip, which may cause personal injury or

product damage.

CAUTION: Keep the product on level surfaces.

The product may become unstable and tip if

stored or moved on an unlevel surface, which

may cause personal injury or product damage.

CAUTION:

Lock the drawers before moving

this product. The drawers could come open and

make the product unstable and tip, which may

cause personal or product damage.

.............. 4Alternative Tools For Assembly (Not Included)

Replacement Parts ................................................10

product damage.

6. Before locking the chest/cabinet, ensure the drawers are

completely closed in order for the lock bars to work properly.

CAUTION: Two people are needed to safely

move this unit.

CAUTION: Be careful when closing the cover.

Remove hands before the cover closes

completely to prevent personal injury.

CAUTION:

Cordless Power Tool Battery Chargers ...............9

Load unit starting with bottom

drawers. Overloading the top of the unit may

result in the product becoming unstable and

creating a tipping hazard, which may cause

personal injury or product damage.

3 Please contact 1-888-HD-HUSKY

HUSKYTOOLS.COM

for further assistance.

NOTE : This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation. This

equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful

interference to radio communications.However, there

is no guarantee that interference will not occur in

a particular installation.

If this equipment does cause harmful interference to

radio or television reception, which can be determined

by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or

more of the following measures:

□Reorient or relocate the receiving antenna.

□Increase the separation between the equipment and

receiver.

□Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

□Consult the dealer or an experienced radio/TV

technician for help.

NOTE : This device complies with Part 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful

interference, and

(2) this device must accept any interference received,

including interference that may cause undesired

operation.

Follow all Extension cord manufacturer’s Warnings and

Instructions.

□

Do NOT insert extension cord through hole without grommet

in place.

□

Check the insulation and plugs of extension cord before

using. Do NOT use cord if it is worn or damaged.

□

Only use a three-wire extension cord with all three prongs

intact. Never remove the round grounding prong.

□

Extension cord must be connected to a 125 Volt GFCI

protected outlet with proper ground. If GFCI outlet is not

available, use an extension cord with GFCI protection

built in.

□

□Do NOT overload extension cord.

□Remove extension cord from the hole

before moving or transporting storage chest.

□Only use an extension cord that is rated for outdoor use.

□Do NOT connect extension cord to outlet that also sup-

plies critical safety equipment with power.

7. Extension cord

8. Electrical Shock Hazard

□ Do not plug cord into outlet with wet hands.

□ Do not use this tool chest near a bathtub, a shower, or a

swimming pool.

□ Chest/Cabinet plugs must match the outlet.

□ Never modify the plug in any way.

□ Do not use any adapter plugs with earth (grounded) chest

power strips.

□ Unmodiﬁed plugs and matching outlets will reduce the risk

of electric shock.

□ Avoid body contact with earthed or grounded surfaces. There

is an increased risk of electric shock if your body is earthed or

grounded.

CAUTION: RISK OF ELECTRICAL SHOCK: This unit has

two power supply cords. Make sure all cords are

unplugged before any servicing or cleaning.

WARNING: Changes or modiﬁcations to this unit not

expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.

Specifications

Casters support up to 1800 lbs.

130 lbs.

NOTE: Begin product assembly close to t nal

intended location of your cabinet. This product is

heavy and may be di cult to move after assembly.

)rewardtenibac(repthgiewmumixaM 100 lbs.

Package Contents

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

Warranty

The manufacturer warrants the product to be free from defects in materials and workmanship for a period of three (3) years from date of

purchase. This warranty applies only to the original consumer and only to products used in normal use and service. If this product is found to

be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the manufacturer’s

mishandling.

This warranty shall not apply to any product that is found to have been improperly installed, setup, or used in any way not in accordance with

the instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of an accident, misuse, abuse,

negligence, alteration, faulty installation, or any other failure not relating to faulty material or workmanship. This warranty shall not apply to

ar purpose,

consequential

or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.

Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com.

ALTERNATIVE TOOLS FOR ASSEMBLY

(Not Included)

*12 mm wrench or socket

Maximum weight per (chest drawer)

Maximum product weight, including contents

400 lbs.

100 lbs.

shelf)tenibac(repthgiewmumixaM

Part Description

M8 x 25 bolt

M6 x 16 bolt

Hex key 1

Quantity

AA BB CC

Package Contents (continued)

NOTE:

Chest: Keys are attached to gas strut. NOTE:

Cabinet: Keys are inside top drawer.

Part Description Quantity

Cabinet 1

Chest 1

Cabinet handle 1

Swivel caster

Fixed caster

5 HUSKYTOOLS.COM

Please contact 1-888-HD-HUSKY for further assistance.

Assembly

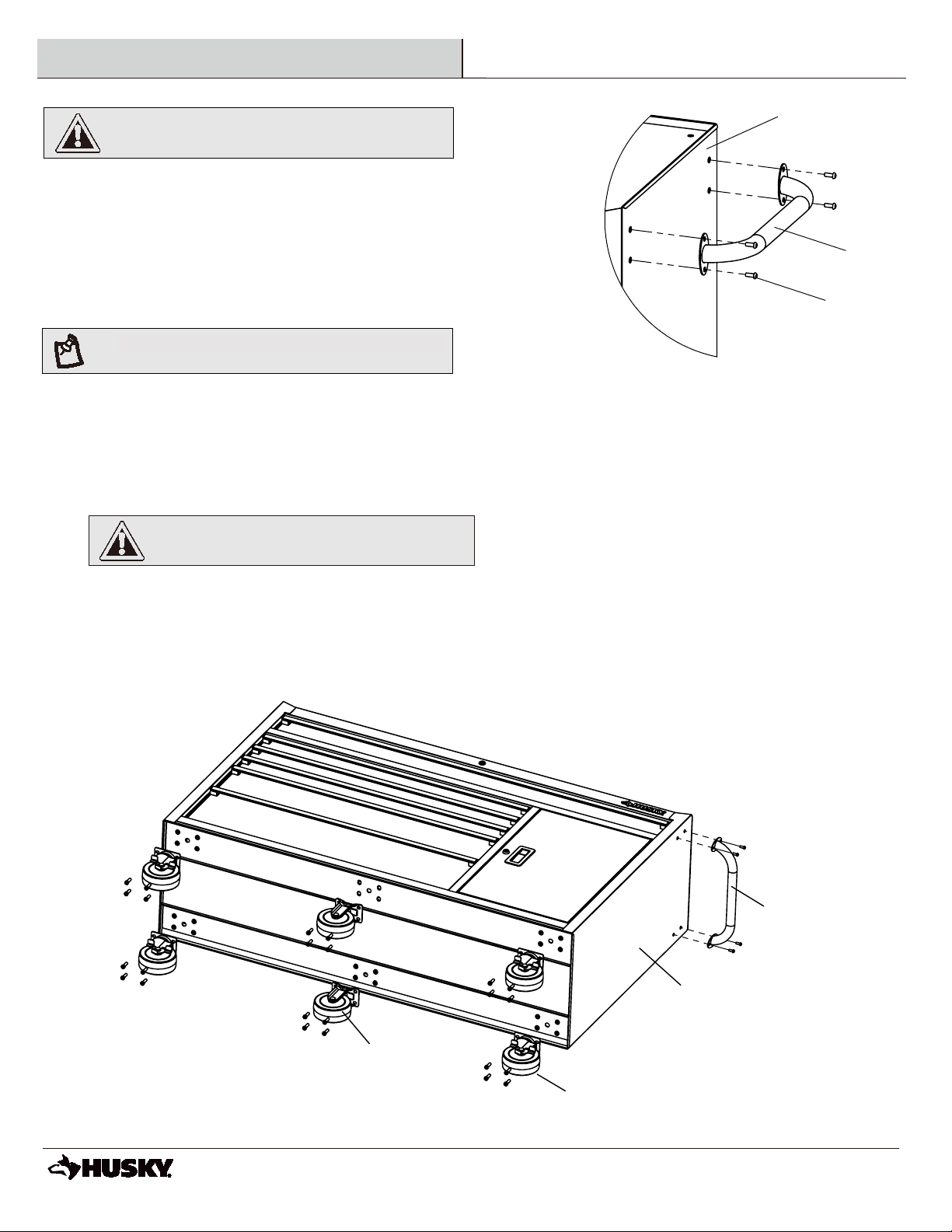

Attaching the cabinet handle

Position the cabinet handle (C) over the holes on the

cabinet (B).

Attach with the bolts (BB) and tighten with supplied

hex key (CC).

NOTE:

The holes in the cabinet are tapped and do not

require nuts.

□

CAUTION:

Two people are recommended for assembly.

□ Be sure the drawers are locked and lay the cabinet (B) on its top. Use packaging material to protect the ﬁnish.

□ CASTER CONFIGURATION #1: UNIT WILL PRIMARILY BE STATIONARY.

•Attach 2 swivel casters (E) to the cabinet (B), on the same side as the handle (C) and attach the other 2 swivel casters (E)

to the opposite side of the cabinet (B). Insert bolts (AA) and swivel caster (E) into the cabinet (B).

•Attach 2 ﬁxed casters (D) to the center of the cabinet (B) by inserting bolts (AA) and the ﬁxed casters (D) into the cabinet (B).

Attaching the casters

CAUTION: Do not over tighten the bolts.

□

3Attaching Plastic Feet (Optional)

Insert plastic foot into hole on bottom of chest.

Repeat for other 3 feet.

NOTE:

4 Plastic Feet are located in bag

found in top till.

Please contact 1-888-HD-HUSKY

HUSKYTOOLS.COM

for further assistance.

□ CASTER CONFIGURATION #2: UNIT WILL BE MOVED FREQUENTLY

•Attach 2 swivel casters (E) to the cabinet (B), on the same side as the handle (C) and attach the other 2 swivel casters (E)

to the center of the cabinet (B). Insert bolts (AA) and swivel caster (E) into the cabinet (B).

•Attach 2 ﬁxed casters (D) to the side opposite of the handle (C) by inserting bolts (AA) and the ﬁxed casters (D)

into the cabinet (B).

□ Tighten all casters with supplied hex key (CC) or 12 mm wrench/socket.

□ Return the cabinet (B) to its upright position.

Operation

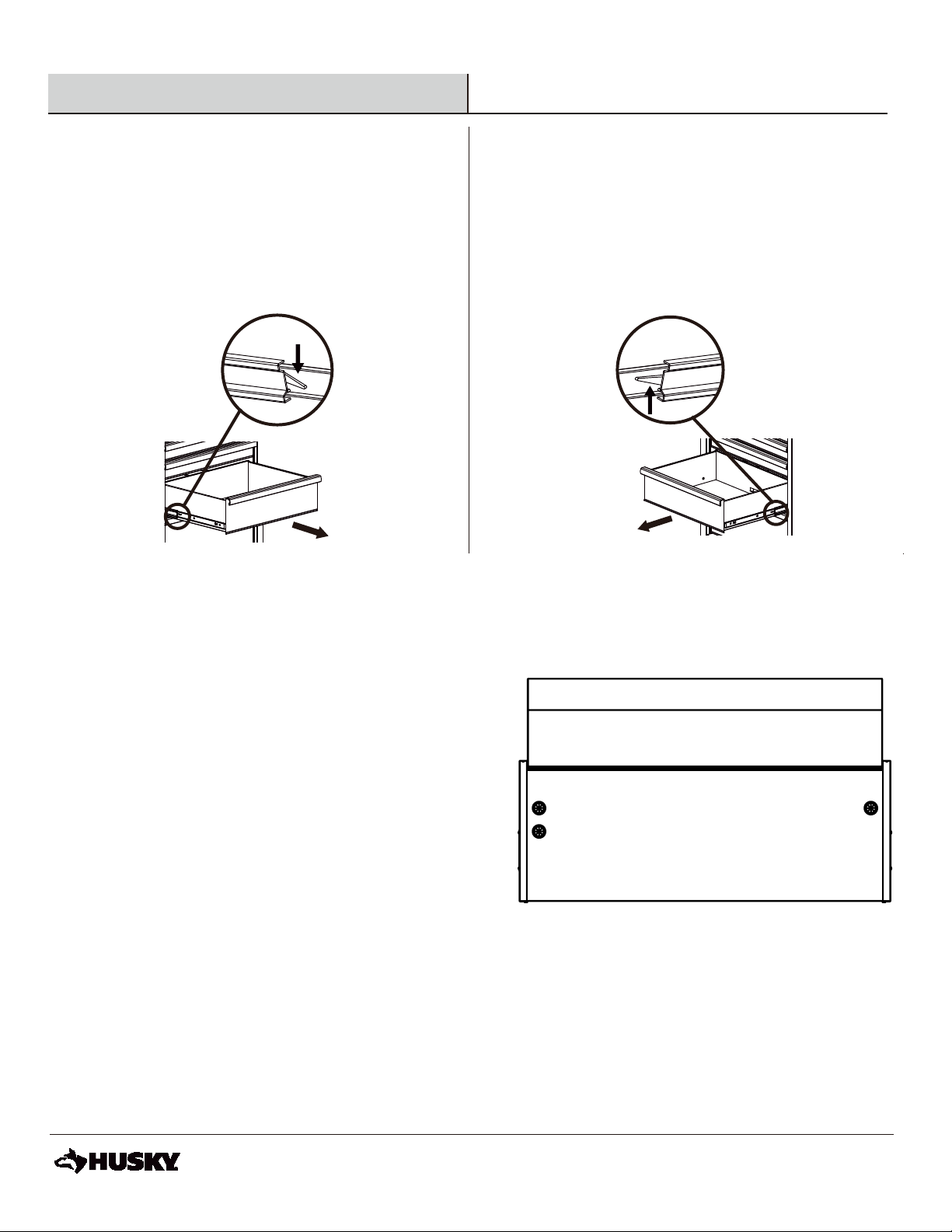

Removing the drawers 2

Re-inserting the drawers

Fully extend the empty drawer.

□

elihwrevelesaelerenoehtpuhsuP pulling

down on the other release lever.

□Pull the drawer outward until it is released from the

drawer slide.

Extend the drawer slides.

□

Insert the brackets on each side of the drawer into

the slots in the slides, being careful that they are

properly positioned.

□Once properly inserted, completely close the drawer

to set the slides in their proper positions.

□

3Usage of top till rubber grommet

When passing cords into the box, be sure to always

enter box from the rear. After head of cord is in place,

slightly pull back 2-3”to ensure weather resistant ”star

bursts”are facing toward the outside of box. Never

push the cord from inside box so that mating plug

points are exposed to the environment.

□BE SURE TO FOLLOW ALL ELECTRICAL SAFETY PRECAUTIONS.

□Periodically clean the drawer fronts, drawer trim, and other surfaces with a mild detergent and water.

□you would on a car.

□

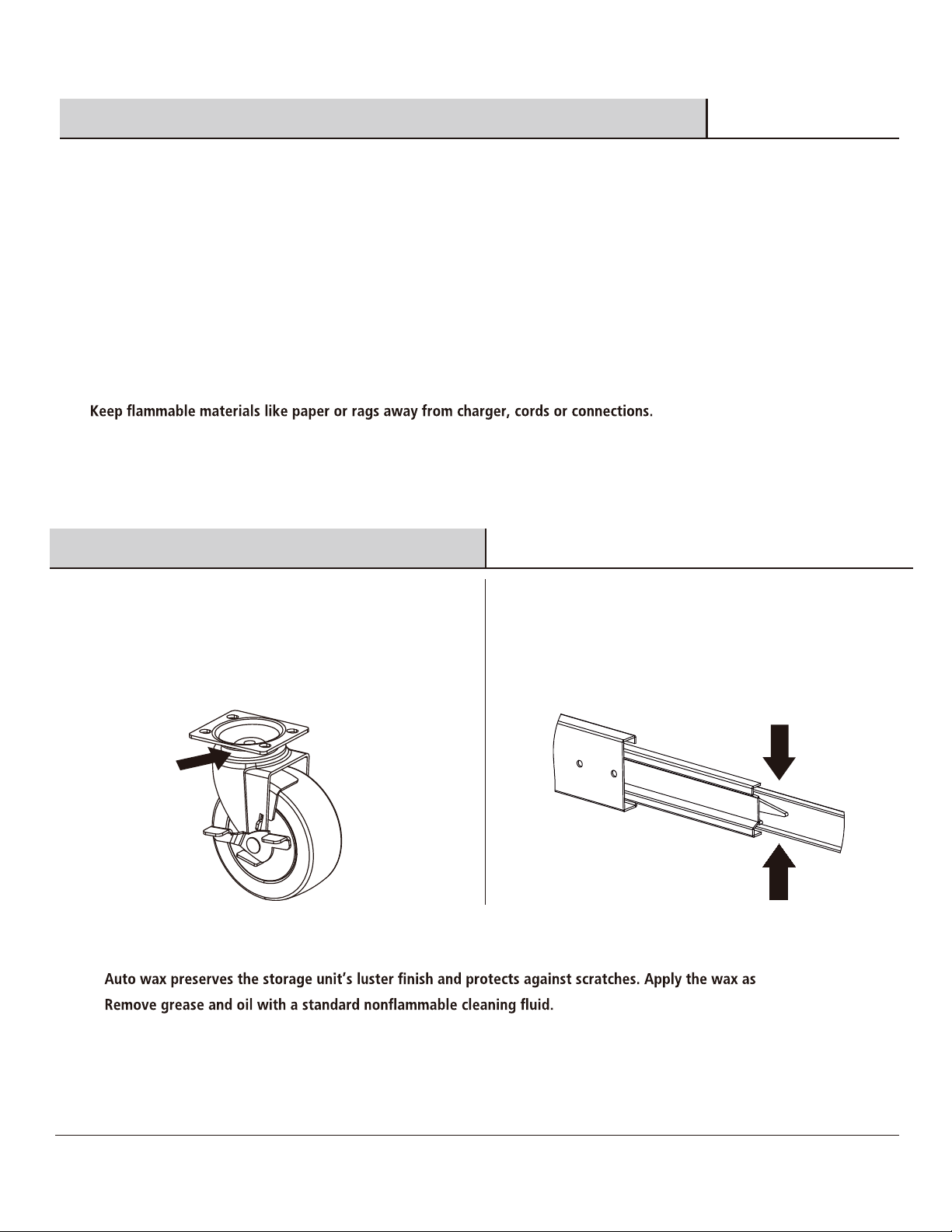

Maintenance

1 Caster maintenance 2 Drawer maintenance

□Grease the casters annually using high-quality

bearing grease.

□Lu

bearing grease.

bricate the slides semi-annually with high-quality

Cordless Power Tool Battery Chargers

See Charger’s Owner’s Manual for proper use and care of charger and batteries.

Follow all Warnings and Instructions provided with your battery charger.

Place chargers and electrical connections in till.

Chargers are for use in dry locations only. Do NOT expose to liquid, vapor, or rain. Should

your charger become wet, Do NOT attempt to use. Unplug extension cord from supply

before handling wet charger or cords.

Only use chargers and batteries that are intact and operating properly.

Do NOT touch metal prongs when plugging charger into extension cord.

Do NOT place or attempt to charge lead acid, car type batteries in storage chest.

□

9 Please contact 1-888-HD-HUSKY

HUSKYTOOLS.COM

for further assistance.

Replacement Parts

For assistance with replacement parts please call 1-888-HD-HUSKY.

Drawer Liner 6

Cabinet Handle 1

Lock 2

Badge

Drawer Slide

Caster Bolt 24

Key 2

Part Description Quantity

Fixed Caster

Swivel Caster

Handle Bolt

Shelf 1

12Drawer Handle Cap

Drawer Slide 8

A Lid Handle 1

Outlet 1

Drawer Liner

HLock

Key 2I

Outlet Panel Cover 1E

Side Handle 2K

Part Description Quantity

Gas Strut

Rubber Grommet

Plastic Foot

Badge

Drawer Handle Cap

Table des matières

Autres manuels Husky Rangement des outils

Husky

Husky H72MWC15 Manuel utilisateur

Husky

Husky 75809AHR Manuel utilisateur

Husky

Husky H36CH6BLU Manuel utilisateur

Husky

Husky H5CH2R Manuel utilisateur

Husky

Husky H61MWC11WBB Manuel utilisateur

Husky

Husky G4801S-US Manuel utilisateur

Husky

Husky H52CH6HDV4 Manuel utilisateur

Husky

Husky H48JSB Manuel utilisateur

Husky

Husky H4TR1R Manuel utilisateur

Husky

Husky H46MWC9GBXD Manuel utilisateur

Husky

Husky H61CH6TR12 Manuel utilisateur

Husky

Husky HPRO72MWC20BLK Manuel utilisateur

Husky

Husky H46X18MWC9BLK Manuel utilisateur

Husky

Husky H52MWC10BLU Manuel utilisateur

Husky

Husky H61MWC15HP Manuel utilisateur

Husky

Husky HPRO72MWC20BRD Manuel utilisateur

Husky

Husky HOUC3603B1QWK Manuel utilisateur

Husky

Husky 72WB01SS-THD Manuel utilisateur

Husky

Husky HOLC7218BB1MYS Manuel utilisateur

Husky

Husky H52MWC10BAW Manuel utilisateur

Husky

Husky HOTC4116B23S Manuel utilisateur

Husky

Husky H63MWC11FT Manuel utilisateur

Husky

Husky H4TR1 Manuel utilisateur

Husky

Husky H30MECH6BLK Manuel utilisateur

Manuels Rangement des outils populaires d'autres marques

Ryobi

Ryobi RWB03 Manuel utilisateur

Scheppach

Scheppach ts 2100 Manuel utilisateur

Cornwell Tools

Cornwell Tools CTB360AKBK Manuel utilisateur

DIVERSIFIED WOODCRAFTS

DIVERSIFIED WOODCRAFTS SHAIN GSB-6024 Manuel utilisateur

Cassese

Cassese CS200 CART Manuel utilisateur

Kendall Howard

Kendall Howard ESDW-9630-1000 Manuel utilisateur

Lista

Lista Align Instructions de montage

Workzone

Workzone 99609 Manuel utilisateur

Stanley

Stanley STST83800-1 Manuel utilisateur

Homak

Homak PROFESSIONAL Series Manuel du système

Perel

Perel ROLLER SHUTTER STORAGE CABINET Manuel utilisateur

BGS technic

BGS technic 4107 Manuel utilisateur

Clarke

Clarke CWB1250 Manuel utilisateur

Ryobi

Ryobi RWB02 Manuel utilisateur

Sealey

Sealey PTB66004 Manuel utilisateur

General International

General International Excalibur 40-100 Manuel de la liste des pièces

Newpo

Newpo Light Duty Workbench Manuel de la liste des pièces

Kobalt

Kobalt 0827415 Manuel utilisateur
