Husky HPRO63TLOCKERBL Manuel utilisateur

USE AND CARE GUIDE

Questions, problems, missing parts?

Before returning to the store, call

Husky Customer Service

8 a.m – 7 p.m., EST, Monday-Friday

9 a.m – 6 p.m., EST, Saturday

THANK YOU

We appreciate the trust and con dence you have placed in Husky through the purchase of this We strive to continually

create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Husky!

1-888-HD-HUSKY

HUSKYTOOLS.COM

Husky Professional Duty 63.5 in. Top Locker

Top locker

Store SKU # 1006636637

Internet SKU # 1006581369

Model # HPRO63TLOCKERBL

Table of Contents

Table of Contents..................................................2

Safety Information ...............................................2

Warranty ................................................................3

Specifications ........................................................3

Package Contents..................................................3

Hardware Included........................................................... 3

Assembly ...............................................................5

7............................... ................................ecnanetniaM

Safety Information

1. To reduce the risk of injury, please read and follow

the safety instructions below before assembling and

using this product.

2. Two or more people are required for the

assembly of this product.

3. Secure this product properly before moving it with a

forklift.

4. Do not tow the product with power equipment.

5. Do not alter this product in any manner. For

example, do not weld external lock bars or attach

electrical equipment.

CAUTION: Keep the product on level surfaces.

The product may become unstable and tip if

stored or moved on an unlevel surface, which

may cause personal injury or product damage.

Replacement Parts ................................................8

6. Before locking the top locker, ensure there are no

obstructions in order for the door to completely close

and lock bars to work properly.

Do not attach or mount this product

to a vehicle or mobile trailers. This may cause

personal injury or product damage. Mounting this

product to any vehicle or mobile trailers in any

warranty.

CAUTION:

manner will void

Do not stand, sit or climb on this

product. You may fall which may cause perso

inju

nal

ry or

CAUTION:

product damage.

CAUTION:

Lock the door before moving

this product. The door could come open and

make the product unstable, which may

cause personal or product damage.

!Save these instructions.

NOTE: Begin product assembly close to t nal

intended location of your cabinet. The product is

heavy and may be di cult to move after assembly.

Package Contents

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

Warranty

BB CC DD

Part Description Quantity

Hexagon head at bolt (M8*60mm)

Washer

Hex socket button cap bolt

Hex key

Specifications

EVA Spacer

Maximum Load Capacity

3 Please contact 1-888-HD-HUSKY

HUSKYTOOLS.COM

for further assistance.

This Husky Professional Grade product includes a Limited Lifetime Warranty, whereas the manufacturer warrants the product to be free from

defects in materials and workmanship for the product’s useful life. If any part of this product is found to be defective, the manufacturer’s only

obligation, and purchaser’s exclusive remedy, is to provide replacement parts at the manufacturer’s discretion, provided that the product has not

been damaged through misuse, abuse, accident, modications, alterations, neglect or mishandling.

This warranty shall not apply to any product that is found to have been improperly installed, setup, or used in any way not in accordance with the

instructions supplied with the product. This warranty shall not apply to normal wear and tear or lack of maintenance, or a failure of the product

as a result of use in a highly corrosive environment, improper storage, misuse, abuse, negligence, alteration, faulty installation, or any other

failure not relating to faulty material or workmanship. This warranty shall not apply to the nish on any portion of the product such as surface

and/or weathering, as this is considered normal wear and tear.

The manufacturer does not warrant and specically disclaims any warranty, whether express or implied, of tness for a particular purpose, other

than the warranty contained herein. The manufacture specically disclaims any liability and shall not be liable for any consequential or incidental

loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.

Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com.

2,000 lbs

Plastic plug (M6)

Plastic plug (ø15mm)

FF GG

Part Description Quantity

A Top Locker 2

Handle 2

Package Contents (continued)

NOTE:

Keys are attached to door.

Magnetic Husky® logo badge 2

5HUSKYTOOLS.COM

Please contact 1-888-HD-HUSKY for further assistance.

CAUTION:

Two people are required for assembly.

Assembly

This Husky 63.5 in. Top Locker is designed as a set and only intended to be used with the Husky Professional Duty system, which

includes the following products:

72 in. 20-Dr. Professional Duty Workbench Model # HPRO72MWC20BLK SKU # 1006636633 / 1006581370

72 in. Professional Duty Hutch Model # HPRO72HUTCHBLK SKU # 1006636635 / 1006581289

27.5 in. Professional Duty Side Locker Model # HPRO27SLOCKERBL SKU # 1006636654 / 1006581373

Setting the Top Locker

□

Peel off the paper back from the 2 EVA Spacers (EE), and afx in the appropriate position toward the rear of

the Top Locker (A).

Attach both side handles using 8 pcs Bolts (CC) and tighten with supplied Hex Key (DD).

□

Gently place the Top Locker to the top left side of the existing Hutch and Side Locker.

NOTE: Husky Professional 27.5 in. Side Lockers are required on both sides of the 72 in.

Workbench and Hutch in order for the 63.5 in Top Locker installation.

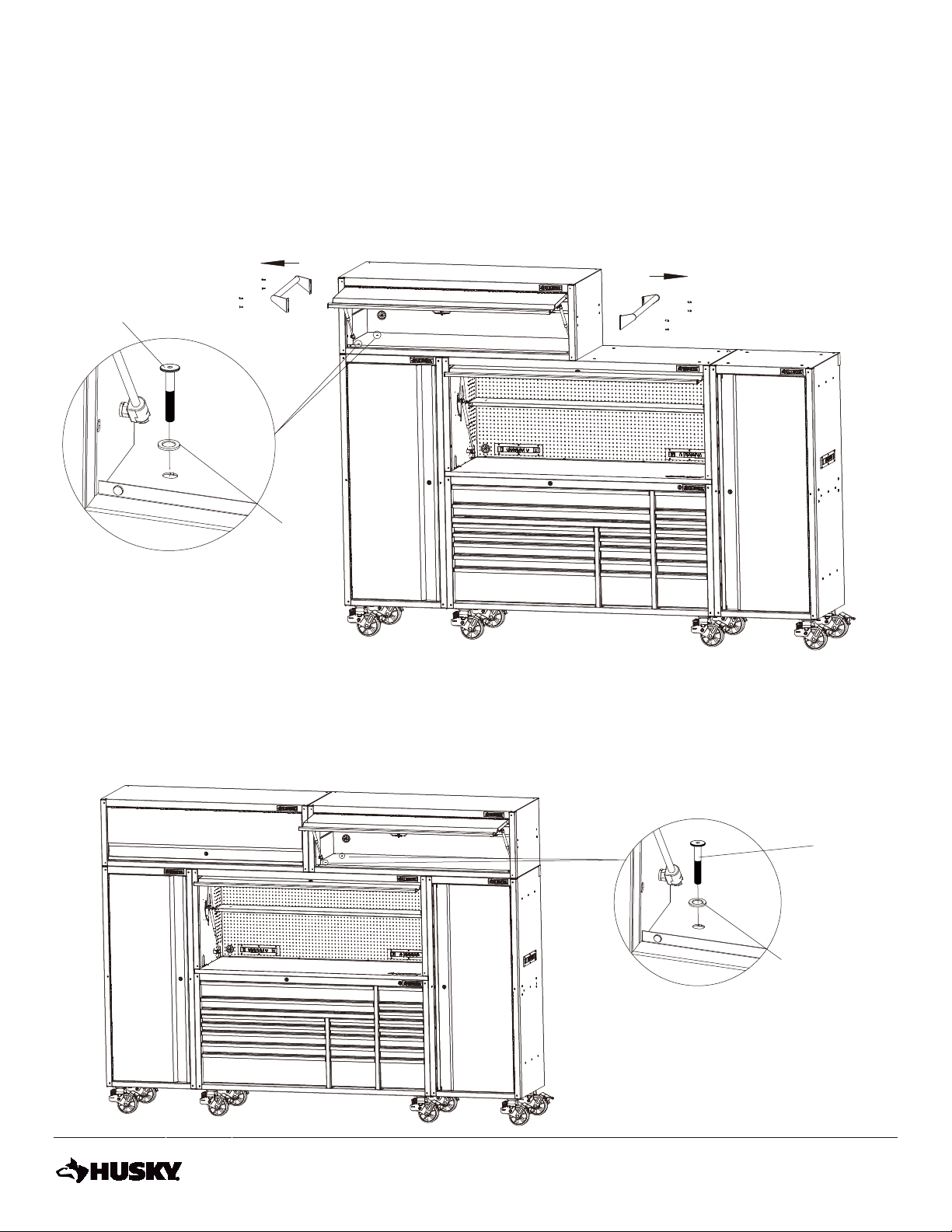

Attach the Top Lockers to the Hutch & Side Locker

□

Open the Top Locker door.

Attach the Top Locker (A) using 4 pcs M8*60 at bolts (AA) and 4 pcs washers (BB) with supplied Hex Key (DD) in

the 4 corners.

Do not tighten bolts until both lockers are attached and ush.

Remove the 2 Side handles (B) from the Top Locker (A) and repeat Step 1 and 2 for the 2nd Top Locker installation.

Once both Top Lockers are attached and the front and top edges are ush with the existing Hutch and Side Lockers,

then tighten all 8 bolts (AA). Be careful not to overtighten.

The Husky® Logo badge (C) is magnetic and can be moved to either side of the Top Locker.

If desired, the 2 Side Handles (B) can be attached to the ends of the Top Lockers, or removed.

□

7Please contact 1-888-HD-HUSKY

HUSKYTOOLS.COM

for further assistance.

Kwikset Smartkey® Lock Operation

Maintenance

□Periodically clean the door fronts, trim, and other surfaces with a mild detergent and water.

□

This product has been coated with an industrial UV-resistant power coating for a durable and long lasting ﬁnish.

To help protect the coating, do not allow harsh chemicals to remain on the surface for extended periods of time.

Plastic Plugs

□

Insert the Plastic Plugs (FF&GG) into the remaining open holes on the side and top walls of the Top Locker (A) per the

diagram below.

□

This product has been equipped with the Kwikset Smartkey® locks which allow you to easily program each lock

cylinder to a speciﬁc key code to match other Kwikset keyed products.

The lock cylinders have been factory keyed to the corresponding alphabetic lettering found on the Kwikset Smartkey®

label located on the back of the key chain, as well as afxed to the product itself.

Please see the Kwikset Smartkey® supplemental instructions for keying and re-keying the locks.

□

Retain This Label

For Key Identification

ONE KEY FOR ALL YOUR LOCKS

Replacement Parts

For assistance with replacement parts please call 1-888-HD-HUSKY.

Kwikset Smartkey® Lock

Magnetic Badge

Key

Part Description Quantity

Rubber Grommet

Side Handle Bolt

EVA Spacer

EGas Strut

FSide Handle (Total)

JWasher

Hexagon head at

bolt (M8*60mm)

AY04016400

PA18022700

MB15003900

Part#

RA99020100

MF05018900

PA06103900

MY11022100

MC08515700

MJ06000100

2KAluminum Edge GuardTAM00F3400

MY05024500

CBA

Per Top Locker Cabinet

8LPlastic Plug (M6)

RA05009200

4MPlastic Plug (ø15mm)

RA05009300

Questions, problems, missing parts? Before returning to the store call

Husky Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday

9 a.m. - 6 p.m., EST, Saturday

1-888-HD-HUSKY

HUSKYTOOLS.COM

Retain this manual for future use.
