OPERATING INSTRUCTION MANUAL
REC-5OM
GEAR-DRIVEN BATTERY- POWERED CUTTING TOOL
2” JAW OPENING
www.huskietools.com
2
@huskietoolsinc
linkedin.com/company/huskie-tools
youtube.com/user/huskietools
facebook.com/huskietools
Connect with us!
www.huskietools.com
3
SPECIFICATIONS
REC-50M
Weight: 6 Ibs. with battery
Size: 14.5” L x 4” H x 2.5”W
Jaw Opening: 2”
CUTTING ESTIMATES
BP-80
1000 MCM Cu 40
1500 MCM Al 50
CONNECTOR RANGE
Aluminum 1500 MCM
Copper 1000 MCM*
FEATURES
• Improved Ergonomic Handle
• One Hand Operation
• Tested up to 75kV
• Ergonomically Balanced
• Weather Resistant Housing
• Overload Circuit Breaker Protection.
• For Copper and Aluminum Only
• 5 Year Warranty on Tool, Battery & Charger
BATTERY CARTRIDGE (BP-80)
Battery Type: Lithium Ion
Voltage: 14.4V DC
Rated Current: 3 Ah
Charge Time: 1 Hour
Dimensions: 3.5”L x 2.7”W x 5.3”H
Weight: 1.25 lbs.
BATTERY CHARGER (CH-90)
Input Voltage: 120V AC
Charging Capacity: 20VA
Dimensions: 4.5”L x 3.5”W x 3”H
Weight: 1.5 lbs.
www.huskietools.com
4
DC CHARGER CORD
CH-DCC
Battery and Charger
• BP-80 Huskie Tools Lithium Ion Battery
• CH-90 Huskie Tools Tri-Chemistry Charger
• This charger can charge the BP-80 and ALL previous
Huskie Tools batteries, including the BP-70, BP-70EI
and the BP-70MH.
• 1 Battery Powered Tool
• 1 Carrying Case
• 1 CH-90 Tri-Chemistry Charger
• 2 BP-80 Lithium Ion Batteries
• 1 Carrying Strap

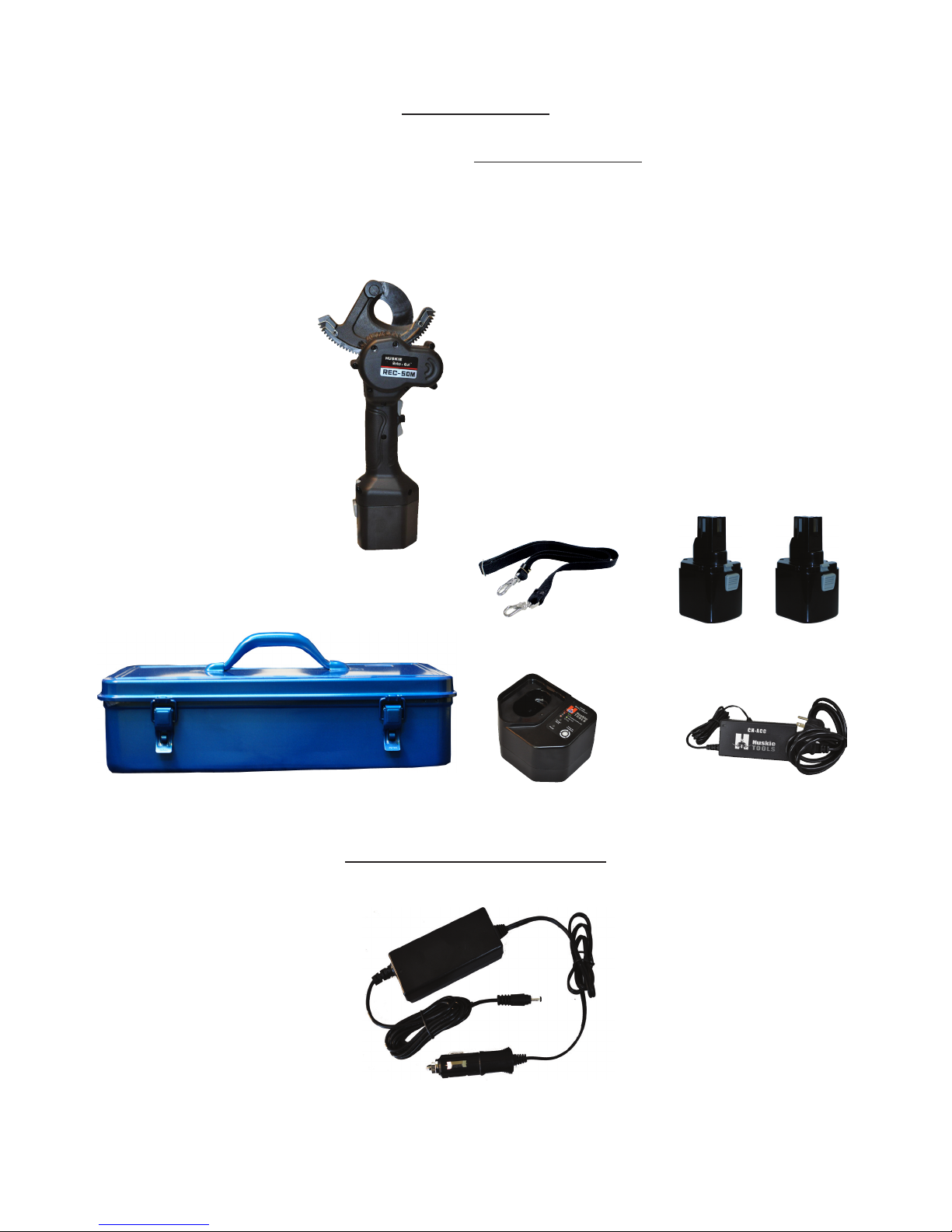

OPTIONAL ACCESSORIES
KIT INCLUDES
www.huskietools.com
5
OPERATING INSTRUCTIONS
CHARGING THE BATTERY

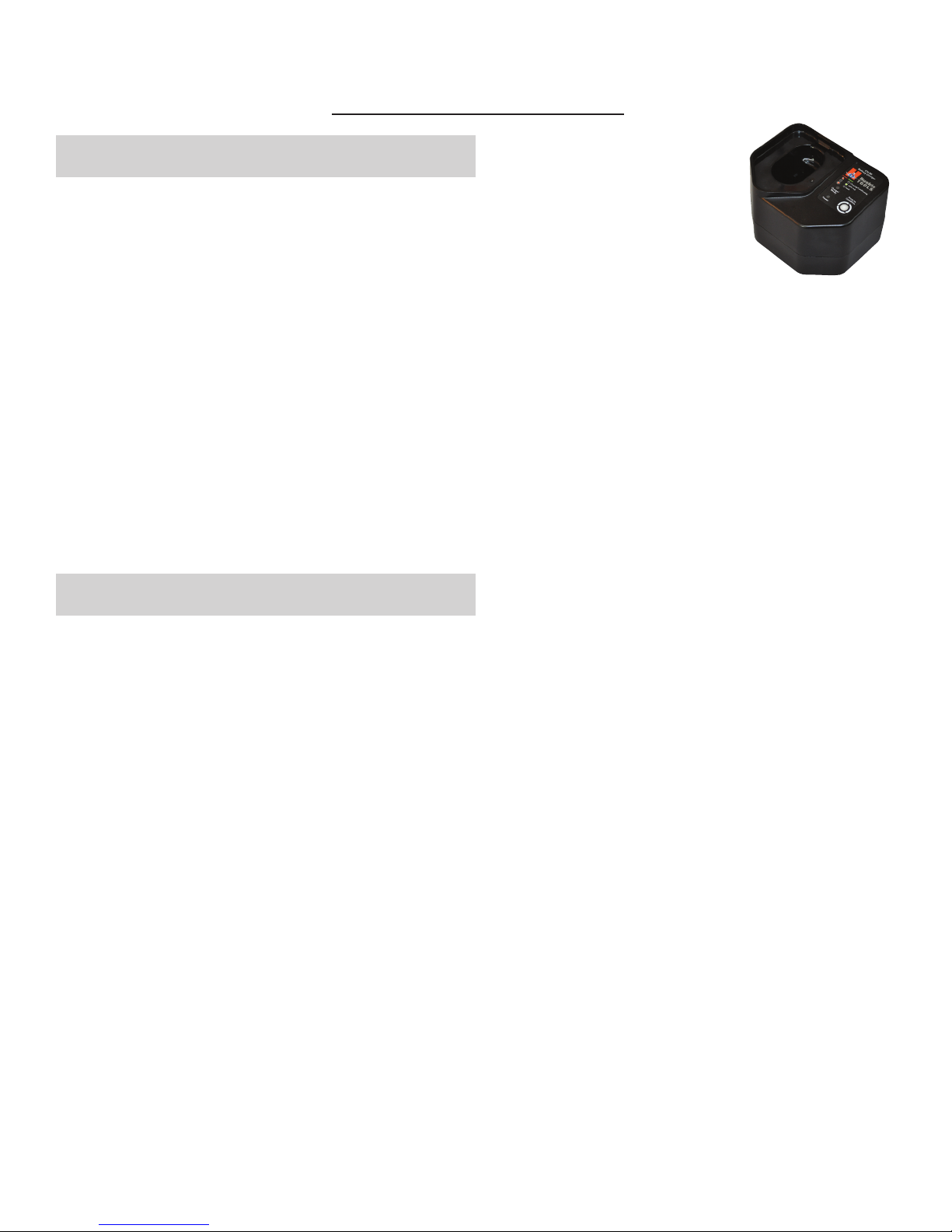

1. Insert the plug end into a 120V power source. The LED indicator will be steady
green indicating the charger is now in “stand-by” mode and ready to charge the
battery. Do not plug the charger into a generator as this will likely cause the fuse
in the charger to short, and will not operate.
2. To charge a drained battery, insert the battery into the charger until the LED
indicator shows a steady amber. This indicates the battery is being charged and
will be completed in approximately 50-70 minutes. The LED indicator will show a
steady green when the battery is fully charged.
3. If the LED indicator goes out or is ashing quick amber, this could be a possible
short in the battery circuit, or a problem with the charger itself. It is best to consult
the factory at 1-800-860-6170 for service if such a condition occurs.
4. For technical questions or difculty in operation, please call our customer service
department at 1-800-860-6170.
ATTACHING THE BATTERY CARTRIDGE
1. While pressing the latch, pull out the battery cartridge. To
replace the battery cartridge, push the new cartridge rmly into
place.
2. After inserting a battery cartridge, check that it is securely in
place by pulling gently. Do not press the latch when pulling the
cartridge.
www.huskietools.com
6
OPERATING INSTRUCTIONS
CUTTING
1. Operate the switch (forward or reverse) by depressing the
center lock-out button and toggle the switch up or down to
release the movable blade.
2. Place the cable to be cut onto the stationary blade and rotate
the moveable blade around the cable by hand and engage into
the drive gear.
3. While holding the center lock-out button, depress the forward
toggle switch to drive the blade through the cable to be cut.
Hold switch until cable is completely cut.
4. To cut continuous on smaller diameter cable, rotate the toggle
switch forward and reverse with the blade engaged in the drive
gear.
5. When completed, remove any chips that may have become
attached to the brush during use. This will help avoid damage to
the drive gear.
www.huskietools.com
7
IMPORTANT OPERATING PRECAUTIONS
PRECAUTION FOR THE TOOL
1. Always point the tool AWAY from other people.
2. If the tool is stored for an extended period at a temperature of less than 25º F (-5ºC), the tool
should be allowed to return to room temperature to ensure smooth operation Use the tool only
after it has been at room temperature for 1 hour.
3. Do not drop the tool.
4. Solvents can be used to clean the head, but should not be used on the plastic body. Use soap and
water to clean the body.
1. Do not short circuit the contacts or expose the cartridge to water, oil or solvents.
2. Do not disassemble or attempt to repair the battery cartridge or dispose of in a re.
3. Do not drop or otherwise abuse the battery cartridge.
4. Do not leave the cartridge in locations where it will be exposed to a temperature greater than 140ºF
(60ºC) for an extended period.
5. The battery has a limited life. When the crimping capacity becomes about 1/2 that of the original
capacity, the battery should be replaced.
6. If the battery cartridge is stored without being charged, natural drainage will cause the power to be
reduced. The battery should be charged every 3 months if not in use.
PRECAUTION FOR THE BATTERY CARTRIDGE
PRECAUTION FOR THE CHARGER
1. The LED indicator lights up amber and remains lit when the unit starts charging a battery cartridge.
The indicator turns green when charging is completed.
2. This unit is for charging battery cartridges BP-80, BP-70E, BP-70EI and BP-70MH only. Do not use
the charger for any other devices.
3. Allow battery cartridges to cool before charging. Allow at least 15 minutes between charges when
charging several cartridges in succession.
4. Charge batteries at an ambient temperature of 50º-95ºF (10º-35º C). Charging time is
approximately 50-70 minutes for the BP-80, 50 minutes for the BP-70E and BP-70EI, and 70
minutes for the BP-70MH.
5. Never short circuit the output terminals.
6. Do not expose the charger to water, oil or solvents.
7. Do not disassemble, attempt to modify, drop or otherwise abuse charger.
www.huskietools.com
8
REC-50M BREAKDOWN
www.huskietools.com
9
REC-5OM PARTS LIST
NO. DESCRIPTION CODE QTY
11 M3 X 3 Screw RC50-03 2
12 Gear Guide (B) RC50-04 1
13 Moving Blade RC50-16 1
14 Shoulder Screw RC50-05 1
15 Gear Guide (A) RC50-15 1
16 Stationary Blade RC50-18 1
17 M6 Lock Washer (Ni) RC50-06 1
18 M6 Lock Nut RC50-07 1
19 M3 X 8 Screw RC50-08 5
20 Bearing Case RC50-10 1
21 Cutter Plate RC50-11 1
22 M5 X 14 Screw RC50-09 11
23 Bearing 6001 RC50-12 1
24 Pinion Gear RC50-13 1
25 Bearing 6002 RC50-14 1
26 Needle Pin 3 X 11.8 RC50-17 2
27 Gear Case Ass'y RC50-19 1
28 M4 X 8 Screw RC50-20 2
29 Gear RC50-21 1
30 Gear Plate RC50-22 2
31 Gear Cover RC50-23 1
32 Housing (L) RC50M-01 1
33 Hanging Strap 558-0７A 1
34 M3 X 14 Screw (T.P.) RC50-01 2
35 M4 X 20 Screw 558-01 9
36 Housing (Ｒ)RC50M-02 1
37 Brush RC50-32 1
38 Motor R150-12MG 1
39 Switch Unit Ass'y RC50M-03 1
40 Switch Knob RC50-29 1
41 Spring (524) RC50-30 1
42 Switch Lock RC50-31 1
43 Ferrite Core RC50-39 1
44 Capacitor RC50-40 2
www.huskietools.com
10
