B683 Quick Start
Note:
Figures in this guide are only for your reference. For details about the
particular model you have chosen, contact your service provider.
Check the information about the product and its accessories when you
purchase it. Some accessories are not provided in the product package. If
necessary, contact your local dealer to purchase them.
This guide briefly describes the device functions. For details about how to
set the management parameters, see the help information on the web
management page.
Getting to Know Your Device
Application Scenarios
Scenario 1:
You can connect your computer to the device to access the Internet. The
specific connection steps depend on your computer's operating system.
Follow the displayed instructions to connect the device to your computer.
2
(Optional) Scenario 2:
You can connect a telephone to the device's telephone port to make voice
calls.

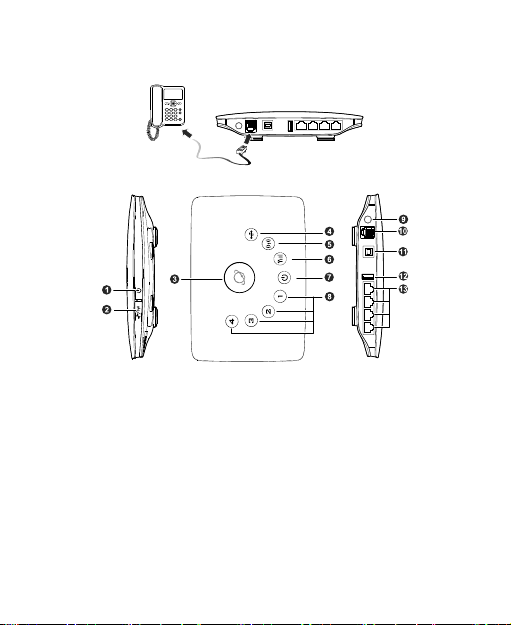

Appearance
1. Power button
2. Wi-Fi/WPS button
3. Dial-up button
4. USB indicator
5. Wi-Fi/WPS indicator
6. Network status indicator
7. Power indicator
8. LAN indicators
9. External antenna port
10. Telephone port
11. Power port
12. USB port
13. LAN ports
Note:
LAN: local area network
USB: universal serial bus
Wi-Fi: Wireless Fidelity
WPS: Wi-Fi Protected Setup
3
Indicators
Indicator Status
USB indicator
Steady on: USB storage device
connected.
Off: USB storage device not connected.
Wi-Fi/WPS indicator
Steady on: Wi-Fi turned on or data
transfer in progress.
Blinking: WPS connection being set up.
Off: Wi-Fi turned off.
Network status indicator
Blinking red fast: Subscriber Identity
Module (SIM) card unavailable (SIM card
not installed or malfunctioning, or PIN
code not verified).
Steady yellow: device registered with the
network.
Steady green: device connected to the
Internet.
Off: no signal received.
Power indicator
Steady on: device powered on.
Off: device powered off.
/ / /
LAN indicators
Steady on: network cable connected.
Blinking: data transfer in progress.
Off: network cable not connected.
4
Computer Hardware and Software
Requirements
The recommended computer specification is as follows:
Central processing unit (CPU): Pentium 500 MHz or faster
Random access memory (RAM): ≥128 MB
Hard drive: 50 MB disk space available
Operating system: Windows 2000, Windows XP, Windows Vista, or
Windows 7
Liquid crystal display (LCD) resolution: At least 800 x 600 pixels (1024 x
768 pixels is recommended.)
Installing the SIM Card
1. Slide the card cover off.
2. Insert the SIM card into the card slot. Ensure that the gold contact area
faces down and that the beveled edge of the SIM card aligns with that of
the card slot.
3. Slide the card cover back onto the device.
Attention: Before removing the SIM card, ensure that the device is powered
off and disconnected from the power outlet.
5
(Optional) Using the Table Stand
You can place the device on a flat surface such as a table or a desk, or hang
it on a wall. You can also use the table stand on the device to place it upright.
To use the table stand, insert its latches into the device's table stand slots, as
shown in the following figure.
Note:
To ensure good signal reception, place the device in a high place or near a
window.
To prevent interference caused by radio signals, place the device at least 1
meter (3.28 feet) away from other electrical devices.
6
(Optional) Installing an External Antenna
In areas with poor network coverage, connect an external antenna to the
device's external antenna port. Screw the external antenna in fully, as shown
in the following figure.
Note:
Skip this section if you do not need to connect an external antenna to the
device.
Before using an external antenna, log in to the web management page
(http://192.168.1.1) and set antenna mode to external. For details, see the
help information on the web management page.
Only use the external antenna indoors.
You cannot switch between the internal antenna and the external
antenna while using a voice or data service.
7
(Optional) Connecting to a Telephone
If you want to use the device to make voice calls, connect the device to a
telephone, as shown in the following figure.
Note:
Skip this section if you do not plan to use the device's voice services.
Radio signals can interfere with telephone call connection and quality. To
eliminate the risk of possible interference, place the telephone at least 1
meter (3.28 feet) away from the device.
Connecting to a Computer
Use an Ethernet cable to connect a computer to one of the device's LAN
ports, as shown in the following figure.
When the connection between the device and the computer is set up, the
device's corresponding LAN indicator turns on.
Ensure that the Ethernet cable is not longer than 100 meters (328 feet).
8
Connecting to a USB Flash Drive,
Portable Hard Disk Drive, or USB Printer
Connect a USB flash drive, portable hard disk drive, or USB printer to the
device's USB port, as shown in the following figure. For details, see the help
information on the web management page.
Note:
Do not connect a computer to the device's USB port.
The device's USB port can supply a maximum current of 500 mA to power
connected USB devices. If the current required by a portable hard disk
drive (or other peripherals) connected to the device is higher than 500 mA,
the device may fail to recognize the hard disk drive. In this case, use an
auxiliary power supply for the hard disk drive. For more information,
contact your service provider.
9
Connecting to a Power Outlet
Connect a compatible power adapter to the device's power port, and then
plug the power adapter into a power outlet.
Note: Using an incompatible power adapter may damage the device.
Powering the Device On or Off
After connecting to a power outlet, the device will power on
automatically.
To manually power the device on, press and hold until all indicators
turn on.
To power the device off, press and hold until all indicators turn off.
Setting Up a Wireless Connection
Turning the Device's Wi-Fi On
By default, the device's Wi-Fi automatically turns on when the device is
powered on.
To manually turn Wi-Fi on, press and hold until turns steady
on.
Note: To turn Wi-Fi off, press and hold for 2 seconds, and then
release your finger. The indicator turns off.
10
Setting Up a Wi-Fi Connection
Note: Before setting up a Wi-Fi connection, ensure that a wireless network
adapter has been installed on your computer. If the wireless network adapter
is functioning correctly, you will be able to find a wireless network
connection in your computer's connection manager application.
Method 1: Set up a Wi-Fi connection.
1. Ensure that is steady on.
2. Scan for available wireless network connections using your computer's
connection manager application.
3. Connect to the wireless network that has the same service set
identification (SSID) as the device.
Note:
If a security mechanism has been enabled for the wireless network
connection, enter the correct network key.
The SSID and the network key are printed on the device label.
Method 2: (Optional) Set up a WPS connection.
If the client to which your device connects supports WPS, a network key is
generated automatically.
To set up a WPS connection:
1. Ensure that is steady on.
2. Press and hold until blinks to activate the WPS
connection on your device.
3. Activate the WPS connection on the client.
Note: For details about the client's operations, see its user guide.
