eAN3810A

Hardware Installation Guide

1 eAN3810A Hardware Installation Guide

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

1 eAN3810A Hardware Installation Guide

About This Chapter

Overview

This document describes the process of installing eAN3810A.

Product Version

Unless otherwise stated, "eNodeB", "Pico", "eAN", and "AirNode" in this document refer to the 3810

series AirNode.

The 3810 seriesAirNode is a base station that provides communications services in Huawei

OneAir solution. The following table lists the product name and product version related to the

3810 seriesAirNode.

Product Name

Product Version

eAN3810A

V100R001C00

Intended Audience

This document is intended for installation engineers.

Organization

1.1 Installation Preparations

Before starting the installation, you must obtain the required reference documents, tools, and

instruments, and familiarize yourself with the skills required.

1.2 Information About the Installation

This section describes the information that you must be familiar with before installing a

eAN3810A, including the eAN3810A hardward infomation, installation scenarios, installation

space and environment requirements.

1.3 Unpacking the Equipment

eAN3810A

Hardware Installation Guide

1 eAN3810A Hardware Installation Guide

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

This section describes how to unpack and check the delivered equipment to ensure that all the

materials are included and intact.

1.4 Installation Process

This section describes the eAN3810A installation process.

1.5 Obtaining the ESN

Before installing the eAN3810A, record its electronic serial number (ESN) for future use

during commissioning.

1.6 (Optional) Installing a Micro SD Card

This section describes how to install a micro SD card in the eAN3810A.

1.7 Installing the eAN3810A

This section describes the eAN3810A installation process.

1.8 Installing the Auxiliary Devices

This section describes the procedure and precautions for installing the auxiliary devices.

1.9 Installing Cables

This section describes the procedures for installing eAN3810A cables and auxiliary devices

cables.

1.10 Checking Hardware Installation

eAN3810Ahardware installation checking includes hardware and cable installation checking.

1.11 Power-On Check on the eAN3810A

This section describes the procedure for performing a power-on check on the eAN3810A.

1.12 Appendix

This section describes reference information during installation.

1.1 Installation Preparations

Before starting the installation, you must obtain the required reference documents, tools, and

instruments, and familiarize yourself with the skills required.

1.1.1 Reference Documents

Before the installation, you must be familiar with reference documents.

The following reference documents are required during eAN3810A installation:

Health and Safety

Equipment Safety

eAN3810A Hardware Description

1.1.2 Tools and Instruments

You must prepare the following tools and instruments before the installation.

eAN3810A

Hardware Installation Guide

1 eAN3810A Hardware Installation Guide

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

Hammer drill (a φ12 bit)

ESD gloves

Vacuum cleaner

Heat gun

Phillips screwdriver (M3

to M6)

Flat-head screwdriver

(M3 to M6)

Rubber mallet

COAX crimping tool

Wire stripper

Power cable crimping tool

RJ45 crimping tool

Diagonal plier

Utility knife

Level

Network cable tester

Adjustable wrench (size ≥ 32 mm

[1.26 in.])

Torque wrench

Size: 16 mm (0.63 in.) and 22 mm

(0.87 in.)

Combination wrench

Size: 16 mm (0.63 in.) and 22 mm

(0.87 in.)

Torque screwdriver

3mm or 5mm

(M3 to M6)

Marker (diameter ≤ 10

mm [0.39 in.])

Torque socket (M6 or M10)

Multimeter

Measuring tape

eAN3810A

Hardware Installation Guide

1 eAN3810A Hardware Installation Guide

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

Fixed pulley(weight-bearing

capacity > 500 kg or 1102.5 lb)

Lifting sling

Ladder

1.1.3 Requirements for Installation Personnel

This section describes requirements for installation engineers. They must be qualified and

trained, and familiar with correct operation methods and safety precautions before performing

any operations.

Before the installation, pay attention to the following items:

Technical engineers must take Huawei training and be familiar with proper installation

and operation methods.

The number of installation personnel depends on the engineering schedule and

installation environment. Generally, two to three persons are required. Generally, only

three to five onsite personnel are necessary.

1.2 Information About the Installation

This section describes the information that you must be familiar with before installing a

eAN3810A, including the eAN3810A hardward infomation, installation scenarios, installation

space and environment requirements.

1.2.1 Hardware Device Information

This section describes the hardware information you should know before installing the

eAN3810A.

eAN3810Ahardware includes eAN3810A main equipment, auxiliary devices, mounting kits,

and cables. For details, see sections in eAN3810A Hardware Description, which are listed in

Table 1-1.

Table 1-1 Hardware information

Category

Sections in eAN3810A Hardware

Description

eAN3810A Indicators

Auxiliary device

PSE

Dock

Mounting kits

eAN3810A Mounting Kits

Dock Mounting Kits

Cables

Cable List

1.2.2 Installation Options and Restrictions

The eAN3810Acan be installed on a wall or pole. Installation scenarios must meet

heat-dissipation and waterproofing requirements of the eAN3810A.

Installation on a Pole

Figure 1-1 shows the diameter of a pole for installing an eAN3810A.

Figure 1-1 Diameter of a pole for installing a eAN3810A

The diameter of a pole for installing a eAN3810A ranges from 48 mm (1.89 in.) to 114

mm (4.49 in.). The recommended diameter is 60 mm (2.36 in.).

The recommended thickness of the pole wall is 3.5 mm (0.14 in.) or above.

Figure 1-2 shows the eAN3810Ainstalled on a pole.

eAN3810A

Hardware Installation Guide

1 eAN3810A Hardware Installation Guide

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

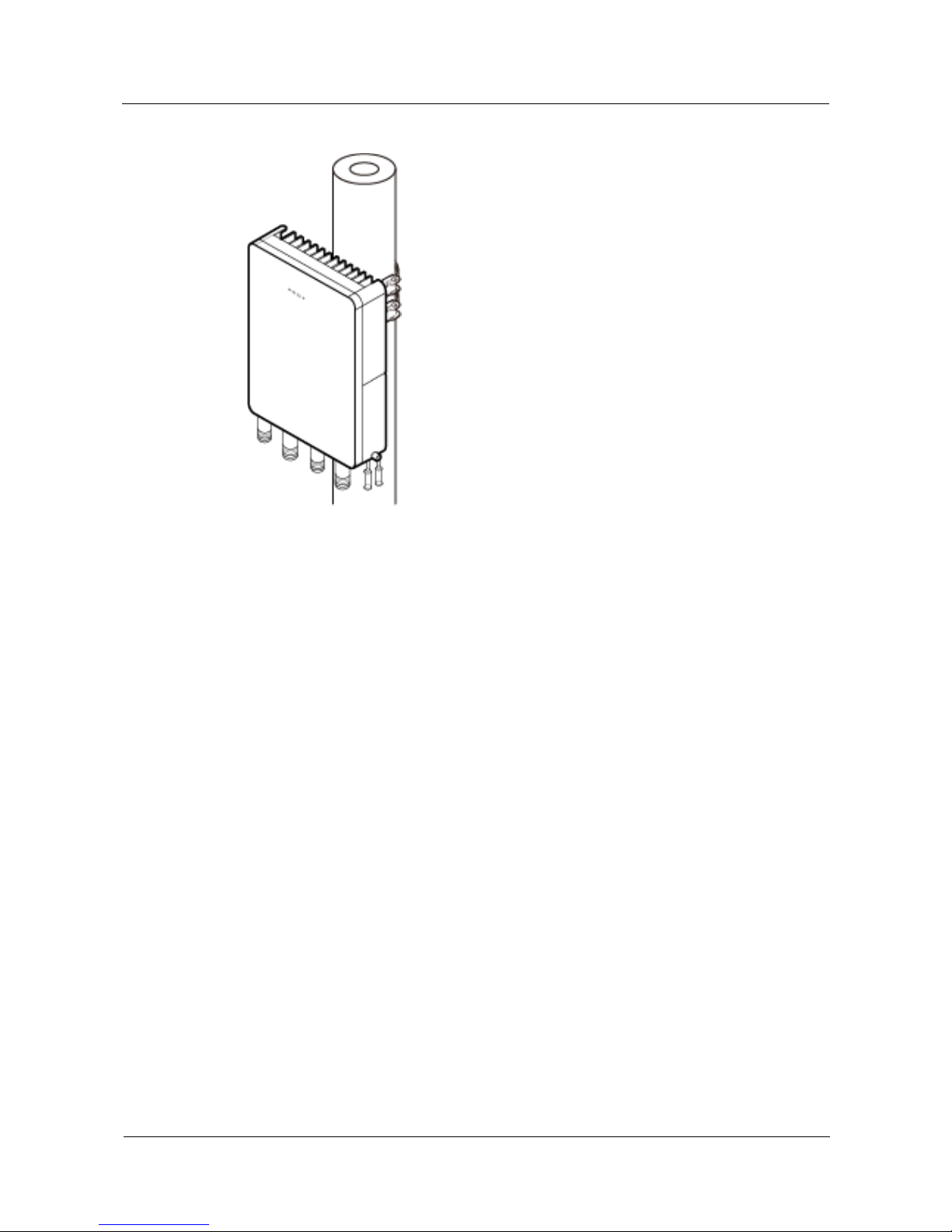

Figure 1-2 AeAN3810Ainstalled on a pole

Installation on a Wall

The wall for installing eAN3810Amust meet the following requirements:

The wall can bear a load at least four times the weight of a eAN3810A.

The screws must be tightened with a torque of 30 N·m. This ensures the screws work

properly and the wall remains intact without cracks in it.

Figure 1-3 shows the eAN3810Ainstalled on a pole.

eAN3810A

Hardware Installation Guide

1 eAN3810A Hardware Installation Guide

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

Figure 1-3 AeAN3810Ainstalled on a wall

1.2.3 Installation Clearance and Space Requirements

This section describes the recommended and minimum clearances for a eAN3810A.

Clearance for a eAN3810A

When the eAN3810A is installed on a wall or pole, the minimum clearance is required for

easy cabling and operation and maintenance (O&M). Based on the engineering practice, the

recommendation for the installation clearance is provided.

The recommended clearances are for customers, ensuring normal running and providing

appropriate space for O&M. If installation space is sufficient, leave the recommended

clearances after installing equipment.

The minimum clearance ensures normal operation and heat dissipation, but O&M

activities such as checking indicator status and opening the cover plate of a cabling

cavity cannot be properly conducted. If installation space is restricted, leave the

minimum clearance after installing equipment.

Figure 1-4 show the clearances for installing a eAN3810A.

eAN3810A

Hardware Installation Guide

1 eAN3810A Hardware Installation Guide

Issue 01 (2017-04-30)

Huawei Proprietary and Confidential

Figure 1-4 Clearances for installing a eAN3810A

Installation Spacing Between eAN3810A

Figure 1-5 lists the horizonta spacing between eAN3810A.
