Huawei AP7050DE Caractéristiques techniques

AP7050DE

Product Description

Issue 01

Date 2016-05-31

HUAWEI TECHNOLOGIES CO., LTD.

Issue 01 (2016-05-31) Huawei Proprietary and Confidential

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://e.huawei.com

AP7050DE

Product Description About This Document

Issue 01 (2016-05-31) Huawei Proprietary and Confidential

About This Document

Intended Audience

This document describes the positioning, characteristics, hardware structure, product features,

and technical specifications of the AP.

This document helps you understand the characteristics and features of the AP.

This document is intended for:

Network planning engineers

Hardware installation engineers

Commissioning engineer

Data configuration engineers

On-site maintenance engineers

Network monitoring engineers

System maintenance engineers

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Symbol Description

Indicates an imminently hazardous situation

which, if not avoided, will result in death or

serious injury.

Indicates a potentially hazardous situation

which, if not avoided, could result in death

or serious injury.

Indicates a potentially hazardous situation

which, if not avoided, may result in minor

or moderate injury.

Indicates a potentially hazardous situation

which, if not avoided, could result in

equipment damage, data loss, performance

deterioration, or unanticipated results.

NOTICE is used to address practices not

AP7050DE

Product Description About This Document

Issue 01 (2016-05-31) Huawei Proprietary and Confidential

iii

Symbol Description

related to personal injury.

Calls attention to important information,

best practices and tips.

NOTE is used to address information not

related to personal injury, equipment

damage, and environment deterioration.

Change History

Changes between document issues are cumulative. The latest document issue contains all the

changes made in previous issues.

Changes in Issue 01 (2016-05-31)

This is the initial commercial release.

AP7050DE

Product Description Contents

Issue 01 (2016-05-31) Huawei Proprietary and Confidential

Contents

About This Document.................................................................................................................... ii

1 Product Positioning and Characteristics...................................................................................1

1.1 Product Positioning....................................................................................................................................................... 1

1.2 Product Characteristics ................................................................................................................................................. 4

2 Hardware Structure.......................................................................................................................7

2.1 AP7050DE.................................................................................................................................................................... 7

3 Product Features ..........................................................................................................................11

3.1 WLAN Features.......................................................................................................................................................... 11

3.2 Network Features........................................................................................................................................................ 12

3.3 QoS Features............................................................................................................................................................... 12

3.4 Security Features ........................................................................................................................................................ 12

3.5 Maintenance Features ................................................................................................................................................. 13

3.6 BYOD......................................................................................................................................................................... 13

3.7 Locating Service......................................................................................................................................................... 13

3.8 Spectrum Analysis ...................................................................................................................................................... 14

4 Technical Specifications ............................................................................................................15

4.1 Basic Specifications.................................................................................................................................................... 15

4.2 Radio Specifications ................................................................................................................................................... 16

4.3 Standards Compliance ................................................................................................................................................ 23

AP7050DE

Product Description 1 Product Positioning and Characteristics

Issue 01 (2016-05-31) Huawei Proprietary and Confidential

1 Product Positioning and Characteristics

1.1 Product Positioning

Table 1-1 Product positioning

Product

Model

Frequency

Band

IEEE

Standards

Compliance

Positioning Usage

Scenario

AP7050DE Dual band:

2.4 GHz

5 GHz

The AP7050DE

can provide

services

simultaneously

on the 2.4 GHz

and 5 GHz

frequency

bands to

support more

access users.

IEEE

802.11a/b/g/n/a

c/ac wave2

The AP7050DE

is the

next-generation

technology-lead

ing AP. It

supports

HT80+HT80

4SU-4MU

MU-MIMO and

features high

reliability, high

security, simple

network

deployment,

automatic AC

discovery and

configuration,

and real-time

management

and

maintenance. In

compliance

with IEEE

802.11ac, it

supports a

theoretical rate

of up to 2.53

Gbit/s, greatly

improving user

experience.

It provides high

quality wireless

services for

large- and

medium-sized

enterprises in

high-density

scenarios, such

as mobile

office,

elementary

education, and

higher

education. The

AP7050DE

provides

flexible

distribution

options in

different

environments.

AP7050DE

Product Description 1 Product Positioning and Characteristics

Issue 01 (2016-05-31) Huawei Proprietary and Confidential

Typical networking modes are as follows:

Figure 1-1 Fit AP networking (AP mode)

In this networking, the AP functions as a fit AP. The AC is responsible for user access, AP

go-online, AP management, authentication, routing, security, and QoS.Huawei AC products

include the AC6605, AC6005, ACU2 (with S7700, S9700, or S12700), S5720HI, S7700 (with

X1E board), S9700 (with X1E board), and S12700 (with X1E board).

AP7050DE

Product Description 1 Product Positioning and Characteristics

Issue 01 (2016-05-31) Huawei Proprietary and Confidential

Figure 1-2 Fit AP networking (WDS mode: point-to-point)

Figure 1-3 Fit AP networking (WDS mode: point-to-multipoint)

In this networking, the AP connects two or more independently wired or wireless LANs

through wireless links to construct a network on which users can exchange data. In Wireless

Distribution System (WDS) mode, the AP supports point-to-point (P2P) and

point-to-multipoint (P2MP) networking modes. With 5 GHz and 2.4 GHz frequency bands,

the AP can implement wireless bridging and access functions.

AP7050DE

Product Description 1 Product Positioning and Characteristics

Issue 01 (2016-05-31) Huawei Proprietary and Confidential

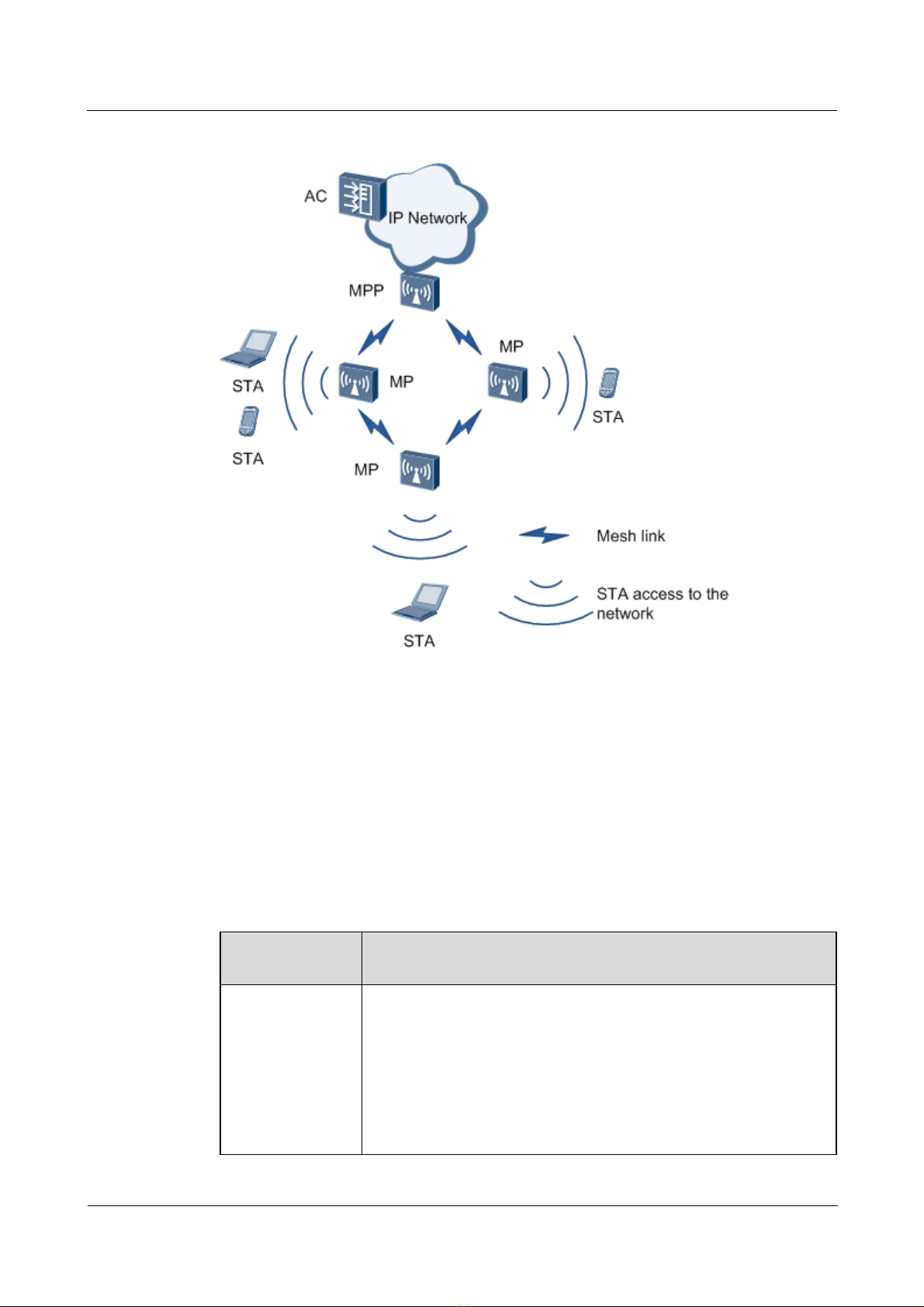

Figure 1-4 Fit AP mesh networking

In this networking, APs function as mesh points (MPs) and are fully-meshed to establish an

auto-configured and self-healing wireless mesh network (WMN). APs with the gateway

function can work as the mesh portal points (MPPs) through which the WMN can provide

access to the Internet. Terminals connect to APs to access the WMN. The WMN uses

dedicated mesh routing protocols to guarantee high transmission quality and is more

applicable to scenarios that require high bandwidth and highly stable Internet connections.

1.2 Product Characteristics

The AP7050DE has the following advantages on a WLAN.

Product

Characteristics

Description

High-speed and

reliable wireless

access

Compatibility with IEEE 802.11a/b/g/n/ac/ac wave2

Supports HT80+HT80 4SU-4MU MU-MIMO and a rate up to

2.53 Gbit/s.

Supports a rate of up to 800 Mbit/s at 2.4 GHz frequency band.

Supports a rate of up to 1.73 Gbit/s at 5 GHz frequency band.

Link aggregation of dual Ethernet ports

Supports Wi-Fi Multimedia (WMM) and priority mapping on the

AP7050DE

Product Description 1 Product Positioning and Characteristics

Issue 01 (2016-05-31) Huawei Proprietary and Confidential

Product

Characteristics

Description

air interface and wired interface.

Supports wired link integrity check.

Supports load balancing.

Supports roaming without service interruptions.

Supports dual-AC backup.

Supports beamforming.

Latest 802.11ac wave2 chip with higher performance and wider

coverage

Comprehensive

user access control

capability

Supports access control lists (ACLs) and implements user access

control based on the user group policy.

Provides fine-grained bandwidth management for each user.

Supports user isolation policies.

Supports uniform authentication on an AC.

Identifies the device type according to the organizationally unique

identifier (OUI) in the MAC address, user agent (UA) information

in an HTTP packet, and DHCP options in Fit AP mode.

The RADIUS server delivers packet forwarding, security, and

QoS policies according to the device type carried in the RADIUS

authentication and accounting packets in Fit AP mode.

High network

security

Open system authentication

WEP authentication/encryption

WPA/WPA2-PSK authentication and encryption

WPA/WPA2-802.1x authentication and encryption

Supports wireless intrusion detection system (WIDS) and wireless

intrusion prevention system (WIPS), including rogue device

detection and countermeasure, attack detection and dynamic

blacklist, STA/AP blacklist and whitelist.

Flexible

networking and

environment

adaptability

Provides flexible networking capabilities and applies to various

application scenarios. Mesh and WDS scenarios are supported

only in Fit AP mode.

Has strong environment adaptability. The AP can automatically

select the transmission rates, channels, and transmit power to

adapt to various radio environments and avoid interference in real

time.

Adjusts bandwidth allocation based on the user quantity and

environment to improve user experience.

Supports the MIMO antenna system with built-in dual-band smart

antennas.

Identifies interference sources such as baby monitors, Bluetooth

devices, digital cordless phones (at 2.4 GHz frequency band only),

wireless audio transmitters (at both the 2.4 GHz and 5 GHz

frequency bands), wireless game controllers, and microwaves in

Fit AP mode and works with eSight to locate interference sources

Autres manuels pour AP7050DE

Table des matières

Autres manuels Huawei Point d'accès sans fil

Huawei

Huawei SmartAX MA5671 Manuel utilisateur

Huawei

Huawei UA5000 Manuel utilisateur

Huawei

Huawei ATN 905 Caractéristiques techniques

Huawei

Huawei B593s-31A Caractéristiques techniques

Huawei

Huawei eA660 Series Manuel utilisateur

Huawei

Huawei RTN510 Manuel utilisateur

Huawei

Huawei eA660 Series Manuel utilisateur

Huawei

Huawei AP3010DN-AGN Caractéristiques techniques

Huawei

Huawei H352-381 Manuel utilisateur

Huawei

Huawei R230D Caractéristiques techniques

Huawei

Huawei Quidway W1000 Series Manuel utilisateur

Huawei

Huawei EG860 Series Manuel utilisateur

Huawei

Huawei AP4030DN Manuel d'utilisation

Huawei

Huawei OptiXstar P812E Manuel utilisateur

Huawei

Huawei E5186 Manuel utilisateur

Huawei

Huawei HES-319M Manuel utilisateur

Huawei

Huawei OptiXstar P622E Manuel utilisateur

Huawei

Huawei SUN2000-2KTL-L1 Manuel utilisateur

Huawei

Huawei Mobile WiFi E5878 Manuel utilisateur

Huawei

Huawei AP5030DN Caractéristiques techniques

Huawei

Huawei AP4030DN Manuel utilisateur

Huawei

Huawei AP7052DN Manuel d'utilisation

Huawei

Huawei Quidway WA1003A Manuel utilisateur

Huawei

Huawei AP2030DN Manuel d'utilisation

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur
