AP6010DN-AGN Wireless LAN Access Point

Quick Start Guide

Huawei Technologies Co., Ltd.

Address: Administration Building,Huawei Technologies Co.,

Ltd.,Bantian,Longgang District,Shenzhen,People’s Republic of China

Postcode: 518129

Website: http://www.huawei.com

Email: [email protected]

No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of

Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or

part of the products, services and features described in this document may not be within the purchase scope or the usage

scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are

provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the preparation

of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document

do not constitute the warranty of any kind, express or implied.

Change History

Changes between document issues are cumulative. Therefore，the latest document issue contains all the

Changes in previous issues.

Change in Issue 01 (2012-05-30)

Initial commercial release.

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Symbol Description

NOTE

CAUTION Indicates a potentially hazardous situation, which if not avoided, could

result in equipment damage, data loss, performance degradation, or

unexpected results.

Provides additional information to emphasize or supplement important

points of the main text.

Please download the detailed product documents from "http://support.huawei.com/support/".

The dEtaIled path is as follows: Technical Support->Documentation->Access Network -> WLAN ->WLAN -> Product

Documentation ->AP6010DN.

AP6010DN-AGN

Quick Start Guide

Before performing Installation, confirm that the installation accessories and tools are available.

Installation accessories: Technical Support

Huawei Technologies Co., Ltd.

Address:Administration Building,Huawei

Technologies Co., Ltd.,Bantian,Longgang

District,Shenzhen,People’s Republic of

China

Postcode:518129

Email:[email protected]

Website:http://www.huawei.com

Flat-head

screwdriver

Device Overview

Indicator and Interfaces

Unpack the equipment. Ensure that all items listed in the package list are included in the shipment. If any item is missing,

contact the supplier.

Front view

Item Quantity Unit

AP device

Sheetmetal wall-mounting bracket

Quick Start Guide (including the printed

packing list)

Power adapter（Optional）

Warranty card

Certificate of Conformance

Packing List

Expansion

bolt

Sheetmetal

wall-mounting

bracket

Expansion bolt

Toxic or Hazardous Substance & Elements

Declaration

Installation tools:

Phillips

screwdriver

Maker

Wire

stripper

Utility knife

Cable

cutter RJ45

Crimping tool

Combination

pliers Diagonal

pliers

ESD

gloves COAX

crimping tool

Adjustable

wrench

Measuring

tape

Hammer

drill Multimeter

Hammer

Level

Vacuum

cleaner Network

Cable tester

PCS

Item Quantity Unit

Indicators

2 3 4 5

5Connected to the maintenance terminal.

Connected to a PoE power supply or switch, or

connected to the Ethernet.

Description

No. Name

DC 12V

Console

ETH/PoE

Default

Connected to the power adapter.

1Indicator For details about indicator, see the Power-on.

Perspective

Press and hold down the Reset button for 3 seconds

to restore the factory settings and restart the AP.

6mm drill

bit

Installing the AP

Select an appropriate installation position and leave 20 cm space above and around the device for cooling air circulation.

AP6010DN dimensions (unit: mm) without a backplane support Recommended AP6010DN installation space (unit: mm)

The AP6010DN can be installed onto a workbench or mounted against a wall. In addition, the AP6010DN can be mounted

to a T-rail and mounted against the ceiling.

Wall-mount the AP6010DN using the plastic wall-mounting bracket:

180

Field

strength

场强示意

Field

strength

场强示意

1. Fix the wall-mounting bracket to the wall, adjust the

installation position, and use the marker to mark the drilling

positions where expansion bolts are installed.

2. Use #6 drill bit to drill 25-30 mm deep holes in the

drilling positions. Hammer the expansion tubes into

the holes until the expansion tubes are embedded into

the wall.

3. Fix the wall-mounting bracket to the wall, use the

Phillips screwdriver to fasten three self-tapping screws

into the expansion tube.

4. Align the holes at the rear side of the AP with the

hooks on the bracket and hang the AP on the bracket.

Hold the AP with one hand and press the AP

downwards with another hand to secure the AP on the

wall.

59mm

85mm

Underfloor

cabling

Installing the AP

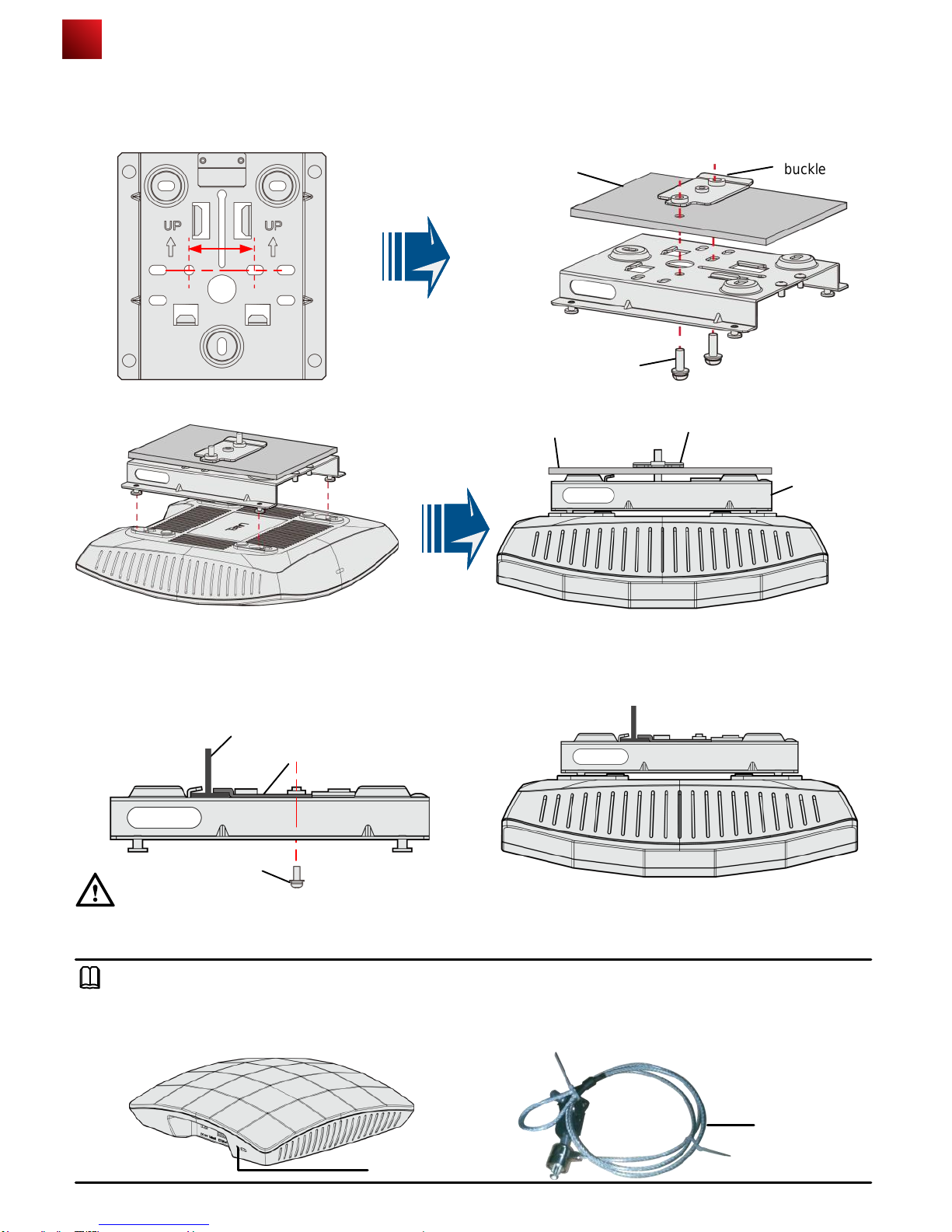

Ceiling-mount the AP6010DN using the sheetmetal wall-mounting bracket:

1. Remove the ceiling, determine locations of mounting holes based on the distance between two installation holes,

use the hammer drill to drill holes, and fix the wall-mounting bracket to the ceiling.

2. Align the cucurbit holes at the rear side of the AP with four screws on the wall-mounting bracket and secure the AP.

Adjustable

buckle

Ceiling

M4*30 screw

35mm

Adjustable buckle

Ceiling

Wall-mounting

bracket

Ensure that the AP is correctly installed on the wall-mounting bracket and there must be 20 cm space above and around

the AP for cooling air circulation.

Mounting the AP6010DN to the T-rail using the sheetmetal wall-mounting bracket:

2. Align the cucurbit holes at the rear side of the AP with

four screws on the wall-mounting bracket and secure the

AP.

T-rail Adjustable buckle

1. Use screws to fix the adjustable buckle to the wall-

mounting bracket, hook the adjustable buckle to the T-

rail, and secure the screw on the adjustable buckle to

fasten the wall-mounting bracket and T-rail.

NOTE

To prevent unauthorized personnel from moving the AP, lock the AP using the security lock and determine the position

for installing the security lock. When the sheetmetal wall-mounting bracket is used, fasten the security lock to the wall-

mounting bracket or other immovable object. The following figure shows the security lock. The carrier should purchase

the security lock.

Lock hole

Security lock

M3*6 screw

CAUTION

If the AP needs to connect to the Ethernet, ensure that the Ethernet cable is working

properly. If the Ethernet cable is not working properly, for example, RJ45 connectors are short-

circuited, the AP may fail to be powered on or fail to work. Before connecting an Ethernet cable

to the AP, use the cable test tool to check whether the cable is qualified. If the cable is

unqualified, replace it.

Description

No. Item

Power

adapter 12 V

Network

cable

●The AP6010DN supports PoE power supply and DC power supply.

●When both the PoE power supply and DC power supply are available, the DC power

supply is used.

●When DC power supply is used, use the specified power adapter; otherwise, the device may

be damaged.

Connecting Cables

Requirements for making a network cable:

● Cut the cable of proper length based on the distance between the AP and the PSE device, peel the insulation on

both ends of the network cable, and crimp the wires to RJ45 connectors.

●Connect RT45 connectors to the network cable tester to test cable connectivity. The following shows the pin

assignment.

●The service network cable cannot be connected to the console port. Otherwise, the AP6010DN may be damaged

when using PoE power supply.

●Before connecting the cable to the AP, coil the cable around the wall-mounting bracket first. This prevents the cable

from being bent.

CAUTION

X1 Pin

X2 Pin

Wire Color

White and orange

Orange

White and green

Blue

White and blue

Green

White and brown

Brown

Connect the network cable to the AP

Power on the AP6010DN and check the indicator status to determine the

System running status.

NOTE

Power-on

Color Frequency Description

Type

Green

0.5 Hz

Default status

Running

Steady on

The system is running properly, the Ethernet connection is

correct,and STAs are associated with the AP.

UBOOT:

The AP is just powered on.

Green

Red Steady on

0.2 Hz The system is running properly, the Ethernet connection is

correct, no user is connected, and the system is in low power

consumption state.

Alarm 4 Hz 1. The AP is being upgraded.

2. The CAPWAP tunnel is disconnected.

3. The AP is running properly, but does not go online.

Error

A fault that affects services occurs and cannot be rectified

automatically. For example, the system fails to load the DRAM or

system software. The fault needs to be rectified manually.

Technical Specifications

50mm×180mm×180mm

400g

Item Description

Dimensions (H x W x D)

Weight

12 V DC (Power adapter)

Output: DC 12V ±10%

Input: 100V ~240V AC

Operating temperature -10℃to +50℃

Relative humidity 10% to 95%

Altitude

Pressure

70kPa to 106kPa

PoE power -48V

–60 m to 4000 m

Logging In to the Router

1. Logging In to the AP Through the Console Port

This section describes how to log in to the AP through the console port. After logging in to the AP, you can configure the

AP using commands.

Procedure

Step 1 Connect a PC to the AP with a console cable. Connect the RJ45 connector to the console port of the AP and

connect the DB9 connector to the serial port of the PC. Figure 1-1 shows the location of the AP's console port.

Figure 1-1 Location of the AP's console port

Step 2 Run the terminal emulation program on the PC. For example, to open the HyperTerminal of Windows XP on

the PC, choose Start > Programs > Accessories > Communications > HyperTerminal. Enter the name of

the new connection in the Name text box and click OK, as shown in Figure 1-2.

Figure 1-2 Setting up a connection

No Port

1Console port

After an AP is powered on, you can log in to the AP using the following methods.

1. Logging In to the AP Through the Console Port

This section describes how to log in to the AP through the console port. After logging in to the AP, you can configure

the AP using commands.

2. Logging In to the AP Using Telnet

This section describes how to log in to the AP using Telnet. After logging in to the AP, you can configure the AP using

commands.

Logging In to the Router

Step 4 Click Restore Defaults, select 9600 bit/s from the Bits per second drop-down list box, and click OK, as shown

in Figure 1-4.

Figure 1-4 Setting communication parameters

Step 5 Press Enter on the subsequent dialog boxes until the command line prompt of the user view, such as

<Enterprise AP>, is displayed.

You can run commands to configure the AP. Enter a question mark (?) whenever you need help.

----End

Step 3 Select the serial port used on the PC and click OK, as shown in Figure 1-3.

Figure 1-3 Selecting the connected port

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Huawei Point d'accès sans fil

Huawei

Huawei Mobile WiFi E5878 Manuel utilisateur

Huawei

Huawei B593s-31A Caractéristiques techniques

Huawei

Huawei PT530 Manuel utilisateur

Huawei

Huawei AP4030DN Manuel utilisateur

Huawei

Huawei MA5833 Manuel utilisateur

Huawei

Huawei E5730 Manuel utilisateur

Huawei

Huawei eA660 Series Manuel utilisateur

Huawei

Huawei E5336 Caractéristiques techniques

Huawei

Huawei AP6610DN-AGN-US Manuel utilisateur

Huawei

Huawei AP7050DE Caractéristiques techniques

Huawei

Huawei AP3010DN-AGN Manuel utilisateur

Huawei

Huawei HES-319M Manuel utilisateur

Huawei

Huawei OptiXstar P812E Manuel utilisateur

Huawei

Huawei Quidway W1000 Series Manuel utilisateur

Huawei

Huawei OptiX RTN 310 Manuel utilisateur

Huawei

Huawei WA8021V5 Manuel utilisateur

Huawei

Huawei LTE E8372 Caractéristiques techniques

Huawei

Huawei AP5030DN Caractéristiques techniques

Huawei

Huawei R230D Caractéristiques techniques

Huawei

Huawei E5776 Manuel utilisateur

Huawei

Huawei EG860 Series Manuel utilisateur

Huawei

Huawei AP4050DN Manuel d'utilisation

Huawei

Huawei B2338-168ODU Manuel utilisateur

Huawei

Huawei Quidway WA1003A Manuel utilisateur

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur
