Huawei AP6610DN-AGN Manuel utilisateur

AP6610DN-AGN Outdoor Wireless LAN Access Point

Quick Start Guide

HUAWEI TECHNOLOGIES CO., LTD.

Huawei Technologies Co., Ltd.

Address: Administration Building,Huawei Technologies Co.,

Ltd.,Bantian,Longgang District,Shenzhen,People’s Republic of China

Postcode: 518129

Website: http://www.huawei.com

Email: [email protected]

No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of

Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or

part of the products, services and features described in this document may not be within the purchase scope or the usage

scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are

provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the preparation

of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document

do not constitute the warranty of any kind, express or implied.

Change History

Changes between document issues are cumulative. Therefore，the latest document issue contains all the

Changes in previous issues.

Change in Issue 01 (2012-05-30)

Initial commercial release.

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Symbol Description

NOTE

CAUTION Indicates a potentially hazardous situation, which if not avoided, could

result in equipment damage, data loss, performance degradation, or

unexpected results.

Provides additional information to emphasize or supplement important

points of the main text.

Please download the detailed product documents from "http://support.huawei.com/support/".

The detailed path is as follows: Technical Support->Documentation->Access Network -> WLAN ->WLAN -> Product

Documentation -> AP6610DN.

AP6610DN-AGN

Quick Start Guide

技术支持

Before performing Installation, confirm that the installation accessories and tools are available.

Installation tools: Technical Support

Huawei Technologies Co., Ltd.

Address:Administration Building,Huawei

Technologies Co., Ltd.,Bantian,Longgang

District,Shenzhen,People’s Republic of China

Postcode:518129

Email:[email protected]

Website:http://www.huawei.com

Phillips

screwdriver Hammer

Combination

pliers

Maker

Flat-head

screwdriver Diagonal

pliers Adjustable

wrench

Utility knife ESD

gloves COAX

crimping toolMeasuring

tape

Wire

stripper Cable

cutter RJ45

Crimping tool Multimeter

Level

Vacuum

cleaner Network

cable tester

Installation

suite Expansion

bolt M4X12 hexagon

socket head cap

screw

Hoop Hammer

drill

Hex key

Installation accessories:

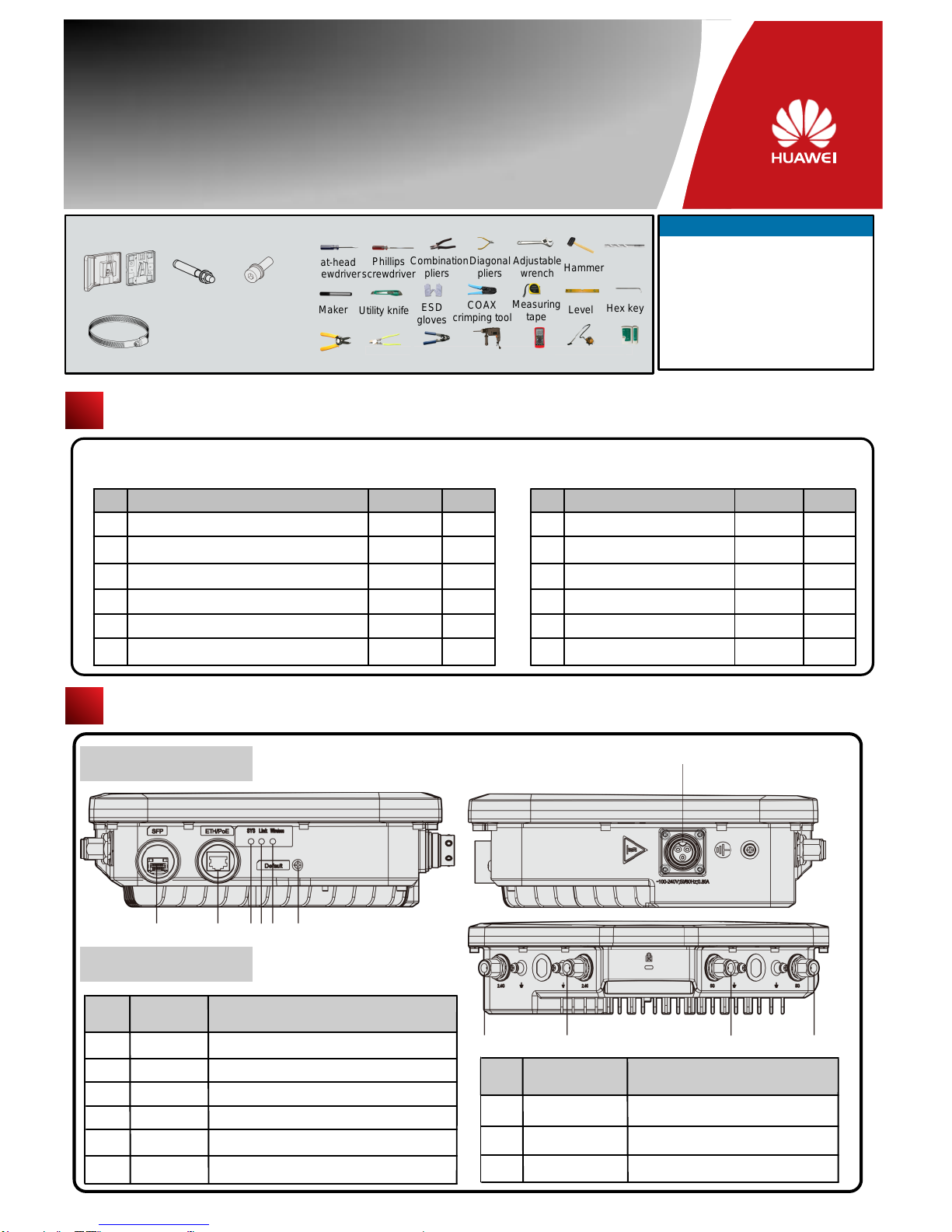

Device Overview

Packing List

Unpack the equipment. Ensure that all items listed in the package list are included in the shipment. If any item is missing,

contact the supplier.

Item Quantity Unit

AP device Fiber wrench（Optional）

PCS

Installation suite

1PCS

Network port connector

Ports and indicators

Item Description

SYS

Wireless

SFP port

Default

AC power port

SYS status indicator.

Link

ETH/POE

port 5G antenna port

92.4G antenna port

Link status indicator.

Wireless status indicator.

Connected to fiber. An optical module is required.

Used for Ethernet connections.

Connected to an AC power module.

Connected to the feeder

Expansion bolt PCS

M4X12 hexagon socket head cap screw

PCS

Press and hold down the Reset button for 3 seconds

to restore the factory settings and restart the AP.

Item Description

Product functions

Item Quantity Unit

PCS

Warranty card

Certificate of Conformance

Hoop

71PCS

Quick Start Guide (including the

printed packing list)

81PCS

9Toxic or Hazardous Substance &

Elements Declaration 1PCS

12354 6

8 899

6mm drill

bit

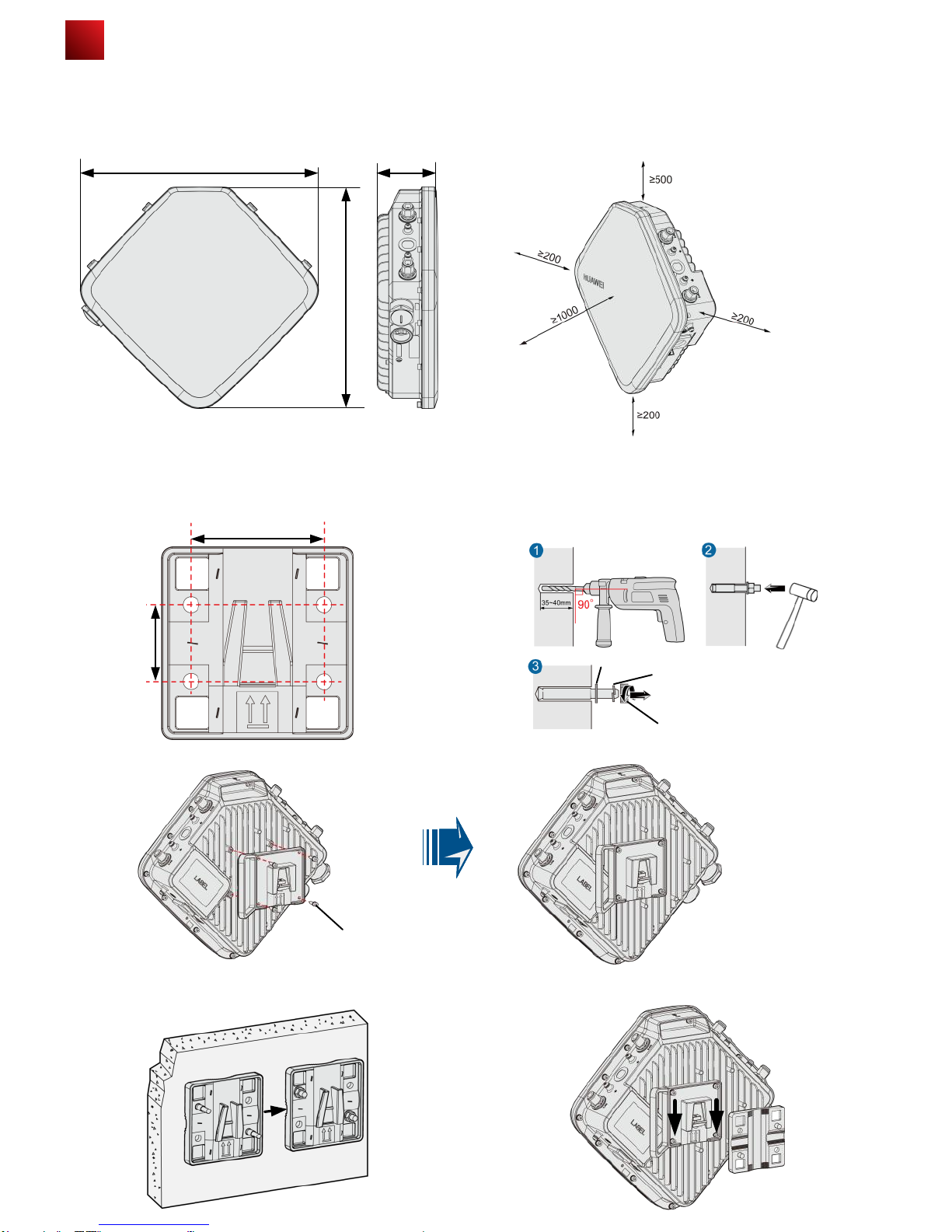

Installing an AP

●Select an appropriate installation position and leave space above and around the device for cooling air circulation.

●Outdoors APs are used for hotspot coverage and often installed against walls or poles. The pole diameter is 30 to 114 mm.

AP6610DN dimensions (unit: mm) without a backplane support Recommended AP6610DN installation space (unit: mm)

●Installing the AP6610DN against a Wall:

330 83

306

Hexagon

socket head

cap screw

Field strength

场强示意

1. Fix the wall-mounting bracket to the wall, adjust the

installation position, and use the marker, level, and

measuring tape to mark the drilling positions where

expansion bolts are installed.

2. Use #6 drill bit to drill 35–40 mm deep holes in the drilling

positions and install expansion bolts. Screw the nut into the

expansion tube, hammer the expansion bolt into a hole until

the flat washer is flattened against the wall, and remove the

nuts, spring washer, and flat washer in order.

Flat washer

3. Use four M4*14 hexagon socket head cap screws to fasten the wall-mounting bracket to the AP.

4. Pinch the wall-mounting bracket on the expansion

bolts, and fasten the Flat washer, spring washer, and

nuts in order.

5. Slide the AP into the wall-mounting bracket to complete

installation.

Spring washer

Nuts

64mm

37mm

Installing an AP

上电调试

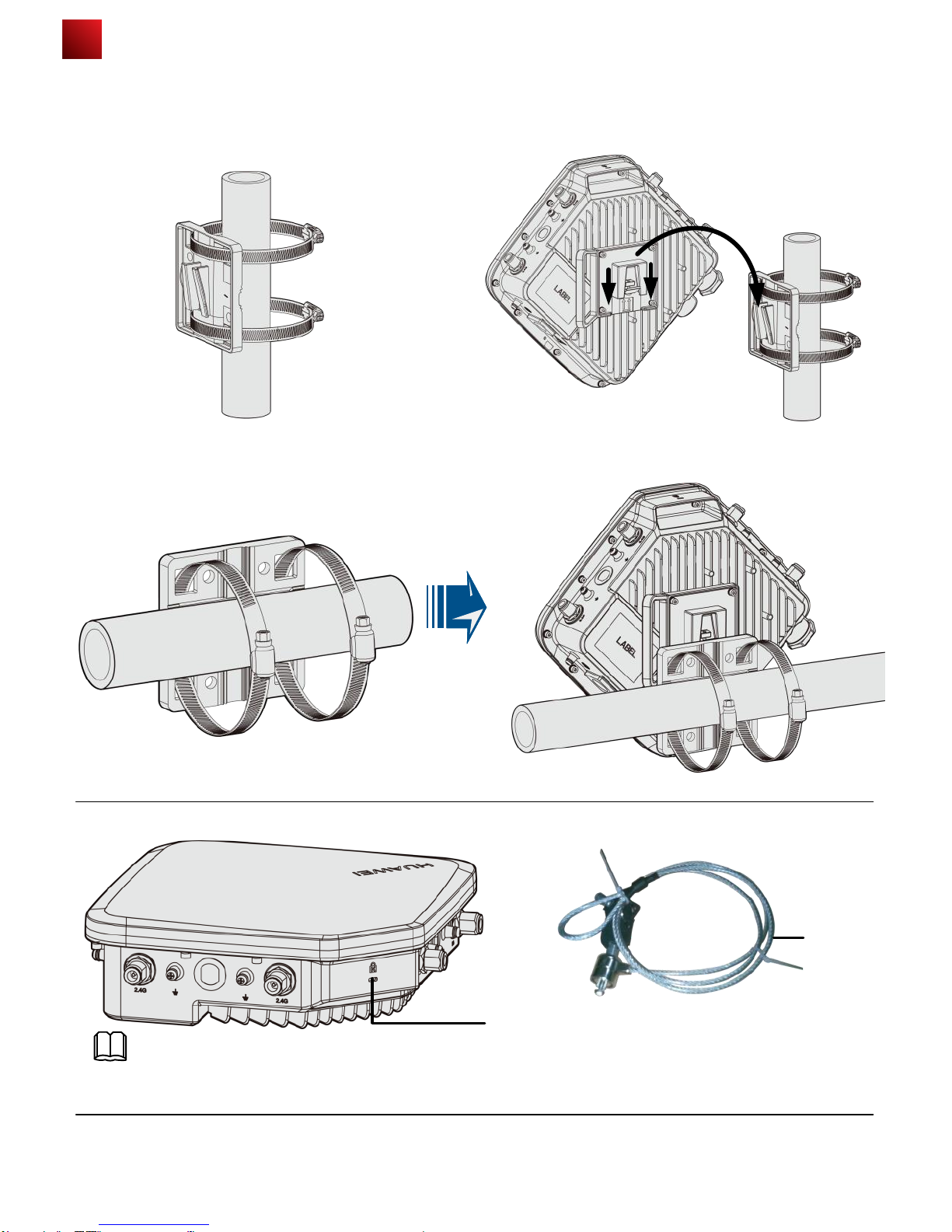

●Installing the AP6610DN against a vertical pole:

Field strength

场强示意

NOTE

Lock hole

Security

lock

1. Determine the AP installation position, slide the hoop

through the hole of the wall-mounting bracket and attach

it to the pole, And use the screwdriver to secure screws

on the hoop.

2. Slide the AP that has the connector fastened into the wall-

mounting bracket.

●The procedure for installing the AP6610DN against a horizontal pole is similar to the procedure for installing the AP6610DN

against a vertical pole.

●Installing the Security Lock

To prevent unauthorized personnel from moving the AP, lock the AP. The preceding figure shows the security lock. The

carrier should purchase the security lock and determine the position for installing the security lock.

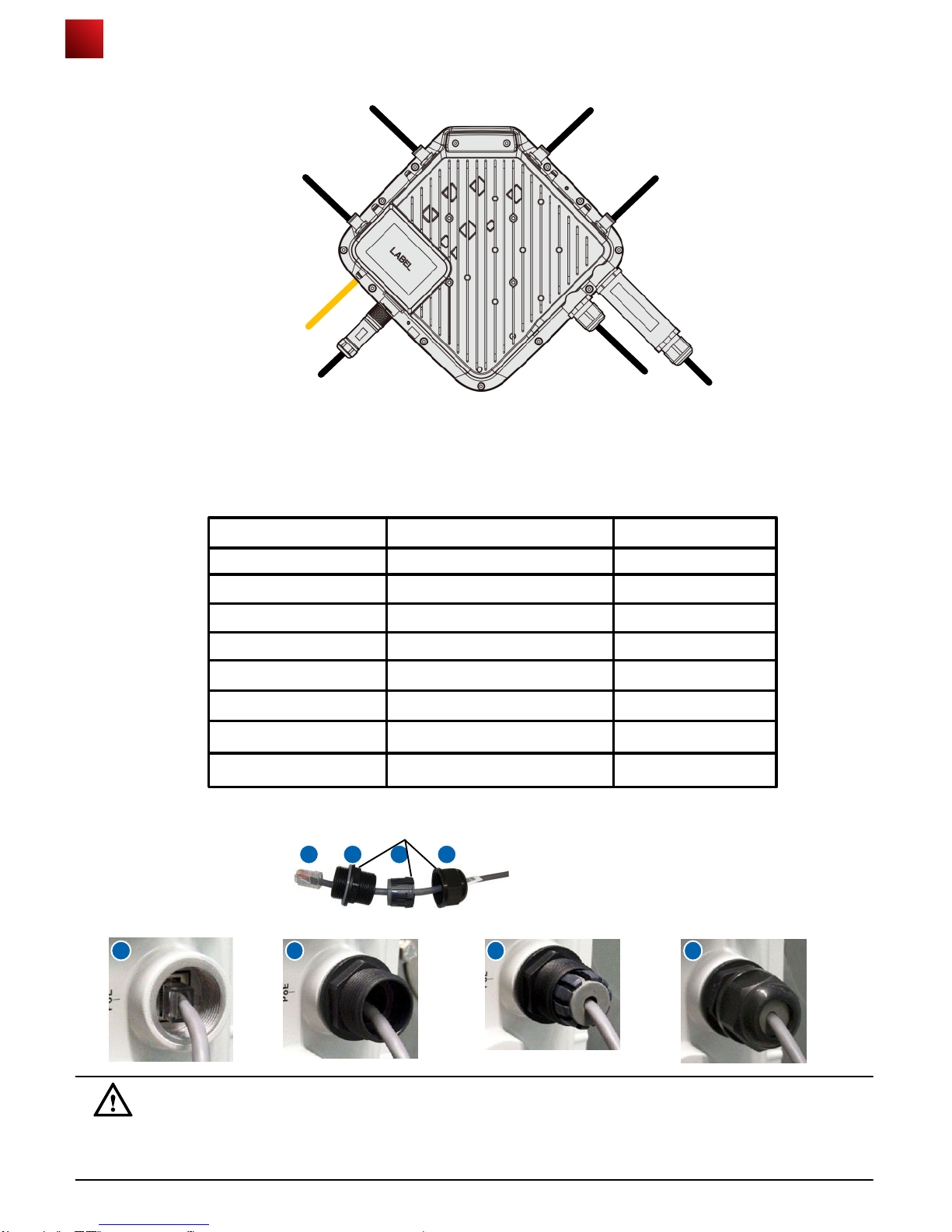

Installing Cables

Ground cable

Optical fiber

AC power cable

●AP6610DN external cable arrangement drawing

3. Put the network cable through the hole on the waterproof PG connector.

a b c d

4. Connect the RJ45 connector to the AP and secure the waterproof PG connector, as shown in figures b, c, and d.

abc d

Ensure that the RJ45 connector is correctly connected to the AP. Otherwise, the network cable may be damaged.

Before removing the network cable, remove the waterproof PG connector, and then remove the RJ45 connector from

the AP.

Waterproof PG connector

CAUTION

Feed line Feed line

Feed line

Network

cable

●Connecting network cables

1. Use a shield straight-through cable. Cut the cable of proper length based on the distance between the AP and the PoE

device, peel the insulation on both ends of the network cable, and crimp the wires to RJ45 connectors.

2. Make a network cable onsite according to the following pin assignment. Otherwise, the communication quality is

affected even if devices can be connected.

X1 Pin

X2 Pin

Wire Color

White and orange

Orange

White and green

Blue

White and blue

Green

White and brown

Brown

Installing Cables

bcdef

2. The optical fiber connection of AP6610DN is similar to that of WA653SN. Here, WA653SN is used as an example.

Connect the optical fiber to the AP and ensure that the waterproof connector is fastened.

CAUTION

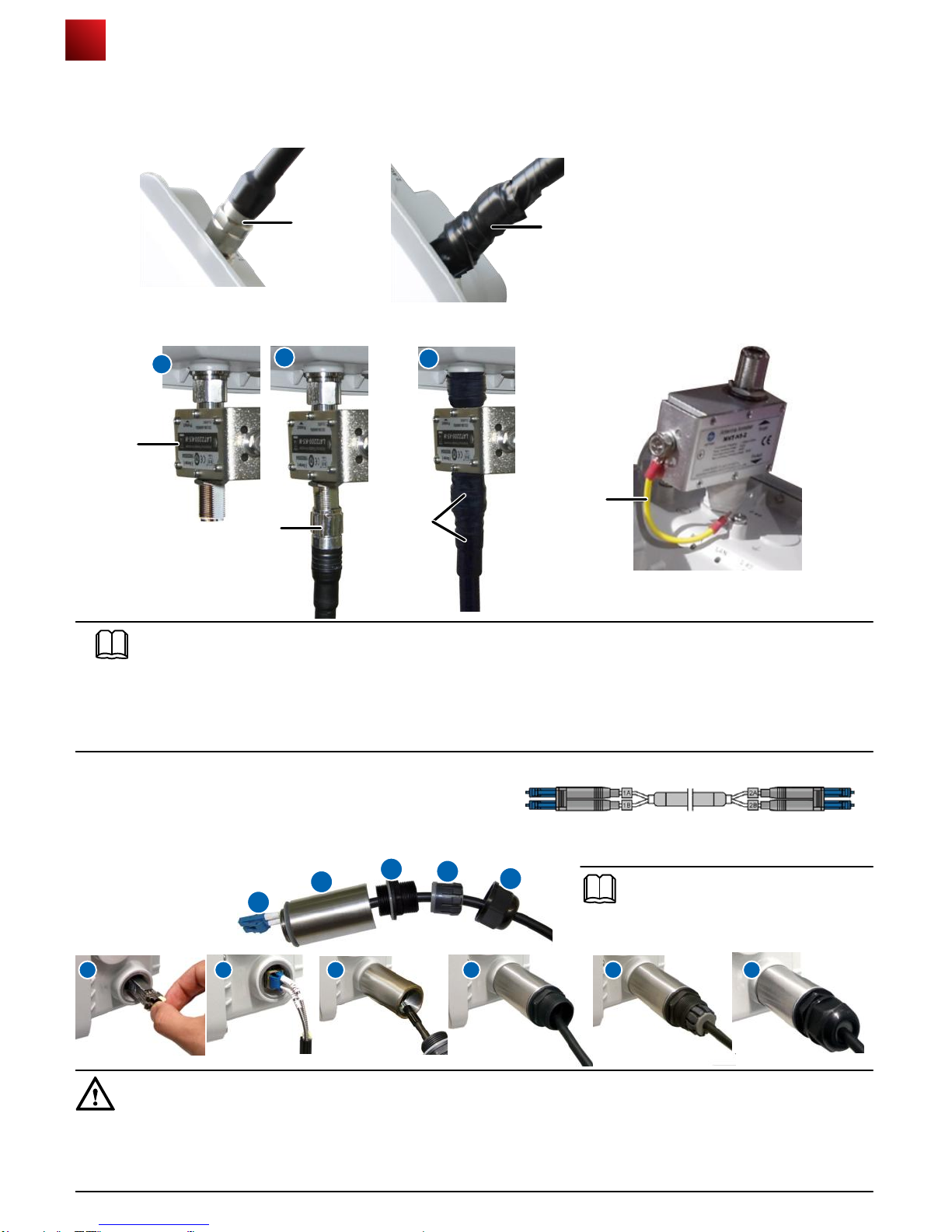

●Connecting the feed line

1. The outdoor AP's antenna ports already have 5 KA surge protection capability. Generally, no surge protection devices

need to be installed; therefore, the antenna cables are directly connected to the AP's antenna ports.

2. If higher surge protection capability is required, the customer can purchase a surge protection device. When installing the

surge protection device, ensure that it is connected to a ground cable.

Waterproof adhesive tape

Ground cable

NOTE

Surge

protection

device

Waterproof

adhesive

tape

Feed line

●Wrap the feed line using one-layer PVC black insulation tape, three-layer waterproof adhesive tape, and then three-layer

PVC black insulation tape.

●Stretch the waterproof adhesive tape evenly and ensure that the upper layer of the tap overlaps 1/2 of the lower layer.

Each layer should be attached tightly.

●Wrap the three-layer waterproof adhesive tape from bottom to up, from up to bottom, and from bottom to up in order.

●Connecting optical fibers

1. The right figure shows the appearance of the optical fiber：

The thread must be secured properly; otherwise, optical fibers may be damaged. When removing optical fibers, remove the

waterproof PG connector, and then remove the optical fiber connected to the AP. When removing the waterproof PG

connector, use the ejector lever to clutch the optical fiber tube. This prevents the optical fiber tube from rotating with the

waterproof PG connector and protects optical fibers. 7

NOTE

Install an optical module as shown in step a

before connecting the fiber.

abc d e f

Installing Cables

Connecting the ground

bar

Figure 2

Figure 1

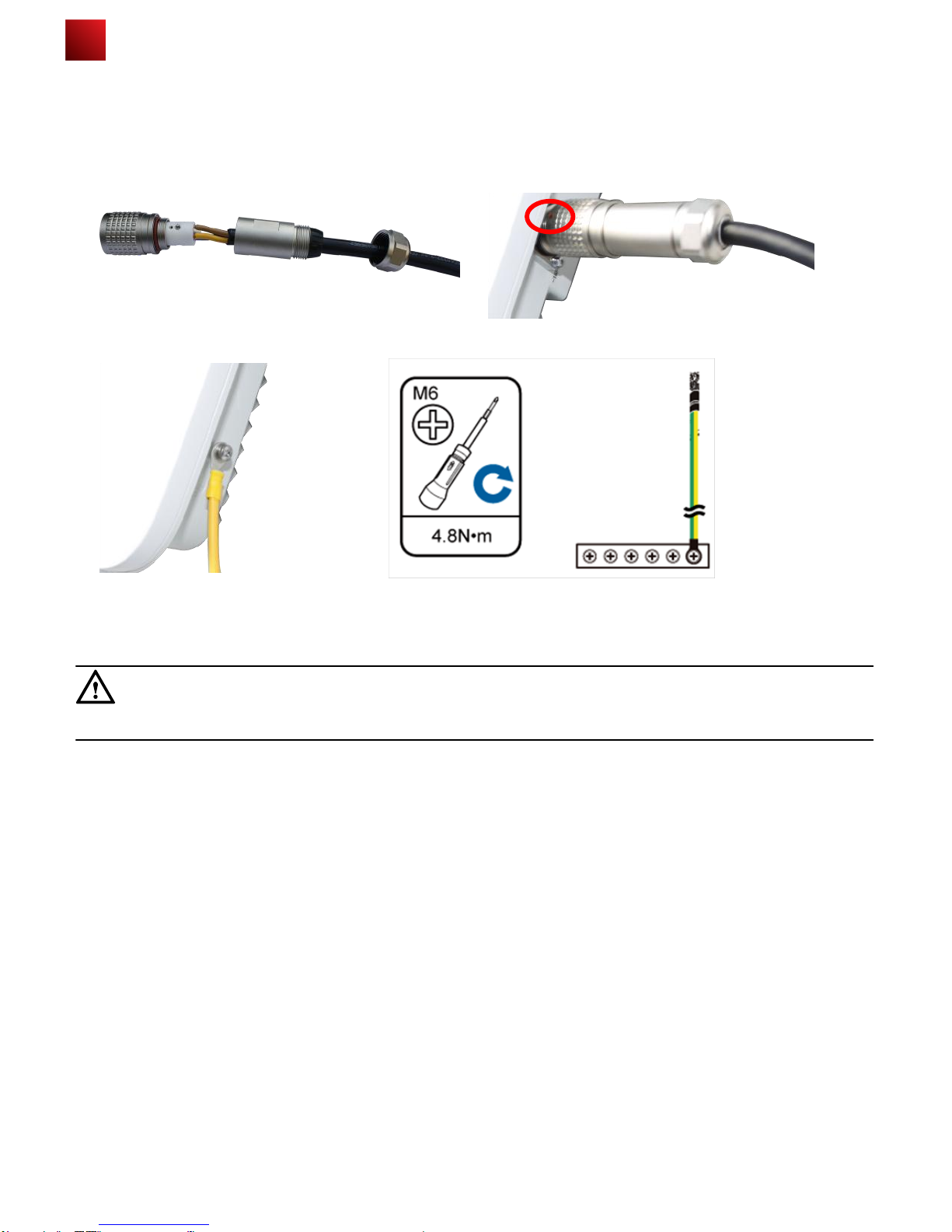

●Connecting AC power cables

1. Make an AC power cable onsite, cut the cable of proper length. Make a cable according to figure 1. L/N/PE pin

Arrangement must be correct.

2. When connecting the AC power cable to the AP, align the socket to the red point of the connector, and insert the

waterproof connector. When a crack sound is heard, the AC power cable is installed properly. When removing the AC

power cable, press the component with the red point. You do not need loosen the screw.

●Connecting the ground cable

Cut the cable of proper length, and select 6-M4 OT terminal for the AP and 6-M6 OT terminal for the ground bar.

●Requirements for Laying Out Cables

● Requirements for laying out power cables

1. The power cable must be separated from ground cables and signal cables.

2. If multiple power cables are installed, you must bind the power cables.

3. The routing of power cables must meet engineering design drawing requirements.

4. If the power cable length is insufficient, replace the power cable. The power cable must be complete and cannot

have splices or welding points.

● Requirements for laying out ground cables

1. All ground cables must be connected to a ground bar.

2. The ground cable cannot be led in aerially, but buried in the earth or arranged indoor.

3. Both ends of the external conductor of the coaxial cable and those of the insulation of the shielded cable should

have good electric contact with the metal shell of the equipment they connect to.

4. Ground cables must be separated from signal cables to reduce interference between them.

5. Do not add any switch or fuse on the ground cable.

6. Do not use another device for an electrical connection with the ground cable.

7. All metal components in the shell must be securely connected to the ground cable.

● Requirements for laying out optical fibers

1. Do not press optical fibers forcibly or crush optical fibers with force. Leave sharp objects away from optical fibers

to prevent damage to optical fibers.

2. Coil up redundant optical fibers round specialize devices such as the splice tray.

3. Coil optical fibers gently and do not break them.

4. Cover optical fiber connectors with protective caps.

Keep the screw properly and install it again after pressing the Reset button.

CAUTION

●Pressing the Reset Button

The Reset button on an outdoor AP is protected by a waterproof screw. Before pressing the Reset button, remove the

waterproof screw.

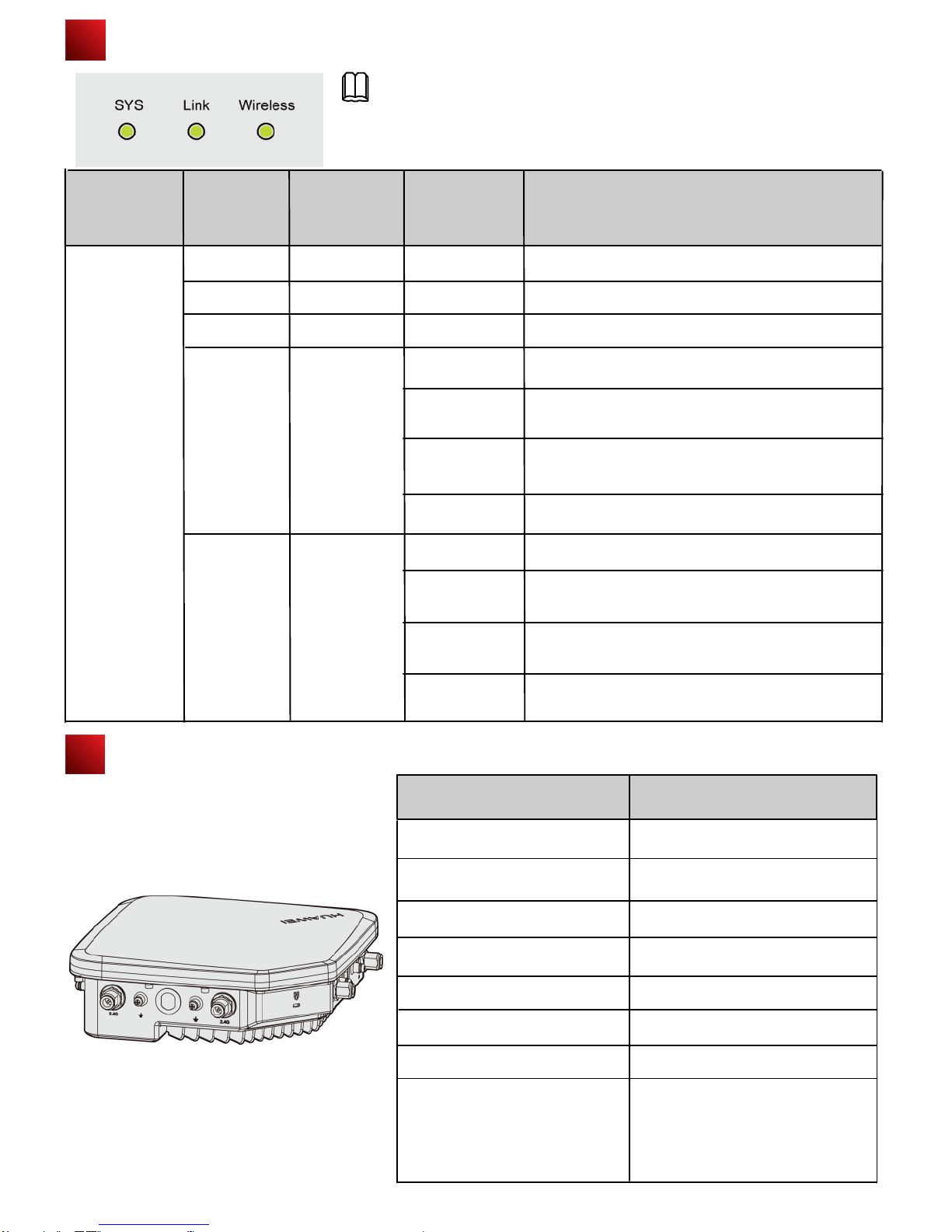

Power-on

2连接线缆

Technical Specifications

Power on the AP6610DN and check the indicator status to determine the system

running status.

NOTE

SYS Wireless

Link Description

Information

Type

Steady green

Steady red

Blinking green

Blinking once

every 2s

Running status

The indicator is

steady green if no

data is

transmitted. The

indicator blinks

green more

quickly when

more packets are

transmitted.

Off

Blinking green

Off

The system is working properly.

The system fails to load the DRAM or system software.

The device is being started.

Blinking once

every 2s

The system is working properly, but the Ethernet is not

connected and radios or all VAPs are disabled.

The system is working properly, but the Ethernet is not

connected. The wireless indicator blinks more quickly as more

packets are received on the 2.4 GHz air port.

Off The system is working properly, but the Ethernet is not

connected and radios or all VAPs are disabled.

Blinking yellow The system is working properly, but the Ethernet is not

connected. The wireless indicator blinks more quickly as

more packets are received on the 5 GHz air port.

Blinking green and

yellow alternately The system is working properly, but the Ethernet is not

connected. STAs at 2.4 GHz and 5 GHz are connected.

Blinking green The system is working properly, but the Ethernet is not

connected. The wireless indicator blinks more quickly as more

packets are received on the 2.4 GHz air port.

Blinking yellow The system is working properly, but the Ethernet is not

connected. The wireless indicator blinks more quickly as

more packets are received on the 5 GHz air port.

Blinking green and

yellow alternately The system is working properly, but the Ethernet is not

connected. STAs at 2.4 GHz and 5 GHz are connected.

83mm×255mm×255mm

2.65Kg

Item Description

Operating temperature –40°C to +60°C

Storage temperature

0% to 100%

Relative humidity

Altitude

70 kPa to 106 kPa

Weight

Dimensions (H x W x D)

–40°C to +70°C

Pressure

AC power supply 100 V to 240 V

–60 m to 4000 m When the altitude

is between 1800 m and 4000 m, the

operating temperature decreases by

1°C each time the altitude increases

by 220 m.

Table des matières

Autres manuels Huawei Point d'accès sans fil

Huawei

Huawei E5573S Manuel utilisateur

Huawei

Huawei AP6610DN-AGN-US Manuel utilisateur

Huawei

Huawei R230D Caractéristiques techniques

Huawei

Huawei PT530 Manuel utilisateur

Huawei

Huawei Quidway NE40E Mode d’emploi

Huawei

Huawei AP7050DE Mode d’emploi

Huawei

Huawei AP8030DN Manuel du produit

Huawei

Huawei AP6010DN-AGN Manuel utilisateur

Huawei

Huawei AP4050DN-E Caractéristiques techniques

Huawei

Huawei AP6510DN-AGN-US Manuel utilisateur

Huawei

Huawei eLTE2.2 eA660 Series Caractéristiques techniques

Huawei

Huawei WA8021V5 Manuel utilisateur

Huawei

Huawei EG860 Series Manuel utilisateur

Huawei

Huawei AP4050DN Manuel d'utilisation

Huawei

Huawei AP4030DN Manuel d'utilisation

Huawei

Huawei OptiXstar P622E Manuel utilisateur

Huawei

Huawei E5186 Manuel utilisateur

Huawei

Huawei E5336BS-6 Manuel utilisateur

Huawei

Huawei OptiX RTN 310 Manuel utilisateur

Huawei

Huawei UA5000 Manuel utilisateur

Huawei

Huawei AP8030DN Caractéristiques techniques

Huawei

Huawei AP4050DN-HD Caractéristiques techniques

Huawei

Huawei AP3010DN-AGN Manuel utilisateur

Huawei

Huawei ATN 905 Caractéristiques techniques

Manuels Point d'accès sans fil populaires d'autres marques

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur

Ubiquiti

Ubiquiti NanoStation NSM2 Manuel utilisateur

Cisco

Cisco Aironet 1550 Series Manuel utilisateur

Aruba

Aruba IAP-335 Manuel utilisateur

Advantek Networks

Advantek Networks AWN-AP-54MR Manuel utilisateur

IP-COM

IP-COM AP355 Manuel utilisateur

Buffalo

Buffalo AirStation WLA-L11G Manuel utilisateur

EnGenius

EnGenius EnStationACv2 Manuel utilisateur

D-Link

D-Link DAP-3662 Manuel utilisateur

xG Technology

xG Technology xMax CN1300 Manuel utilisateur

Widelink

Widelink ezWave WAP-1100 Series Manuel utilisateur

Edimax

Edimax CAP1200 Manuel utilisateur

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuel utilisateur

Aruba

Aruba AP-203R Manuel utilisateur

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuel utilisateur

CreatComm

CreatComm TB5F Manuel utilisateur

SineDigital

SineDigital MW-1500AP(H) Manuel utilisateur

TP-Link

TP-Link AP9650 V1 Manuel utilisateur
