Huawei EchoLife HG8245 Manuel utilisateur
Quick Start
EchoLife HG8245&HG8247
GPON Terminal
EchoLife HG8245&HG8247 GPON Terminal
V100R001
Quick Start
Issue 02
Date 2010-06-07
Part Number 31504920
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Huawei Technologies Co., Ltd. provides customers with comprehensive technical support
and service. For any assistance, please contact our local office or company headquarters.
Huawei Technologies Co., Ltd.
Address:
Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
Email: [email protected]
Copyright © Huawei Technologies Co., Ltd. 2010. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any
means without prior written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are the property of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of
their respective holders.
Notice
The information in this document is subject to change without notice. Every effort has
been made in the preparation of this document to ensure accuracy of the contents, but
the statements, information, and recommendations in this document do not constitute a
warranty of any kind, express or implied.
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1
Precautions
For safety purposes, before operating the device, take the safety precautions carefully.
Basic Requirements
Keep the device dry during storage, transportation, and running of the device.
Prevent the device from colliding with other objects during storage,
transportation, and running of the device.
Install the device in strict compliance with the vendor requirements.
Do not dismantle the device without permission. Contact the specified service
center when a fault occurs on the device.
No enterprise or personnel should modify the structure, security, and
performance designs of the device without authorization.
Abide by the local laws and regulations and respect the legal rights of other
people when using the device.
Environmental Requirements
Install the device in a well-ventilated indoor place that is not directly exposed
to sunlight.
Keep the device clean.
Keep the device away from water sources or a damp environment.
Do not place any object on the device as the heat or weight of the object may
damage the device.
Leave a space of at least 10 cm around the device for heat dissipation.
Keep the device away from heat sources or exposed fire sources, such as
electrical heaters and candles.
Keep the device away from the electrical appliances with strong magnetic or
electric fields, such as microwave ovens, refrigerators, and mobile phones.
Instructions for Cleaning
Before cleaning the device, stop running it, switch off the power, and remove
all cables, including the power cable, optical fibers, and network cables, from
the device.
Do not use cleaning fluid or spray-on detergent to clean the shell of the
device. Use a soft cloth instead.
2
Precautions
Instructions for Use
Use the accessories delivered with the device, or use those recommended by
the vendor, such as the power adapter and battery.
The power supply voltage of the device must meet the requirements on the
input voltage of the device.
Keep the power plug clean and dry to avoid electric shocks or any other
hazard.
Dry your hands before removing or inserting cables.
Stop the device and switch off the power before removing or inserting cables.
Switch off the power and remove all cables, including the power cable,
optical fibers, and network cables, from the device during stormy days.
Switch off the power and remove the power plug if the device is shut down
for a long term.
Keep the device free of contact with water or other liquid. If such an accident
occurs, switch off the power immediately and remove all cables, including the
power cable, optical fibers, and network cables, from the device. Contact the
specified service center in case of a device failure.
Do not stamp, pull, drag, or excessively bend the cables because they may get
damaged, thus leading to a device failure.
Do not use cables that are damaged or aged.
Do not look directly into the optical port on the device without eye protection
as the infrared may injure your eyes.
In case of any abnormalities, such as smoke, abnormal sound, or odor,
immediately stop the device, switch off the power, and remove all cables,
including the power cable, optical fibers, and network cables, from the device.
Contact the specified service center in case of a device failure.
Prevent foreign objects such as metal objects from dropping into the device
through the heat dissipation holes.
Prevent the outer case of the device from being scratched as the paint that
falls into the device may cause a short circuit. In addition, it can cause an
allergic reaction to human body.
Keep the device out of the reach of children as the components or accessories
may be swallowed.
Instructions for Environmental Protection
Dispose of the obsolete device and batteries to the specified recycle place.
Abide by the local laws and regulations to handle the packaging materials,
run-out batteries and obsolete device.
3
Introduction

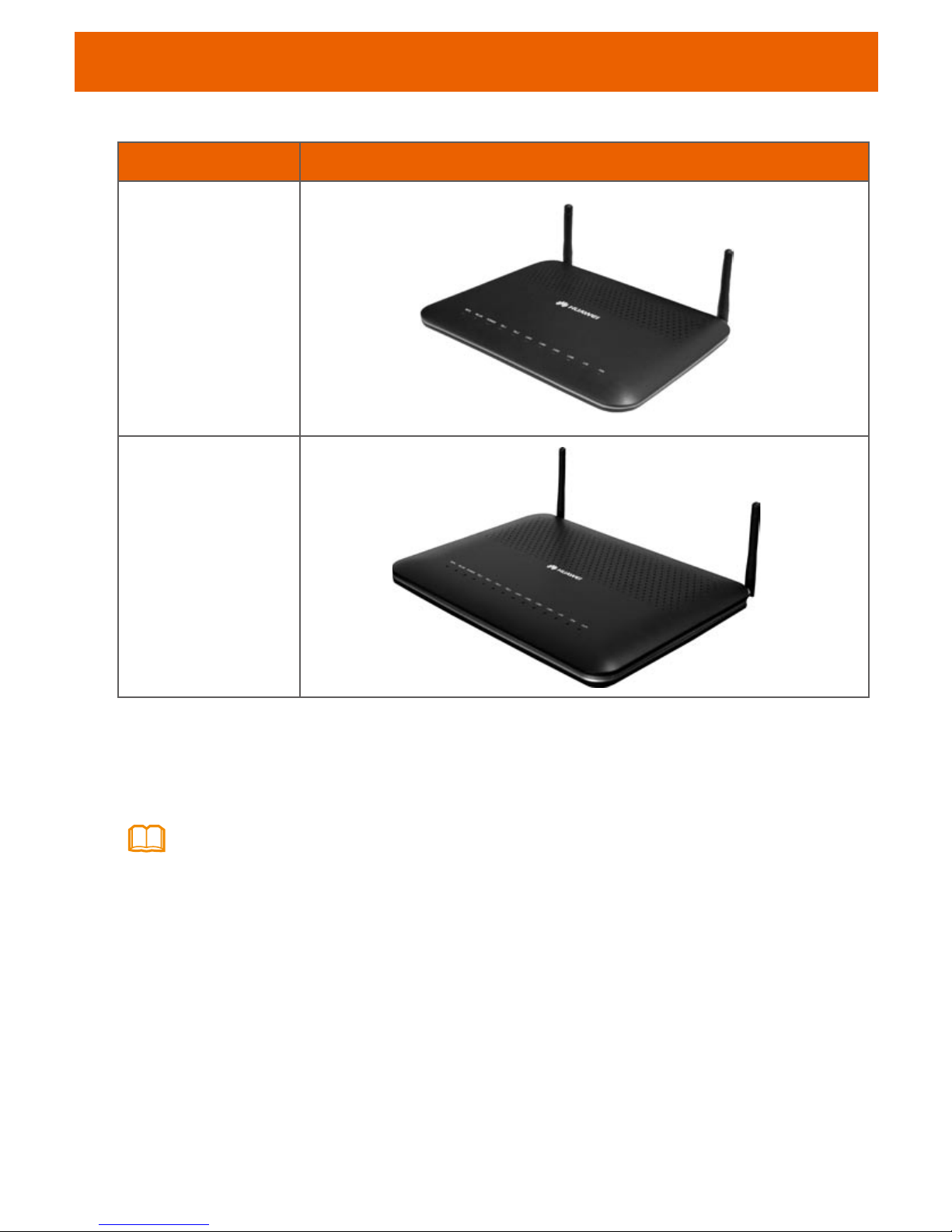

The appearance of GPON terminals HG8245 and HG8247 is as follows:
Product Name Appearance
HG8245
HG8247
The HG8245 and the HG8247 have similar appearance but slightly differ in ports,
LEDs, and technical specifications. For details, see "Connecting Cables", "Description
of LEDs", and "Technical Specifications".
127(
The figures shown in this document may differ from the actual HG8245/HG8247, but the
difference does not affect the functions of the HG8245/HG8247.
4
Unpack the product and check carefully the items listed in the following table. If the
actual items do not match the items listed in the table, please contact the vendor.
Installing the HG8245/HG8247
No. Item Quantity
1 HG8245/HG8247 1
2 Power adapter 1
3 Network cable 1
4 Quick Start 1
5 Qualification Card 1
Installation List
Installation Procedure
The HG8245/HG8247 can be placed on a horizontal workbench or mounted onto a
wall vertically or horizontally. The methods for mounting the HG8245 and the HG8247
onto a wall are the same. The procedure is as follows:
Step 1 Mark positions of two holes for fixing the HG8245/HG8247. For the distance
between holes, see the following table.
Step 2 Select a proper drill bit according to the outer diameter of the mounting
screws. Use a hammer drill to drill at the marked positions on the wall.
Step 3 Use a screwdriver to fasten the mounting screws at the positions of the holes
on the wall.
Step 4 Mount the HG8245/HG8247 onto the mounting screws.
Product Distance Between Mounting Holes
HG8245 111.5 mm
HG8247 121.5 mm
5
Installing the HG8245/HG8247
The following figures show how to mount the HG8245/HG8247 horizontally
and vertically.
Mounting the HG8245/HG8247 horizontally
Mounting the HG8245/HG8247 vertically
6
Connecting Cables

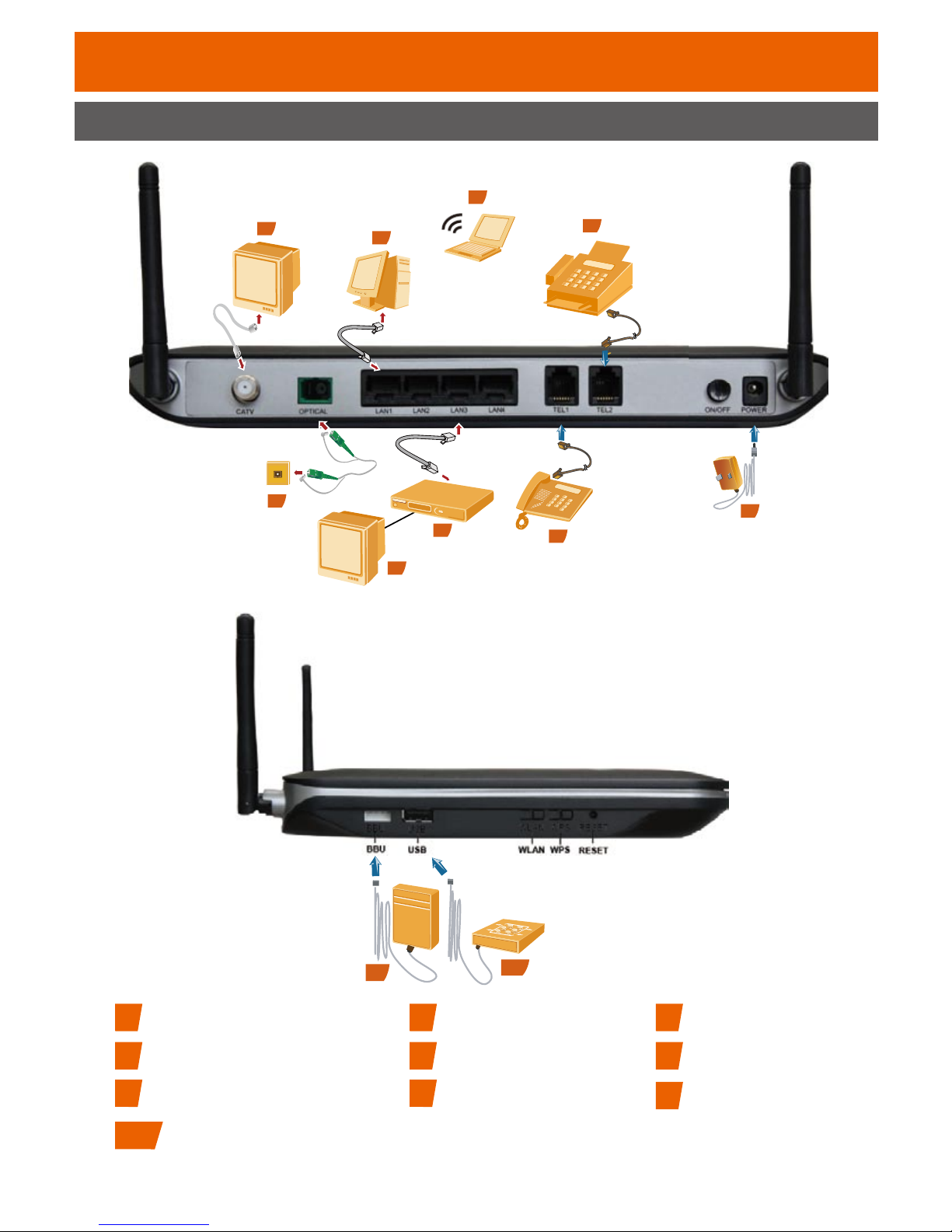

Cable Connections Between the HG8245 and Other Devices
5
4
7
3
6
8
2
1
BBU WLAN WPS RESET
USB
10
9
1Optical port in the wall 2PC 3Wi-Fi terminal
4IP set-top box (STB) 5TV set 6Telephone set
7Fax machine 8Power adapter 9Backup battery unit
10 USB storage device
7
Connecting Cables

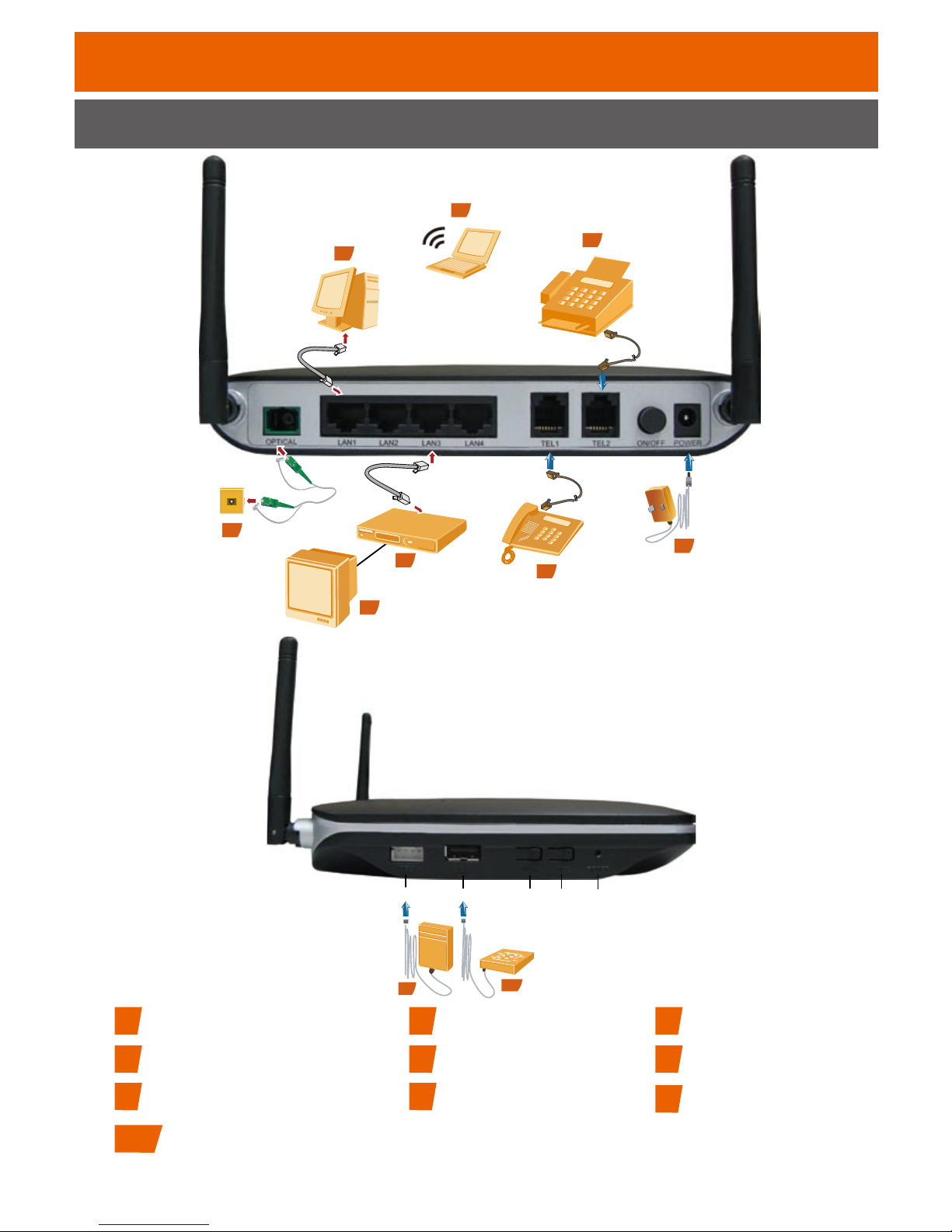

Cable Connections Between the HG8247 and Other Devices
5
4
7
3
6
8
2
1
5
10
9
1Optical port in the wall 2PC 3Wi-Fi terminal
4IP set-top box (STB) 5TV set 6Telephone set
7Fax machine 8Power adapter 9Backup battery unit
10 USB storage device
