Huawei NE05E Manuel utilisateur
HUAWEI TECHNOLOGIES CO., LTD.
NE05E&NE08E Series Mid-End Router
Quick Installation Guide
(IMB Cabinet)
Issue: 05
Date: 2016-06-30
Copyright © Huawei Technologies Co., Ltd. 2016. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The purchased products, services and features are stipulated by the contract made between Huawei and
the customer. All or part of the products, services and features described in this document may not be
within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,
information, and recommendations in this document are provided "AS IS" without warranties, guarantees or
representations of any kind, either express or implied.
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address:
Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website:
http://www.huawei.com
Email:
Installation Flow
PrecautionsPage 1
Tools for Installation
Page 2
Introduction to the 1U-
height Chassis
Pages
3-4
Introduction to IMB
(Indoor Mini Box)
Pages
6-7
Installing Devices in the
IMB
Page 13
Connecting and Routing
Cables
End
Start
Powering On the
Equipment
Page 18
Installation ChecklistPage 17
Preparation
for
installation
Pages
14-16
Introduction to the 2U-
height Chassis
Page 5
Introduction to AC/DC
power system
Installing the IMB on the
Wall
Pages
8-10
Pages
11-12
Overview of IMB
Page 6
Installation Clearance
Requirements
Pages
6-7
Installing the Cover Plate
for the IMB
Page 19
AppendixesPage 20
1
Precautions
This document provides simple and distinctive guidelines for quick hardware installation of the
NE05E&NE08E(NE05E-S2/SE/SF/SG/SH/SI/SQ&NE08E-S6/S6E).
Based on the height of a device, the NE05E-S2/SE/SF/SG/SH/SI/SQ are considered 1 U devices, and the
NE08E-S6/S6E are considered 2 U devices. 1 U = 44.45 mm (1.75 in.)
As the installation methods are similar, the fixed NE05E-SI is used as an example for the 1 U device, and the
card-insertedNE08E-S6 is used as an example for the 2 U device. The installation differences are specially
described in this document.
This document does not describe pre-delivery assembly. This document only describes procedures for onsite
installation.
Wear ESD gloves or Antistatic WristStrap prior to contact
with the equipment or before handling the plug-boards,
boards, and IC chips to prevent damage to sensitive
components caused by electrostatic discharge from the
human body.
Binding intervals between cable ties or optical fiber binding straps inside the cabinet cannot exceed
250 mm.
Bundling cables
Electrostatic Discharge
Pre-Installation Check
Verify that the equipment room, power supply, ground cables and optical cables are ready for installation.
Start the installation according to the engineering design documents after confirming that conditions are
met. Refer to the Installation Guide for information about specific operational requirements and technical
specifications.
NOTE
CAUTION
CAUTION
CAUTION
2
Tools for Installation
Cable Tester
Coax Stripper
Philips Screwdriver
（M2-M6) Flathead Screwdriver
（M2-M6)
Level
Ratchet Crimp Tool
Torque Wrench Cable Cutter Wire Stripper
Network Cable
Crimping Pliers Diagonal Pliers
Paper Knife
Rubber hammer
Percussion Drill
Marker Pen
Heat Gun Multimeter
ESD Gloves
Binding Strap Insulation Tape
Antistatic Wrist Strap
Cleaner
Tape Measure
3
NE05E-S2
Introduction to the 1U-height Chassis
Clock interface
Power supply interface
Time interface
NM interface
(Console interface)
Alarm interface
PGND point
FE/GE electrical interface
10GE optical interface
FE/GE optical interface
E1 interface
Alarm interface
PGND pointPower supply interface
GE optical interface
Clock and time interface
T1 interface
Antistatic jack interface
FE/GE electrical interface SHDSL interface

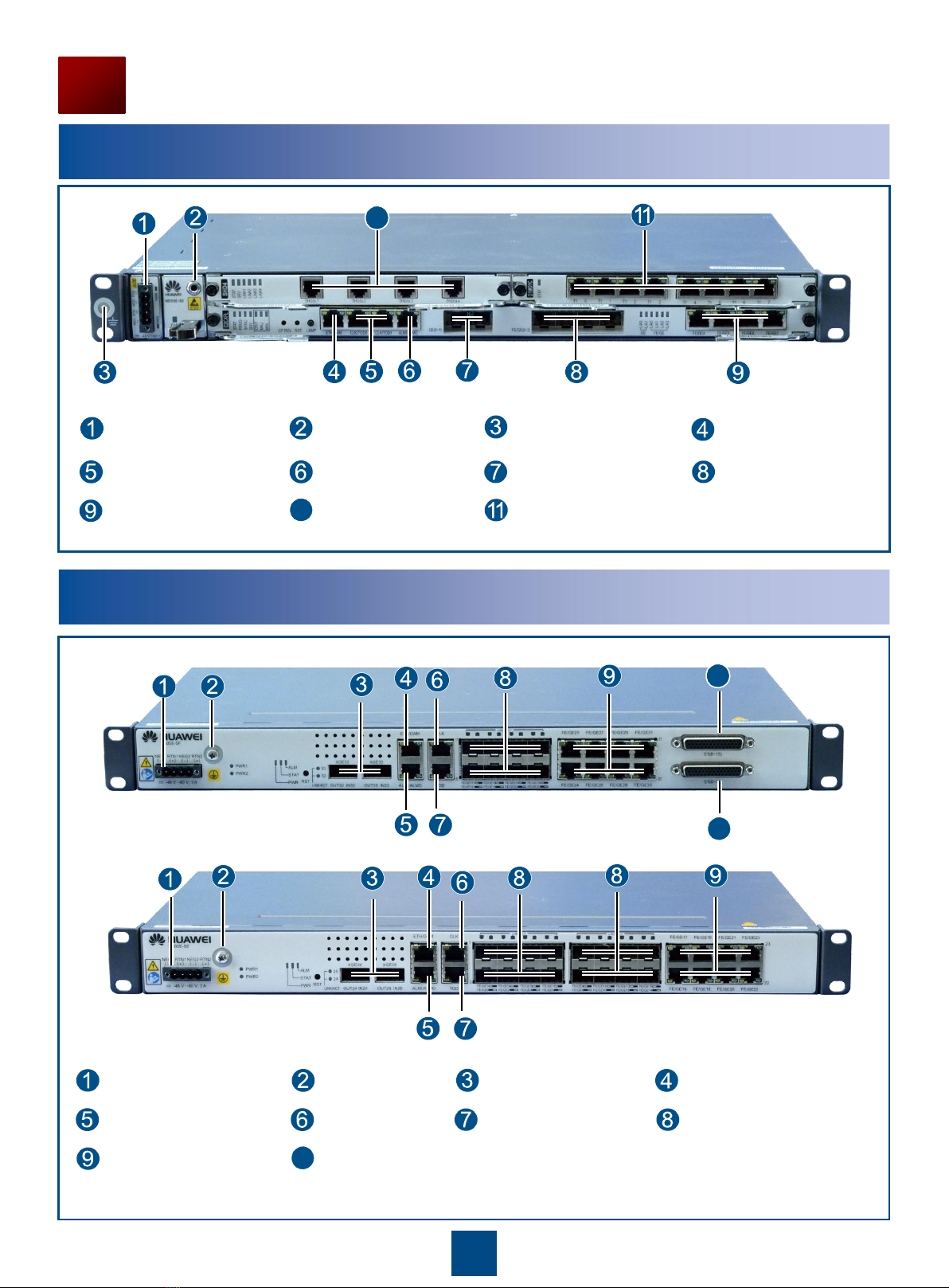

NE05E-SE/NE05E-SF
10
10
10
NM interface
(Console interface)
FE/GE optical
interface
10
10
4
NE05E-SG/NE05E-SH/NE05E-SI
Clock interface
Power supply interface
Time interface
NM interface
(Console interface)
PGND point
Electrical interface
GE optical interface
Alarm interface
E1 interface
10
10
FE/GE optical interface
FE/GE optical interface FE/GE electrical interface
Power supply interface Clock interface
10GE optical interface
Antistatic jack interface
Time interface
NM interface
(Console interface) Alarm interface
For running an AC NE05E-SQ, you must turn on the switches of both AC power modules operating
in 1+1 backup mode.
NOTE
5

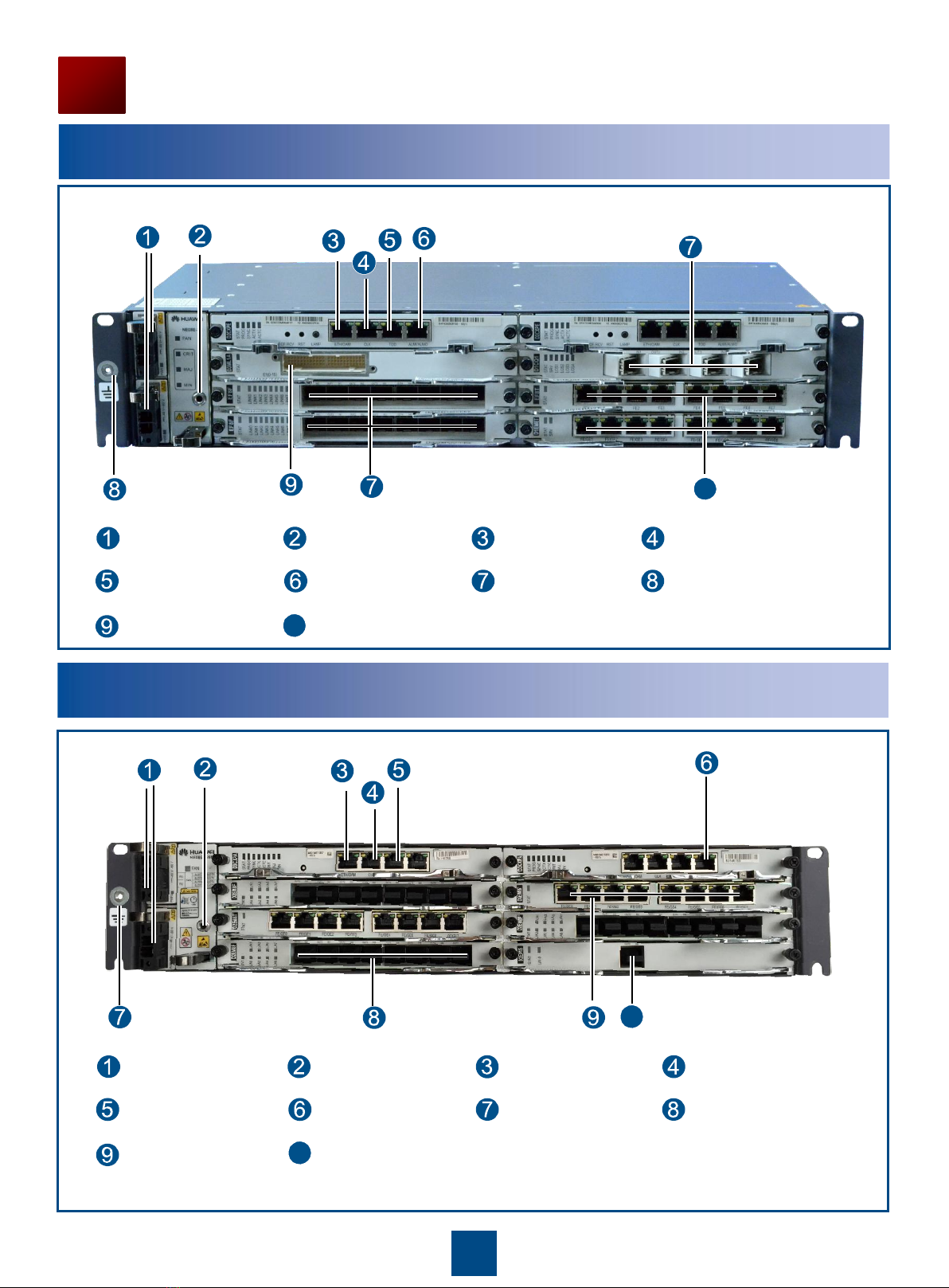

NE08E-S6
Introduction to the 2U-height Chassis
10
Alarm interface PGND point
Power supply interface
GE optical interface
Clock interface
Time interface
Antistatic jack interface
E1 interface
NM interface
(Console interface)
Electrical interface
10
NE08E-S6E
Alarm interface PGND point
Power supply interface
GE optical interface
Clock interface
Time interface
Antistatic jack interface NM interface
(Console interface)
Electrical interface
10
10
10GE optical interface
6
Overview of IMB
Introduction to IMB (Indoor Mini Box)
Installation Clearance Requirements
1. NO STEPPING sign
2. Protection plate
3. Slot assignment label
4. Cover plate
1.Installation clearance requirements for the IMB right-side-mounted on the wall
Recommended installation clearance Minimum installation clearance
Installation Clearance Requirements for the IMB
7
3.Installation clearance requirements for the IMB back-mounted on the wall
2.Installation clearance requirements for the IMB left-side-mounted on the wall
Recommended installation clearance Minimum installation clearance
Recommended installation clearance Minimum installation clearance
