Quick Start Guide

Issue: 12 (2019-08-27)

Part Number: 31507113

AR502&AR509CG Series Routers

NOTE

The accessory package of the AR502EG-L/AR502EG-La/AR502EG-Lj/AR502EGW-L/AR502EGRb-L/

AR502EGRc-Lc router does not contain the power adapter cable.

The accessory package of the AR509CG-Lc/AR509CG-Lt/AR509CG-Lt-7 router does not contain the LTE

antennas, rubber pads, and power adapter.

The accessory package of the AR509CGW-L router contains a pin for pressing the Config button but

does not contain the LTE antenna, rubber pads, or power adapter.

Items and quantities in the installation accessory package vary depending on the product model.

Installation accessory package:

- 2-pin power connector

- Quick Start Guide

- Warranty card

- Mounting brackets and screws

Installation accessory package:

- 4-pin power cable

- LTE antennas

- Quick Start Guide

- Warranty card

- Rubber pads

- Power adapter

- Ground cable

- Mounting brackets and screws

AR502CG-L

AR509CG-Lc/AR509CG-Lt/AR509CG-Lt-7/AR509CGW-L

Installation accessory package:

- 4-pin power cable

- Ground cable

- Quick Start Guide

- Warranty card

- Mounting brackets and screws

- DIP switch tool

- RS485 Phoenix terminal block

- Power adapter cable

AR502G-L-D-H/AR502GR-L-D-H/AR502EG-L/AR502EG-La/AR502EG-Lj/AR502EGW-L/

AR502EGRb-L/AR502EGRc-Lc

Installation accessory package:

- 4-pin power cable

- Ground cable

- Quick Start Guide

- Warranty card

- Mounting brackets and screws

- DIP switch tool

- RS485 Phoenix terminal block

- DI/DO Phoenix terminal block

AR502EGRz-L/AR502EGRz-Lc

- 5-pin Phoenix terminal block

- Mounting bracket

- Waterproof RJ45 connector

AR502EG-L-PD

- Pole mounting component

- Quick Start Guide

- Hose clamps

- Warranty card

Installation accessory package:

Thank you for purchasing a Huawei AR series router. This guide describes how to install AR502 and AR509CG series

routers. It also explains how to log in to your router for the first time.

For more information, see the Hardware Installation and Maintenance Guide for your router on the Huawei

support website.

The installation, connection, and login methods of AR502 series routers and AR509CG are similar. This

document uses the AR502G-L-D-H and AR502EGRz-L routers as an example.

Figures in this document are for reference only and may not show the actual appearance of the router.

1 About This Guide

2 Packing List

Do not place this product in an environment with flammable or explosive gases, or smoke.

The installation site must be free from leaking or dripping water or heavy dew. If the relative humidity is high,

use dehumidifiers or air conditioners with dehumidification features.

The installation site must be well ventilated, and the air vents of the router must not be blocked.

Do not place the router in a dusty environment.

Leave more than 100 mm clearance at two sides and rear of the router for heat dissipation.

100mm

Use a Phillips screwdriver to loosen the screw on the SIM card cover, and remove the SIM card

cover from the router. Keep the SIM card cover in an appropriate place for later use.

Push the SIM card holder toward the OPEN direction and turn it upward. Place the SIM card into

the SIM card slot, close the SIM card holder, and push the SIM card holder toward the LOCK

direction. When you hear a click, the SIM card holder is locked.

When inserting a SIM card, keep the notch on the SIM card in the same direction as the notch marked on the slot.

CAUTION

NOTE A SIM card is not hot swappable.

Industrial SIM cards are recommended for the router.

If only one SIM card needs to be installed, install it in slot SIM1.

For an AR502CG-L router, remove the SIM card cover on the front panel, and then insert a SIM card.

During installation and maintenance, take ESD protection measures, for example, wear ESD gloves or an ESD

wrist strap.

During router transport, movement, and installation, prevent the router from colliding with objects like doors,

walls, or shelves.

This product is used in restricted scenarios and must be operated by trained personnel.

Do not place other objects on the router.

CAUTION

To ensure personal and equipment safety, observe all the safety precautions on the equipment and in this

document. and items do not cover all the safety precautions and are only supplementary to

the safety precautions.

Follow all the safety precautions and instructions provided by Huawei. The safety precautions outlined in this

document are only those that Huawei can predict. Huawei is not liable for any consequence that results from

violation of regulations pertaining to safe operations or safety codes pertaining to design, production, and

equipment use.

WARNING CAUTION

WARNING AR routers are class A products. In a domestic environment, these products may cause radio interference

in which case the user may be required to take the adequate measures.

3 Safety Guidelines

4 Site Environment

5 Installing the Router

5.1 Installing AR502G-L-D-H

Install the SIM card cover back to the router and tighten

the screw to fix the cover.

3123

NOTE For an AR502CG-L, skip this step because it does not need rubber pads.

Scenario 1: Installing the Router on a Desk

Ensure that the desk is flat and properly grounded.

Leave at least 50 mm of clearance around the router for heat dissipation.

Do not place other objects on the router.

CAUTION

Attach four rubber pads in the imprinted round areas marked plus (+) signs at the bottom of the router.

Gently place the router on the desk.

Use the Phillips screwdriver to install two M4x8 pan

head screws in the marked positions on the wall,

and leave 2 mm of the screws out of the wall.

Hang the router on the M4x8 pan head screws

through mounting holes on the mounting bracket.

Fasten the M4x8 pan head screws with the Phillips

screwdriver.

2mm

3 4 5

Use a Phillips screwdriver to fix the mounting bracket on the rear of the router with four countersunk

M3x6 screws.

Use a measuring tape to determine the two mounting bracket installation positions. Keep the two

positions on a horizontal line and mark the positions with a marker.

Scenario 2: Mounting the Router on a Wall

Before drilling holes on a wall, make sure there are no power cables in the wall to avoid electric shock.

Take water-proofing measures to protect a wall-mounted router from damages caused by water.

Screws must be installed solid in the wall; otherwise, the wall-mounted router may fall down after cables are

connected.

Ensure that there are no flammable or explosive materials near the router and no obstructions within 100 mm

around the router.

CAUTION

74mm

Horizontal mounting

NOTE Before install the mounting bracket on an AR502CG-L

router, remove the DIN mounting kit at the back of the

router.

NOTE The center distance between the two mounting holes

for the mounting bracket is 74 mm.

NOTE If the spring latch is too tight to move down, you can pull down the spring latch during the installation.

NOTE The DIN mounting kit is optional and needs to be purchased separately if needed.

For an AR502CG-L router, skip step 1 because the DIN mounting kit has been installed on the router before

delivery.

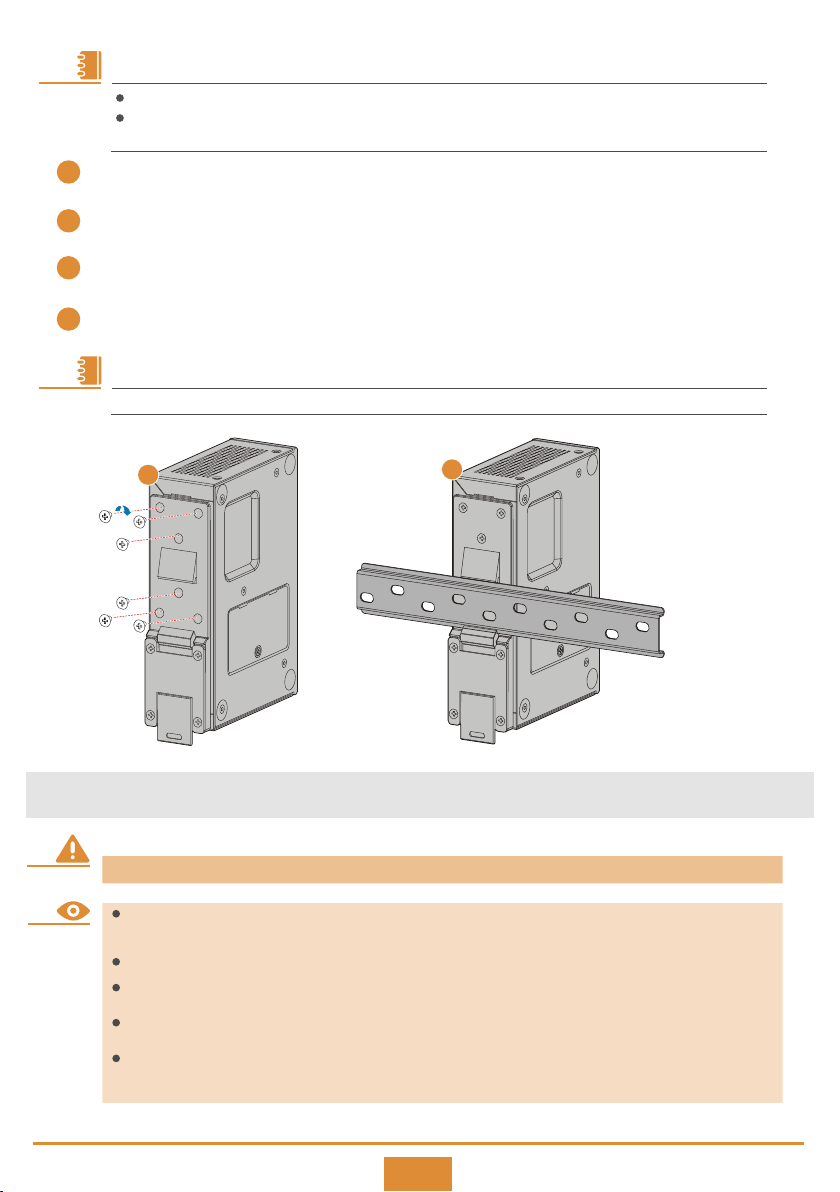

Scenario 3: Mounting the Router on a DIN Rail

Mount the DIN mounting kit onto the rear panel of the router with M3 screws, and then use a Phillips

screwdriver to tighten the M3 screws.

Place the rear panel of the router in front of the DIN rail and ensure that the DIN rail fits in between the

fixture near the top of the DIN mounting kit and the spring latch near the bottom.

Make the router incline forward with the bottom away from the DIN rail, and place the fixture at the rear of

the DIN mounting kit on the top of the DIN rail.

Slowly push the router toward the DIN rail to make the spring latch near the bottom of the DIN mounting

kit move down. The spring latch then bounces back to fix the router on the DIN rail.

CAUTION

WARNING

5.3 (Optional) Installing the AR502EGRz-L or AR502EGRz-Lc Router in an IP65 Enclosure

Assembly Box/Installing the AR502EG-L-PD

To avoid electric shock, do not connect power cables while the power is on.

When putting the cover back to the IP65 enclosure assembly box, ensure that the O-ring is flat and there is no

large gap after screws are installed. In addition, take water-proofing measures to ensure the sealing performance,

protecting the router from damages caused by water.

Screws must be installed solid in the wall; otherwise, the router may fall down after cables are connected.

Ensure that there are no flammable or explosive materials near the router and no obstructions within 100 mm

around the router.

To insert a USB flash drive in or remove it from a USB interface on the box bottom, ensure that the power is off.

Do not touch the USB flash drive when it is in use.

This product is applicable to level II overvoltage scenarios. If you want to apply it to a scenario where overvoltage

is higher than level Ⅱ, connect an effective voltage drop device to the circuit breaker. Otherwise, you may face

risks of electric shocks.

Pull the power cable out from the PG interface of the IP65 enclosure assembly box.

Use the Phillips torque screwdriver to tighten the screws with a torque of 1.3 N·m to put the cover back to

the IP65 enclosure assembly box.

Rotate the PG connector of the IP65 enclosure assembly box anticlockwise to remove it using the torque

wrench and remove the box cover.

Use the Phillips screwdriver and four M3x7 bolts to install the router (with the side where the SIM card is

installed facing up) in the IP65 enclosure assembly box.

Connect the ZigBee antenna, USB cable, power cable, and two LTE antennas in the IP65 enclosure

assembly box to the router.

5 6

Put the IP65 enclosure assembly box upside down on a table and loosen screws using the Phillips

screwdriver.

Procedure

NOTE AR502EG-L-PD does not involve installation inside the enclosure assembly box. The procedures for

wall-mounted and pole-mounted installation are similar to those for the IP65 enclosure assembly

box. The following describes the installation procedures for the IP65 enclosure assembly box.

Scenario 1: Installing a Router in an IP65 Enclosure Assembly Box (Wall-mounted)

Install the mounting bracket on the IP65 enclosure assembly box.

a. Put the mounting bracket on the back of the IP65 enclosure assembly box. Adjust the position of the

mounting bracket to align the mounting holes on it with the four screw holes on the router.

b. Use the four M5x10 screws to secure the mounting bracket to the IP65 enclosure assembly box.

Attach the IP65 enclosure assembly box mounting bracket to the wall and keep its top and bottom edges

horizontal. Use a marker to mark four mounting positions, two at the top and two at the bottom.

a. Use the hammer drill to drill holes in the four mounting positions marked on the wall and install the

expansion tube. Use the Phillips screwdriver to install the four ST4.2 self-tapping screws in the marked

positions on the wall. Leave 2 mm of the screws out of the wall.

b. Keep the interface down and hang the mounting bracket on the four ST4.2 self-tapping screws.

c. Use the Phillips screwdriver to tighten the two ST4.2 self-tapping screws in the upper mounting holes

and then tighten the two ST4.2 self-tapping screws in the lower mounting holes.

Mount the IP65 enclosure assembly box on the wall.

Scenario 2: Installing a Router in an IP65 Enclosure Assembly Box (Pole-mounted)

Pass the two hose clamps through the holes on the pole-mounted mounting bracket of the IP65 enclosure

assembly box.

2mm

a C

Secure the IP65 enclosure assembly box on the pole and use the flat-head screwdriver to secure the screws

on the hose clamps.

a. Put the mounting bracket on the back of the IP65 enclosure assembly box. Adjust the position of the

mounting bracket to align the mounting holes on it with the four screw holes on the router.

b. Use four M5x10 screws to fix the mounting bracket on the router.

Install the mounting bracket on the IP65 enclosure assembly box.

To avoid electric shock, do not connect power cables while the power is on.

Do not power on the router before you finish connecting and routing cables.

WARNING

Ensure that cables connected to the router are routed downward so that water will not drop into ports along the

cables.

For details about pin assignments and cable connections, see the Hardware Description.

NOTE

6 Connecting the Router

No. Item Connect To Remarks

RS232 cable

Network cable

RS485/RS422 cable

Power cable

LTE antennas

DI/DO cable

Ground cable

Data terminal equipment

Network interface of a network

device, such as a switch

Meter or monitoring device

External power supply system

External digital input/output

device

M4 lug: to the router

M6 lug: to the protection ground

The end with a smaller hole is the M4 lug,

and the end with a larger hole is the M6 lug.

The cable has DB9 connectors at both ends to

transmit serial data.

Connect the positive and wires of the power cable

to the corresponding terminals correctly.

NOTE For more information about indicators,

see the Hardware Description.

Indicator states when the router is running normally

Indicator Description

PWR

RUN

Steady green: The system power supply is normal.

ALM Off: The system is running properly.

Slow blinking green: The system is running properly.

Ensure the following before powering on the router:

The power cables are correctly connected.

The DC input voltage is in the range of 8 V DC to 36 V DC.

Turn on the power switch of the external power supply system.

Check the PWR and RUN indicators. If they are in normal

states, check other indicators on the router.

124

5 5

7 Powering On the Router

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Huawei Routeur réseau

Huawei

Huawei AR1220-S Caractéristiques techniques

Huawei

Huawei LTE CPE B593 Manuel utilisateur

Huawei

Huawei AR1200 Series Manuel utilisateur

Huawei

Huawei NetEngine5000E Manuel utilisateur

Huawei

Huawei WIFI AX2 Manuel utilisateur

Huawei

Huawei V200R001 Caractéristiques techniques

Huawei

Huawei OptiXstar EN8145X6Ns Manuel utilisateur

Huawei

Huawei OptiXstar EG8145X6 Manuel utilisateur

Huawei

Huawei HG552f Manuel utilisateur

Huawei

Huawei Quidway S6500 Series Instructions d'installation

Huawei

Huawei E5373s-155 Manuel utilisateur

Huawei

Huawei AR1200 Series Manuel utilisateur

Huawei

Huawei OptiXstar B671G Manuel utilisateur

Huawei

Huawei Quidway S9300 Manuel utilisateur

Huawei

Huawei EchoLife HG8240 Manuel utilisateur

Huawei

Huawei B311s-220 Manuel utilisateur

Huawei

Huawei HG530 Manuel utilisateur

Huawei

Huawei B535-333 Manuel utilisateur

Huawei

Huawei EG8143A5 Manuel utilisateur

Huawei

Huawei E586BS-6 Manuel utilisateur

Huawei

Huawei Quidway NetEngine80E Manuel utilisateur

Huawei

Huawei Pocket WiFi 3G Manuel d'installation et d'exploitation

Huawei

Huawei WIFI AX2 Manuel utilisateur

Huawei

Huawei SmartAX MT882 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
