Huawei E169 Manuel utilisateur

No part of this document may be reproduced or transmitted in any form or by any

means without prior written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co.,

Ltd.

All other trademarks and trade names mentioned in this document are the

property of their respective holders.

Notice

The information in this document is subject to change without notice. Every effort

has been made in the preparation of this document to ensure accuracy of the

contents, but all statements, information, and recommendations in this document

do not constitute the warranty of any kind, express or implied.

iii

Table of Contents

What Is in Your Package .................................................................................. 1

Getting to Know Your E169 Mobile Broadband modem .................................. 2

Preparation ....................................................................................................... 4

Installation/Removal Guide.............................................................................. 5

Warnings and Precautions................................................................................ 8

Acronyms and Abbreviations ......................................................................... 13

Thank you for choosing Huawei E169 HSDPA USB Stick

Mobile Broadband modem (hereinafter referred to as the

E169).

With the E169, you can access the Internet through

wireless network at a high speed.

Note: This manual describes the appearance, installation and removal of

the E169. For the operation of the management program, refer to the

User Manual.

What Is in Your Package

The package of your E169 contains the following items:

One E169 Mobile Broadband modem

One Quick Start

One USB cable

Getting to Know Your E169 Mobile Broadband

modem

The following figure shows the appearance of the E169. It is only for your

reference. The actual product may differ.

USB Interface

It connects the E169 to a computer.

SIM/USIM Card Slot

It is where you insert the subscriber identity module/UMTS subscriber identity

module (SIM/USIM) card.

Indicator

It indicates the status of the E169.

Colour

Status

Meaning

Green

Blinking (on for 100ms and

off for 100ms; then on for

100ms and off for 2700ms)

The E169 is powered on.

Green

Blinking (on for 100ms and

off for 2900ms)

The E169 is registered to a GPRS

(GSM/GPRS/EDGE) network.

Blue

Blinking (on for 100ms and

off for 2900ms)

The E169 is registered to a UMTS

(WCDMA/HSDPA) network.

Green

The E169 is connected to a GPRS

network.

Blue

The E169 is connected to a WCDMA

network.

Cyan

The E169 is connected to a HSDPA

network.

Off

The E169 is removed.

Micro SD Card Slot

It is where you insert the Micro Secure Digital Memory (SD) card

External antenna jack (accessory)

It connects the E169 to an external antenna.

Preparation

Requirements for the Computer

To use the E169, the computer must meet the following requirements:

USB Type A Receptacle, Compatible with USB 2. 0 Full Speed.

CPU: 133 MHz or above. 500 MHz or above is recommended.

Memory: 128 MB RAM or above.

Free space on the hard disk: 50 MB or above.

Windows XP/2000/Vista is installed.

Resolution for the display: 800 × 600 or above. 1024 × 768 is recommended.

Getting Your E169 Ready

Remove the UMTS USIM/SIM card slot from the E169.

Insert the USIM/SIM card into the card slot.

Insert the card slot into the E169.

Installation/Removal Guide

On different operating systems (OSs), the installation and removal procedures

may differ. Follow the system prompts during operation.

Connecting the E169 with a Computer

Note: First, power on the computer. Then connect the E169 with the

computer. Otherwise, the E169 cannot be installed as normal.

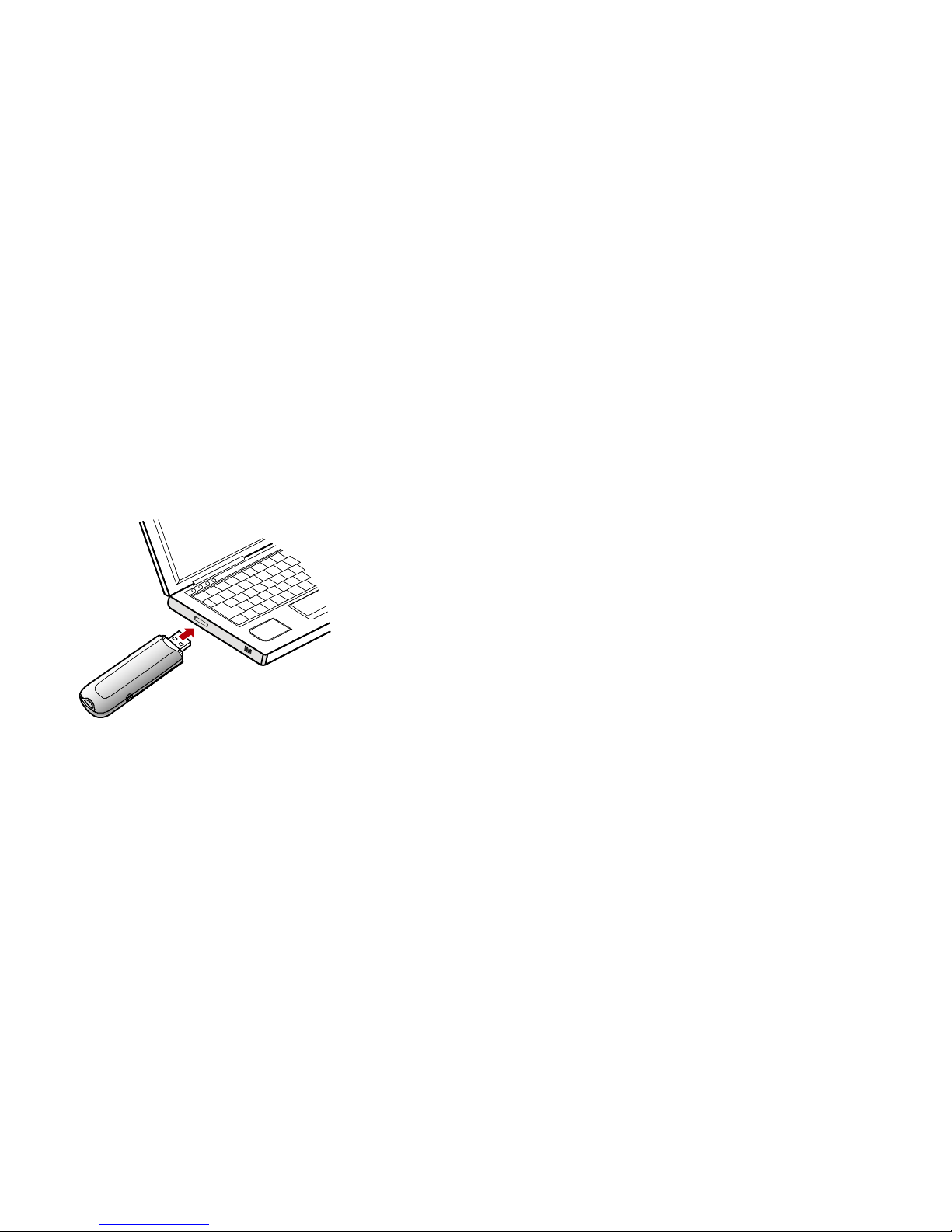

Plug the E169 into the USB interface of the laptop or desktop computer.

You can connect the E169 to a laptop or desktop computer using the USB

cable for better signals.

The OS automatically detects and recognises new hardware and starts the

installation wizard.

Follow the prompts of the installation wizard.

After the program is installed, a shortcut icon for the E169 management

program is displayed on the desktop.

Starting the Management Program

Double-click the shortcut icon on the desktop to start the management

program of the E169.

When the SP Code prompt appears, enter the SP Code ''broadband''.

Enter the personal identity number (PIN) code if you have enabled the PIN

lock.

Removing the E169

Remove the E169 directly.

Removing the Management Program

Click Start Menu.

Click Control Panel.

Click Add/Remove Program to remove the management program of the

E169.

Note: Before removing the management program, exit the management

program.

Warnings and Precautions

Read the safety information carefully to ensure the correct and safe use of your

wireless device.

Interference

Do not use your wireless device if using the device is prohibited or when it cause

danger or interference with electric devices.

Medical Device

Do not use your wireless device and follow the rules and regulations set forth

by the hospitals and health care facilities.

Some wireless devices may affect the performance of the hearing aids. For

any such problems, consult your service provider.

If you are using an electronic medical device, consult the doctor or device

manufacturer to confirm whether the radio wave affects the operation of this

device.

Area with Inflammables and Explosives

To prevent explosions and fires in areas that are stored with inflammable and

explosive devices, do not use your wireless device and observe the rules. Areas

stored with inflammables and explosives include but are not limited to the

following:

Gas station

Fuel depot (such as the bunk below the deck of a ship)

Container/Vehicle for storing or transporting fuels or chemical products
