Huawei HG630 Manuel utilisateur

HG630 Home Gateway

User Guide

HUAWEI TECHNOLOGIES CO., LTD.

HG630 Home Gateway

V100R001

User Guide

Issue 01

Date 2012-09-18

Part Number 202531

Huawei Technologies Co., Ltd. provides customers with comprehensive

technical support and service. Please feel free to contact our local office

or company headquarters.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: mobile@huawei.com

rights reserved.

No part of this document may be reproduced or transmitted in any form or by any means

without prior written consent of Huawei Technologies Co., Ltd.

The product described in this manual may include copyrighted software of Huawei

Technologies Co., Ltd and possible licensors. Customers shall not in any manner

reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse

engineer, lease, assign, or sublicense the said software, unless such restrictions are

prohibited by applicable laws or such actions are approved by respective copyright

holders under licenses.

Trademarks and Permissions

, , and

are trademarks or registered trademarks of Huawei

Technologies Co., Ltd.

Other trademarks, product, service and company names mentioned are the property of

their respective owners.

Notice

Some features of the product and its accessories described herein rely on the software

installed, capacities and settings of local network, and may not be activated or may be

limited by local network operators or network service providers. Thus the descriptions

herein may not exactly match the product or its accessories you purchase.

Huawei Technologies Co., Ltd reserves the right to change or modify any information or

specifications contained in this manual without prior notice or obligation.

NO WARRANTY

THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS’’. EXCEPT AS

REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR

CONTENTS OF THIS MANUAL.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE

SHALL HUAWEI TECHNOLOGIES CO., LTD BE LIABLE FOR ANY SPECIAL,

INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOST PROFITS,

BUSINESS, REVENUE, DATA, GOODWILL OR ANTICIPATED SAVINGS.

Import and Export Regulations

Customers shall comply with all applicable export or import laws and regulations and will

obtain all necessary governmental permits and licenses in order to export, re-export or

import the product mentioned in this manual including the software and technical data

therein.

Contents

1 Connecting the Cables and Getting Started ........................... 1

1.1 Connecting Cables Using the DSL Port ..........................................1

1.2 Connecting Cables Using the USB Port ....................................2

2 Setting Network Access Parameters....................................... 3

2.1 Logging In to the Web-based Configuration Utility..........................3

2.2 Configuring a Dial-up Connection for Internet Access...............4

3 Setting Up a Wireless Connection........................................... 5

3.1 Setting Up a Wireless Connection With the WPS Button ..........6

3.2 Setting Up a Wireless Connection Manually..............................6

4 Maintenance Guide ................................................................... 8

4.1 Changing the User Name and Password for the Web-Based

Configuration Utility...........................................................................8

4.2 Enabling or Disabling the Wireless Network Function .....................8

4.3 Changing the Wireless Network Name and Password.......................9

4.4 View and Configure the PIN ........................................................10

4.5 Configuring the Firewall .............................................................11

4.6 Changing the IP Address Used to Log In to the Web-based

Configuration Utility.........................................................................11

4.7 Restoring Default Settings ...........................................................12

5 Applications Guide ................................................................. 13

5.1 Accessing a Portable Storage Device Using the FTP Client....13

5.2 Allowing Internet Users to Access an Internal Resource Server

.......................................................................................................14

6 FAQs......................................................................................... 16

7 Appendix.................................................................................. 19

7.1 Indicators ...................................................................................19

7.2 Ports and Buttons........................................................................21

7.3 Default Settings ..........................................................................23

7.4 Technical Specifications ...........................................................23

1 Connecting the Cables and Getting

Started

Thank you for purchasing the HG630 Home Gateway (hereinafter referred to as

the HG630).

You can go online using the DSL and USB modem services.

1.1 Connecting Cables Using the DSL Port

Connecting Cables

If your home has opened the DSL broadband service, you can go online

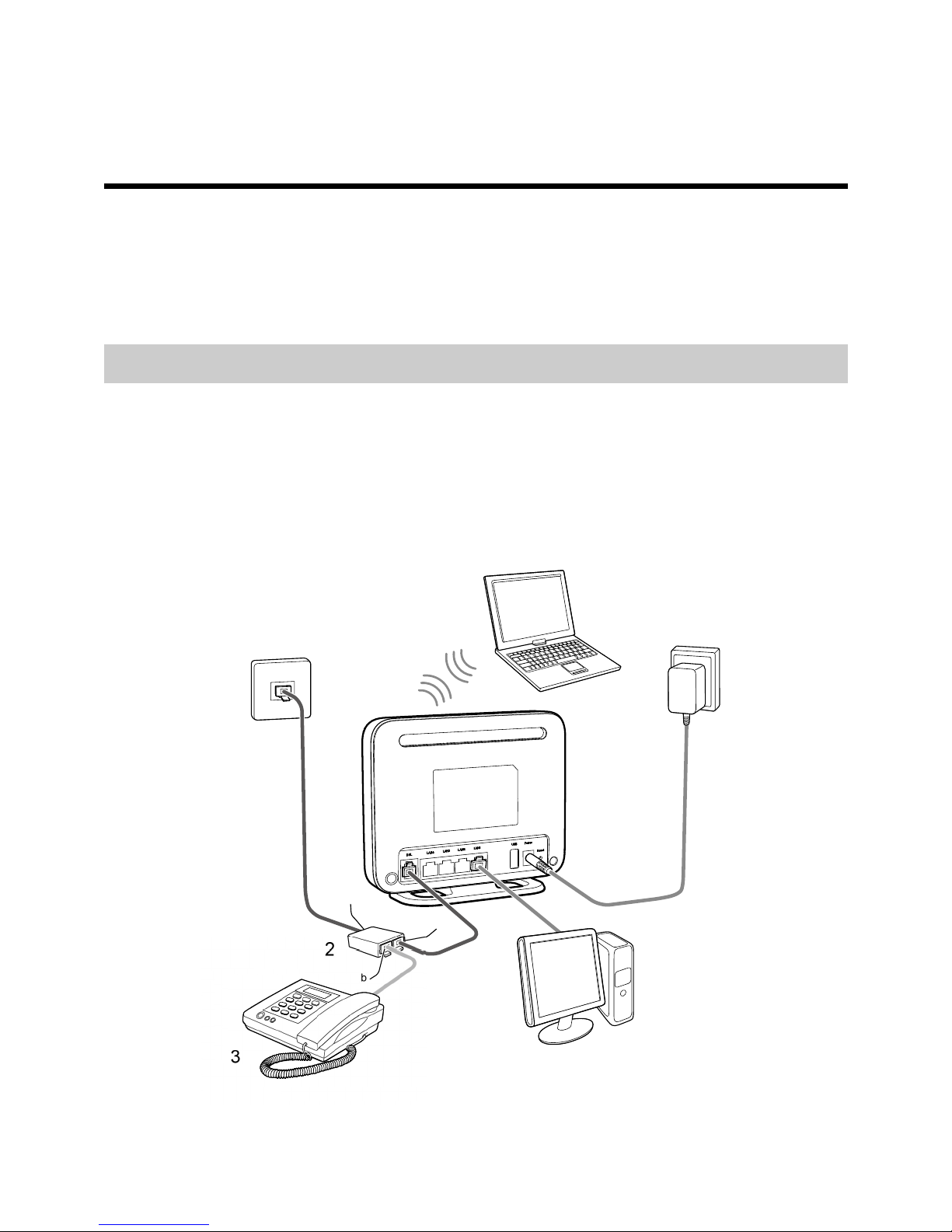

through telephone wall jack. The following figure shows an example of how to

connect the cables. In this example, the HG630 is connected to a desktop

computer, a laptop computer, and a telephone.

1. Telephone wall jack

2. Splitter

3. Telephone

4. Desktop computer

5. Power adapter

6. Laptop computer

7. HG630

a. Splitter LINE port

b. Splitter PHONE port

c. Splitter MODEM port

1.2 Connecting Cables Using the USB Port

Connecting Cables

The following figure shows an example of how to connect the cables. In this

example, the HG630 is connected to a desktop computer, a laptop computer,

and a USB modem.

Laptop computer 2.

Desktop computer 3.

USB modem

Power adapter 5.

HG630

HG630 supports USB modem of E220, E169, E176G, E180,

E1690, E1820, E1780 and E660.

When you do not need to go online, remove the USB modem.

Otherwise, your operator may continue to charge you for USB

modem services.

Getting Started

After connecting the cables, press the On/Off button on the side of the HG630

to power on the HG630.

After you power on the HG630, the Power indicator turns on, this indicates that

the HG630 is working properly.

To power off the HG630, press the On/Off button on the side panel,

and then unplug the power adapter.

2 Setting Network Access Parameters

2.1 Logging In to the Web-based Configuration

Utility

Most of the HG630 parameters are preset before delivery to meet common

home application scenarios. To check the HG630's working status or configure

certain advanced network functions, use the web-based configuration utility.

To log in to the web-based configuration utility,

Step 1 Set up network access for your computer. Set the network connection

of your computer to obtain an IP address automatically.

Step 2 Open a web browser on your computer and ensure that the browser

does not use any proxy servers.

Using Internet Explorer 8.0 as an example to ensure no proxy servers

are used:

1. Choose Tools > Internet Options.

2. On the Connections tab of the Internet Options dialog box, click

LAN Settings.

By default, the Dynamic Host Configuration Protocol (DHCP)

function is enabled. The HG630 then assigns an IP address to your

computer automatically. If you disable the DHCP function, please

ensure that the IP address of the computer and that of the HG630

LAN port are in the same network segment to enable the computer to

access the web-based configuration utility.

3. In the Proxy server area, ensure that Use a proxy server for your

LAN is cleared. If Use a proxy server for your LAN is selected, clear

Use a proxy server for your LAN, and then click OK.

Step 3 Enter http://192.168.1.1 in the address bar, and then press Enter.

Step 4 Enter the user name (default is user) and password (default is

HuaweiUser) in the Username and Password text boxes.

Step 5 Click Login.

After the system verifies your account information, the web-based configuration

utility is displayed.

2.2 Configuring a Dial-up Connection for

Internet Access

The HG630 works in routing mode by default. And the HG630 starts to set up a

dial-up connection automatically after the startup. You can access the network

after you power on your computer. You do not need to install any special dial-up

software on your computer or perform dial-up operations on your computer.

To configure the HG630 and your computer for the network access, do as

follows:

Step 1 Log in to the HG630's web-based configuration utility.

Step 2 Click Setup Wizard to display the Wizard tab.

Step 3 Click Next.

Step 4 In WAN device, select the type for your device, and then click Next.

ADSL or VDSL device, enter the user name and password that are

provided by your service provider in User name and Password text

box.

UTMS device, enter the APN and dial number that are provided by

your service provider in APN and Dial number text box.

For security reasons or to make the password easy to remember, you

can change the user name and password for the web-based

configuration utility. For details, see section 4.1 "Changing the User

Name and Password for the Web-Based Configuration Utility".

If your SIM card need to verify the PIN, please see chapter 4.4 “View

and Configure the PIN”.

Step 5 In User name and Password, enter the user name and password that

are provided by your service provider, and then click Next.

Step 6 In SSID and WPA pre-shared key, set a wireless network name and

password, and then click Next.

Step 7 Confirm the information you set and then click Submit.

Then check the status of the Internet indicator. When the Internet indicator

turns green, you can access the Internet.

The preceding operations need only be performed on a computer once. The

next time when you power on the computer, you can access the Internet without

any other configurations.

3 Setting Up a Wireless Connection

If a wireless network adapter is installed on your computer, you can connect

your computer to the HG630 over a wireless connection.

The HG630's wireless network function is enabled by default. To check the

function status, see section 4.2 "Enabling or Disabling the Wireless Network

Function".

There are two methods for setting up a wireless connection between the

HG630 and your computer.

The default wireless network name and password which are printed

on the label of the HG630's rear panel are preset before delivery.

They are unique and safe. If you do not want to modify them, click

Next.

The method for installing the wireless adapter and its driver varies by

vendor. For details, see the installation guide provided by the vendor

of your wireless adapter.

Autres manuels pour HG630

Table des matières

Autres manuels Huawei Porte

Huawei

Huawei HG532e Manuel utilisateur

Huawei

Huawei eA380 Manuel utilisateur

Huawei

Huawei HG630B Manuel utilisateur

Huawei

Huawei HG658 Manuel utilisateur

Huawei

Huawei HG659 Manuel utilisateur

Huawei

Huawei EchoLife HG532 Manuel utilisateur

Huawei

Huawei OptiXstar B850G-8E8P3W3 Manuel utilisateur

Huawei

Huawei EchoLife HG550 Manuel utilisateur

Huawei

Huawei RRU3201 Manuel utilisateur

Huawei

Huawei DG8245W2 Manuel utilisateur

Huawei

Huawei Echolife HG520b Manuel utilisateur

Huawei

Huawei HG655a Manuel utilisateur

Huawei

Huawei B200 Series Manuel utilisateur

Huawei

Huawei HG630 Manuel utilisateur

Huawei

Huawei B311-521 Caractéristiques techniques

Huawei

Huawei eLTE2.2 eA660 Series Manuel utilisateur

Huawei

Huawei HG659 Manuel utilisateur

Huawei

Huawei B686 Manuel utilisateur

Huawei

Huawei Pocket WiFi 3G Manuel utilisateur

Huawei

Huawei B683 Caractéristiques techniques

Huawei

Huawei eSpace EGW1520A Manuel utilisateur

Huawei

Huawei EchoLife HG520s Manuel utilisateur

Huawei

Huawei HG532t Manuel utilisateur

Huawei

Huawei HG658c Manuel utilisateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur

RTA

RTA 460MCBC-N2E Fiche technique
