HPRT TP80 Series Manuel utilisateur

Net Configuration

Tool Manual

TP80 Series

Rev:1.0

CONTENT

1. Statement............................................................................................................................................ 3

2. Printer Connecting............................................................................................................................... 4

3. Set the IP Address for Printer.............................................................................................................. 4

4. Configurate the Net Tool..................................................................................................................... 9

TP80 Series ●Net Configuration Tool

1. Statement

This manual content shall not be changed without permission and our company reserve the rights

to make changes in it. Please contract our company, if the user needs further information about

the products. Without any written permission from our company, any section of this manual is

prohibited to be copied or transferred in any form.

This manual describes how to install and configure Network Tools on the HOST. Please read the

following instructions carefully and follow the instructions.

This soft applies to the following operating systems:

Microsoft Windows 10 (32 bit/64 bit)

Microsoft Windows 8 (32 bit/64 bit)

Microsoft Windows 7 SPI (32 bit/64 bit)

Microsoft Windows Vista SP2 (32 bit/64 bit)

Microsoft Windows Server 2012(64 bit)

Microsoft Windows Server 2008 R2

Microsoft Windows Server 2008 SP2(32 bit/64 bit)

Microsoft Windows Server 2003 R2 SP2(32 bit/64 bit)

TP80 Series ●Net Configuration Tool

2. Printer Connecting

●Check the printer is switched on.

●Make sure that the printer is on the same LAN as the computer (for example, connect to the

same router access point).

3. Set the IP Address for Printer

●Check the IP address of the host. Such as: 192.168.1.105

●Open the utility tool, then choose the printer model.

(Take TP808 for example. The following figures take windows XP for example, there are some

differences in your screen.)

TP80 Series ●Net Configuration Tool

●Click the Advanced Settings, then click the Ethernet Setting.

TP80 Series ●Net Configuration Tool

●Ethernet Setting

Note: This setting includes Auto assignment IP and Static IP mode, choosing one of the

modes to connect).

Auto assignment IP: this mode automatically assigns the IP address to the printer. After setting,

restart the printer.

TP80 Series ●Net Configuration Tool

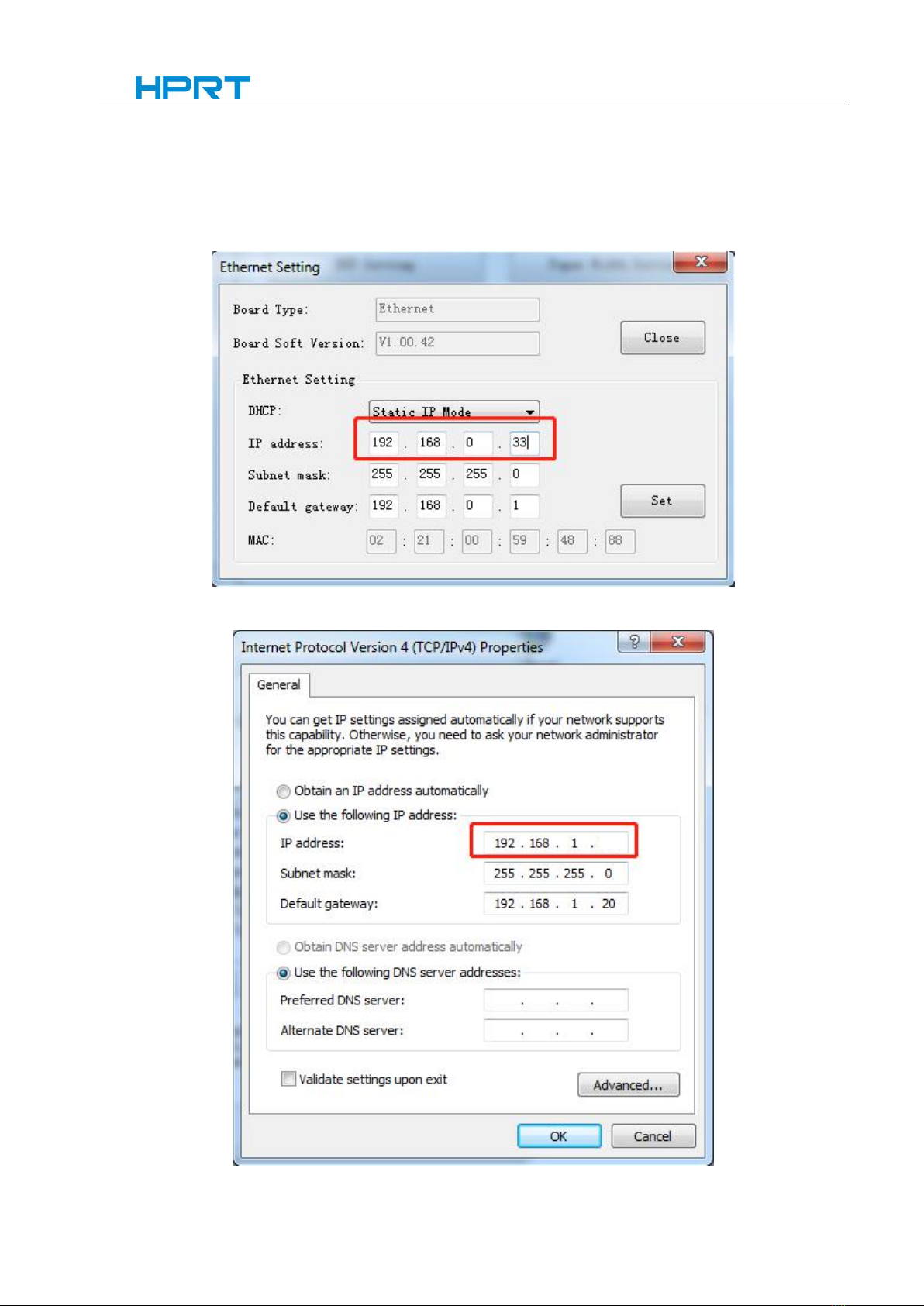

Static IP mode: Change the printer IP address to make the IP address of the printer is the same

segment as the IP address of the host.

Printer IP address：(Such as: 192.168.0.33)

Check IP address of the PC: (Such as: 192.168.1.13)

TP80 Series ●Net Configuration Tool

Change IP address of the printer：

TP80 Series ●Net Configuration Tool

4. Configurate the Net Tool

●Double click the “HPRTNetWorkUtilityForPOS VX.X.X.X”，then double click .exe software to run it in the

host.

●Open the tool, then click the “Scan the printer” to identify printers that are on the same LAN as the

current host.

TP80 Series ●Net Configuration Tool
