HP JH306A Manuel utilisateur

The HP 525-R is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11a/b/g/n/ac product. The Wi-Fi CERTIFIED Logo is a

certification mark of the Wi-Fi Alliance.

HP 525-R Wireless Dual Radio

Outdoor 802.11ac Access Point

quick start guide

This quick start guide shows you how to install and get started using the

HP 525-R Wireless Dual Radio Outdoor 802.11ac Access Point (RMN

BJNGA-FB0008) JH306A (AM), JH307A (WW), hereafter referred to as the

HP 525-R.

Hardware overview

Back view

1: 5GHz radio port

2: 2.4GHz radio port

Front view

Bottom views

3: Fiber port(reserved)

4: Copper port

5: Console port

345

The HP 525-R is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11a/b/g/n/ac product. The Wi-Fi CERTIFIED Logo is a

certification mark of the Wi-Fi Alliance.

Package contents

The HP 525-R, mounting bracket, pole-mounting plate, bolt, weatherproof

connector, sealing nut, grounding cable, sealing plug, wall anchor kit,

MAC address label, and documentation.

Ports

One Gigabit Ethernet port: Auto-sensing 1000Base-T Ethernet port

with RJ-45 connector.

One console port: Console port with RJ-45 connector.

Radio and antennas

The HP 525-R supports dual band concurrent 802.11n(2.4GHz) and

802.11ac(5GHz). It has two external antennas for each radio supporting

2x2 MIMO with two spatial streams at a total maximum rate of up to 1.16

Gbps.

Status LEDs

Power

ETH1(10

/100M)

ETH1(10

00M)

2.4G

Description

Off

The HP525-R has no power.

Yellow On

Off

Power applied.If the power LED

Status LEDs power

2.4GHz radio

5GHz radio

Fiber port(reserved)

10/ 100M ethernet port

1000M ethernet port

The HP 525-R is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11a/b/g/n/ac product. The Wi-Fi CERTIFIED Logo is a

certification mark of the Wi-Fi Alliance.

Power

ETH1(10

/100M)

ETH1(10

00M)

2.4G

Description

remains orange after several

minutes, the software failed to

load.

Green,

flashing every

2 seconds

(0.5Hz)

Off

The AP is starting up.

Green,

flashing every

1 second

(1Hz)

Off

The AP is looking for an IP address

or building the list of VLANS on

which to perform discovery.

Power, Eth1 (10M/100M) and Eth1

(1000M) LEDs flashing green in

sequence

Off

The AP has obtained an IP address

and is attempting to discover a

controller.

Green On

Eth1 (10M/100M) and

Eth1 (1000M) LEDs

flashing green

alternately

Off

The AP has found a controller and

is attempting to establish a tunnel

with it.

Green On

Off

Any

The Ethernet interface is not

connected or there is no activity.

Green On

Green

Off

Any

The Ethernet interface is active on

a valid 10/100Mbps copper link.

Green On

Off

Green

Any

The Ethernet interface is active on

a valid 1000Mbps copper link.

Green On

Any

Gree

n On

Any

The 2.4GHz Radio interface has

clients.

Green On

Any

Gree

n On

The 5GHz Radio interface has

clients.

Powering the HP 525-R

The HP 525-R can be powered by using a PoE injector, or a PoE-enabled

switch that supports 802.3at and provides 10/100 Mbps or 10/100/1000

Mbps Ethernet ports.

Before you connect power to the AP, verify that the power supply is

steady.

The HP 525-R is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11a/b/g/n/ac product. The Wi-Fi CERTIFIED Logo is a

certification mark of the Wi-Fi Alliance.

Important information to read

before installing

Professional installation is required. Before installing or using the AP,

consult with a professional installer trained in RF installation and

knowledgeable in local regulations including building and wiring codes,

safety, channel, power, and license requirements for the intended country.

The end user is responsible for ensuring that installation and use comply

with local safety and radio regulations.

To avoid possible bodily injury or equipment damage, read the following

safety recommendations before you install an HP 525-R. The

recommendations do not cover every possible hazardous condition.

To mount the AP onto a pole by using the mounting bracket, make sure

the pole is straight up. Install the AP at the height and location as

planned.

To install the AP on a building roof, select a location with no or least

exposure to the sun. Take protection measures if required.

When you mount the AP onto a pole on a building roof, do not

overhang the AP beyond the building roof.

When you install the AP, make sure the side with the copper and fiber

ports face downwards. Route the cables downwards from the AP.

Protect the iron mounting parts from oxidation. You can spray antirust

paint on the iron mounting parts.

Installation

Pole-mounting the AP

1. Use the long hex-head bolts and the pole-mounting plate to attach

the mounting bracket to the pole.

The HP 525-R is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11a/b/g/n/ac product. The Wi-Fi CERTIFIED Logo is a

certification mark of the Wi-Fi Alliance.

Figure 1 Installing the mounting bracket to the pole

2. Screw two M6× 12 hex-head bolts into the bolt holes in the upper

part of the AP rear. Do not screw the bolts all the way.

The HP 525-R is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11a/b/g/n/ac product. The Wi-Fi CERTIFIED Logo is a

certification mark of the Wi-Fi Alliance.

Figure 2 Installing the bolts into the bolt holes

3. As shown in Figure 3, insert the two bolts into the keyhole slots on

the mounting bracket. Then slide the AP onto the bracket to secure

the AP in place.

The HP 525-R is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11a/b/g/n/ac product. The Wi-Fi CERTIFIED Logo is a

certification mark of the Wi-Fi Alliance.

Figure 3 Installing the AP

4. Screw the remaining two M6 × 12 hex-head bolts into the bolt holes

in the lower part of the mounting bracket. Then fasten the four M6 ×

12 hex-head bolts.

Figure 4 Fastening the four M6 × 12 hex-head bolts

The HP 525-R is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11a/b/g/n/ac product. The Wi-Fi CERTIFIED Logo is a

certification mark of the Wi-Fi Alliance.

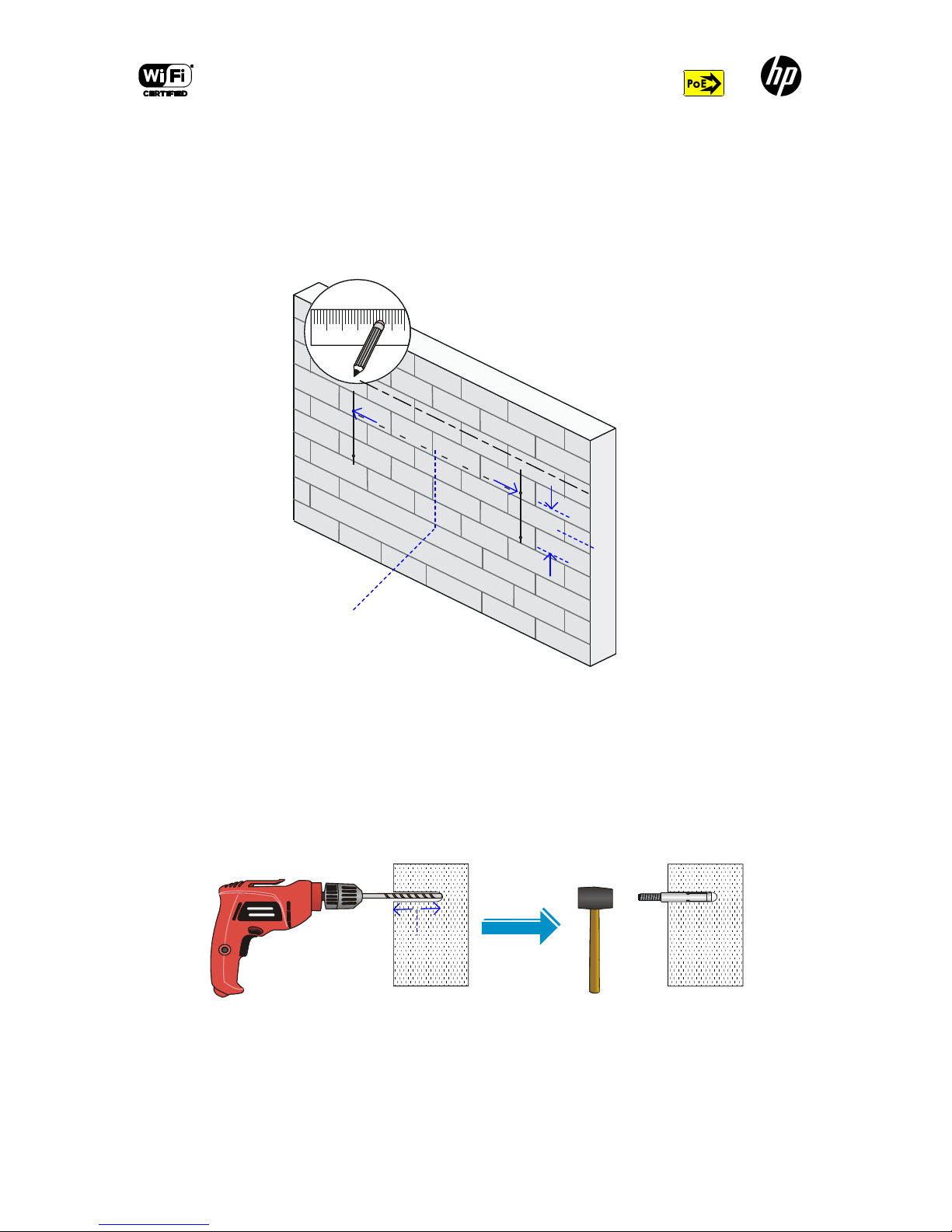

Wall-mounting the AP

1. Mark four mounting holes on the wall.

Figure 5 Marking four mounting holes on the wall

2. Drill 8 mm (0.32 in) diameter holes at the marked locations and use a

hammer to tap the wall anchor into the wall until it is flush with the

wall surface.

Figure 6 Installing the wall anchor

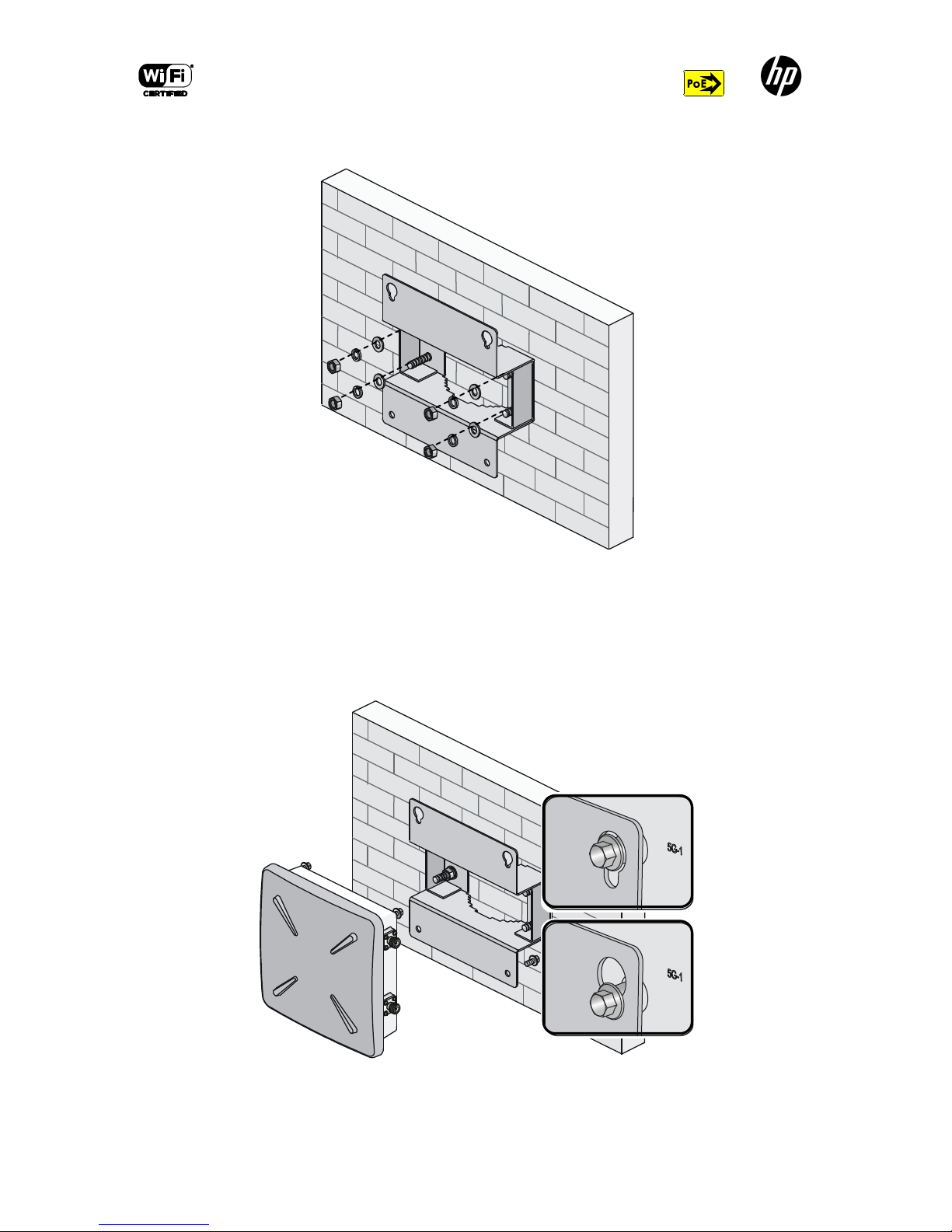

3. Use the wall anchors to attach the mounting bracket to the wall.

150 mm

5.91 in

48 mm

(1.89 in)

≥60 mm

(2.36 in)

The HP 525-R is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11a/b/g/n/ac product. The Wi-Fi CERTIFIED Logo is a

certification mark of the Wi-Fi Alliance.

Figure 7 Attaching the mounting bracket to the wall

4. Follow the procedure in "Pole-mounting the AP" to secure the AP to

the mounting bracket.

Figure 8 Install the AP

The HP 525-R is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11a/b/g/n/ac product. The Wi-Fi CERTIFIED Logo is a

certification mark of the Wi-Fi Alliance.

Connecting cables

Connecting RF cables

Connect one end of the RF cable to the antenna port on the AP and the

other end to the outdoor antenna.Use the insulating tape and then the

weatherproof sealing tape to wrap up each connector junction.

Figure 9 Connecting RF cables

Connecting Ethernet cables

1. Before you connect an Ethernet cable to the AP, loosen the sealing

nut at the end of the weatherproof connector, fasten the

weatherproof connector to the AP, fasten the nut to the

weatherproof connector, and wrap up the connector junction.

2. Feed the Ethernet cable through the weatherproof connector.

Connect the Ethernet cable connector to the Ethernet port on the AP.

Then fasten the weatherproof connector to the AP.
