About this document

This document provides procedures for rack installation of an HP

ProLiant DL100 G2 1TB, 3TB, or 6TB Data Protection Storage

Server (DP Storage Server). Instructions for installing optional HP

StorageWorks Modular Smart Array (MSA) storage systems are

included with the MSA storage system. HP assumes that you are

qualified in servicing computer equipment, and trained in

recognizing hazards in products with hazardous energy levels.

Safety information

Before installing this product, read the Important Safety

Information document provided.

Regulatory notice

The rating label on the device gives the class (A or B) of the

equipment. Class B devices have an FCC logo or ID on the label.

Class A devices do not have an FCC logo or ID on the label. After

you have determined the device class, see the HP ProLiant Data

Protection Storage Server user guide for complete regulatory

compliance notices. This guide is printed, and also provided in the

product kit as a file on the documentation CD.

Kit contents

1HP ProLiant DL100 G2 1TB,

3TB, or 6TB DP Storage

Server (Microsoft®System

Center Data Protection

Manager (DPM) software and

OS preloaded)1

1. HP StorageWorks MSA20 and cables are shipped separately.

2HP ProLiant Data Protection

Storage Server

Documentation CD (includes

HP ProLiant Data Protection

Storage Server user guide, HP

ProLiant Data Protection

Storage Server expansion

guide, and Microsoft DPM

Planning and Deployment

guide)

3Quick Restore DVD 4HP Storage Server Service

Release 5.5 DVD; use only

Multi-lingual User Interface

(MUI) updates

5Bezel 6Power cord

7Slide rail assembly2

2. Slide rail assemblies vary. The click-and-snap assemblies hook onto the

rack. The hardware-mounted assemblies attach to the rack using supplied

screws, star washers, and locator washers.

8Thumbscrew brackets and

screws

5200a

HP ProLiant DL100 G2 1TB,

3TB, and 6TB Data Protection

Storage Server

installation instructions

First edition September 2005

Product names mentioned herein may be trademarks of their

respective companies as reflected by an associated footnote. The

information in this document is subject to change without notice.

Printed in the US.

www.hp.com

Page 2

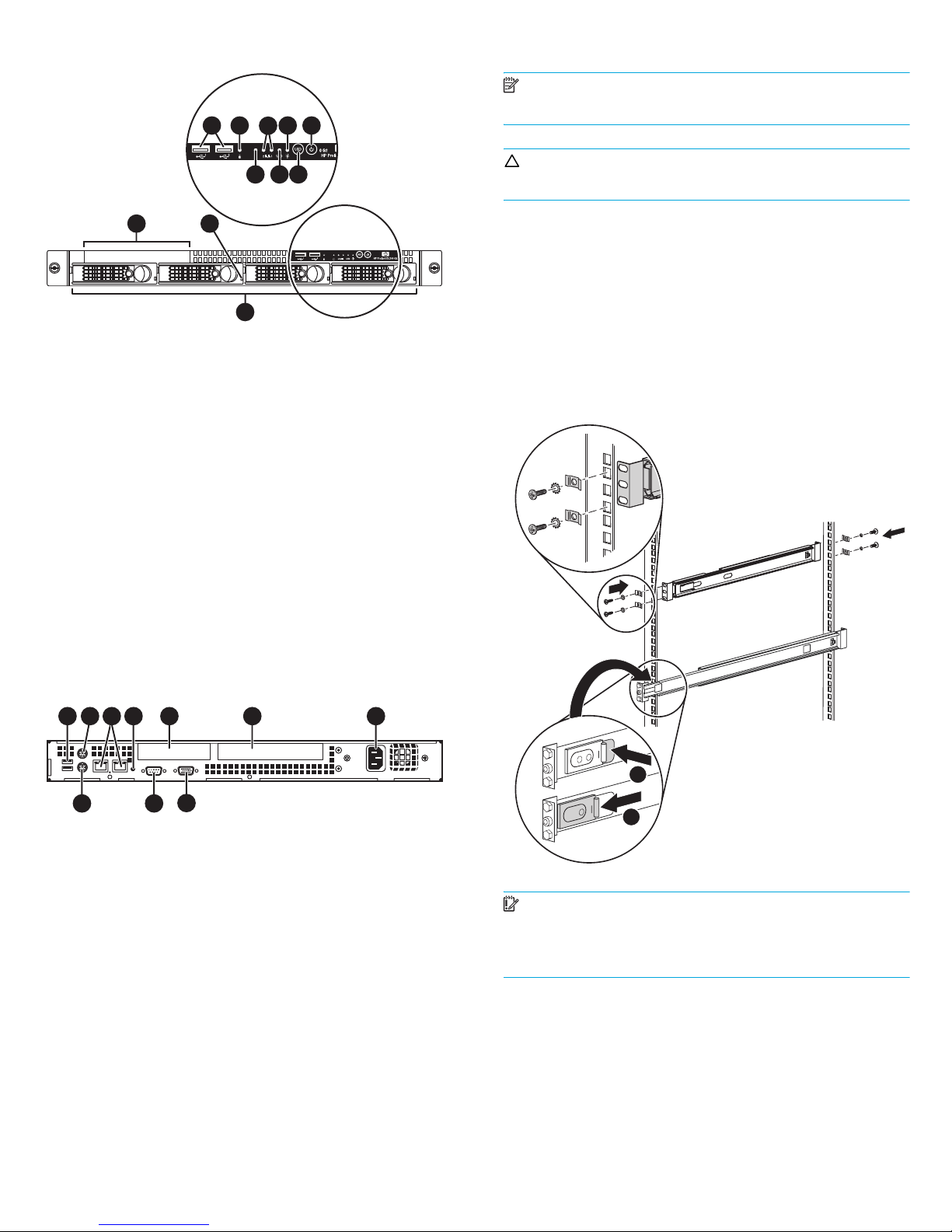

Front panel

Back panel

Installing the server into the rack

NOTE: Depending on the rail assembly provided, your slide

rails may vary slightly from those in the following illustrations.

CAUTION: Always install the heaviest item first, and continue

to populate the rack from bottom to top.

1. Install the slide rails:

a. Attach the slide rails, as shown:

• For hardware-mounted assemblies (A), mount the slide

rails onto the rack using the supplied screws and star

washers. For square-hole racks, use the provided locator

washers.

• For click-and-snap assemblies (B), hook the slide rails onto

the rack. At both ends of the slide rail, push the outer

spring latch 1, and then slide the spring mechanism

toward the rail end until the rail is secure 2.

IMPORTANT: For hardware-mounted rails, HP

recommends leaving the screws loose until the server is completely

installed. This eases installation by preventing binding of the server

in the rack.

1Slim DVD-ROM

2Individual HDD status LED

32 USB ports

4Overall HDD activity LED

5Overall HDD fault LED

6NIC LEDs

7UID LED

8Power LED

9UID button

10 Power button

11 HDD bays (0-3)

1Dual USB port

2PS/2 mouse port

3NIC connectors (RJ45) (1-2)

4UID LED

5Low profile, half length PCI-X

slot

6Full height, full length PCI-X slot

7AC power connector

8PS/2 keyboard port

9Serial port

10 D-sub VGA port

10699

3 4 8 10

5 7 9

1 2

10700

8 9

531 42 6 7

5201 A

Page 3

b. Locate the inner slide rails:

• On hardware-mounted assemblies, remove the inner slide

rails from the outer slide rails. To do so, extend the inner

slide rails from the front of the rack until they lock in place.

Then, press the inner slide lock down, as shown, and pull

the inner slide rails straight out.

• On click-and-snap assemblies, the inner slide rails arrive

separate from the outer slide rails.

2. Prepare the server:

a. Attach the two thumbscrew brackets to the server using the

supplied bracket screws, as shown 1.

b. Attach a slide rail (lock facing out) to each side of the server,

insert the slide rail screws through the slide rails, and then

tighten, as shown 2.

c. Attach the bezel 3to the thumbscrew brackets, and then lock

(if desired).

3. Install the server:

a. With the outer slide rails extended a short distance from the

rack, insert the inner slide rails (with the server attached) into

the outer slide rails, as shown 1. Press the inner slide lock 2,

and then push the server all the way into the rack, making

sure that the inner slide rails lock into place.

b. Slide the server in and out of the rack several times, allowing

the slide rails to position properly 1.

c. Lock the server in place using the thumbscrews 2.

10685

5202

5203A

5204

Page 4

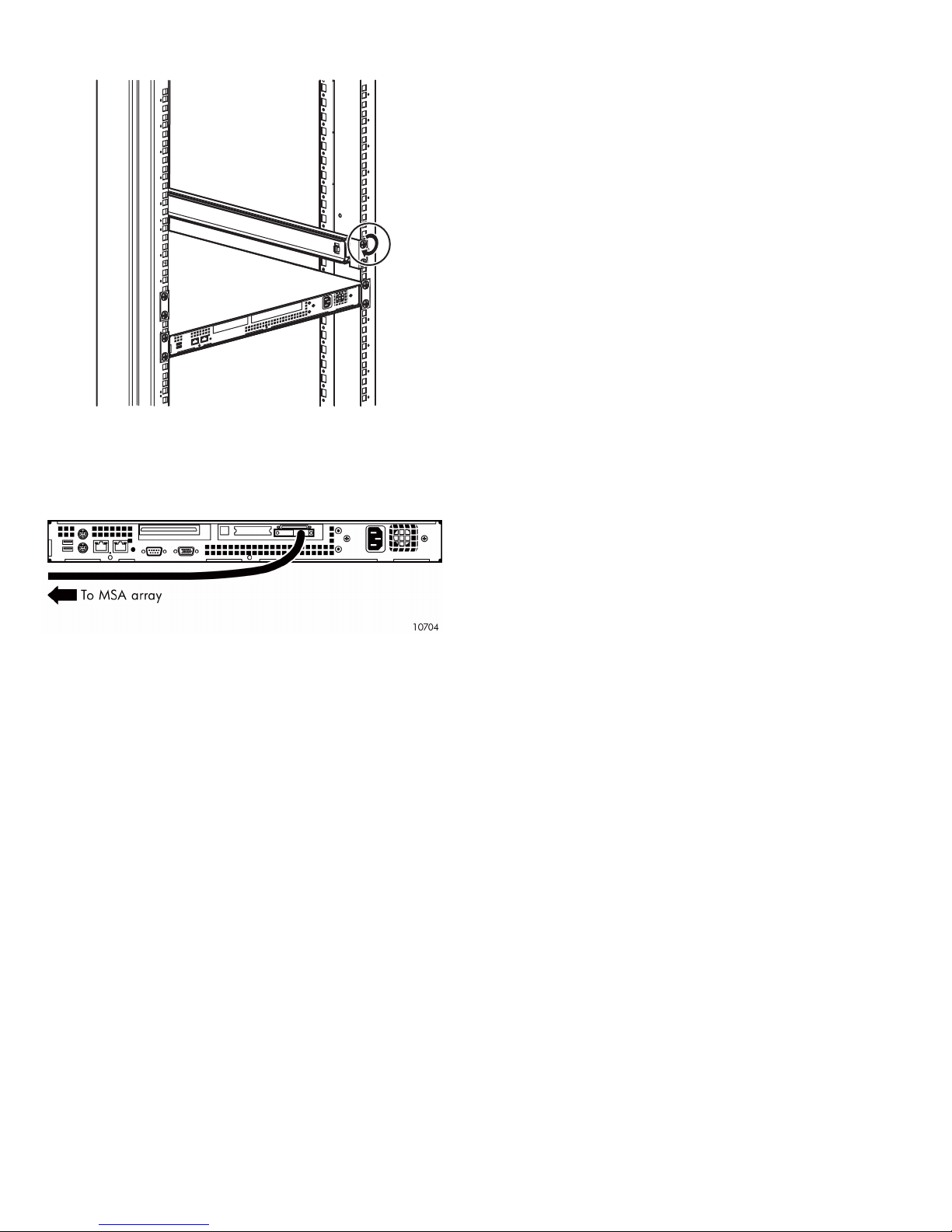

d. If installing a hardware-mounted assembly, tighten all the

slide rail screws.

4. Install the MSA cable:

• For the 3TB model, install the MSA cable, as shown.

• For the 6TB model, install the cable for the second MSA in the

adjacent slot.

5. Connect the power cord to the back of the server.

Starting the DP Storage Server

To begin the first-time startup procedure:

•Ensure that the server is safely installed in an adequate

environment.

•Ensure that the power cables and peripheral devices are

plugged in, and that AC power is supplied to the server.

•See the DP Storage Server startup chapter in the HP ProLiant

Data Protection Manager Server user guide.

5205
