HP NetServer LH 3000

with

HP Rack Storage/12FC

Windows2000AdvancedServer

Cluster Configuration Guide

13 October 2000

(see Versions at the end of this document)

Introduction

This document defines supported HP NetServer LH 3000 configurations with HP Rack Storage/12FC and

Microsoft Cluster Server. These configurations minimize single points of failure (SPOF, SPOFless1) and

provide extended availability. The specific configuration certified and supported by both Hewlett-Packard

and Microsoft is defined, as are other guidelines to assist you in configuring your clustered NetServers.

This guide is prescriptive; it describes the configurations supported by HP. Any deviance to these

configurations can result in an inoperative cluster or an operating cluster with degraded performance,

hidden SPOFs, etc., and therefore will not be supported by HP.

What's Defined in Cluster

Cluster

SPUs

Local and Shared Storage

Intra-cluster and Client LANs

Shared Storage Cabling

Cluster

Type of SPUs HP NetServer LH 3000

Each node must be the same model SPU, but may have different sizes of

main memory, cache, and CPU clock speeds.

Installation Pedestal or racked

Number of nodes 2

Shared Storage HP Rack Storage/12FC with 2 FCArray Cards, HP disks, and using a HP

D8602A HBA in each server. See Shared Storage below.

1For more information about configuring a SPOFless cluster, refer to the HP white paper, High Availability

MSCS Cluster Solutionon the HP NetServers, HA Planning website.

LANs:

Client LAN Any NIC that is HP and Microsoft approved. See Client LAN below.

For a SPOFless cluster, two D5013B NICs configured with AFT is

recommended.

Intra-cluster

(Heartbeat) LAN Embedded NIC with crossover cable, or, configure as a VLAN through an

ethernet switch. See Intra-cluster LAN below.

Power source Direct from power mains, power conditioner or uninterruptible power

supply (UPS) using any power conditioner or UPS. Redundant power

distribution units (PDU’s) are strongly recommended.

System software:

Navigator version L.18.02 or later

Operating System Microsoft Windows 2000 Advanced Server

SPU

Model HP NetServer LH 3000

Clock speed 733, 800, 933 MHz

No. of CPUs 2

BIOS version 4.06.21 PT or later (733 MHz)

4.06.24 PT or later (800, 933 MHz)

CPU cache Anysize

RAM 256 MB minimum. Must be HP.

No. of power supplies 2 standard, 3 required for redundancy, 4 for power cord redundancy.

Local storage See Local Storage below.

I/O slot Added cards may be installed in any appropriate slot, keeping in mind the

server’s default boot order as listed below:

Default Boot Order IDE CD-ROM, FDD, SE SCSI C, Embedded A, Embedded B, PCI-8,

PCI-7, PCI64-6, PCI64-5, PCI64-4, PCI64-3, PCI64-2, PCI64-1

M/S Certified

Configuration M/S Certified Configuration:

P5 - Local Storage – NetRAID-1Si

P6 – Client LAN

P8 – Shared Storage- FC HBA

Booted from embedded DAC

Storage

Local

Controller May use embedded SCSI, embedded DAC, NetRAID-3Si or NetRAID-1Si.

For SPOFless, recommend embedded DAC with drives in RAID-1 mirror,

or another fault tolerant RAID level.

Driver For embedded SCSI, use sym_hi.sys from Windows 2000 Adv. Server CD

version 5.00.2134.1 or later.

For embedded DAC and NetRAID-xSi, use mraid35x.sys version 2.62

(Navigator L.18.04.5 or later).

Cabinets (Physical drive

location) SPU internal drive bays or HP external drive cabinet (e.g., HP Rack

Storage/12), any number.

Disk drives Must be HP (hot swap or fixed)

SCSI bus Any HP cables that meet SCSI specifications and any SCSI bus speed.

SCSI Ids Any

Shared

HP Rack

Storage/12FC Required

Host Bus Adapter

Model HP Fibre Channel Host Bus Adapter - HP D8602A

No. of controllers 1

Driver Hhba5100.sys 2.06

RAID level 0, 1, 3, 5, 10

For SPOFless configurations a fault tolerant RAID type, e.g. RAID 5, is

recommended for all shared storage.

Cabinet HP NetServer Rack Storage/12FC- D5991A

RAID arrays Not more than eight physical drives per logical array and not more than

eight LUNs are permitted per cluster.

Number of cabinets 1

FC Array Cards HP Fibre Channel Array Controller - D5990A

No. of cards per cabinet 2 (Requires second card be installed in the Rack Storage/12FC)

Firmware 4.64-00 or later.

For SPOFless, use 5.46-04 (Navigator L.18.04.5 or later)

Status SCSI ID 5 (fixed)

Disk SCSI IDs 0 – 3, 8 – 15 (fixed)

Disk drives: Any HP drive supported by storage enclosure including:

HP 9.1 GB (7200 rpm) Low Profile Ultra2 SCSI Disk Module D6106A

HP 9.1 GB (7200 rpm) Low Profile Ultra3 SCSI Disk Module P1217A

HP 9.1 GB (10k rpm) Low Profile Ultra2 SCSI Disk Module D6107A

HP 9.1 GB (10k rpm) Low Profile Ultra3 SCSI Disk Module P1168A

HP 18.2 GB (7200 rpm) Half Height Ultra2 SCSI Disk Module D6108A

HP 18.2 GB (7200 rpm) Low Profile Ultra3 SCSI Disk Module P1216A

HP 18.2 GB (10k rpm) Half height Ultra2 SCSI Disk Module D7031A

HP 18.2 GB (10k rpm) Low Profile Ultra3 SCSI Disk Module P1166A

HP 18.2 GB (7200 rpm) Low Profile Ultra2 SCSI Disk Module D7174A

HP 18.2 GB (10k rpm) Low Profile Ultra2 SCSI Disk Module D7175A

HP 36.4 GB (10k rpm) Half Height Ultra2 SCSI Disk Module D8210A

HP 36.4 GB (10k rpm) Low Profile Ultra3 SCSI Disk Module D9419A

Fibre Channel Cables Optical – Server to Hub Only: 50 meter D6980A

100 meter D6981A

Copper – Server to Hub and/or Shared Storage to Hub:

3 meter D6978A

5 meter D6979A

10 meter D7080A

Hub

Model HP D6976A 6-port fibre channel hub

Quantity 1

2 for SPOFless with hubs

HP Rack Storage/12 Optional

Number of cabinets: 1 – 2

Model HP Rack Storage/12 – D5989B

plus two D6025B SCSI cards for each cabinet

Status SCSI ID 5 (fixed)

Disk SCSI IDs 0 – 3, 8 – 15 (fixed)

Disk drives: Same as HP Rack Storage/12FC

Cables Any HP LVD SCSI cables from the following list:

1 meter D7131A

2.5 meter D6020A

5 meter D6982A

10 meter D6983A

LANs

Intra-cluster (Heartbeat) LAN Client LAN

LAN connection HP D5954A crossover cable or any

equivalent. Any LAN

The intra-cluster LAN may only be

used for cluster node

communication via a crossover

cable or VLAN. It may not be used

for client communication.

NIC:

Model Embedded NIC Any that is on both the HP

Tested Products List and the

Microsoft Hardware

Compatibility List.

For SPOFless, use D5013A/or B.

Driver Hptxnt5.sys 4.01.67 (Windows 2000

A.S. CD) or later

For SPOFless, use hptxnt5.sys

version 4.2.27.0 (Navigator

L.18.04.5) or later.

The vendor supported driver.

NOTEIf the NIC used is the

same type as the embedded NIC

(D5013A/B), then the Client

LAN NIC must use the same

driver as the Intra-cluster NIC.

No. of NICs 11 minimum

For SPOFless, 2 NICs

configured as a fault tolerant

team are recommended.

Shared Storage Cabling

This part of the guide defines the cabling configurations for clusters using the HP NetServer

LH 3000 and HP Rack Storage/12FC. Only these cabling configurations and these cables are supported.

NOTES

1. The HBA and NICs may be

installed in PCI slots as follows:

Client LAN in P1

HBA in P8

Intra-cluster LAN (embedded NIC)

2. The bottom two shared

storage devices are SCSI HP Rack

Storage/12’s and are

optional to the cluster

configuration.

Fibre-channel HBA

with GBIC

6-port Fibre-channel

Hub with GBICs

Dashed( green) lines are

offset SCSI cables. See

inside this guide for

specifications.

LEGEND

Heavy (blue) lines are fibre

channel Optical or Copper

cables. See inside this

guide for specifications.

HP Microsoft Cluster (SPOF) using HP Rack Storage/12FC and Rack Storage/12

and 6 Port Fibre Channel Hub

Power Cabling to Separate Power Circuits (SPOF)

NOTES

1. The HBA and NICs may be

installed in PCI slots as follows:

Client LAN AFT team in slots P5 and P6

Intra-cluster LAN (embedded NIC)

FC HBA in P8

2. The bottom two shared

storage devices are HP Rack

Storage/12 (SCSI not Fibre

Channel devices) and are

optional to the cluster

configuration.

Fibre-channel HBA

with GBIC

6-port Fibre-channel

Hub with GBICs.

Dashed( green) lines are

offset SCSI cables. See

inside this guide for

specifications.

LEGEND

Heavy ( blue) lines are fibre

channel Optical or Copper

cables. See inside this

guide for specifications.

Each copper cable goes

to Port ‘y’ on the

RS/12FCarray

controllers.

Each copper cable goes to Port ‘x’

on the RS/12FCarray

controllers.

Solid red lines are copper

fibre channel.

HP SPOFless Microsoft Cluster using HP Rack Storage/12FC and Rack Storage/12

and two 6 Port Fibre Channel Hubs

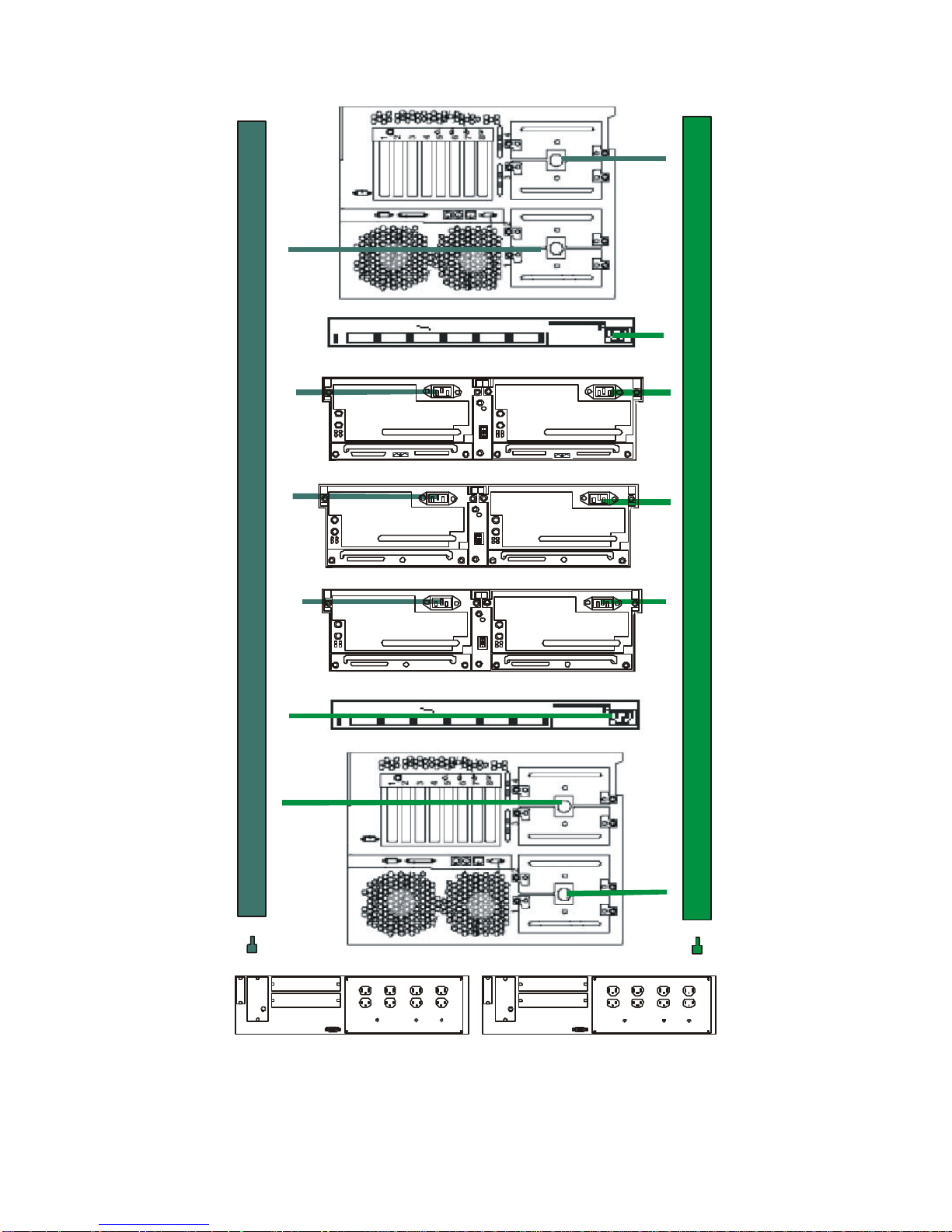

Power Cabling to Separate Power Circuits (SPOFless)

NOTE: Redundant power cabling requires 4 Power Supplies

Fibre-channel HBA

with GBIC

Dashed (green) lines are

offset SCSI cables. See

inside this guide for

specifications.

LEGEND

Solid red lines are copper

fibre channel.

For a direct connection,

copper cable goes to Port ‘x’

on first RS/12FC array

controller.

Copper cable goes

to Port ‘y’ on the

second RS/12FCarray

controller.

NOTES

1. The HBA and NICs may be

installed in PCI slots as follows:

Client LAN AFT team in slots P5 and P6

Intra-cluster LAN (embedded NIC)

FC HBA in P8

2. The bottom two shared

storage devices are SCSI HP Rack

Storage/12’s and are

optional to the cluster

configuration.

HP SPOFless Microsoft Cluster using HP Rack Storage/12FC and Rack Storage/12

with Direct Connections

Versions

13 October 2000 Removed “required” from hub spec.

5 September 2000 Corrected power supply notes.

25 August 2000 Labeled drawings with ‘x’ and ‘y’ rather than explicit ports.

23 August 2000 Added 800 and 933 MHz processors. Changed boot device specs to

include DAC. Added Ultra3 drives. Added SPOFless configuration data.

19 May 2000 Corrected drawings.

11 May 2000 Initial release.

Autres manuels pour D7171A - NetServer - LPr

117

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HP Serveur

HP 3020 Mode d’emploi

HP NonStop NS-series Manuel utilisateur

HP 226824-001 - ProLiant - ML750 Manuel technique

HP 117755-003 - ProSignia - 740 Manuel utilisateur

HP LC2000r - NetServer - 128 MB RAM Manuel utilisateur

HP DL360 - ProLiant - Photon Manuel utilisateur

HP 376227-B21 - ProLiant InfiniBand 4x Fabric Copper... Manuel utilisateur

HP Integrity MC990 X Manuel utilisateur

HP Integrity BL860c Mode d’emploi

HP ProLiant ML350 Generation 5 Manuel utilisateur

HP DL385 - ProLiant - G5 Instructions d'utilisation

HP ProLiant DL360e Instructions d'installation

HP ProLiant MicroServer Generation 8 Instructions d'utilisation

HP Cluster Platform Express v2010 Feuille d'instructions

HP 828689-002 Manuel utilisateur

HP L1000 - 9000 - 0 MB RAM Manuel utilisateur

HP D7171A - NetServer - LPr Manuel d'installation et d'exploitation

HP DL385 - ProLiant - G5 Instructions d'utilisation

HP ProLiant DL160se - G6 Server Manuel

HP ProLiant DL120 Gen9 Manuel utilisateur

HP T5125 - Compaq Thin Client Manuel utilisateur

HP ProLiant DL160 Gen8 Manuel utilisateur

HP ProLiant DL160 Generation 6 Instructions d'utilisation

HP Proliant DL580 Instructions d'utilisation

Manuels Serveur populaires d'autres marques

Dell

Dell PowerEdge R410 Manuel utilisateur

PowerNAS

PowerNAS CMA Manuel utilisateur

Supero

Supero FatTwin F617R3-FT Manuel utilisateur

MSI

MSI P1-109N-L70 Manuel utilisateur

Dell

Dell PowerEdge XE9640 Manuel

Dell

Dell PS4100 Instructions de montage

EtroVISION

EtroVISION EV3151 Manuel utilisateur

NEC

NEC Express5800/T110j Manuel utilisateur

Compaq

Compaq ProLiant 3000 Manuel

Dell

Dell PowerEdge 3YPMN Manuel utilisateur

iRobo

iRobo IPC2U Manuel utilisateur

Nortel

Nortel 1000 Con?guration guide Manuel utilisateur

Asus

Asus AP7500 Manuel d'utilisation et d'entretien

Avid Technology

Avid Technology AirSpeed 5000 Manuel utilisateur

Milestone

Milestone Husky IVO 350T Manuel utilisateur

Planet

Planet NAS-7410 Manuel utilisateur

Lenovo

Lenovo ThinkSystem SR635 V3 Manuel utilisateur

Dell

Dell PowerEdge HS5610 Manuel
