HP MP100 Manuel utilisateur
User
Manual
MP100
Support
For further information, download the HP MP100 User
Guide from: https://www.hp.com/support
Global Aiptek Inc. - HP Branded Product Group
1020 Milwaukee Ave, Suite 270, Deereld, IL 60015, USA
Email: [email protected]
Web: www.hp-projector.com
Mobile Projector
User Manual
1
Package content
Focus
Wheel
Speaker
DC-In
AUX / Earphone Jack
HDMI-Input Connector
USB Connector
Power/Mode
Ventilation
Projection Lens
Product Overview
Reset
• MP100 Projector
• HDMI Cable
• USB Cable
• Carry Pouch
• Tripod
• Power Adapter
• Quick Start Guide
• Warranty Card
EN
User Manual
2
Connect the USB cable to a Mobile phone power adapter or PC / Notebook to charge.
** The Product will be fully charged after 5 hrs from zero percent battery capacity.
Charging the product
Press the power key for 8 sec., the projector will Power on.
Long-Press the power key for 8 sec. in operation, the projector will Power off.
Turning on/off the Projector
Adjust the focus by using the focus wheel on the left side to achieve a sharper
Adjusting the Focus
EN
User Manual
3
3
Press the power button shortly, it will change connection mode between iOS
and Android, then follow the screen instructions to connect your phone to project.
Toggling between iOS and Android mode
iOS Mode
Wi-Fi
MP100-XXX
Select Network
Apple
GAC
Choose
Password:
12345678
i
i
MP100-XXX
Mirroring
Screen
Settings Wi-Fi
Screen Mirroring
Choose
then tap Mirroring
Open
“Control Center”
to tap“ Mirroring”
Android Mode
MP100-XXXMP100-XXX
Wireless Screen Mirroring
Other possible names:
TIP
• Miracast
• Smart View
• Screen Sharing
• Screen Projection
• MirrorShare
• Wireless Display
• Wi-Fi Direct
12:53
12:53
Select device
CANCEL
MP100-xxx
Mirror the Screen
Choose
WLAN Sound Bluetooth
Airplane
mode Mobile
data
Swipe down
and select
SMART VIEW
Smart View
EN
User Manual
4
1.Make sure the device is set to “iOS” mode.
2.Connect your lightning cable (not included) from iPhone to the projector then
click “Trust” in iPhone.
3.After a few seconds, the screen will be mirror projected.
USB Projection from iPhone
Using A to C type HDMI cable (mini HDMI) to connect the projector from PC/NB
or another media device.
Projecting from PC/NB or other media
devices
EN
User Manual
5
The projector does not turn
on after pressing the power
button for more than 8 seconds.
Ensure the battery is fully charged.
The surface temperature of
the projector is hot .
It is normal for this projector to
generate moderate heat during
operation.
The projected image is blurred. 1. Adjust the focus by using focus
wheel.
2. Check if the projection lens is
dirty, clean it if required.
The projector does not display
when connecting to a
notebook PC.
1.Check if the HDMI cable is
plugged correctly.
2. Make sure the PC has been
switched to projector display.
Troubleshooting
Symptom Check Point
If the projector is running slow,
freezing, crashing or locking up
during the operation, you can
try to insert a slim, pointy object
into the reset hole to trigger a
hardware reset.
If your projector does not seem to be functioning properly, please check the
following before you contact an authorized service center.
Abnormal performance
EN
User Manual
6
Specications
* All specications are subject to change without notice.
21" ~125 " (53 ~ 319cm)
Optical Technology DLP
Light Source RGB LED
Item Description
Aspect Ratio 16:9
Resolution 854 x 480 Pixels (WVGA)
Brightness Up to 100 lumens
Manual
Projection Image Size 20" ~100" (51 ~ 255cm)
Projection Distance
Wi-Fi 802.11b/g/n
Connectivity Wi-Fi, HDMI-IN, USB,Audio-Out-Jack
Power Input 5V / 3A
Battery Type Embedded 2400 mAh, Li-polymer
rechargeable battery
Operating Temperature 5 °C ~ 35 °C
Dimension (L x W x H) 97.8 x 97.8 x 23mm
3.85” x 3.85 “ x 0.90 ”
Weight 140 g / 0.30 Ib
Contrast Ratio 1000:1
Throw Ratio
(Diagonal: Distance) 1.2
Focus
0 %Offset
YESInternal Speaker
Battery Power 80 min
Battery Comsumption 12W
EN
Manuel
d’utilisation
MP100
Soutien
Pour plus d’informations, téléchargez le guide d’utilisation
du HP MP100 - https://www.hp.com/support
Global Aiptek Inc. - Groupe des produits de marque HP
1020 Milwaukee Ave, Suite 270, Deereld, IL 60015, USA
Email: [email protected]
Web: www.hp-projector.com
Projecteur Portable
Manuel d’utilisation
1
• Projecteur Pico
• Câble HDMI
• Câble USB
• Pochette de transport
Vue d'ensemble du produit
Contenu de la boîte
Entrée CC
Connecteur
d'entrée HDMI
Port USB
AUX /
Jack d'écouteur
Alimentation/Mode
Ventilation
Objectif de projection
Réinitialiser
Roulette
de mise au point
Haut-parleur
• Trépied
• Adaptateur secteur
• Guide de démarrage rapide
• Carte de garantie
FR
2
Manuel d’utilisation
Connectez l'extrémité micro USB au téléphone mobile et l'extrémité USB à
l'adaptateur secteur du téléphone mobile ou PC/portable pour la recherche.
** Comptez environ 5 h pour charger complètement le produit à partir d'une
batterie vide.
Appuyez sur la touche d'alimentation pendant 8 secondes, le projecteur s'allume.
Maintenez enfoncée sur la touche d'alimentation pendant 8 secondes, le projecteur
s'éteint.
Recharger le produit
Allumer/éteindre le projecteur
Ajustez la mise en point en tournant la bague de mise au point, pour une image
nette et claire.
Ajuster la mise au point selon la distance
FR
Autres manuels pour MP100
1
Table des matières
Autres manuels HP Projecteur
HP
HP xb31 Manuel utilisateur
HP

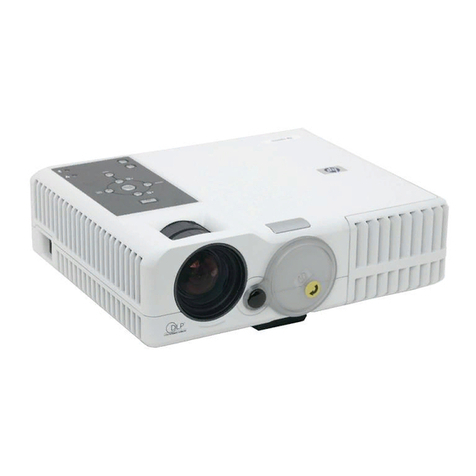

HP mp3220 Series Manuel utilisateur
