HP IP400 Manuel utilisateur
User
Manual
IP400
Intelligent Projector
Support
For further information, download the HP IP400 User
Guide from: https://www.hp.com/support
Global Aiptek Inc. - HP Branded Product Group
1020 Milwaukee Ave, Suite 270, Deereld, IL 60015, USA
Email: [email protected]
Web: www.hp-projector.com
User Manual
•IP400 Intelligent Projector (Windows Tablet + Projector + Power Bank)
•Power Adapter
•HDMI Cable
•Carry Bag
•Quick Start Guide
•Warranty Card
Projector
Front
Rear
Bottoms
Pogo Pins
Pogo Pins
Power Key
Audio Jack
HDMI Connector
DC In
Vents
Focus Wheel
Projection Lens
Speakers
Mode Select
Volume Up
Volume Down
Vents
Package Contents
Getting to know your Intelligent Projector
Mode Select
1
EN
User Manual

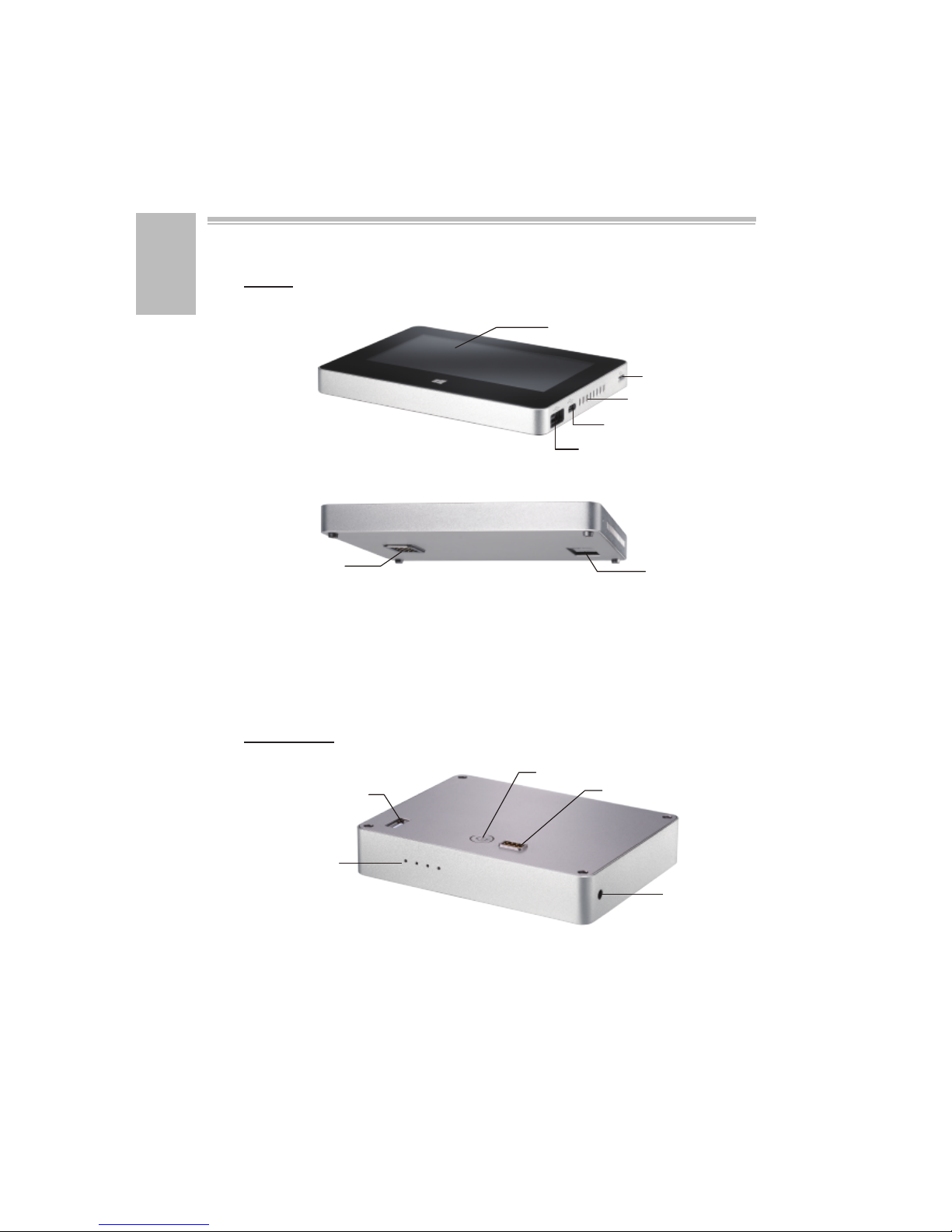

Power Bank
Tablet
Bottom
Top Touch Panel
Micro SD Slot
USB Connector
On/Off
Pogo Pins
DC In
LEDs
Pogo Pins
Power Key
Vents
MicroUSB Conector
USB Conector
2
EN
User Manual
1. Projector only (Power Adapter required)
2. Tablet + Projector (Power Adapter required)
3. Projector + PowerBank
4. Tablet + Projector + PowerBank
The Projector needs to be plugged with a power adapter into a power source or
stacked with the Power Bank (with sufficient power capacity) to operate.
Getting Started
Operating the Projector:
(1) (2)
(3) (4)
Power ON:
Press ‘Power Key’ and hold for 2 seconds to turn on projector.
Projector Screen On/Off:
Push the ‘Power Key’ to turn OFF the projector light temporarily, push again to
turn ON projector light.
Power OFF:
Press and hold ‘Power Key’ for over 3 seconds to turn off projector.
3
EN
User Manual
Adjusting the Focus
Place the projector on a at surface and
the lens toward a wall or a projection screen.
Adjust the focus by toggling the focus wheel
to achieve a sharp and clear picture at your desired projection distance.
Projector On-Screen Display Menu
IP400 allows for adjustments of Audio Volume, Brightness, Keystoning and
Projection Placement.
Press “MODE” to switch between Brightness, Keystone and Projection
Placement. Then press “SELECT” to change and activate the setting.
IP400 can project clearly from 50 to 319cm (20” ~ 125”) distance
and with projection size from 51 to 305cm (20” ~ 120”)
Brightness:
Used to adjust the projection brightness
Enhanced mode for the brightest projection performance.
Optimal mode (default) for the balance between projection
performance and battery life.
Economic mode, recommended for power saving.
Press and to adjust audio volume Up and Down.
4
EN
User Manual
Keystoning:
Used to correct the projection image from trapezoid to
rectangular at any projection angle.
Projection Placement:
Selects the way the projector faces the screen so the image is
oriented correctly.
Automatically corrects the projection shape (default).
Manually adjust the keystone Up or Down.
Front (Default)
Rear
AUTO
Front-Ceiling
Rear-Ceiling
5
EN
User Manual
Projecting Source: from an external device via HDMI or Tablet
Projection from a external HDMI device takes higher priority, compared to
the Tablet. To ensure projection from the tablet, please disconnect any external
HDMI connection.
Projecting from an External Device via HDMI
Use the HDMI cable to connect the HDMI port of the projector to the
external HDMI signal source. After connecting, the screen will switch
to the HDMI source automatically.
Projecting from iOS devices
1. Connect iPhone X, 8/8 Plus, 7/7 Plus, 6/6S Plus,
6/6S, 5/5S, iPad Pro 12.9, iPad Pro 10.5, iPad
Air, Air 2, iPad mini, mini 2, mini 3, mini 4 and
iPod Touch (5th Gen) with the projector via the
Apple Lightning Digital AV adapter and HDMI cable.
Projecting from Tablet
1. Stack Tablet on top of the Projector.
AVOID: Before turning on Projector, please make sure all the components
align and are stacked properley.
DO NOT stack Tablet upon Projector while it is still ON.
2. Turn On Tablet
Please make sure Projector is power ON (after “Waiting for HDMI signal”
or searching signal displays) before powering on the Tablet.
Blu Ray
6
2. For iPhone 4, 4S, New iPad, iPad 2 and iPod touch (4th Gen), connect the projector
with the Apple 30-pin digital AV adapter and HDMI cable.
Note: Apple Lightning Digital AV adapter and 30-pin digital AV adapter is not
included in the package.
EN
User Manual
Tablet Power ON/OFF
1. Power ON: Press and hold ‘Power Key’ of the Tablet for 3 secs to turn on.
2. Power OFF: Press and hold ‘Power Key’ of the Tablet for 3 secs till the screen
shows “Slide to shut down your PC” then slide down the screen of the touch
panel or select Start button to initiate shutdown.
* Turn OFF Tablet rst, before turning Projector OFF.
3. Projection image from the Tablet screen requires a few seconds (3) to display.
Powering the Projector
The Projector can be operated without a power adapter if the PowerBank
has sufficient power capacity (See LED light indicator).
Stack the Projector on top of the Power Bank.
• The power adapter bundled can be used to plug to the DC-in jack on either
the Projector or Power Bank
• When the Projector is stacked with the Power Bank , please plug the power
adapter into the Power Bank DC-in jack from a power source, if there is no
sufficient power.
HDMI Input Timing List
Resolution Refresh rate (Hz)
640x480 60
800x600 60
1024x768 60
1280x720 60
1280x768 60
1280x800 60
1366x768 60
1600x1200 60
1920x1080 60
1920x1200 60
7
EN
User Manual
If your projector does not seem to be functioning properly, please check the
following before you contact an authorized service center.
The projector does not
display when connecting
to an external device.
• Check the HDMI cable is plugged correctly.
• Check the power adapter or
Power Bank Unit is plugged correctly.
• Check Power Bank Unit has sufficient power
capacity.
• Use the projector in a darker environment.
• Plug in the power adapter or choose brighter mode.
• Decrease the distance placement for a smaller
but brighter projection image.
If the projector is running slow, freezing, crashing
or locking up during operation, remove the power
cable or Power Bank Unit and restart the projector.
• It is normal that this projector generates heat over
prolonged use. It will not affect the performance of
the projector.
• Always keep the ventilation slots free of dirt or
obstructions and operate the projector in a properly
ventilated environment.
• Adjust the focus.
• Check if the lens is dirty , clean it if required.
Abnormal performance
The projected image is too
dark.
The projected image is
blurred.
The surface temperature
of projector is hot.
Troubleshooting
Symptom Check Point
8
EN
User Manual
Specications - Projector
Item Description
Optical technology DLP
Light Source RGB LED
Native Resolution 1280 x 720 Pixel (720P)
LED Lifetime Up to 20,000h
Contrast 500:1
Throw Ratio 1.2
Aspect Ratio 16:9
Lens Offset 100 %
Projection Distance 50 ~ 319cm ( 20" ~ 125" )
Brightness Up to 400 lumens
Focus Manual
Keystone Auto / Manual
Speaker Built-in stereo speakers
Interface HDMI, Audio jack, Pogo pins
Projection Source HDMI, Tablet Unit
Power Adapter 100~240V AC input ,50~60Hz, DC 12V/3.5A
Power consumption 28W (Normal mode)
Dimension (LxWxH) 125 x 95 x 33mm ( 4.92" x 3.74" x 1.30" )
Weight 320g / 0.70 lb
Operating Temperature 5°C – 35°C
Projection Image Size
(Diagonal) 51 ~ 305cm ( 20" ~ 120" )
9
