Thank you for purchasing the MS-6579 (v1.X) M-ATX mainboard. The

MS-6579 mainboard is based on Intel®Brookdale-E GMCH & ICH4 chipsets

for optimal system efficiency. Designed to fit the advanced Intel®Pentium®4

processors in the 478 pin package, the MS-6579 delivers a high performance

and professional desktop platform solution.

TOPICS

Mainboard Specification 1-2

Mainboard Layout 1-4

Quick Components Guide 1-5

Chapter 1

1-2

CPU

Support socket 478 for Intel®Pentium®4 processor

Support socket 478 for Intel®Celeron processor

Support 1.3GHz to 2.8GHz or higher speed P4 processor

Chipset

Intel®Brookdale-E GMCH chipset (593 FCBGA)

- Support FSB 400/533 MHz

- Multiplexed AGP and Intel® DVO port Interface

- Support PC200/266 DDR technology

Intel®ICH4 chipset (421 MBGA)

- 6 ports Hi-Speed USB (USB 2.0) controller, 480MB/sec

- AC97 Codec Supported

- Support both ACPI and legacy APM power management

- Legacy free support

MainMemory

Support four memory banks using two 184-pin unbuffered DIMM

Max. memory size is 2 GB without ECC for 1GB/slot

Support 2.5V DDR DIMM

Slots

One AGP (Accelerated Graphics Port) 4x slot

Three 32-bit Master PCI bus slots

On-Board IDE

Dual IDE controllers integrated in ICH4 chipset provides IDE HDD/CD-

ROM with PIO, Bus Master and Ultra DMA66/100 operation modes

Can connect up to four IDE devices.

Mainboard Specification

Getting Started

1-3

On-Board Peripherals

On-board Peripherals include:

- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 1 serial port (COM A)

- 1 parallel port supports SPP/EPP/ECP mode

- 6 ports USB 2.0 (Rear x 4 / Front x 2)

- 1 Line-In/Line-Out/Mic-In

- 1 RJ-45 LAN jack

- 2 PS/2 ports for keyboard and mouse

Audio

AC97 link controller integrated in ICH4 chipset

2 channels S/W codec ALC 202A

Onboard Amplifier integrated in Philips TDA1517P chip, 3W

LAN

RealtekRTL8101L

BIOS

The mainboard BIOS provides Plug & Play function which detects the

peripherals devices and expansion cards of the board automatically

The mainboard provides a Desktop Management Interface (DMI) function

which records your mainboard specifications

Dimension

M-ATX Form Factor: 245mm x 231mm

Mounting

6 mounting holes

Others

PC 2001 compliant

Support STR/STD

Support PCI 2.2

Chapter 1

1-4

MS-6579 v1.X M-ATX Mainboard

Mainboard Layout

BATT

Intel

ICH4

BIOS

AGPSlot

ATX

PowerSupply

JFP1

S_FAN1

C_FAN1

PRIMAR1

SECON1

JCD1

JSP1

Realtek

RTL8101L

JAUX1

Winbond

W83627HF-AW

Top:Parallel Port

Bottom:COMport

USB

portsJPW1

FDD1

PCI Slot1

PCISlot 3

PCI Slot 2

Top: mouse

Bottom: keyboard

T: LANJack

B:USBports

DIMM1

DIMM2

JBAT1

JPWD1

Intel

Brookdale-E

GMCH

Chipset

Line-Out

Line-In

Mic

Philips

TDA1517P

Getting Started

1-5

Quick Components Guide

Component Function Reference

CONN1 ATX 20-pin power connector See p. 2-7

JPW1 ATX 12V power connector See p. 2-7

JKBMS1 Mouse connector See p. 2-8

JKBMS1 Keyboard connector See p. 2-9

USB Connectors Connecting to USB devices See p. 2-9

COM A Serial port connector See p. 2-10

Audio Connectors Connecting to audio devices See p. 2-10

LPT1 Parallel port connector See p. 2-11

LAN Jack RJ-45 LAN connector See p. 2-12

FDD1 Floppy disk drive connector See p. 2-13

PRIMAR1 & SECON1 Hard disk connectors See p. 2-14

JCD1 CD-in connector See p. 2-15

JAUX1 AUX LINE-in connector See p. 2-15

C_FAN1/S_FAN1 Fan power connectors See p. 2-16

JFP1 Front panel connector See p. 2-17

JUSB1 Front USB connector See p. 2-18

JSP1 Stereo Speaker connector See p. 2-19

JBAT1 Clear CMOS jumper See p. 2-20

JPWD1 Clear BIOS password jumper See p. 2-21

AGP Slot Connecting to AGP card See p. 2-22

PCI Slots Connecting to expansion cards See p. 2-22

Hardware Setup

2-1

Chapter 2. Hardware Setup

TOPICS

Central Processing Unit: CPU 2-2

Memory 2-5

Power Supply 2-7

Back Panel 2-8

Connectors 2-13

Jumpers 2-20

Slots 2-22

Hardware Setup

This chapter provides you with the information about hardware setup

procedures. While doing the installation, be careful in holding the components

and follow the installation procedures. For some components, if you install in

the wrong orientation, the components will not work properly.

Use a grounded wrist strap before handling computer components. Static

electricity may damage the components.

Chapter 2

2-2

Central Processing Unit: CPU

The mainboard supports Intel®Pentium®4 processor in the 478 pin

package. The mainboard uses a CPU socket called PGA478 for easy CPU

installation. When you are installing the CPU, make sure the CPU has a heat

sink and a cooling fan attached on the top to prevent overheating. If you do not

find the heat sink and cooling fan, contact your dealer to purchase and install

them before turning on the computer.

1. Pull the lever sideways away

from the socket. Then, raise

the lever up to a 90-degree

angle.

2. Look for the gold arrow. The

gold arrow should point to-

wards the lever pivot. The

CPU will only fit in the correct

orientation.

3. Hold the CPU down firmly,

and then close the lever to

complete the installation.

CPU Installation Procedures

Overheating will seriously damage the CPU and system,

always make sure the cooling fan can work properly to

protect the CPU from overheating.

WARNING!

Open Lever

Gold Arrow

Sliding

Plate

Lever

Dot

Hardware Setup

2-3

Installing the CPU Fan

As processor technology pushes to faster speeds and higher

performance, thermal management becomes increasingly important. To dissi-

pate heat, you need to attach the CPU cooling fan and heatsink on top of the

CPU. Please note that the following installation procedures are for your reference

only. The actual CPU cooling fan and heatsink that come with your purchase

may be different from the pictures shown below.

2. Position the heatsink onto the re-

tention mechanism.

1. Locate the CPU and its retention

mechanism on the motherboard.

3. Mount the fan on top of the

heatsink. Press down the fan until

its four clips get wedged in the

holes of the retention mechanism.

4. Press the two levers down to

fasten the fan. Each lever can be

pressed down in only ONE

direction.

retention mechanism

levers

Chapter 2

2-4

CPU Core Speed Derivation Procedure

If CPU Clock = 100MHz

Core/Bus ratio = 14

then CPU core speed = Host Clock x Core/Bus ratio

= 100MHzx14

= 1.4GHz

5. Connect the fan power cable from the mounted fan to the 3-pin fan power

connector on the board.

fan power cable

Hardware Setup

2-5

The mainboard provides 2 slots for 184-pin, 2.5V unbuffered DDR DIMM

with 4 memory banks. You can install PC1600/PC2100 DDR SDRAM modules

on the DDR DIMM slots (DDR 1~2). To operate properly, at least one DIMM

module must be installed.

Memory

Introduction to DDR SDRAM

DDR (Double Data Rate) SDRAM is similar to conventional SDRAM,

but doubles the rate by transferring data twice per cycle. It uses 2.5 volts as

opposed to 3.3 volts used in SDR SDRAM, and requires 184-pin DIMM mod-

ules rather than 168-pin DIMM modules used by SDR SDRAM. High memory

bandwidth makes DDR an ideal solution for high performance PC, worksta-

tions and servers.

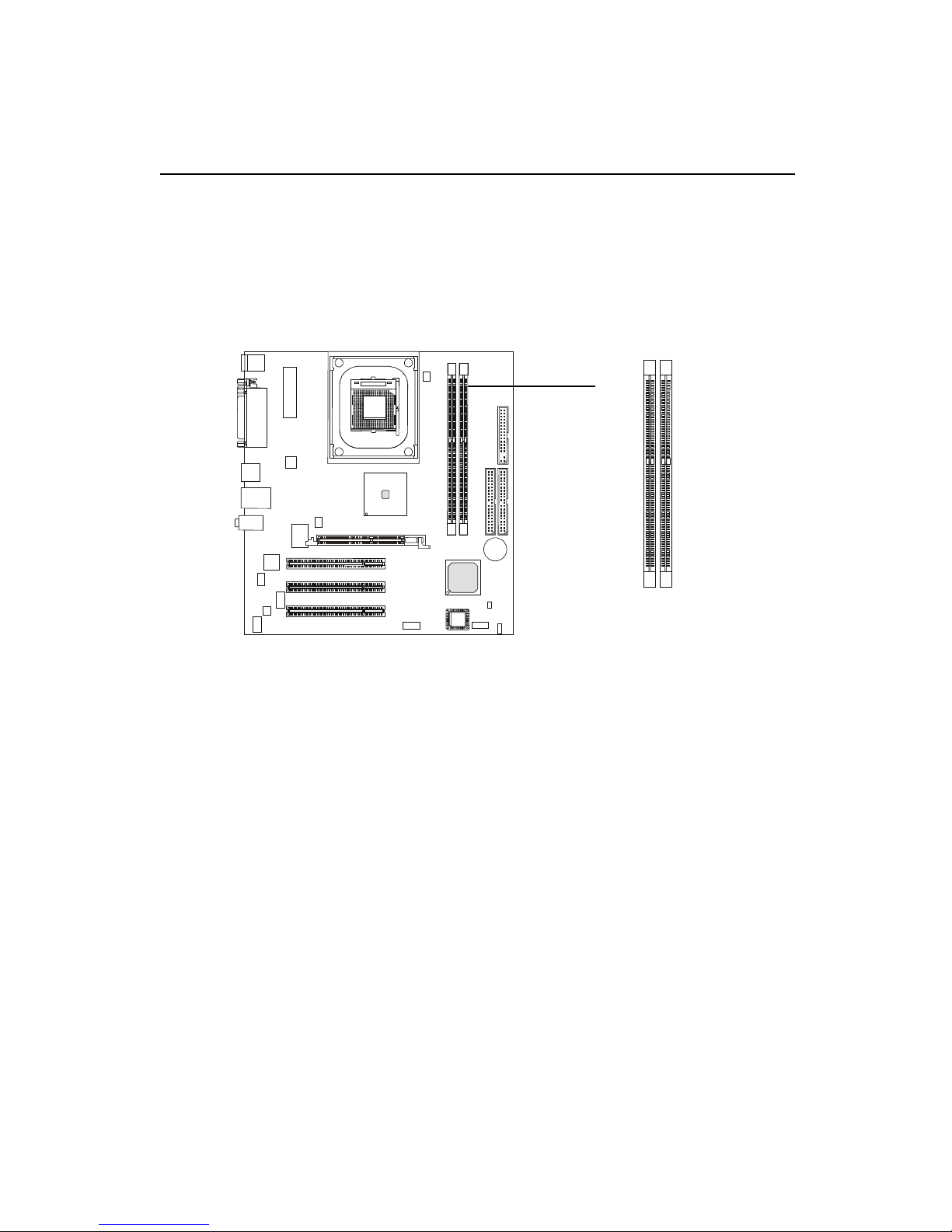

DDR DIMM Slots

(DDR 1~2)
