System Overview HP 16600A Series

System Overview HP 16700A

System Overview HP 16702A

Mouse and Keyboard

Changing Monitors

Proper Cooling

Printers

Software Installation

Monitor Connection

LAN

Monitor Configuration

CD-ROM Drive

HP 16701A Expander Frame

Probing

Self-Test

Specifications & Characteristics

Disaster Recovery

Proper Cleaning

Contents

HP 16600A Series, HP 16700A, HP 16702AHP 16600A Series, HP 16700A, HP 16702A

HP 16522A

HP 16517/18A

General Installations

HP 16533/34A

HP 16550A

HP 16557D

HP 16710/11/12A

HP 16715/16/17/18/19A

HP E2485A

Measurement ModulesMeasurement Modules

External Disk Drive 17

CD-ROM Drive & External Disk Drive

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

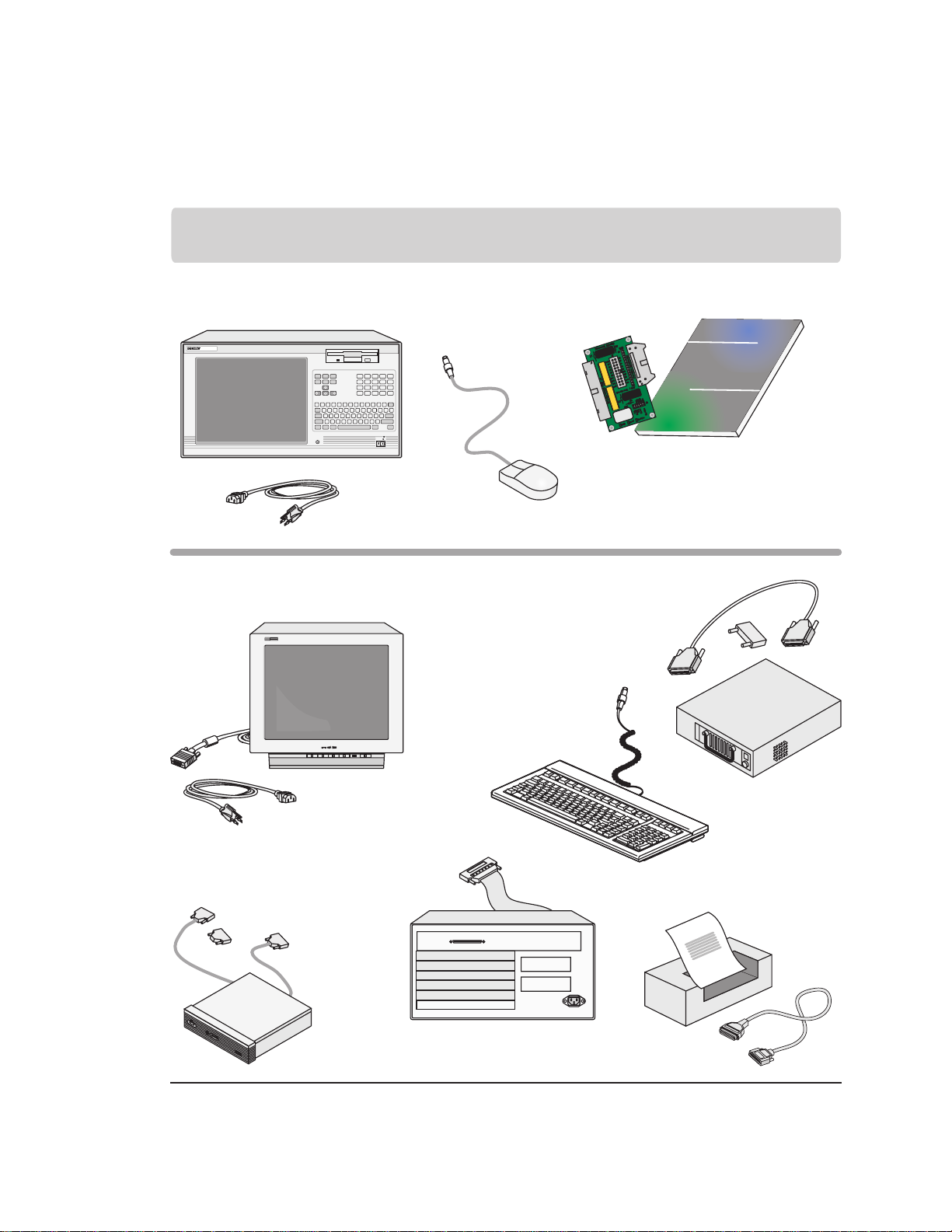

Making Basic

Measurements

Additional Connections

Keyboard and Mouse

General Purpose

Probes

CD-ROM Drive

(Required for

software updates

or install.)

Printer and Cable

HP 16600A Series Mainframe

(HP 16600A shown)

Power Cable

(If ordered)

Monitor

Monitor Cable

Monitor Power Cable

16allp03

Training Kit and Demo Board

HP 16600A Series

HP 16600A Series OverviewHP 16600A Series Overview

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Additional Connections

Keyboard and Mouse

Printer and

Cable

Power Cable

Power

Busy

16700A

LogicAnalysis System

HP 16701A

Expander Frame

16allp04

CD-ROM Drive

(Required for

software updates

or install.)

External

Disk Drive (Data)

and Cable

Making Basic

Measurements

(If ordered)

Monitor

Monitor Cable

Monitor Power Cable

HP 16700A

Mainframe

HP 16700A

HP 16700A OverviewHP 16700A Overview

Training Board and Training Kit

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Additional Connections

Keyboard

Printer and

Cable

HP 16702A

Mainframe

HP 16701A

Expander Frame

16allp05

CD-ROM Drive

(Required to

install software.)

Monitor

Monitor Cable and

Monitor Power Cable

(If ordered)

Making Basic

Measurements

Mouse and

Power Cable

Power

Busy

16702A

LOGICANALYSIS SYSTEM

Insert

Delete

Page

Down

Home

End

INTENSITY POWER

BUSY

HP 16702A

HP 16702A OverviewHP 16702A Overview

Training Board and

Training Kit

External

and Cable

Disk Drive (Data)

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Keyboard

Mouse

Keyboard Mouse

RS 232 Monitor Parallel Printer

LAN

10Base-T

SCSI-2 Single Ended

LAN

10Base2

Target

Control

Out - Port - In

To 16701 Expansion FrameTo 16701 Expansion Frame

Target

Control

Target

Control

Keyboard Mouse

HP 16700A

HP 16702A

HP 16600A Series Frame

16allp06

HP 16600A Series/ HP 16700A/ HP 16702A

Mouse and KeyboardMouse and Keyboard

The HP 16600A series and the

HP 16700A must have the

system mouse and keyboard

installed for the system to boot

up properly. (The HP 16702A

requires only a mouse installed.)

Once enabled on the LAN, the

system can be operated remotely

without a keyboard or mouse.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

To 16701 Expansion FrameTo 16701 Expansion Frame

Target

Control

Target

Control

Keyboard Mouse

Power Cable

HP 16700A

HP 16702A

HP 16600A Series Mainframe Power Cable

16allp07

Keyboard Mouse

RS 232 Monitor Parallel Printer

LAN

10Base-T

SCSI-2 Single Ended

LAN

10Base2

Target

Control

Out - Port - In

If applicable, international

versions of the power

cables can be found in the

accessories box.

Monitor & Power Cable

(Optional for HP 16702A)

Monitor ConnectionMonitor Connection

HP 16600A Series/ HP 16700A/ HP 16702A

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Power

Busy

Power

Busy

16700A

Logic Analysis System

Power

Busy

Allow a minimum of 5 cm spacing between instruments for proper cooling.

16allp08

Power

Busy

Power

Busy

16702A

LOGICANALYSIS SYSTEM

Insert

Delete

Page

Down

Home

End

INTENSITY POWER

BUSY

HP 16600A Series

>5cm >5cm

>5cm

HP 16700A

HP 16702A

Proper CoolingProper Cooling

HP 16600A Series/ HP 16700A/ HP 16702A

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

16allp09

Enter

Selection made and

"Y" to confirm.

Monitor power

(Cycling choices)

System power

If you ordered the optional monitor with your logic analyzer, the monitor resolution setting is

pre-configured for 1280 x 1024 at the factory.

If you already have a monitor and ordered your logic analysis system without the optional

monitor, you will need to configure your monitor. The display will change on the screen every

few seconds as the system cycles through the monitor resolution choices. Make the

appropriate selection when it appears.

(Your monitor)

16700A

LogicAnalysis System

Power

Busy

HP 16600A Series

HP 16700A

HP 16600A Series and HP 16700A

Monitor ConfigurationMonitor Configuration

Monitor choice.

Clear

Images

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
