HP OAP Cards

User Guide

Part number: 5998-1600

Document version: 5PW100-20110316

Legal and notice information

No part of this documentation may be reproduced or transmitted in any

form or by any means without prior written consent of Hewlett-Packard

Development Company, L.P.

The information contained herein is subject to change without notice.

HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY

KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be

liable for errors contained herein or for incidental or consequential

damages in connection with the furnishing, performance, or use of this

material.

The only warranties for HP products and services are set forth in the

express warranty statements accompanying such products and services.

Nothing herein should be construed as constituting an additional

warranty. HP shall not be liable for technical or editorial errors or

omissions contained herein.

Contacting HP

For worldwide technical support information, see the HP support website:

http://www.hp.com/support

Before contacting HP, collect the following information:

•Product model names and numbers

•Technical support registration number (if applicable)

•Product serial numbers

•Error messages

•Operating system type and revision level

•Detailed questions

Subscription service

HP recommends that you register your product at the Subscriber's Choice

for Business website:

http://www.hp.com/go/e-updates

After registering, you will receive e-mail notification of product

enhancements, new driver versions, firmware updates, and other product

resources.

Warranty

The Hewlett-Packard Limited Warranty Statement for this product and the

HP Software License Terms which apply to any software accompanying

this product are available on the HP networking Web site at

www.hp.com/networking/warranty.The customer warranty support

and services information are available on the HP networking Web site at

www.hp.com/networking/support. Additionally, your HP-authorized

network reseller can provide you with assistance, both with services that

they offer and with services offered by HP.

Documentation

For the latest documentation, visit the HP website, www.hp.com, and

select the Support & Troubleshooting link.

•Choose See support and troubleshooting information radio button

•Enter product name/number OR choose the automatic product

name/number detection OR select a product category

•From the product page, choose Manuals link to see the documentation

associated with your product.

Contents

Overview···········································································································1

Hardware of the OAP card ·············································································2

Appearance······································································································ 2

Front panel········································································································ 3

Appearance ····························································································· 3

Description of the LEDs ··········································································· 3

Management Ethernet port····································································· 4

Hardware specifications ················································································· 5

Installing an OAP card·····················································································6

Installing and removing an OAP card ··························································· 6

Connecting the management Ethernet port cable ······································10

Verifying the installation················································································10

Overview

The Open Application Platform (OAP) cards are developed based on the

Open Application Architecture (OAA) by HP.

An OAP card has an independent CPU and memory card (CF card), and

it can load various service software. After you install an OAP card in a

switch, the switch can provide security, management, and wireless

communication applications flexibly and rapidly besides basic data

forwarding functions. In this way, multiple kinds of applications are

implemented on the same device, facilitating network and service

deployment and reducing overall cost at the same time.

The firewall card and access controller module are two types of OAP

cards. For more information, see Table 1.

Table 1 Introduction to the firewall card and access controller module

Model Name Functions

LSWM1FW1

0 (JD255A)

Firewall

card

Besides the traditional firewall functions, a firewall

card supports virtual firewall, security zone, attack

defense, and P2P flow control, thus effectively

ensuring network security; supports multiple VPN

services, such as IPsec VPN, thus allowing you to

build various VPNs; supports multiple routing

protocols, such as RIP, OSPF and BGP, thus

providing abundant routing capabilities. Using a

firewall card, a switch can implement security

functions, such as firewall and VPN, to ensure

network security.

LSWM1WC

M10

(JD441A and

JG261A)

Access

controller

module

An access controller (AC) module can provide

large-scale access point (AP) management and

user access services, support wireless standards

including 802.11a/b/g, 802.11n, 802.11i,

802.11e and 802.11h, and provide perfect

security, QoS, roaming, and RF management

mechanisms.

Hardware of the OAP card

The firewall card and access controller module are similar in hardware

structure and appearance, except that the product model marked on the

front panel and the loaded software of the cards are different. The

following hardware introduction is made on a firewall card.

Appearance

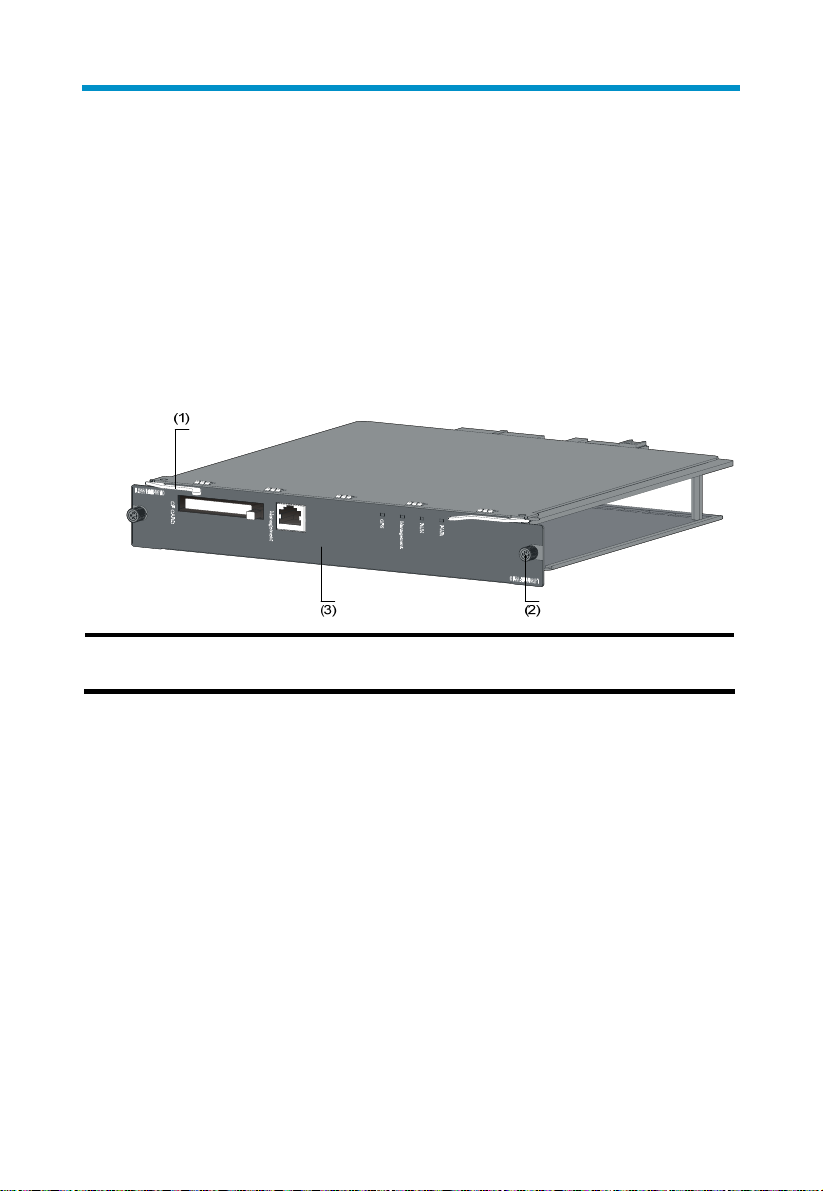

Figure 1 OAP card appearance

(1) Ejector lever (2) Fastening screw (captive

screw)

(3) Front panel of the

OAP card

Front panel

Appearance

Figure 2 Front panel of an OAP card

(1) CF card interface (2) Management Ethernet port

(3) CF card status LED (CFS) (4) Management Ethernet port status LED

(Management)

(5) System status LED (RUN) (6) PWR LED

Description of the LEDs

The front panel of an OAP card provides four LEDs, including PWR, RUN,

CFS, and Management.

Table 2 Description of the LEDs provided on the front panel of the OAP card

LED Color Status Description

Steady

green

The power system of the OAP card

works properly.

Steady red The power system of the OAP card is

faulty.

PWR LED Green/red

Off

No power supply to the OAP card.

If you install an OAP card to a switch

working properly but the PWR LED is

off, check whether the OAP card is

well connected.

LED Color Status Description

Slowly

blinking (1.5

Hz)

The system works properly.

Fast blinking

(6 Hz)

The system is starting up/loading

software.

System

status LED

(RUN)

Green

Off

The system works abnormally or the

system is reset.

When the system is reset, the RUN

LED is off; when the system is starting

up, the RUN LED fast blinks; when

the system completes startup and

works properly, the RUN LED blinks

slowly.

Steady

green

The CF card is normal, and no

read/write operation is performed.

Blinking

green

The CF card is normal, and a

read/write operation is performed.

CF card

status LED

(CFS)

Green

Off No CF card is in the slot.

Steady

green

A 1000 Mbps link is present, but no

data is being received/transmitted.

Blinking

green

Data is being received/transmitted

at 1000 Mbps.

Steady

yellow

A 10/100 Mbps link is present, but

no data is being

received/transmitted.

Blinking

yellow

Data is being received/transmitted

at 10/100 Mbps.

Manageme

nt Ethernet

port status

LED

(Manageme

nt)

Green/Yel

low

Off No link is present.

Management Ethernet port

The front panel of an OAP card provides one management Ethernet port,

which can work without being affected by the working status of the

switching chip. Typically, a management Ethernet port is used to connect

a PC for loading system programs or debugging, or connect the remote

network management station for implementing remote system

management.

Table 3 Management Ethernet port specifications

Item Specification

Connector type RJ-45

Transmission rate 10/100/1000 Mbps, half/full duplex

Transmission medium and

maximum transmission

distance

Category-5 twisted pair cable that supports a

maximum transmission distance of 100 m (328.08

ft)

Services Upgrade of host software and BootWare, network

management.

Hardware specifications

Table 4 OAP card hardware specifications

Item Specification Remarks

CPU MIPS, eight cores, 1

GHz —

Memory 2 GB

Avoid replacing the memory by

yourself to prevent damage to the OAP

card.

Number of

CF card

interfaces

on an OAP

card and

the

supported

specificatio

Provides one CF card

interface and one 1

GB CF card when

shipped.

Supports a CF card

with a maximum

capacity of 1 GB.

To replace a CF card, make sure

that the new CF card can

accommodate the software to be

loaded.

For how to load and upgrade

software version of the OAP card,

see the related documents.
