Hoshizaki KML-450MAF Manuel utilisateur

NO.

AUG. 30, 1999

ISSUED:

71149

HOSHIZAKI

MODULAR CRESCENT CUBER

MODELS

KML-450MAF

KML-450MWF

KML-450MAH

KML-450MWH

PARTS LIST

APRIL 4, 2001

REVISED:

KML-450MAF J-0 Jan., 1999

K-0 Dec., 1999

L-0 Dec., 2000

KML-450MWF J-0 Jan., 1999

K-0 Dec., 1999

L-0 Dec., 2000

KML-450MAH L-0 March, 2001

L-1 March, 2001

KML-450MWH L-0 March, 2001

HA MATERIALABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PETP = Polyethylene terephthalate = Tetlon

PP = Polypropylene

PS = Polystyrene

PIFE = Polytetrafluoroethylene = Teflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARYCODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by interchangeable "o" part.

skipped. So, "K" indicates "2000".

o = New part for "x"

Ex.2 L

-0

in the same auxiliary code.

"L" is the next in alphabetical

order. So, "L" indicates "2001".

Ex.3

L-1

Each time a part is replaced by a non-interchangeable

part during a year, this number advances.

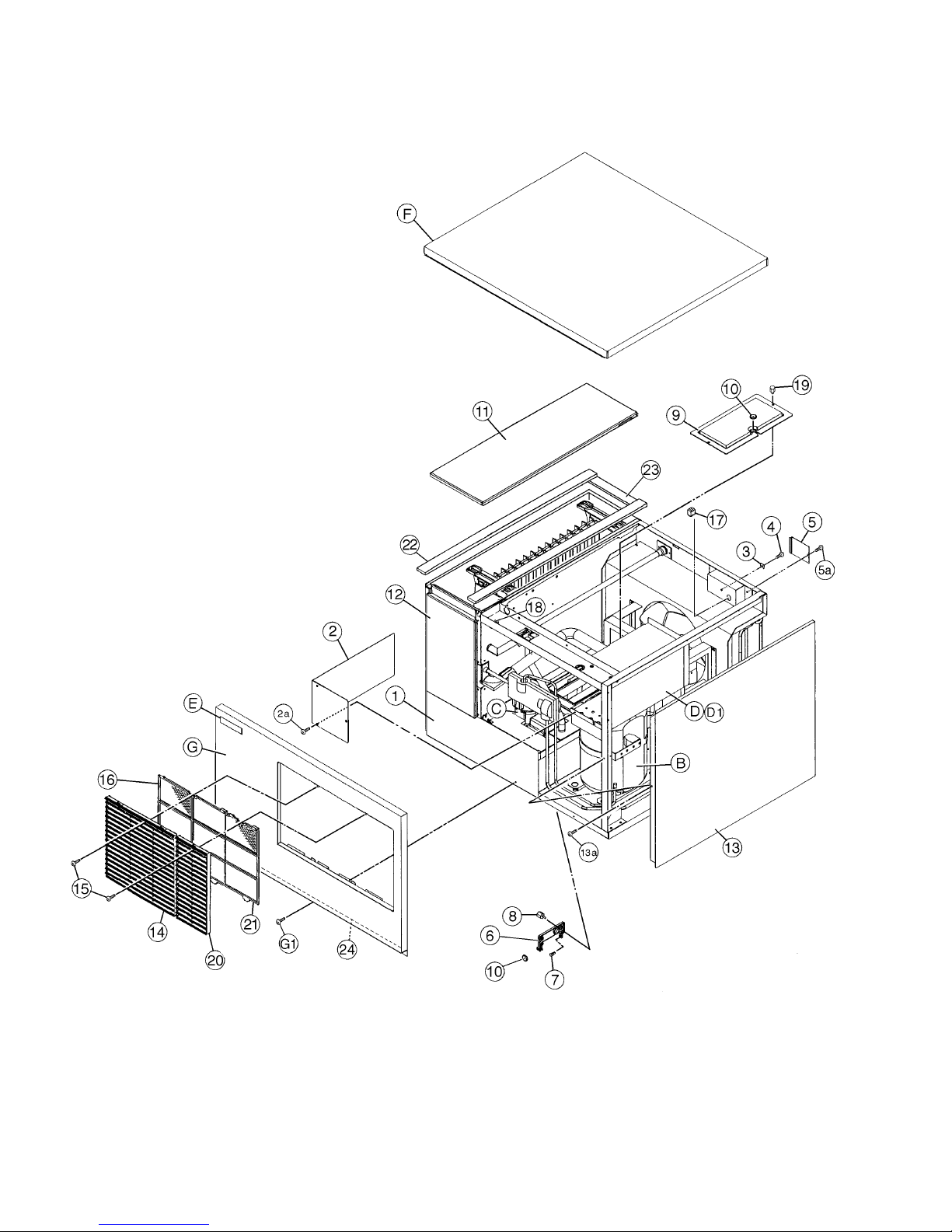

KML-450MAF A. ICE CUBER ASSEMBLY J-0, K-0, L-0

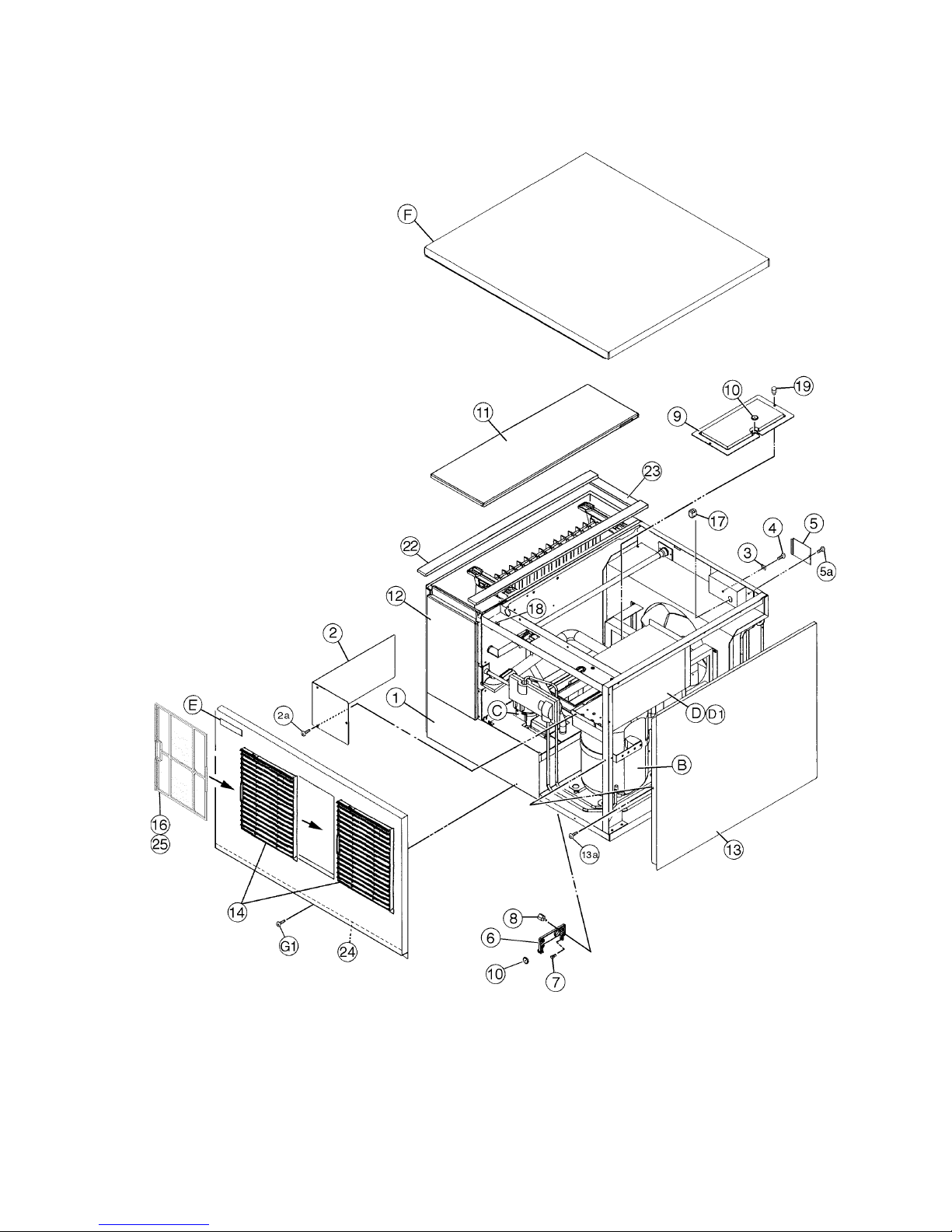

KML-450MAH A. ICE CUBER ASSEMBLY L-0, L-1

MODEL: KML-450MAF, KML-450MAH TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL OR

MODEL PART

NUMBER REQUIRED NUMBER

NUMBER MAF MAH

J-0

K-0

L-0 L-0 L-1

B REFRIGERATION CIRCUIT - 1A0412A01 1 1 1 1

C WATER CIRCUIT - 1A0438A01 1 1 1 1

D CONT. BOX ASSEMBLY - 2A1519A01 1 1

- 2A2154A01 1 1

D1 T2 SCREW 4X8 7P31-0408 3 3 3 3

E LABEL LOCATION - 3A1339A01 1 1

- 3A1922A01 1 1

F TOP PANEL ASSEMBLY - 3A0674A01 1 1

- 3A1862A01 1 1

G FRONT PANEL - 3A1273A01 1 1

- 3A1859A01 1 1

G1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 1 1 1 1

1 EVAP. CASE HS-1014 2A1449G01 1 1

- 2A2113G01 1 1

2 CONT. BOX COVER GS 3A0594-01 1 1

GS 3A1828-01 1 1

2a T2 SCREW 4X8 7P31-0408 3 3 3 3

3 SQUARE WASHER BRASS 433537-02 1 1 1 1

4 SCREW - GROUNDING BRASS 433304-02 1 1 1 1

5 JUNCTION BOX COVER GS 433410-01 1 1 1 1

5a T2 SCREW 4X8 7P31-0408 1 1 1 1

6 THERMOSTAT EXTENSION BRACKET SS 4A1722-01 1 1 1 1

7 SPACER PE 443545-01 1 1 1 1

8 THUMBSCREW SS, ABS 415949G03 2 2 2 2

9 BIN CONT. COVER GS 3A0664G01 1 1 1 1

10 CAPILLARY RING EP RUBBER 425307-01 2 2 2 2

11 TOP INSULATION PP 215730G01 1 1 1 1

12 FRONT INSULATION PP 2A0664G01 1 1 1 1

MODEL: KML-450MAF, KML-450MAH TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL OR

MODEL

NUMBER

PART

NUMBER REQUIRED NUMBER

MAF MAH

J-0

K-0

L-0 L-0 L-1

13 SIDE PANEL (R) SS 2A1456G01 1 1

SS 2A2111G01 1 1

13a T2 SCREW 4X8, SS 7P32-0408 1 1 1 1

14 LOUVER (B) ABS 103121-05 1 1

- 1A0548-01 2 2

15 TAPPING SCREW (BLACK) STEEL, 4X8 433954-01 2 2 -

16 AIR FILTER (B) ABS 208283G03 1 1

- 2A2063G01 2 2

17 BUSHING SR-34-2 420472-05 1 1 1 1

18 WIRE SADDLE VWS4238-C 4A0338-02 2 2 2 2

19 THUMBSCREW SS, ABS 415949G04 2 2 2 2

20 LOUVER (C) ABS 103122-03 1 1 -

21 AIR FILTER (C) ABS 208284G01 1 1 -

22 GASKET L=655 4A0808L02 2 2 2 2

23 GASKET L=190 4A0808L02 1 1 1 1

24 GASKET L=762 4A0808L02 1 1 1

25 PUSH RETAINER - 4A2414-01 6 6

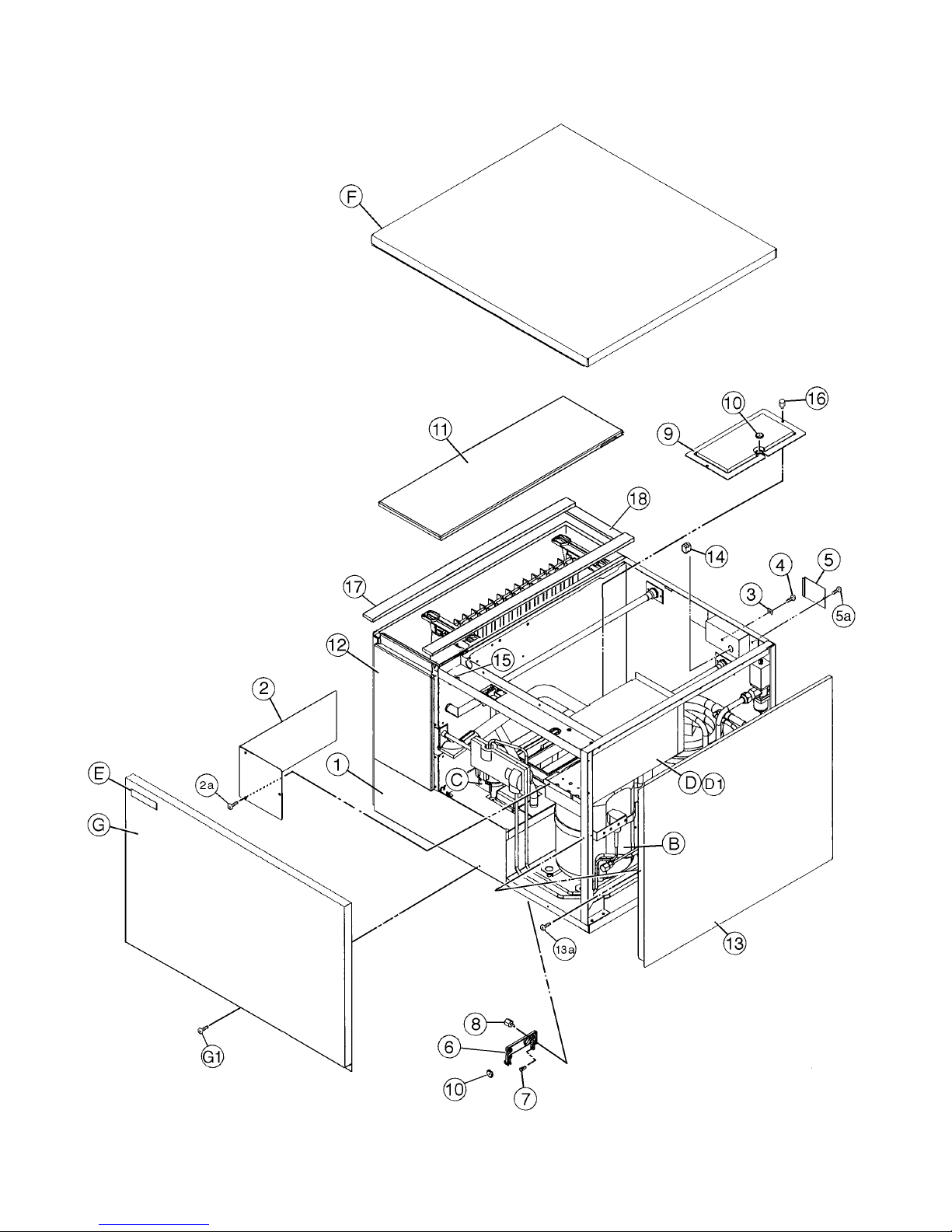

KML-450MWF, MWH A. ICE CUBER ASSEMBLY J-0, K-0, L-0

MODEL: KML-450MWF, KML-450MWH TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER MWF MWH

J-0

K-0

L-0 L-0

B REFRIGERATION CIRCUIT - 1A0413A02 1 1 1

C WATER CIRCUIT - 1A0438A01 1 1 1

D CONT. BOX ASSEMBLY - 2A1519A02 1 1

- 2A2154A02 1

D1 T2 SCREW 4X8 7P31-0408 3 3 3

E LABEL LOCATION - 3A1341A01 1 1

- 3A1923A01 1

F TOP PANEL ASSY - 3A0674A01 1 1

- 3A1862A01 1

G FRONT PANEL - 3A1273A02 1 1

- 3A1859A02 1

G1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 2 2 2

1 EVAP. CASE HS-1014 2A1449G01 1 1

- 2A2113G01 1

2 CONT. BOX COVER GS 3A0594-01 1 1

GS 3A1828-01 1

2a T2 SCREW 4X8 7C31-0408 3 3 3

3 SQUARE WASHER BRASS 433537-02 1 1 1

4 SCREW - GROUNDING BRASS 433304-02 1 1 1

5 JUNCTION BOX COVER GS 433410-01 1 1 1

5a T2 SCREW 4X8 7P31-0408 1 1 1

6 THERMOSTAT EXTENSION BRACKET SS 4A1722-01 1 1 1

7 SPACER PE 443545-01 1 1 1

8 THUMBSCREW SS, ABS 415949G03 2 2 2

9 BIN CONT COVER GS 3A0664G01 1 1 1

10 CAPILLARY RING EP RUBBER 425307-01 2 2 2

11 TOP INSULATION PP 215730G01 1 1 1

12 FRONT INSULATION PP 2A0664G01 1 1 1

MODEL: KML-450MWF, KML-450MWH TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQUIRED NUMBER

NUMBER MWF MWH

J-0

K-0

L-0 L-0

13 SIDE PANEL (R) SS 2A1456G01 1 1 1

SS 2A2111G01 1

13a T2 SCREW 4X8, SS 7P32-0408 1 1 1

14 BUSHING SR-30-1 420472-03 1 1 1

15 WIRE SADDLE VWS4238-C 4A0338-02 2 2 2

16 THUMBSCREW SS, ABS 415949G04 2 2 2

17 GASKET L=655 4A0808L02 2 2 2

18 GASKET L=190 4A0808L02 1 1 1
