Hoshizaki F-250BAE Manuel utilisateur

NO.NO. U2MC-1564U2MC-1564

ISSUED: APR. 13, 1994ISSUED: APR. 13, 1994

FINAL: DEC. 2, 2003FINAL: DEC. 2, 2003

HOSHIZAKIHOSHIZAKI

SELF-CONTAINED FLAKERSELF-CONTAINED FLAKER

PARTS LISTPARTS LIST

MODELMODEL

F-250BAEF-250BAE

D-1D-1 MAYMAY 19941994

D-2D-2 JUN.JUN. 19941994

E-0E-0 JAN.JAN. 19951995

E-1E-1 APR.APR. 19951995

F-0F-0 DEC.DEC. 19951995

G-0G-0 DEC.DEC. 19961996

H-0H-0 DEC.DEC. 19971997

H-1H-1 FEB.FEB. 19981998

FINALFINAL

MATERIAL ABBREVIATIONS

PLASTIC

ABS =Acrylonitrile-butadien-styrene

AC =Polyacetal

EVA =Ethylene vinyl acetate

PA =Polyamide = Nylon

PC =Polycarbonate

PE =Polyethylene

PES =Polyester

PETP =Polyethylene terephthalate = Tetlon

PF =Phenol-formaldehyde

PP =Polypropyleneoride

PS =Polystyrene

PTFE =Polytetrafluoroethylene = Teflon

PUR =Polyurethane

PVC =Polyvinyl chloride

RUBBER

EPDM =EP rubber

NBR =Nitrile butadiene rubber

NR =Natural rubber

SI.R =Silicone rubber

SY.R =Synthetic rubber

STEEL

G.S =Galvanized steel

S.S =Stainless steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding year.

"K" is the tenth in alphabetical order with "I" skipped.

So, "K" indicates "2000".

Ex.2 A-1

"A" is the first in alphabetical order.

So, "A" indicates "2001".

Ex.3 A-2

Each time a part is changed in a year, this number advances.

(Note) = Part deleted.

X = Part deleted and replaced by "O" part.

O = New part for "X" in the same auxiliary code.

FASTENER ABBREVIATION LIST

ST Phillips Truss Head Machine Screw

SP Phillips Pan Head Machine Screw

SF Phillips Flat Head Machine Screw

SS Phillips Pan Head Machine Screw with Split Lock Washer

SW Phillips Pan Head Machine Screw with Split Lock Washer

and Flat Washer

T1 Phillips Truss Head Tapping Screw (Correspond to Type A)

T2 Phillips Truss Head Tapping Screw (Correspond to Type B)

T3 Phillips Truss Head Tapping Screw (Correspond to Type C)

FT Phillips Truss Head Tapping Screw (Special)

BH Hexagon Head Bolt

BC Socket Head Cap Screw

BS Hexagon Bolt with Split Washer

BW Hexagon Bolt with Split Washer and Flat Washer

BF Hexagon Flange Bolt

BR Cross-Recessed Hexagon Head Bolt

BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer

and Flat Washer

WL Split Lock Washer

WT External Tooth Washer

WF Flat Washer

WS Spring Washer

NH Hexagon Nut

NF Hexagon Flange Nut

NC Hexagon Cap Nut

NS Square Nut

NW Wing Nut

Ex. ST0308S (Phillips Truss Head Machine Screw,

3x8, made of stainless steel)

Material None: Plated Steel

Length (mm) S: Stainless Steel

Nominal Diameter (mm) B: Brass

Form of Head P: Plastic

Description

(Note) Second character is numerical except the list.

Ex. S1, S2, B3 etc.

And abbreviations and names are shown under the illustration.

MODEL

F-250BAE

TITLE

A. ICE FLAKER ASSY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQ'D NUMBER

NUMBER

D-1D-2

E-0E-1

F-0

G-0

H-0

H-1

BEVAPORATOR ASSY -320291A03 1x 1

-320291A04 o 1 1

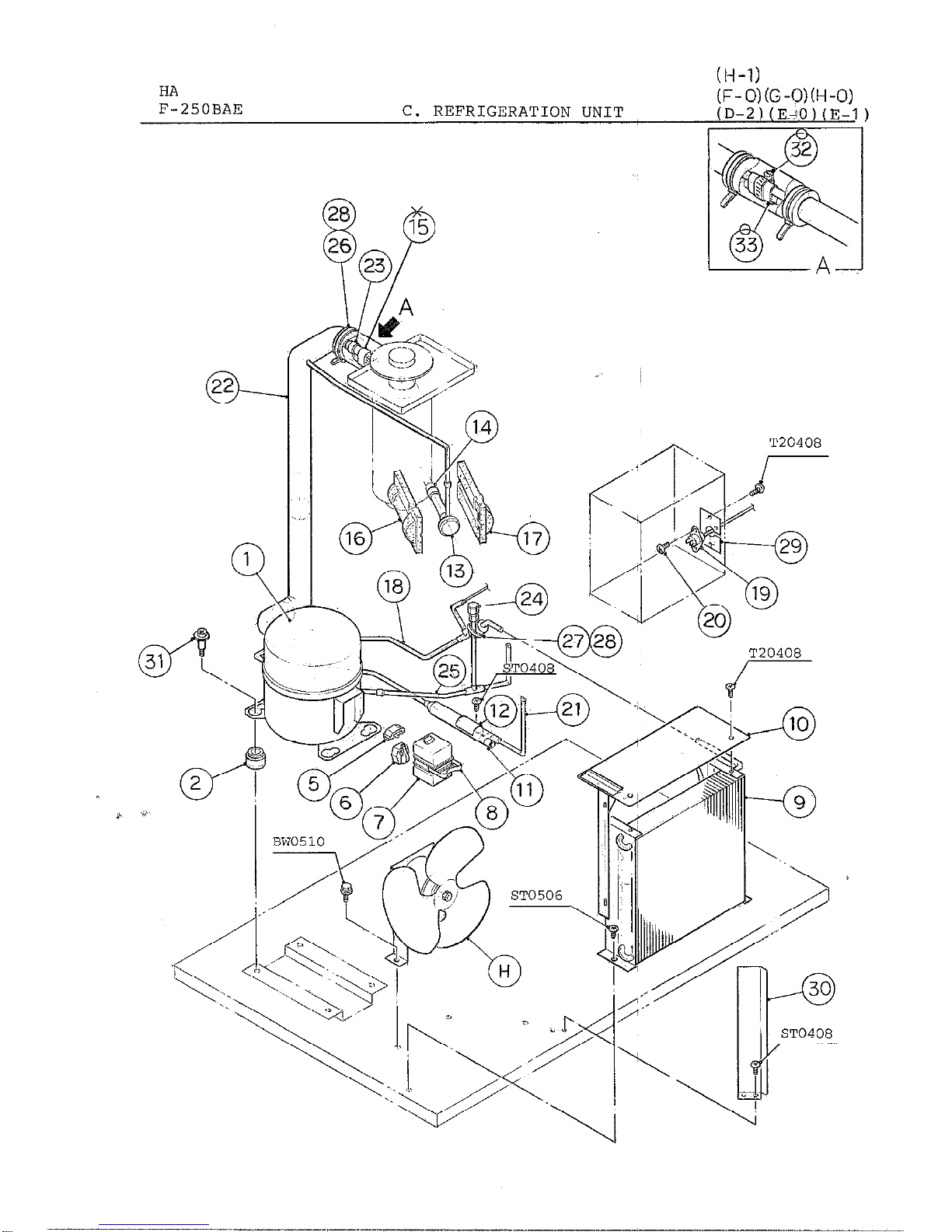

CREFRIGERATION UNIT -107029A01 1111

DWATER CIRCUIT -103324A03 1111

ECOVER ASSY -BIN TOP -317056A01 1111

FCONTROL BOX ASSY -221365A01 1111

GLABEL LOCATION -221367A01 1x 1

-221367A02 o 1 1

1CHASSIS G.S 103322G02 1111

2BRACKET -GEAR MOTOR S.S 427226-01 1111

3WASHER PVC 425206-01 3333

4BRACKET -EVAPORATOR S.S 317055-01 1111

5PACKING -CYLINDER EPDM 427151-01 1111

6SPOUT PC 208791-01 1111

7PACKING (A) -SPOUT EPDM 427152-01 1111

8THUMBSCREW S.S, ABS 415949G03 7777

9SPOUT (B) ABS 208792-01 1111

10 PACKING (B) -SPOUT EPDM 427153-01 1111

11 BIN -FOAMED -208793G01 1111

12 BRACKET -FLOAT SWITCH LEADS G.S 427165-01 1111

13 BUSHING SR-30-1420472-03 2222

14 BUSHING SR-7K-2420472-02 1111

15 BARRIER G.S 317060-01 1111

16 BARRIER -LEADS G.S 427166-01 1111

17 REAR PANEL G.S 208797-01 11x 1

G.S 228251G01 o 1 1

18 SIDE PANEL (RIGHT) S.S 208798G01 111

19 SIDE PANEL (LEFT) S.S 208799G03 111

20 FRAME S.S 317061-03 111

21 EDGING CE-010-S425931-04 111

22 BRACKET -FRONT PANEL S.S 317062-01 111

MODEL

F-250BAE

TITLE

A. ICE FLAKER ASSY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQ'D NUMBER

NUMBER

D-1

D-2

E-0E-1

F-0

G-0

H-0

H-1

23 FRONT PANEL (RIGHT) S.S 317063G04 1111

24 SLIDING DOOR (B) -317066A03 111

25 TOP PANEL S.S 208800G01 11x 1

S.S 228415G01 o 1

26 FRONT PANEL (LEFT) S.S 103326G03 111

27 LOUVER (A) PP 103344-01 11x 1

PP 113344-08 o 1

28 AIR FILTER (A) PP 208840G01 111

29 TAPPING SCREW ( BLACK) STEEL,4x8 433954-01 111

30 POWER SUPPLY CORD KP-30B 421824-01 111

NAD-09 418074-05 11x 1

31 CLAMP

NAD-09 418074-05 o 2

32 PACKING -BIN EPDM 428186-01 111

33 HANDLE -DOOR ABS 444301-02 111

MODEL

F-250BAE

TITLE

B. EVAPORATOR ASSY

INDEX

NO.

DESCRIPTION

MATERIAL OR

MODEL

PART

NUMBER

REQ'D NUMBER

NUMBER

D-1

D-2

E-0E-1

F-0

G-0

H-0

H-1

1GEAR MOTOR TC1125,

120V 80W

2U0105-01 1x 1

TC1148,

120V 80W

2U0146-01 x1

TC1185,

120V 80W

2U0147-01 o 1

2COUPLING -SPLINE S.S 418316-01 111

3HOUSING COPPER ALLOY 206013G03 111

4"O" RING G40 7616-G040 111

5MECHANICAL SEAL HK9A-MS 432491-01 111

6RING (B) S.S 432494-01 111

7AUGER S.S 328527G01 11x1

S.S 341446G01 o 1

8EVAPORATOR -317046G03 111

9EXTRUDING HEAD / 45F S.S 327140G01 111

10 WASHER S.S 427138-01 333

11 SOCKET HEAD CAP SCREW S.S,M8x14 429121-01 333

12 CUTTER S.S 427137-01 111
